VTSC Вертикальный трехфазный разделитель, управляемый с ПК

11.1.11.- ФИЛЬТРАЦИЯ, СЕДИМЕНТАЦИЯ И СМЕШИВАНИЕ
COMPUTER CONTROLLED VERTICAL THREE-PHASE SEPARATOR - VTSC

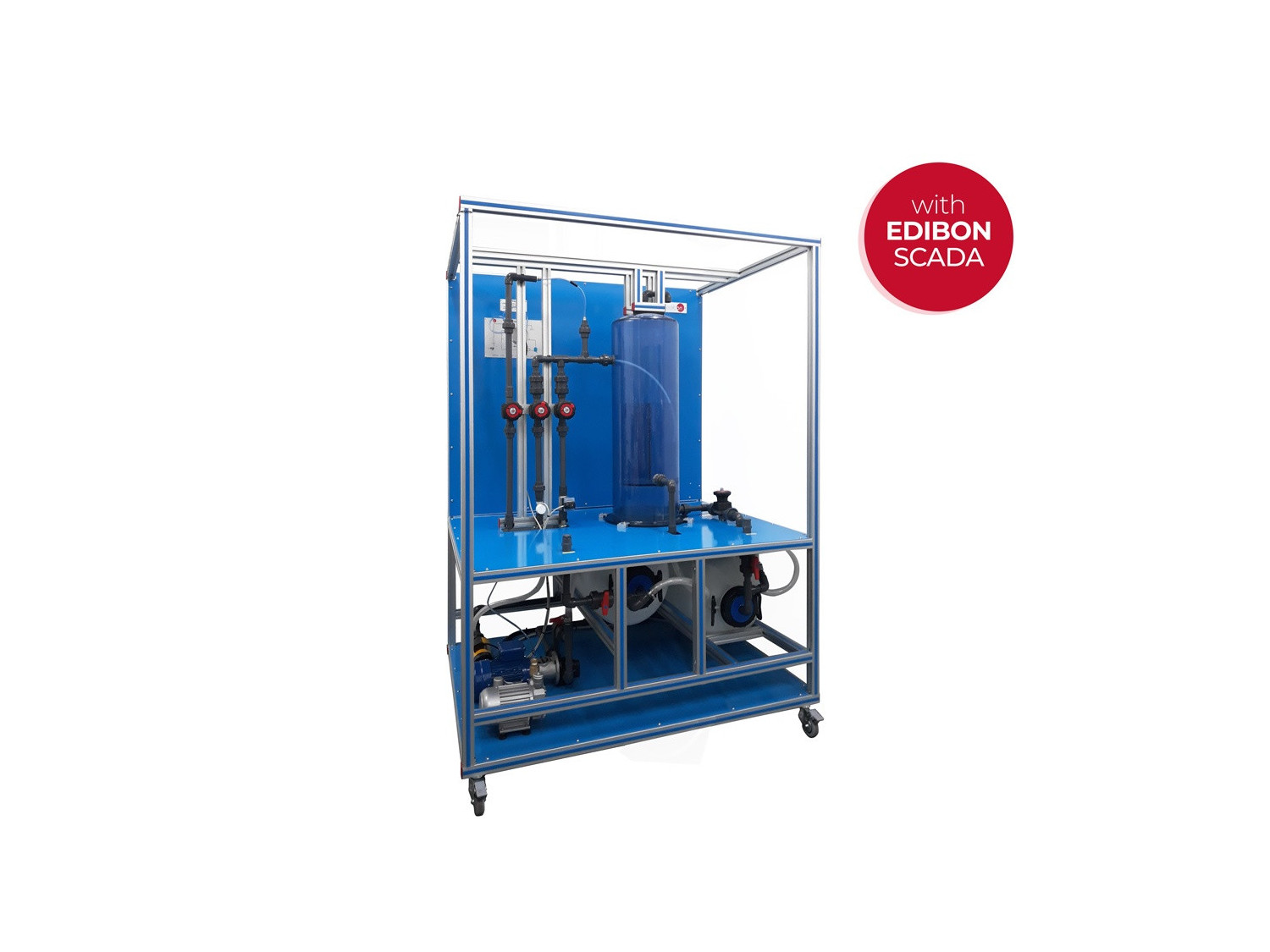

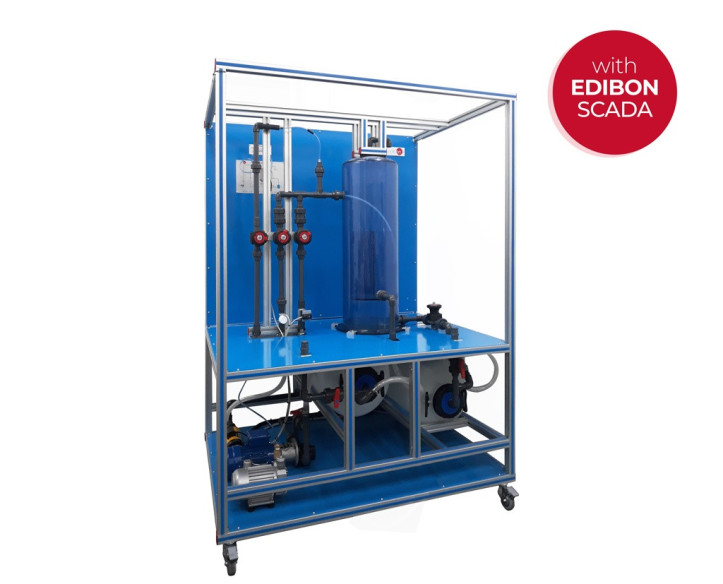

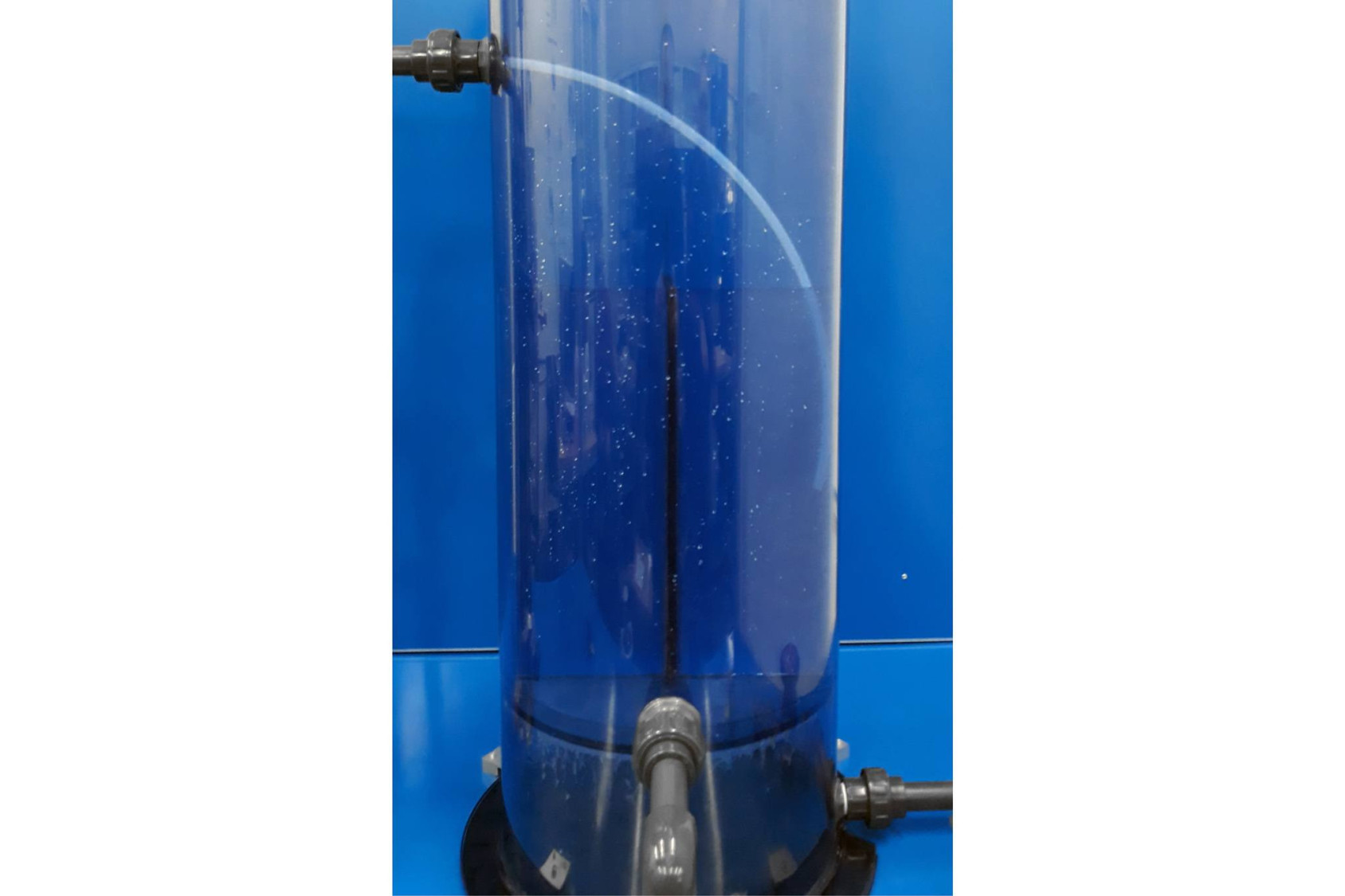

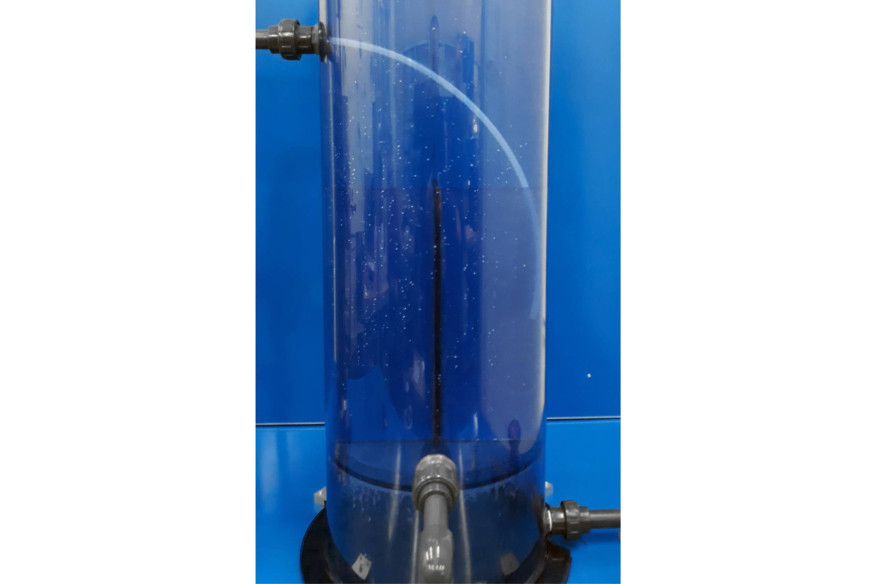

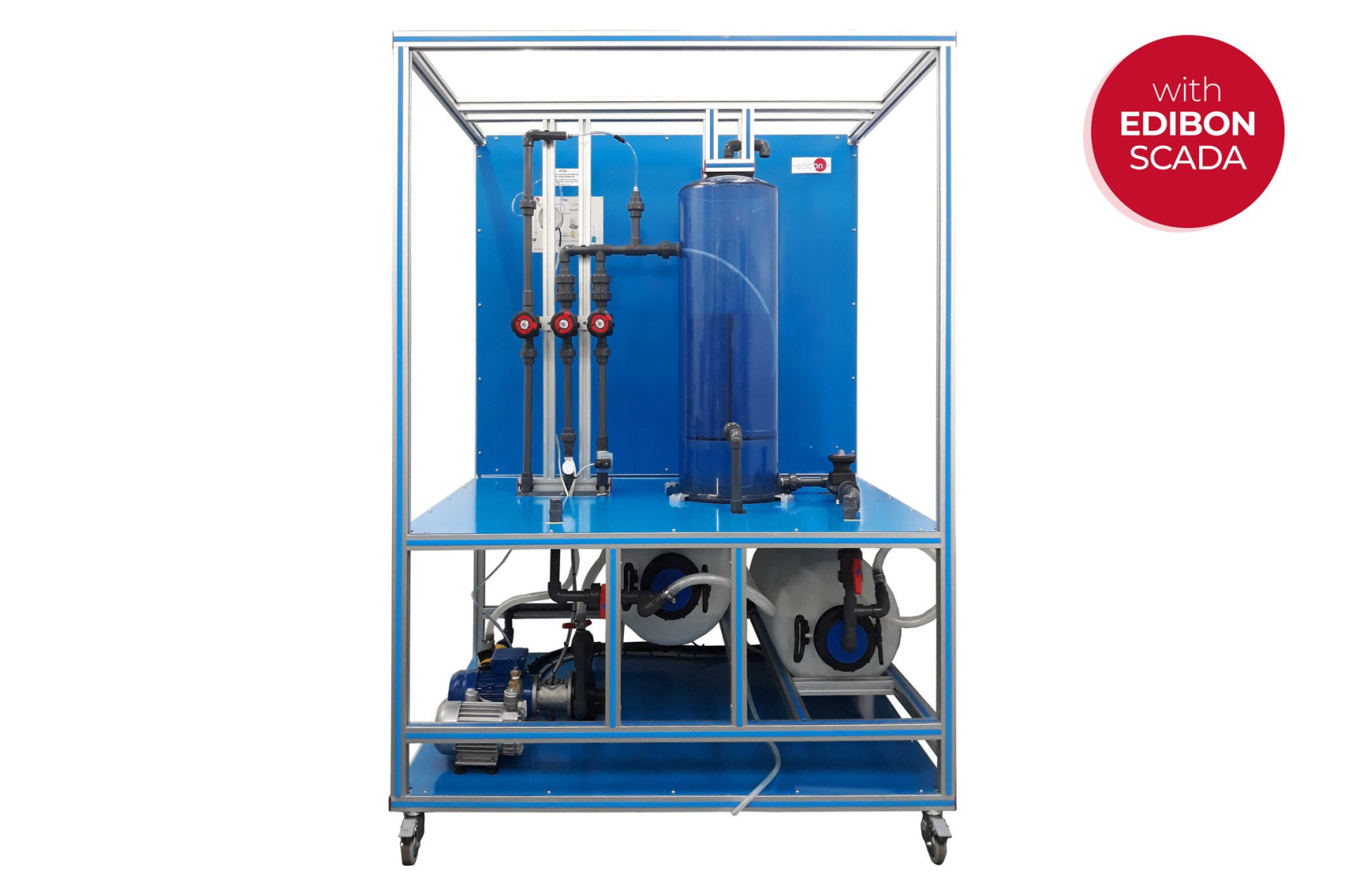

Unit: VTSC. Computer Controlled Vertical Three-phase Separator

COMPUTER CONTROLLED VERTICAL THREE-PHASE SEPARATOR - VTSC

Unit details

COMPUTER CONTROLLED VERTICAL THREE-PHASE SEPARATOR - VTSC

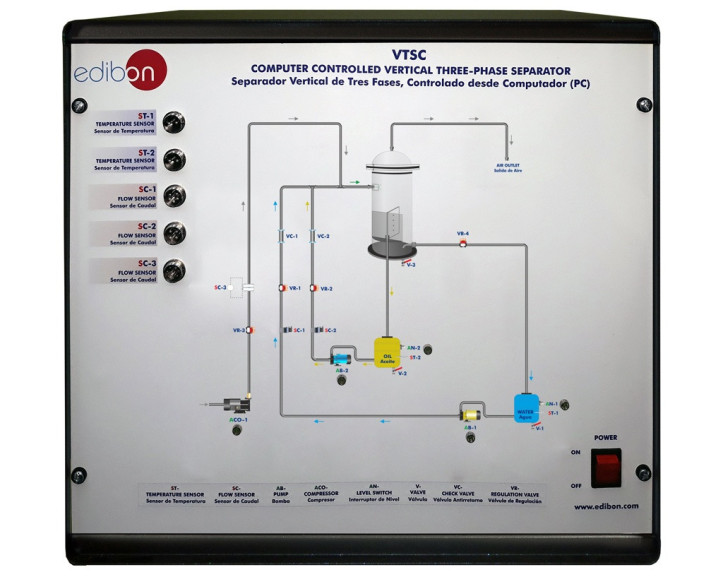

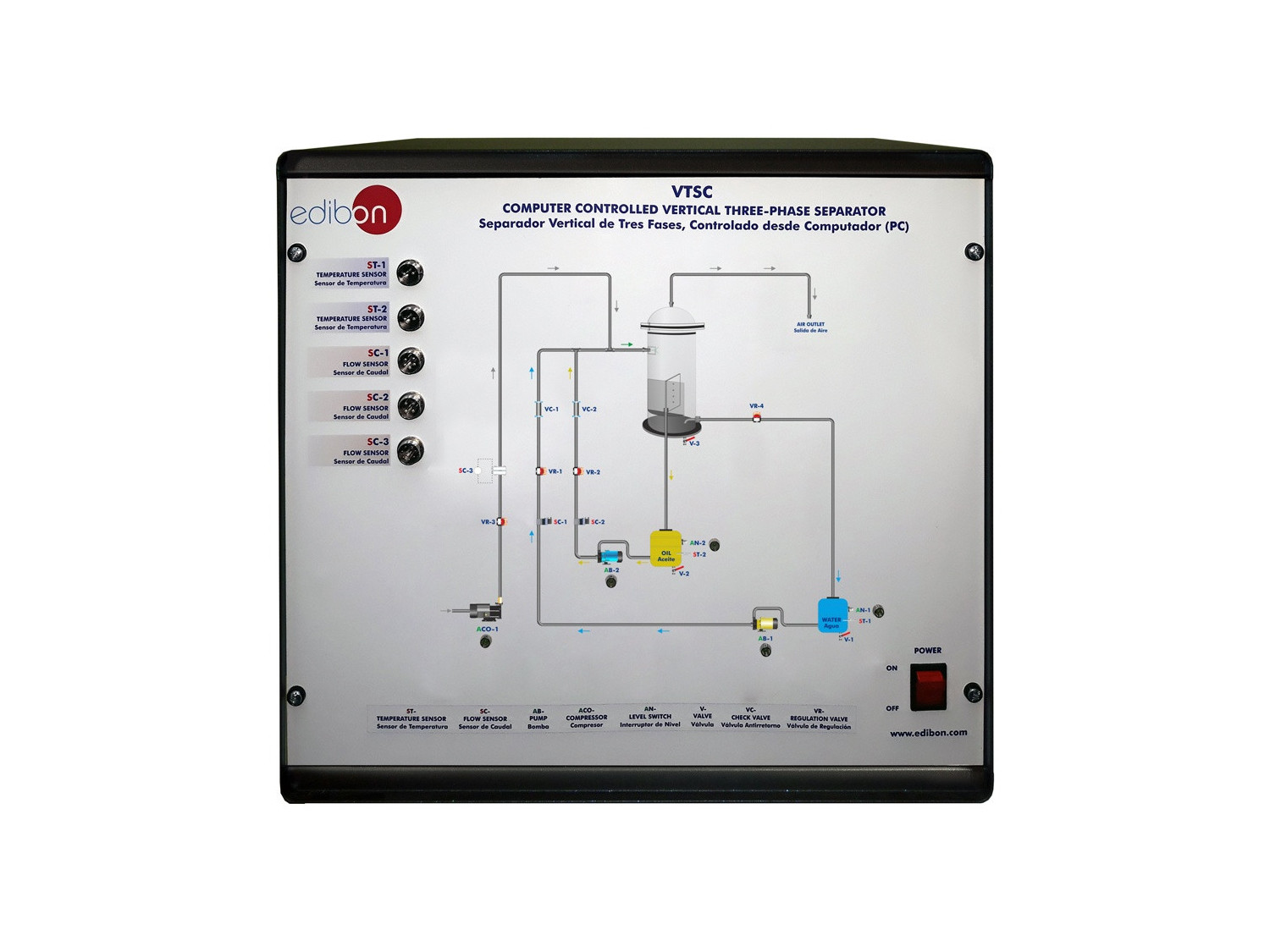

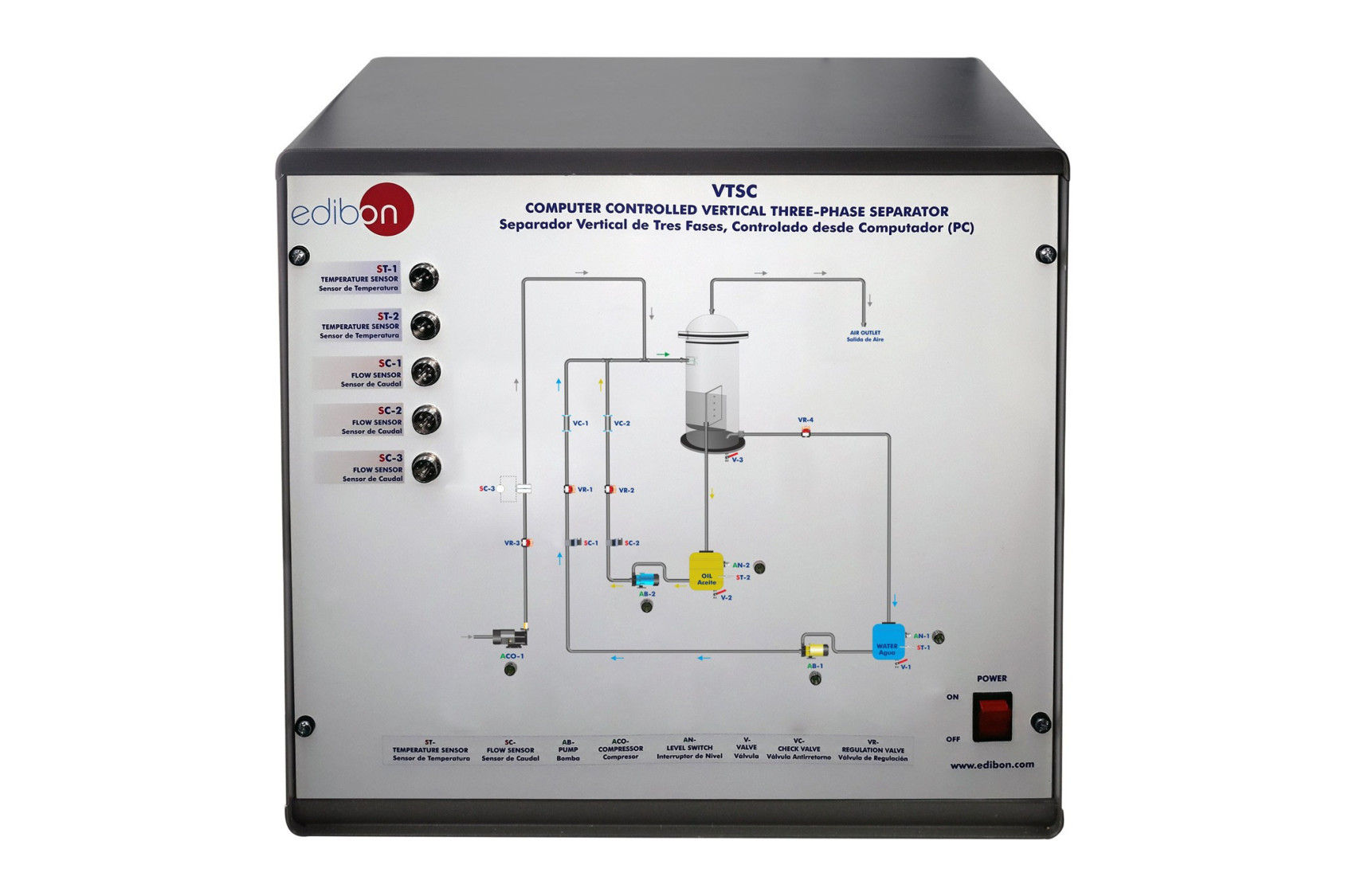

VTSC/CIB. Control Interface Box: The Control Interface Box is part of the SCADA system

COMPUTER CONTROLLED VERTICAL THREE-PHASE SEPARATOR - VTSC

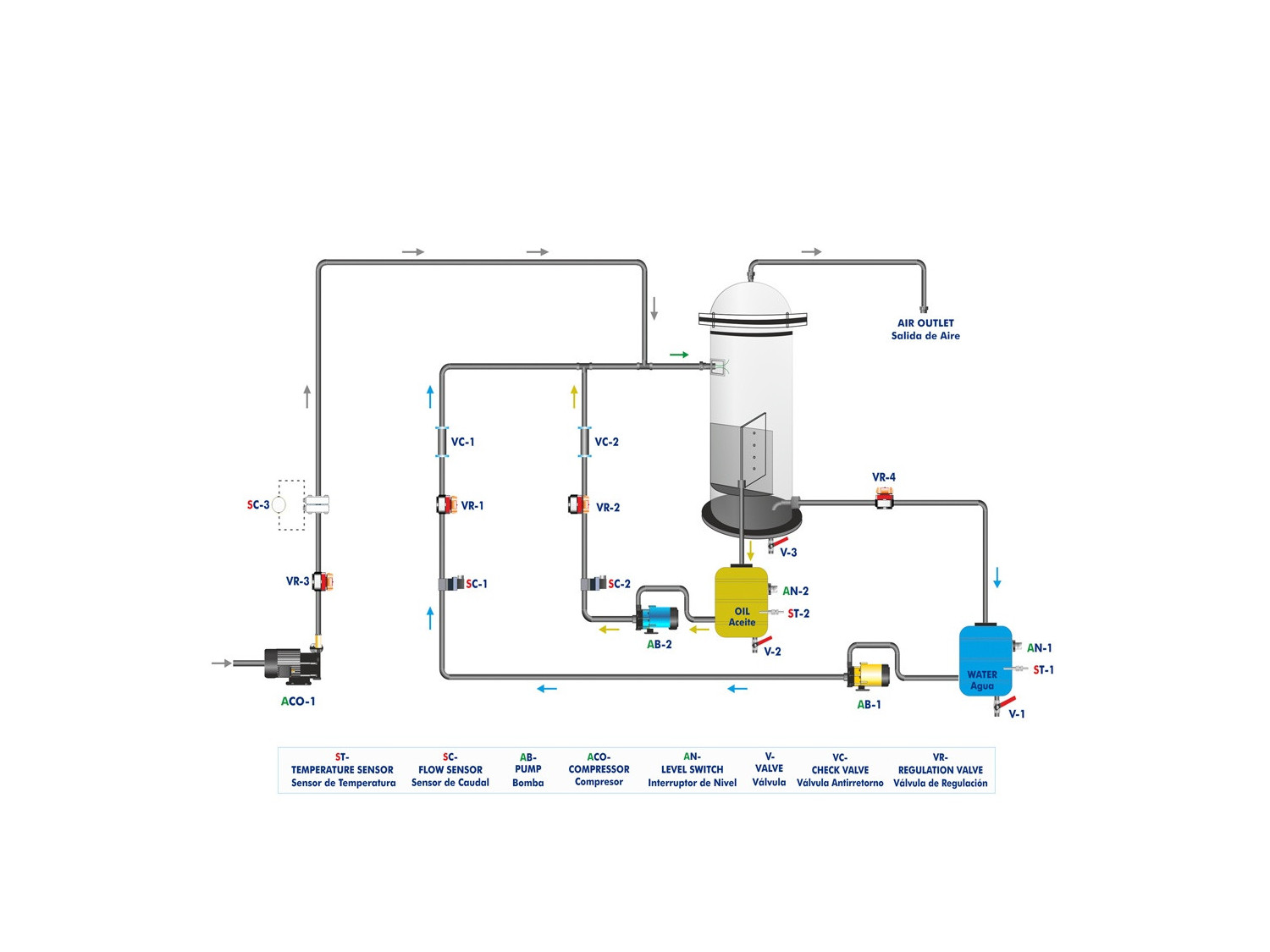

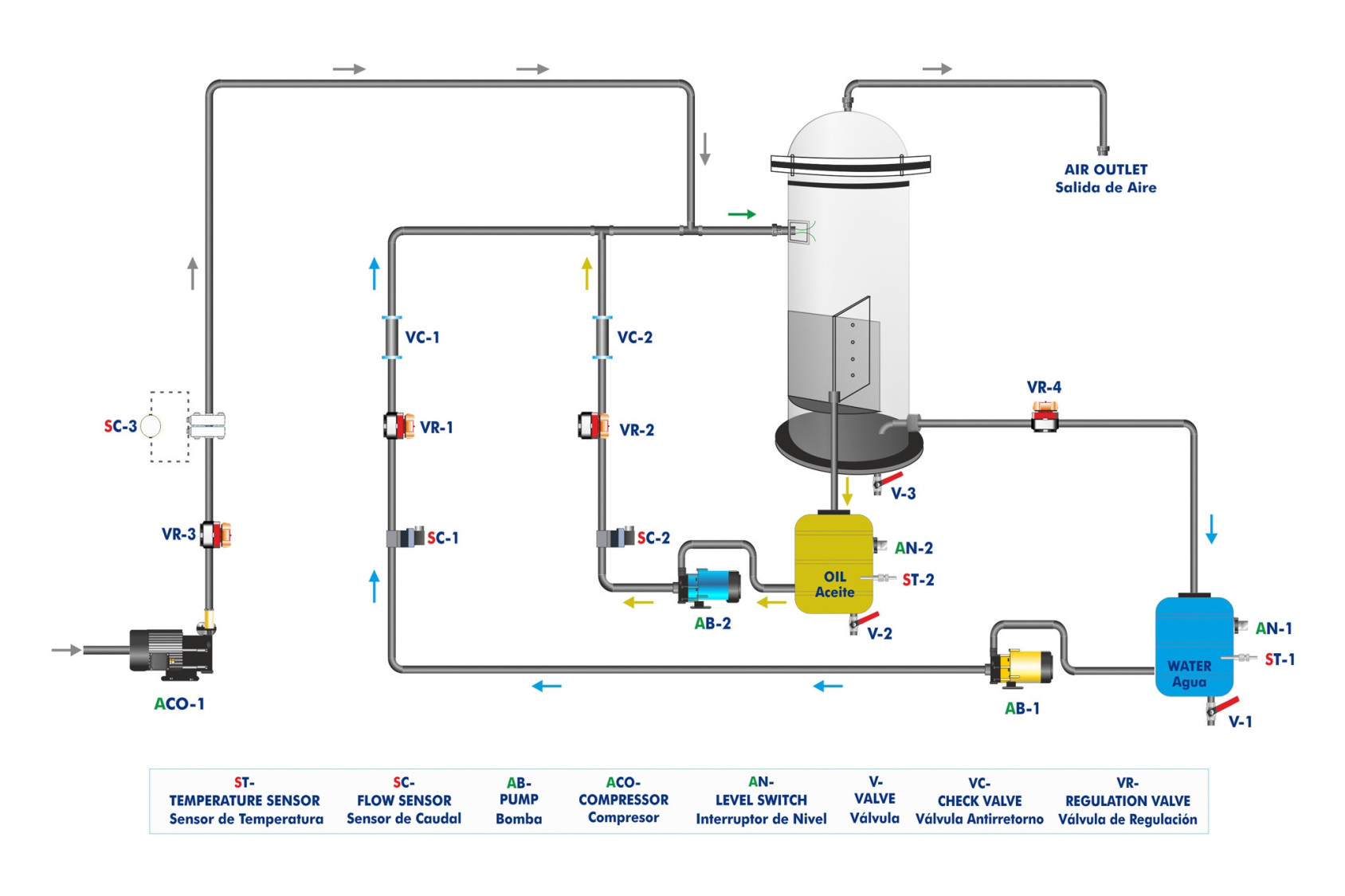

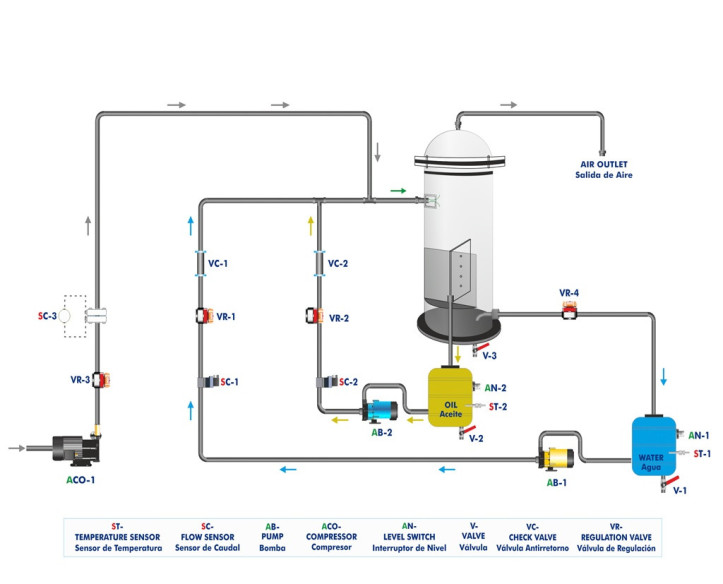

Process diagram and unit elements allocation

COMPUTER CONTROLLED VERTICAL THREE-PHASE SEPARATOR - VTSC

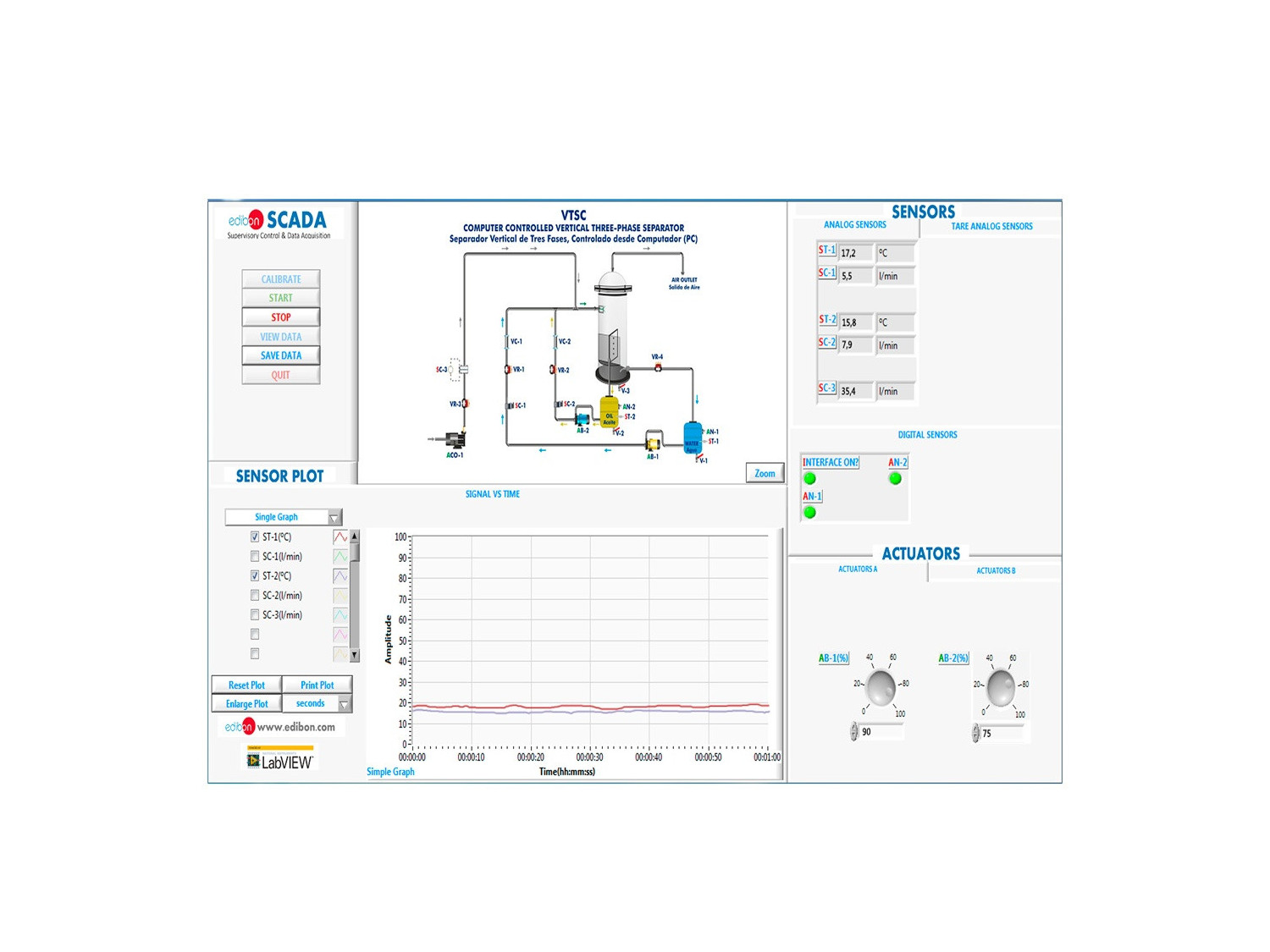

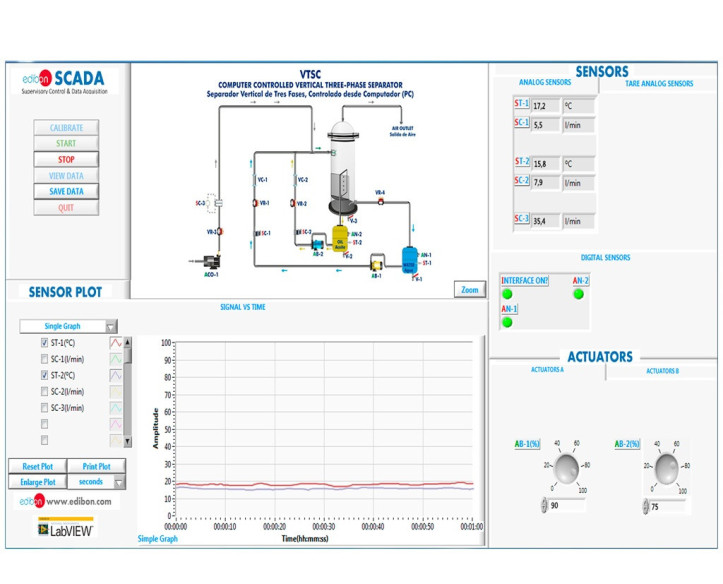

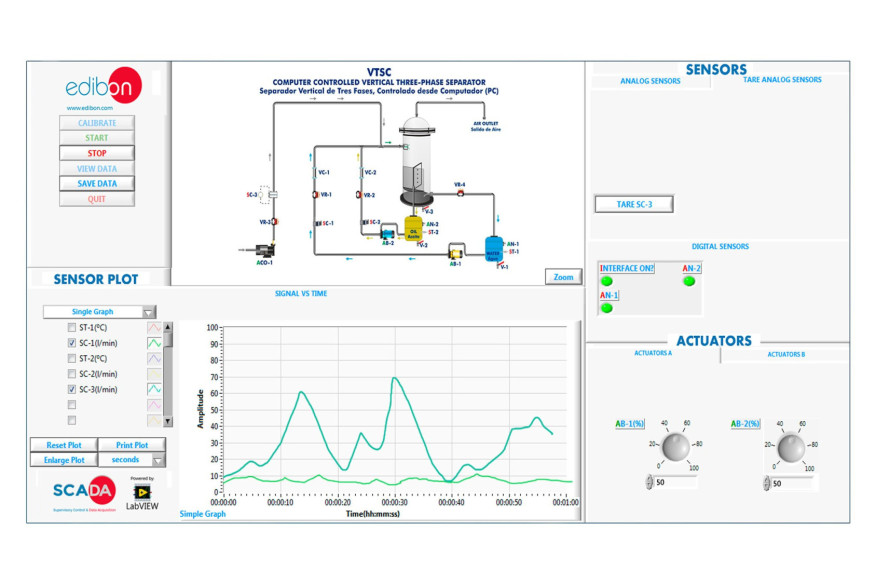

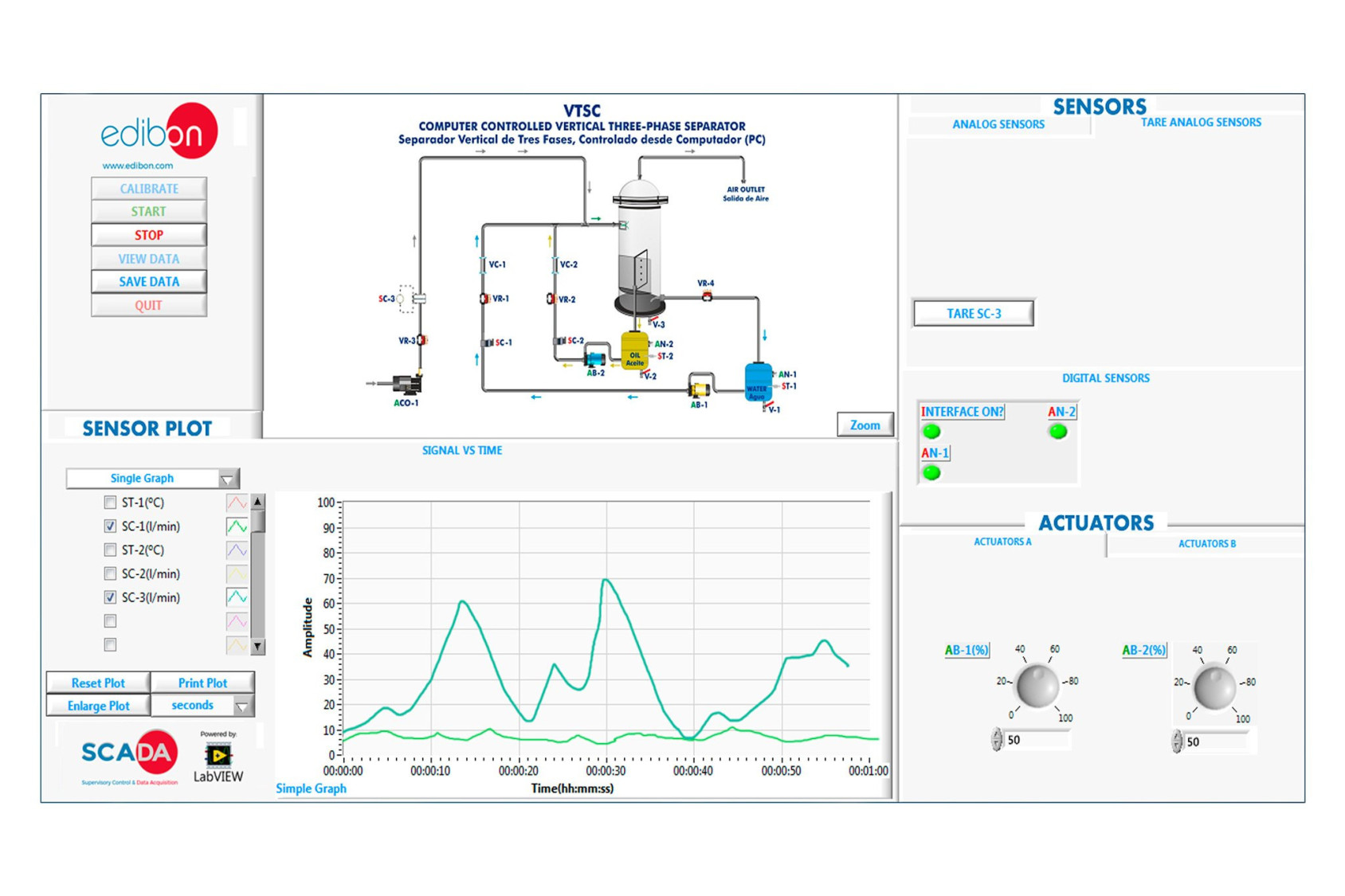

VTSC/SOF. EG5C Software. Main Screen

COMPUTER CONTROLLED VERTICAL THREE-PHASE SEPARATOR - VTSC
COMPUTER CONTROLLED VERTICAL THREE-PHASE SEPARATOR - VTSC
COMPUTER CONTROLLED VERTICAL THREE-PHASE SEPARATOR - VTSC
COMPUTER CONTROLLED VERTICAL THREE-PHASE SEPARATOR - VTSC
COMPUTER CONTROLLED VERTICAL THREE-PHASE SEPARATOR - VTSC

ИННОВАЦИОННЫЕ СИСТЕМЫ

The Computer Controlled Vertical Three-phase Separator, "VTSC", designed by EDIBON, is a unit that allows the study of the main characteristics of gravity separation and the effect of viscosity, flow and density difference in this separation.

Посмотреть общее описание

Расширения

ICAI

Программное Обеспечение для Интерактивного Компьютерного Обучения
FSS

Система Симулирования Ошибок
PLC

Управление Производственными Процессами с помощью ПЛК
PLCHMI

Местное/дистанционное Управление и Мониторинг IIoT с HMI
ELK

Набор для разработки ПО EDIBON на базе NI LabVIEW™
ESN

EDIBON Scada-Net
ECL

Облачное Обучение EDIBON

НОВОСТИ ПО ТЕМЕ

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Читать дальше
Second-generation biofuels: the sustainable future at EDIBON
Second-generation biofuels: the sustainable future at EDIBON
In a world where energy demand continues to rise and non-renewable resources are rapidly depleting, the need for sustainable, environmentally friendly solutions has never been more urgent. The circular economy and the use of organic biomass to produce biofuels are emerging as key answers to...
Читать дальше
Setting up at Texas A&M University in Qatar
Setting up at Texas A&M University in Qatar
We have returned to Texas AandM University in Qatar where we installed three of our chemical engineering and fluid mechanics units. At EDIBON we always offer the best quality to our customers. But, in addition, if you need support, you can be sure that we will help you with our after-sales service.
Читать дальше
Setting up at Perenco in Gabon
Setting up at Perenco in Gabon
Today we want to talk to you about the latest installation we have done at Perenco in Gabon. We moved there to install the following units from our Fluid Mechanics area
Читать дальше
Installation at TAMU - Texas A&M University
Installation at TAMU - Texas A&M University
This month we travelled to Texas A&M University to participate in the Petroleum engineering program (Qatar Tamu) where we installed three units: Computer Controlled Horizontal Three-phase Separator (HTSC), Computer Controlled Vertical Three-phase Separator (VTSC) and the Computer Controlled Fluid...
Читать дальше

ОБЩЕЕ ОПИСАНИЕ

The Computer Controlled Vertical Three-phase Separator, "VTSC", designed by EDIBON, is a unit that allows the study of the main characteristics of gravity separation and the effect of viscosity, flow and density difference in this separation.

Two computer controlled pumps drive water and oil to a point of mixing that also reaches a current of air produced by a computer controlled blower.

There are two level switches, one in each feed tank, to ensure the correct level for proper functioning of the fluid circulation pumps.

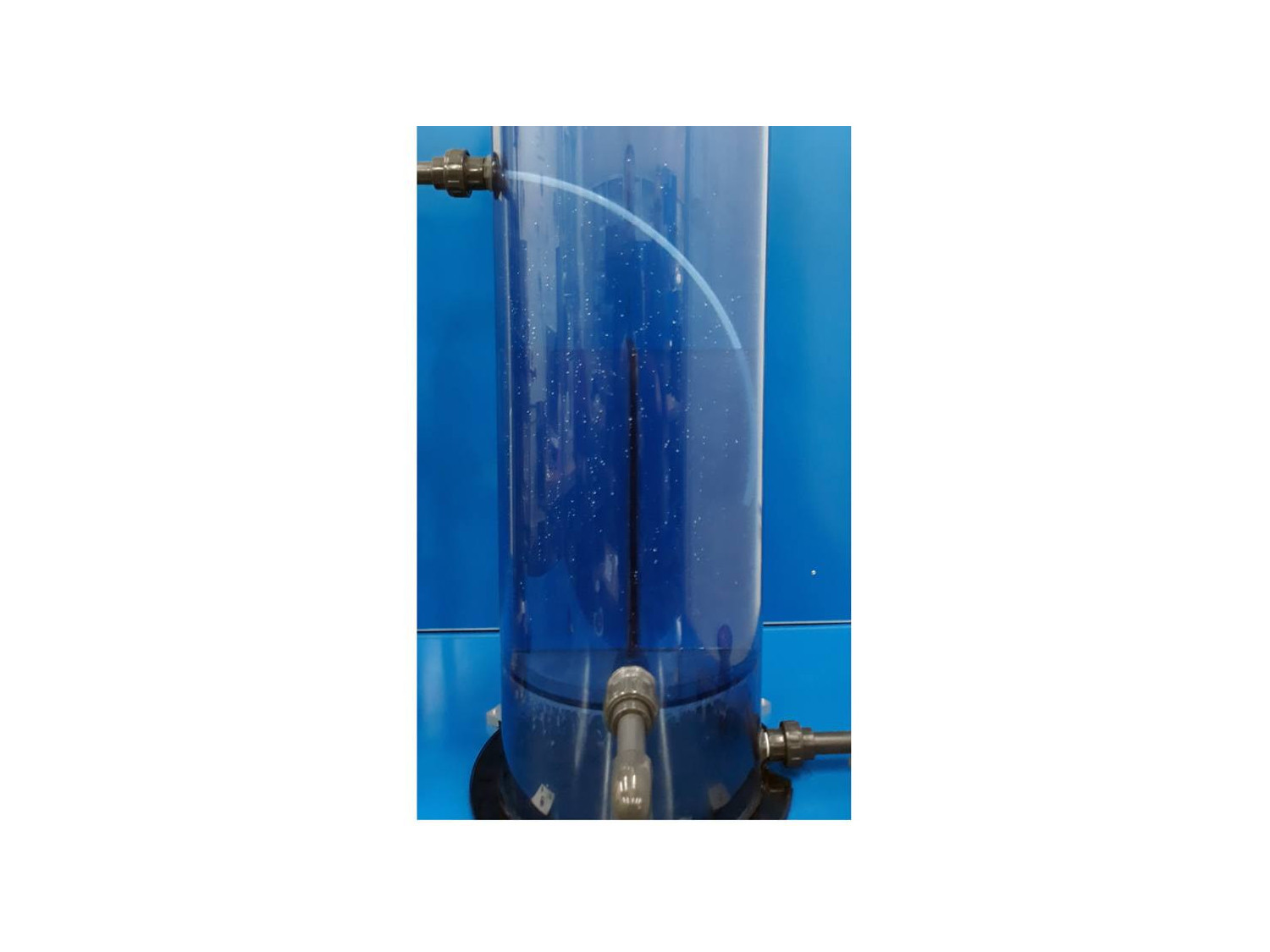

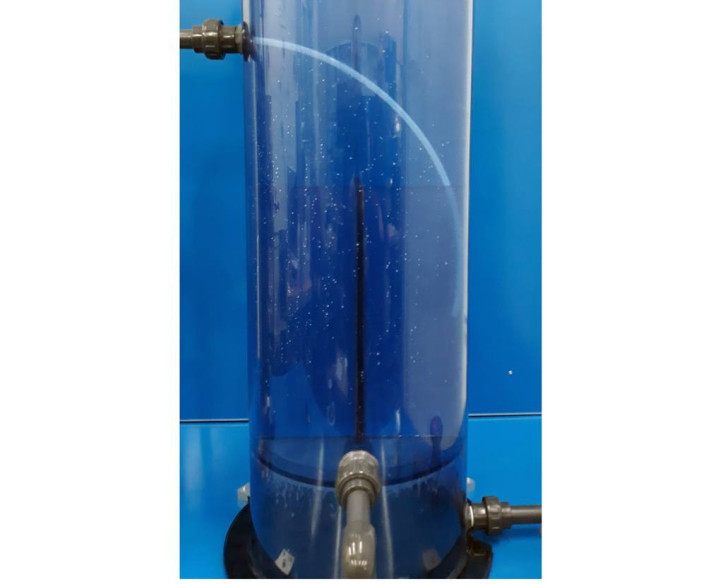

The mixture of water, oil and air enters by one side the vertical separator, made of transparent material.

The entry separator makes the initial gross separation. The liquid flows down and the secondary separation section begins.

For the separation of the air there is a fog extractor in its upper part.

By means of two overflow type outlets both water and oil separate phases are extracted, to return each one to its deposit.

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.

УПРАЖНЕНИЯ И ПРИМЕРЫ С ИНСТРУКЦИЯМИ

РУКОВОДСТВО ПО ПРАКТИЧЕСКИМ УПРАЖНЕНИЯМ ВКЛЮЧЕНО В РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ

  1. Analysis of the design principles and control parameters of a three-phase separator.
  2. Study of the separation of two immiscible liquids.
  3. Study of the influence of the viscosity of the oil in the separation.
  4. Study of the influence of the flow rates in the separation.
  5. Study of the influence of the density difference in the separation.
  6. Study of the Influence in the separation of a variation in the water cut.
  7. Study of the influence on the residence time of a variation in the water cut.
  8. Study of the influence of the water / oil ratio on residence time for separation.
  9. Sensors calibration.

БОЛЬШЕ ПРАКТИЧЕСКИХ УПРАЖНЕНИЙ ДЛЯ РАБОТЫ С УСТРОЙСТВОМ

  1. Study of the influence of the flow in the formation of emulsions.
  2. Study of different stable and unstable emulsions.

Other possibilities to be done with this Unit:

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc, in real time.
  3. The Computer Control System with SCADA allows a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical/electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Control of the VTSC unit process through the control interface box without the computer.
  8. Visualization of all the sensors values used in the VTSC unit process.
  9. By using PLC-PI additional 19 more exercises can be done.
  10. Several other exercises can be done and designed by the user.
