N-M61 Модуль цифро-аналоговых преобразователей

2.3.3.- ЦИФРОВАЯ ЭЛЕКТРОНИКА 14.2.1.3.- ЦИФРОВАЯ ЭЛЕКТРОНИКА
DIGITAL/ANALOG CONVERTERS MODULE - N-M61

ИННОВАЦИОННЫЕ СИСТЕМЫ

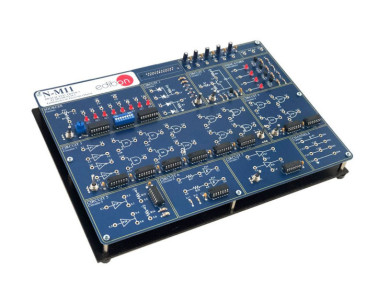

With Digital/Analogue Converters, "N-M61", designed by EDIBON, the different direct and indirect digital to analogue converters can be studied.

Посмотреть общее описание

Расширения

ICAI

Программное Обеспечение для Интерактивного Компьютерного Обучения

НОВОСТИ ПО ТЕМЕ

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Читать дальше
Completion of the Small Laboratory Equipment Repair Course
Completion of the Small Laboratory Equipment Repair Course
On December 1st, the Repair Course for Small Laboratory Equipment, taught by our engineers at the EDIBON facilities, was completed, lasting 4 days. The attendees, (Laboratory technicians and maintenance of the Rey Juan Carlos University of Madrid) had the opportunity to perform multiple...
Читать дальше

ОБЩЕЕ ОПИСАНИЕ

Digital/analog conversion happens when you want to recover or re-obtain a digital signal that has been processed and we want to regenerate it. A signal that has been sampled, for example, a temperature signal and we need to return it to the continuous medium, or it may be that we do not need to recover such a signal but you want to generate an analog signal from a digital signal. The process we can describe to return or obtain a signal from digital to analog is called reconstruction. Each discrete value of ones and zeros must be directly related to the previously defined value of an analog signal.

With Digital/Analogue Converters, "N-M61", designed by EDIBON, the different direct and indirect digital to analogue converters can be studied.

In addition, faults can be simulated in most of the circuits under study. The student must investigate what is happening in the circuit and why it is not working properly. These faults simulations can be of several types from damage components to a hypothetical incorrect circuit assembly.

УПРАЖНЕНИЯ И ПРИМЕРЫ С ИНСТРУКЦИЯМИ

РУКОВОДСТВО ПО ПРАКТИЧЕСКИМ УПРАЖНЕНИЯМ ВКЛЮЧЕНО В РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ

  1. D/A converter of weighted divider resistors.
  2. Analog switches errors.
  3. D/A converter of R-2R ladder.
  4. Current division in R-2R ladder converter.
  5. D/A converter of inverted ladder.
  6. D/A integrated converter.
  7. Serial data input D/A converter.
  8. D/A converter of pulse width modulation.

БОЛЬШЕ ПРАКТИЧЕСКИХ УПРАЖНЕНИЙ ДЛЯ РАБОТЫ С УСТРОЙСТВОМ

  1. Several other exercises can be done and designed by the user.
