The Fault Simulation Application in Three Phase Transformers, "AEL-ESAT", has been designed by EDIBON to simulate non-destructive faults in three-phase transformers and application of diagnostic and localization techniques.

Посмотреть общее описание

Расширения

ICAI

Программное Обеспечение для Интерактивного Компьютерного Обучения

НОВОСТИ ПО ТЕМЕ

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Читать дальше
The Importance of Hands-On Training in Electricity for Universities and Companies
The Importance of Hands-On Training in Electricity for Universities and Companies
Electricity is a form of energy resulting from the movement of electrons through a conductor. This physical phenomenon is essential for the operation of a wide variety of devices and systems we use daily, from household appliances to complex industrial systems.
Читать дальше
What is Industry 4.0?
What is Industry 4.0?
Today we are at the beginning of a new era, named ‘Industrie 4.0’. Let´s explain a little further the concept "Industrie 4.0"!
Читать дальше

ОБЩЕЕ ОПИСАНИЕ

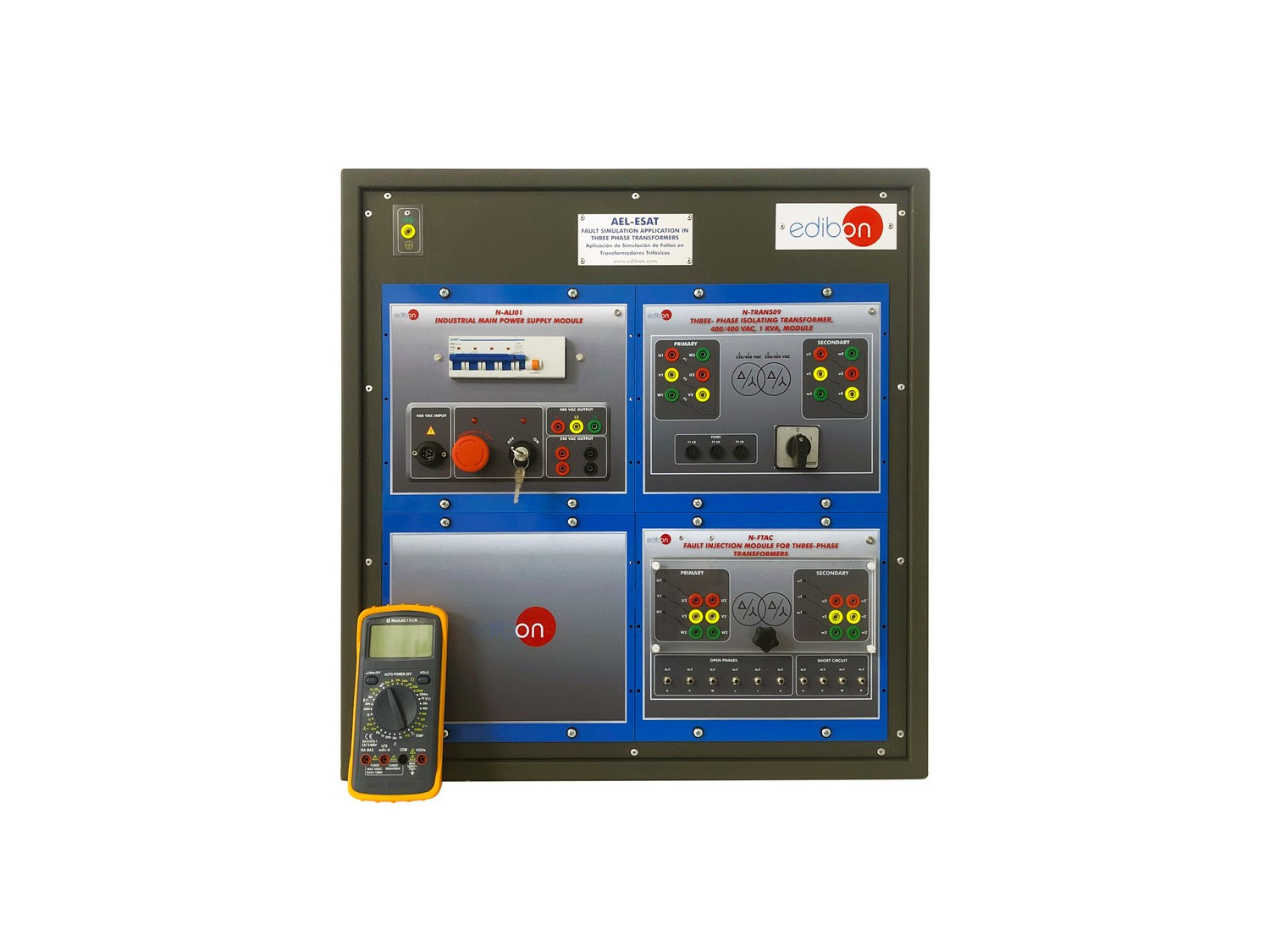

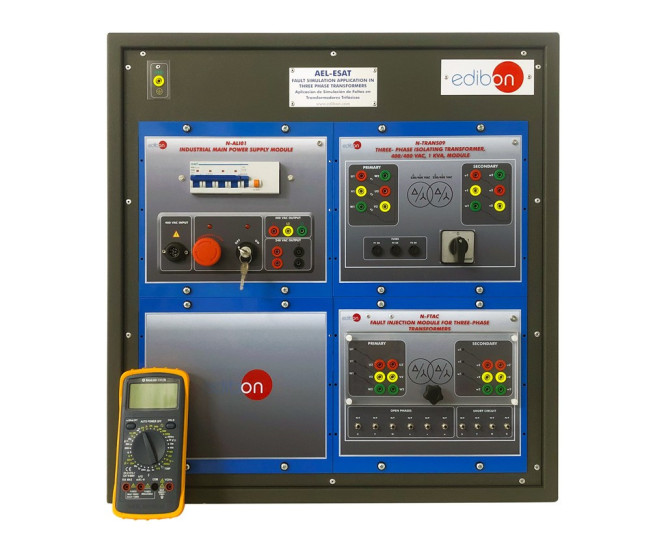

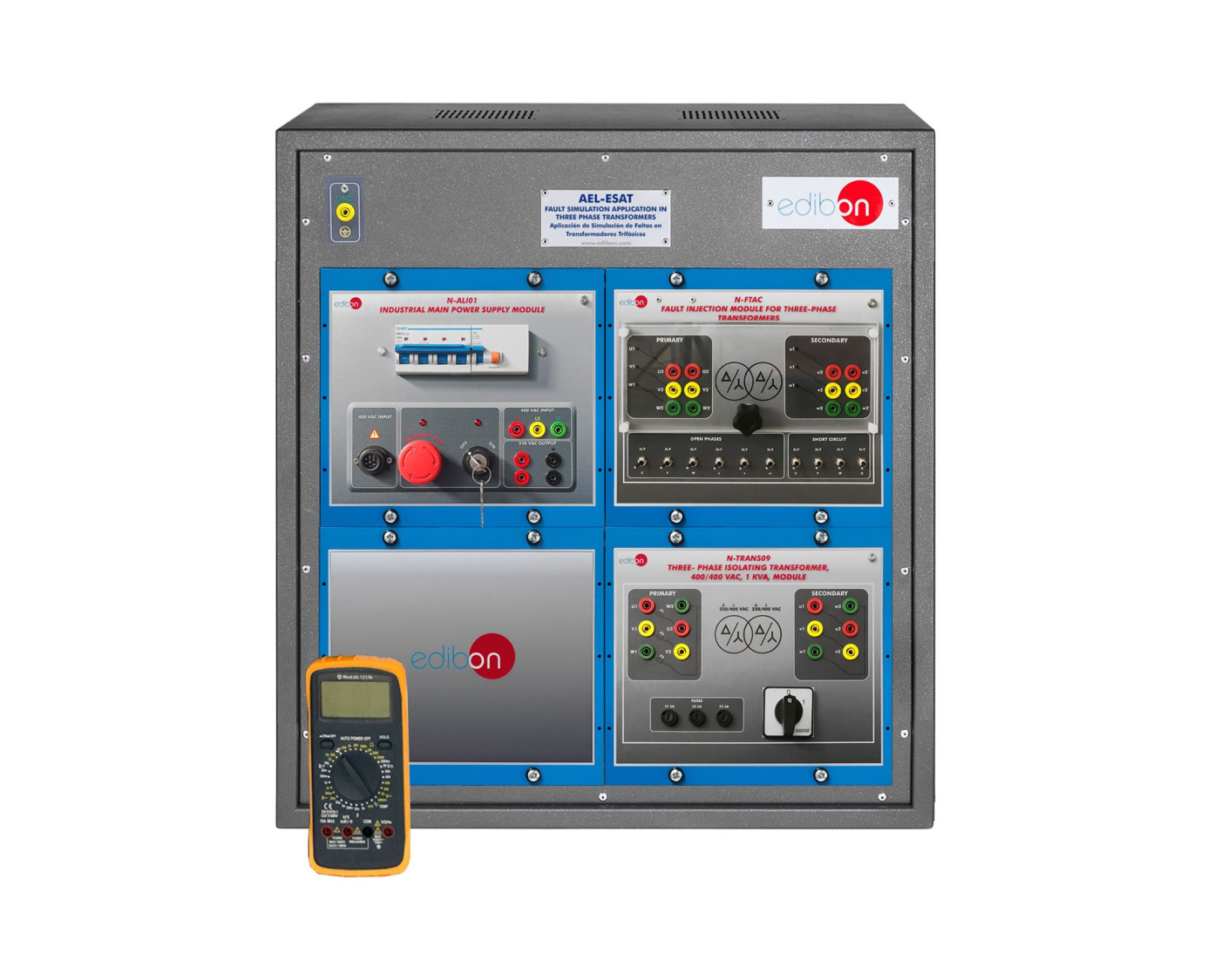

The Fault Simulation Application in Three Phase Transformers, "AEL-ESAT", has been designed by EDIBON to simulate non-destructive faults in three-phase transformers and application of diagnostic and localization techniques.

This application allows simulating different breakdowns that can usually take place in in three-phase transformers, such as: Phase loss detection, power supply loss detection, short-circuited turn-coil detection, open coil detection, short-circuit between different phase coils detection and ground derivation detection.

All this simulations are carried out by the "AEL-ESAT" application, which has a circuit control that realizes the failures randomly.

УПРАЖНЕНИЯ И ПРИМЕРЫ С ИНСТРУКЦИЯМИ

РУКОВОДСТВО ПО ПРАКТИЧЕСКИМ УПРАЖНЕНИЯМ ВКЛЮЧЕНО В РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ

  1. Wiring the three-phase transformer according to different configurations.
  2. Detection of a three-phase transformer feeding fault.
  3. Three phase transformer impedance measurements with one open ended coil.
  4. Identification of open-ended coils in three-phase transformers.
  5. Recognition of short circuits between different phases in the primary winding of a three-phase transformer.
  6. Identification of grounded short circuits in the primary winding of a three-phase transformer.
  7. Detection of short circuited coils.

БОЛЬШЕ ПРАКТИЧЕСКИХ УПРАЖНЕНИЙ ДЛЯ РАБОТЫ С УСТРОЙСТВОМ

  1. Several other exercises can be done and designed by the user.
