N-EM-PLLT Процесс заполнения резервуаров

6.2.2.2.- ПОТОК И КОНТРОЛЬ УРОВНЯ

ИННОВАЦИОННЫЕ СИСТЕМЫ

"N-EM-PLLT" represents a filling process system composed by three tanks which fill the tank where the desired product is mixed.

Посмотреть общее описание

Каталог

Спецификации конкурса

Расширения

ICAI

Программное Обеспечение для Интерактивного Компьютерного Обучения

НОВОСТИ ПО ТЕМЕ

ОБЩЕЕ ОПИСАНИЕ

The "N-EM" are a series of emulators that provide the students the required hardware to emulate the most common automatic systems.

The "N-EM" modules are designed to work with the "AE-PLC" units to obtain the fundamental knowledge of PLC programing, PLC management, etc.

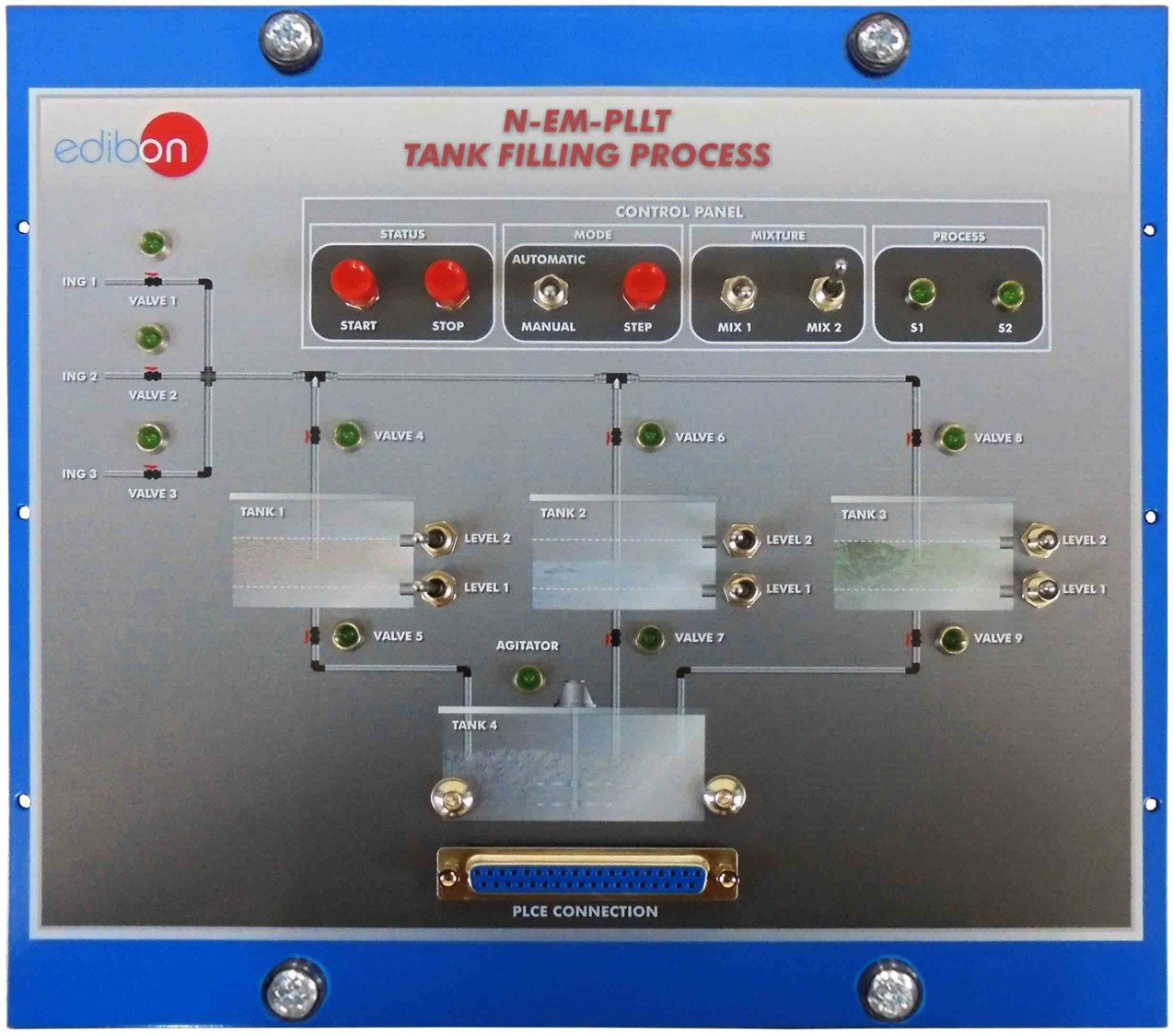

"N-EM-PLLT" represents a filling process system composed by three tanks which fill the tank where the desired product is mixed. The system allows to select the desired product by controlling the amount of liquid poured by each tank.

УПРАЖНЕНИЯ И ПРИМЕРЫ С ИНСТРУКЦИЯМИ

РУКОВОДСТВО ПО ПРАКТИЧЕСКИМ УПРАЖНЕНИЯМ ВКЛЮЧЕНО В РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ

All "N-EM" modules allow to perform the following practical exercises:

Temporization.
Counting.
Sequential counting.
All the practical exercises include the diagrams and the flow charts of the example programs used.
