M8/KIT Набор по фильтрам

2.2.- НАБОР КОМПОНЕНТОВ ДЛЯ СХЕМ ЦЕПЕЙ
FILTERS KIT - M8/KIT

ИННОВАЦИОННЫЕ СИСТЕМЫ

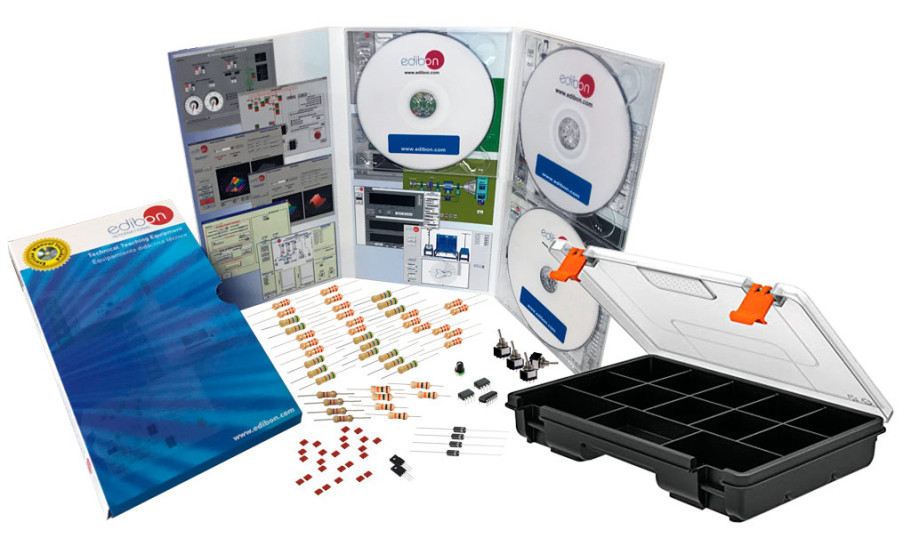

With Filters Kit, "M8/KIT", designed by EDIBON, the different types of filters can be studied: RC and LC, in "T" type configuration, active filters and also study associations of one and others in order to be able to practice with more complex filters, to obtain other filters with certain desired characteristics (low-pass filter, high-pass, band-pass and eliminated band).

Посмотреть общее описание

Расширения

ICAI

Программное Обеспечение для Интерактивного Компьютерного Обучения

ЛАБОРАТОРИИ

2TV
 Лаборатория электроники для технического и профессионального образования

НОВОСТИ ПО ТЕМЕ

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Читать дальше
Completion of the Small Laboratory Equipment Repair Course
Completion of the Small Laboratory Equipment Repair Course
On December 1st, the Repair Course for Small Laboratory Equipment, taught by our engineers at the EDIBON facilities, was completed, lasting 4 days. The attendees, (Laboratory technicians and maintenance of the Rey Juan Carlos University of Madrid) had the opportunity to perform multiple...
Читать дальше

ОБЩЕЕ ОПИСАНИЕ

With Filters Kit, "M8/KIT", designed by EDIBON, the different types of filters can be studied: RC and LC, in "T" type configuration, active filters and also study associations of one and others in order to be able to practice with more complex filters, to obtain other filters with certain desired characteristics (low-pass filter, high-pass, band-pass and eliminated band).

УПРАЖНЕНИЯ И ПРИМЕРЫ С ИНСТРУКЦИЯМИ

РУКОВОДСТВО ПО ПРАКТИЧЕСКИМ УПРАЖНЕНИЯМ ВКЛЮЧЕНО В РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ

RC and LC filter responses:

  1. Frequency response.
  2. Low-pass filter.
  3. High-pass filter.
  4. LC Circuit.
  5. Faults study in low-pass filter.
  6. Faults study in high-pass filter.
  7. Theoretical/practical exercises.

T-shaped Filter:

  1. Filter with double T link.
  2. Signal generator circuit.
  3. Faults study in RC filters with double T.
  4. Theoretical/practical exercises.

Active filters:

  1. Low-pass filter with load.
  2. Low-pass filter with an operational amplifier.
  3. High-pass filter with load.
  4. High-pass filter with an operational amplifier.
  5. The attenuation is cumulative.
  6. Use of operational amplifier.
  7. Faults study in active filters.
  8. Theoretical/practical exercises.

Association of filters:

  1. Behaviour of the filter.
  2. Filtering of a distorted signal.
  3. Filter in cascade: low pass filter and high pass filter.
  4. Filter in parallel.
  5. Faults study in filters.
  6. Theoretical/practical exercises.
Узнать больше

БОЛЬШЕ ПРАКТИЧЕСКИХ УПРАЖНЕНИЙ ДЛЯ РАБОТЫ С УСТРОЙСТВОМ

  1. Band-pass and band-stop filters.
  2. Several other exercises can be done and designed by the user.

НЕОБХОДИМЫЕ ЭЛЕМЕНТЫ

АНАЛОГИ ОБОРУДОВАНИЯ В НАЛИЧИИ

FILTERS MODULE - N-M8
  • N-M8
Available
14.2.1.2.- АНАЛОГОВАЯ ЭЛЕКТРОНИКА
N-M8
Модуль фильтров
An electronic filter is an element that allows electrical signals to pass through it, at a specific frequency or frequency ranges while preventing the passage of others, being able to modify both, their amplitude and phase. It is a device that...
