AEL-AD9A Применение управления отоплением

4.1.1.- БЫТОВЫЕ ЭЛЕКТРИЧЕСКИЕ УСТАНОВКИ
HEATING CONTROL APPLICATION - AEL-AD9A

ИННОВАЦИОННЫЕ СИСТЕМЫ

The Heating Control Application, "AEL-AD9A", has been designed by Edibon to study how a heating control apllication works.

Посмотреть общее описание

Расширения

ICAI

Программное Обеспечение для Интерактивного Компьютерного Обучения

ЛАБОРАТОРИИ

4TV
 Электрическая лаборатория технического и профессионального образования
4HE
 Электрическая лаборатория для высшего образования
11PTC
 Лаборатория нефтяного учебного центра

НОВОСТИ ПО ТЕМЕ

What is Industry 4.0?
What is Industry 4.0?
Today we are at the beginning of a new era, named ‘Industrie 4.0’. Let´s explain a little further the concept "Industrie 4.0"!
Читать дальше

ОБЩЕЕ ОПИСАНИЕ

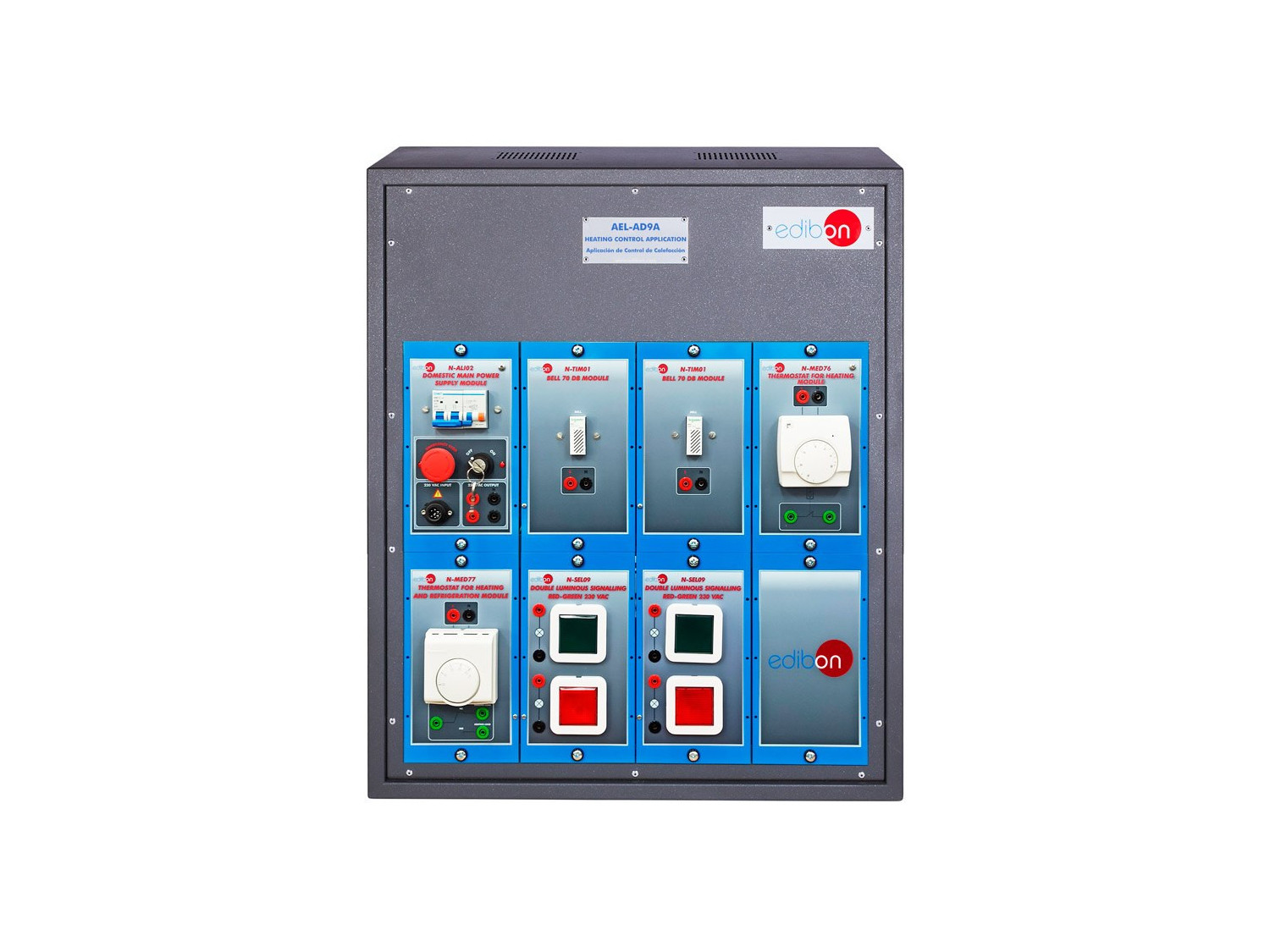

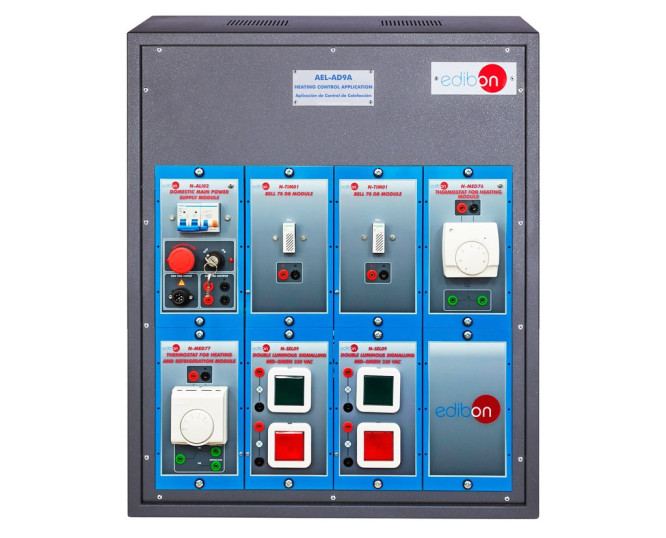

The Heating Control Application, "AEL-AD9A", has been designed by Edibon to study how a heating control application works.

This application allows the students understand the control logic of a thermostat and it offers the possibility of work with a heating thermostat and with a thermostat for heating or refrigeration.

The AEL-AD9A includes lamps and bells in order to simulate the behavior of an air conditioning system.

УПРАЖНЕНИЯ И ПРИМЕРЫ С ИНСТРУКЦИЯМИ

РУКОВОДСТВО ПО ПРАКТИЧЕСКИМ УПРАЖНЕНИЯМ ВКЛЮЧЕНО В РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ

  1. Identification of the elements of the main power supply domestic.
  2. Checking the domestic main power supply.
  3. Checking relays.
  4. Checking the thermostat for heating and tests.
  5. Checking the thermostat for heating and refrigeration, and tests.
  6. Test with several temperatures and green light.
  7. Test with several temperatures and red light.
  8. Test with several temperatures and the bell.
  9. Test with several temperatures, red light and the bell.
  10. Test with several temperatures, green light and the bell.
  11. Test with different temperatures, red light, green light and the bell.
