AE-PLC-CPI Учебная станция управления промышленными процессами

6.2.4.- ПРОМЫШЛЕННОЕ ПРИМЕНЕНИЕ С ПЛК
INDUSTRIAL PROCESSES CONTROL WORKSTATION - AE-PLC-CPI

ИННОВАЦИОННЫЕ СИСТЕМЫ

The "AE-PLC-CPI" application is a unit that includes different technologies to carry out four control loops in closed loop: flow, level,temperature and pressure.

Посмотреть общее описание

Расширения

ICAI

Программное Обеспечение для Интерактивного Компьютерного Обучения

НОВОСТИ ПО ТЕМЕ

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Читать дальше

ОБЩЕЕ ОПИСАНИЕ

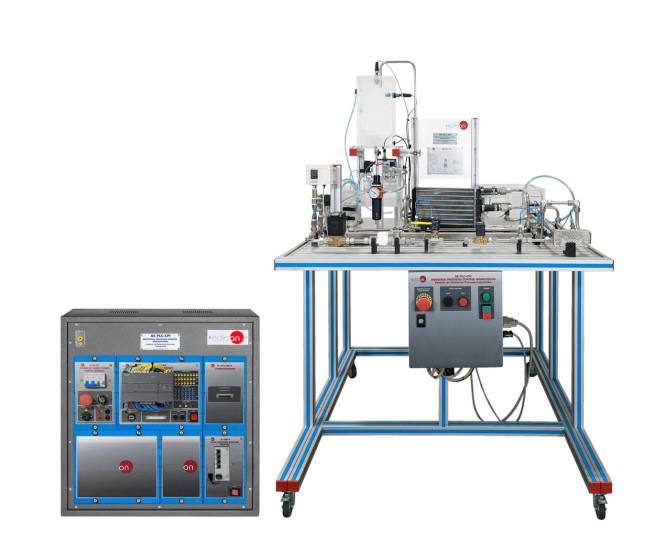

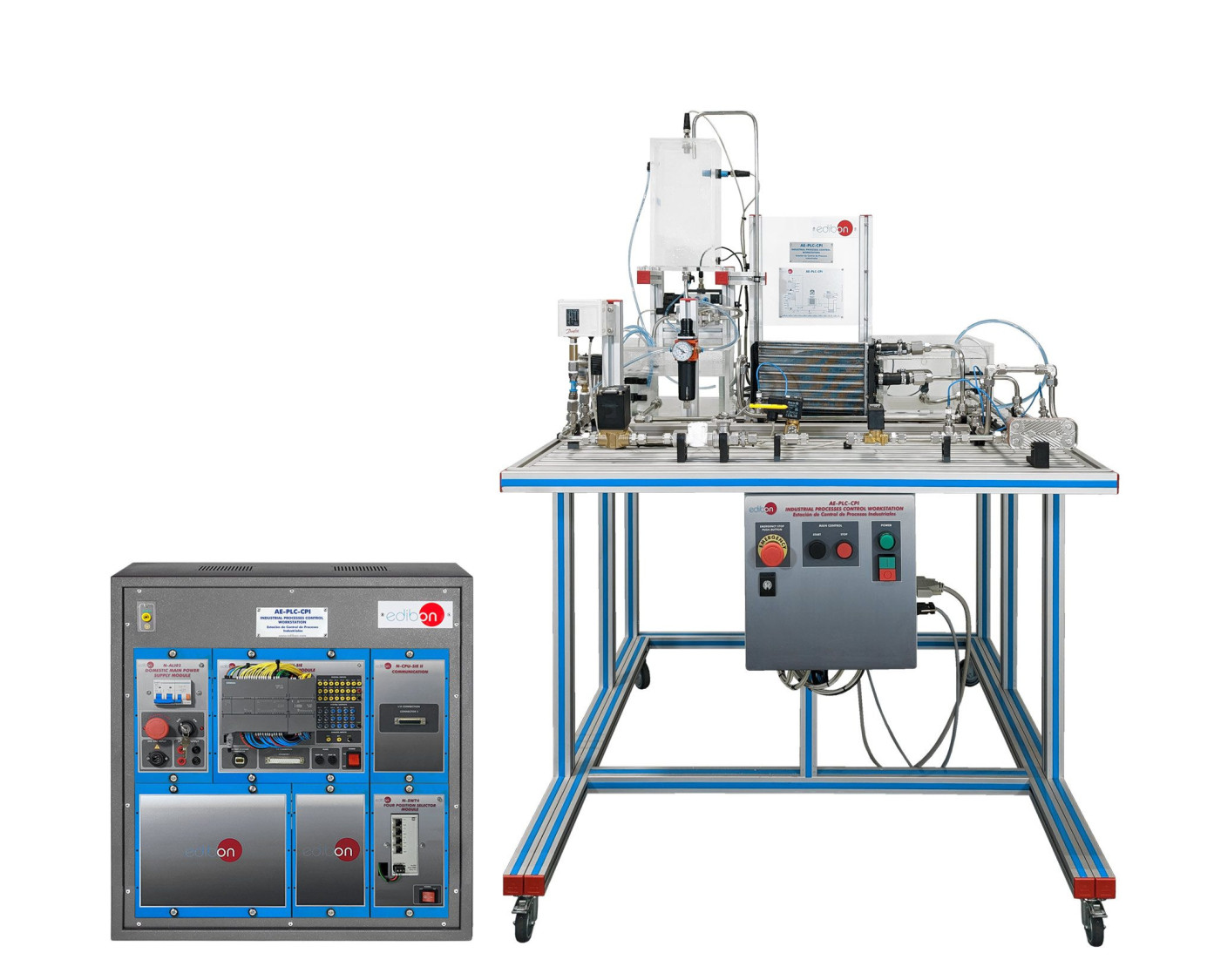

The "AE-PLC-CPI" application is a unit that includes different technologies to carry out four control loops in closed loop: flow, level, temperature and pressure. A flexible system of ball valves and pipe connections makes the configuration of the control loops be quick and easy. The sensors and actuators included in the application allow for the implementation of different types of regulators (P, I, PI, PID) through a controller. In addition, there are elements that generate disturbances in the system so that the response of the control loop is observed.

УПРАЖНЕНИЯ И ПРИМЕРЫ С ИНСТРУКЦИЯМИ

РУКОВОДСТВО ПО ПРАКТИЧЕСКИМ УПРАЖНЕНИЯМ ВКЛЮЧЕНО В РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ

  1. Implementation of a complex process control system.
  2. Sensor operation principle: inductive, capacitive, ultrasoundand infrared sensors.
  3. Actuator operation principle: pump and proportionaldirectional control valve.

With PLC Programmable Controller (Base Unit):

  1. Structure of a PLC program.
  2. Programming and use of digital and analog signals.
  3. Programming of different operating modes.
  4. Programming of alternative branches (Grafcet).
  5. Communication with extended I/O remote module.
  6. Time and response optimization. Programming a PID levelcontroller via PLC.
  7. Time and response optimization. Programming a PID flowcontroller via PLC.
  8. Time and response optimization. Programming a PIDtemperature controller via PLC.
  9. Time and response optimization. Programming a PID pressurecontroller via PLC.
