FME20 Демонстрация работы Ламинарных потоков

8.1.5.- ВИЗУАЛИЗАЦИЯ ПОТОКА
LAMINAR FLOW DEMONSTRATION - FME20

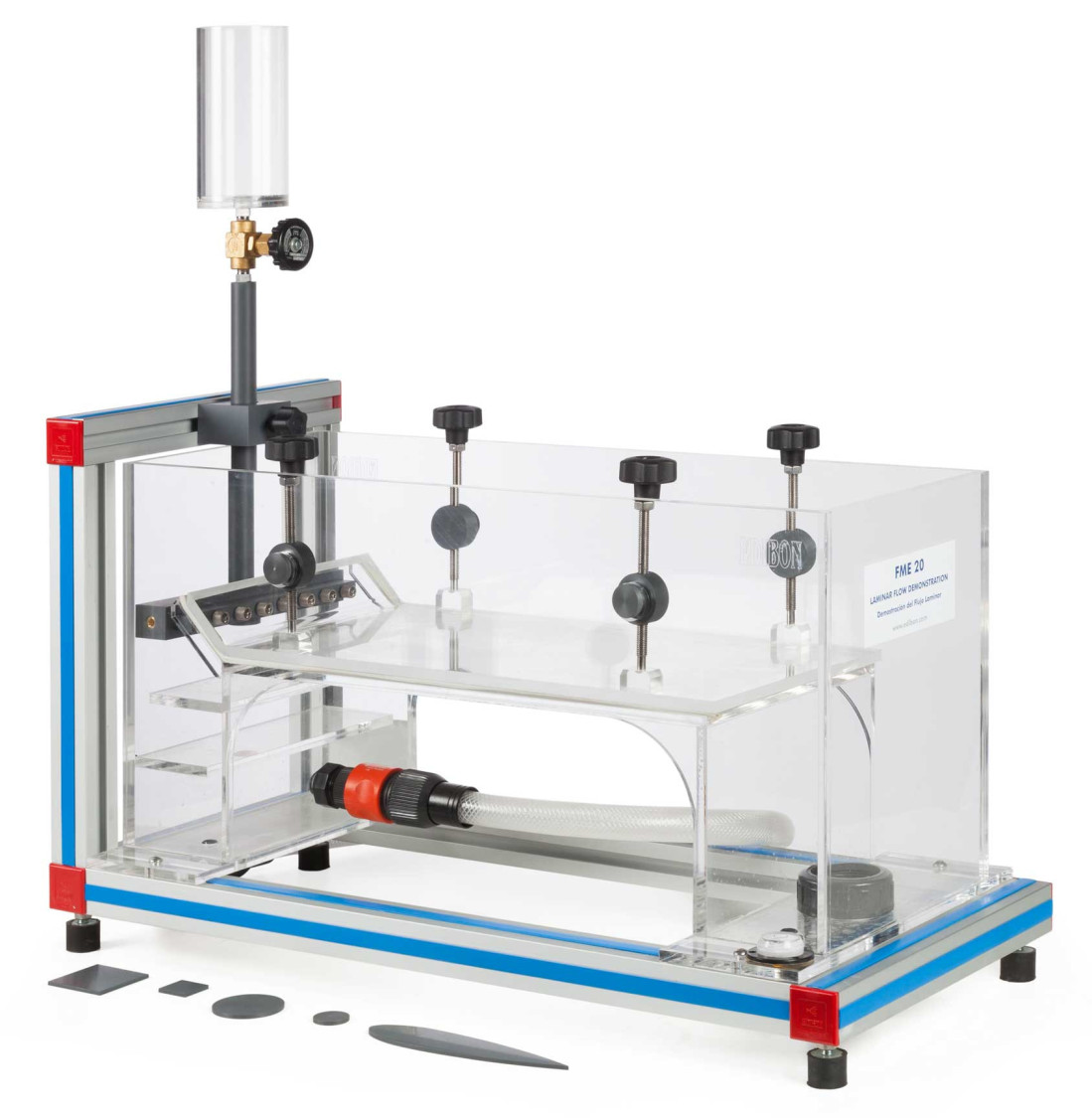

Complete FME20 Unit

LAMINAR FLOW DEMONSTRATION - FME20

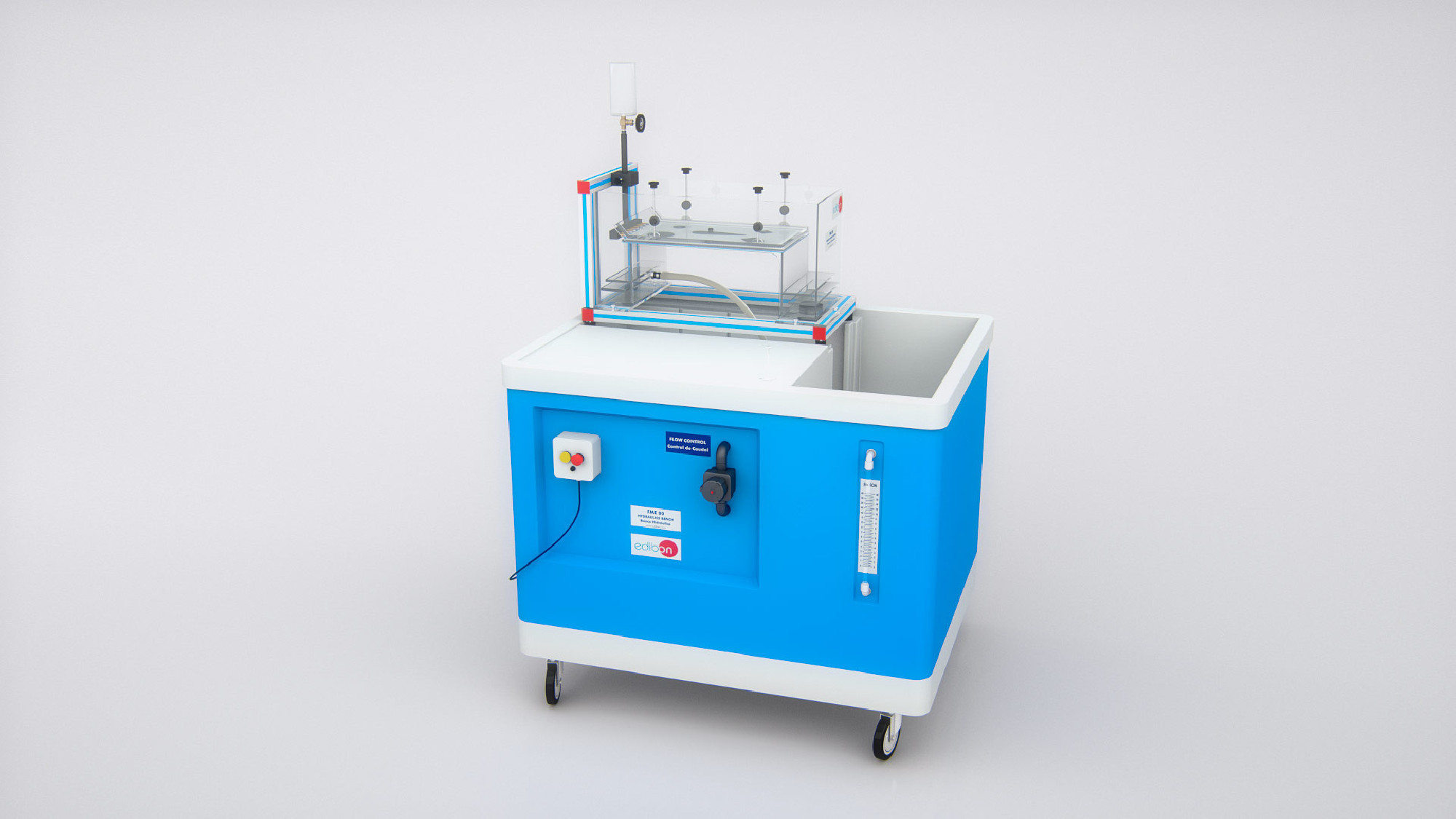

FME20 Unit with service unit FME00

LAMINAR FLOW DEMONSTRATION - FME20
LAMINAR FLOW DEMONSTRATION - FME20

ИННОВАЦИОННЫЕ СИСТЕМЫ

The Laminar Flow Demostration unit, "FME20", designed by EDIBON, allows a complete study of the bi-dimensional problems associated with laminar flow. Thanks to an efficient system of dye injection we can observe the different models of flow. It consists on an enlargement of the device of Hele-Shaw.

Посмотреть общее описание

Расширения

ICAI

Программное Обеспечение для Интерактивного Компьютерного Обучения
MSAC

Модульная Система Сбора и Управления

ЛАБОРАТОРИИ

8TV
 Лаборатория механики жидкости для технического и профессионального образования
8HE
 Лаборатория механики жидкости для высшего образования

НОВОСТИ ПО ТЕМЕ

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Читать дальше
Setting up at Al Imam Mohammad Ibn Saud Islamic University, Riyadh (IMAMU)
Setting up at Al Imam Mohammad Ibn Saud Islamic University, Riyadh (IMAMU)
We had the opportunity to install some of our equipment in Al Imam Mohammad Ibn Saud Islamic University, Riyadh (IMAMU). Specifically, we installed our UCP, TSAC, FME20 and our FME00.
Читать дальше
NEW Fluid Mechanics Course
NEW Fluid Mechanics Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.
Читать дальше

ОБЩЕЕ ОПИСАНИЕ

The Laminar Flow Demostration unit, "FME20", designed by EDIBON, allows a complete study of the bi-dimensional problems associated with laminar flow. Thanks to an efficient system of dye injection we can observe the different models of flow. It consists on an enlargement of the device of Hele-Shaw.

Water is supplied to the accessory from the driving mouth of the Hydraulics Bench (FME00) or from the Basic Hydraulic Feed System (FME00/B), by a flexible pipe.

Then, water passes through a damping deposit that eliminates the turbulence.

It has a dye injection system, which consists of a deposit, a flow control valve and some needles that allow for a better visualization of the flow around the different hydrodynamic models, placed in the central part of the channel.

The unit can be levelled with the adjustable legs.

УПРАЖНЕНИЯ И ПРИМЕРЫ С ИНСТРУКЦИЯМИ

РУКОВОДСТВО ПО ПРАКТИЧЕСКИМ УПРАЖНЕНИЯМ ВКЛЮЧЕНО В РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ

  1. Ideal flow around a submerged cylinder.
  2. Ideal flow around a submerged profile.
  3. Ideal flow around a body in peak.
  4. Ideal flow in a convergent channel.
  5. Ideal flow in a divergent channel.
  6. Ideal flow in an elbow of 90°.
  7. Ideal flow in a sudden contraction.
  8. Ideal flow in a sudden broadening.
  9. Substitution of a line of current for a solid edge.

НЕОБХОДИМЫЕ ЭЛЕМЕНТЫ

КАЧЕСТВО

ПОСЛЕПРОДАЖНОЕ ОБСЛУЖИВАНИЕ

Запросить информацию
