ОБЩЕЕ ОПИСАНИЕ

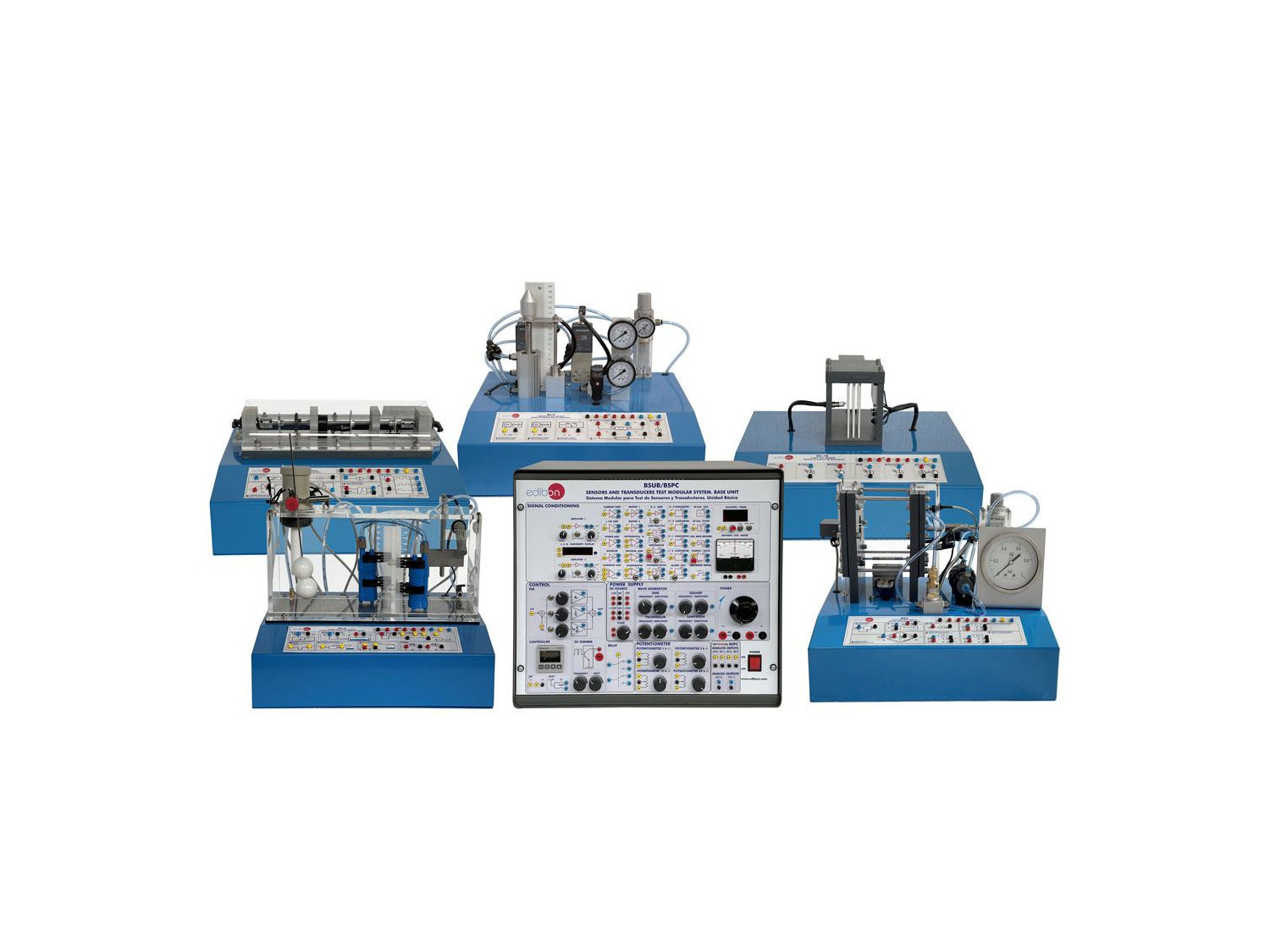

The Modular System for the Study of Sensors, "BS", designed by EDIBON, includes a wide range of units that include different electronic components designed to control the signal produced by the transducers (sensors and actuators) on the one hand, and to evaluate and quantify it on the other hand. Therefore, the following units have been developed by EDIBON to show the fundamental principles of the different sensors and actuators and to understand in a practical way how to process the signals which they produce.

Аксессуары

COMPUTER CONTROLLED BASIC UNIT FOR BS - BSPC

BSPC

Available

6.1.2.1.- ДАТЧИКИ И ЭЛЕКТРОННЫЕ ПРИБОРЫ

BSPC

Базовая единица для БС, управляемая компьютером (ПК)

The BSPC is a complete unit designed to provide signal conditioning for many sensors and transducers output signals that must be conditioned before a data acquisition system can effectively and accurately acquire the signal. These circuits consist...

BSUB

Available

6.1.2.1.- ДАТЧИКИ И ЭЛЕКТРОННЫЕ ПРИБОРЫ

BSUB

Базовая единица для БС

The BSUB is a complete unit designed to provide signal conditioning for many sensors and transducers output signals that must be conditioned. These circuits consist of differential and instrumentation amplifiers, filters, current to voltage and...

VIBRATIONS AND/OR DEFORMATIONS TEST MODULE - BS1

Available

6.1.2.1.- ДАТЧИКИ И ЭЛЕКТРОННЫЕ ПРИБОРЫ

BS1

Модуль вибрационных и/или деформационных испытаний

Vibrations and/or Deformations Test Module, "BS1" has been designed to teach mechanical vibration and displacement variable measurement techniques.On the upper side of the test module there is a girder or elastic/vibrant sheet that is the one...

Available

6.1.2.1.- ДАТЧИКИ И ЭЛЕКТРОННЫЕ ПРИБОРЫ

BS2

Модуль испытаний температуры

The Temperature Test Module, "BS2", has been designed to teach the use and applications of sensors of temperature as a measure, and its control.We have a half-open space in whose interior there are two lamps that are going to heat that space....

Available

6.1.2.1.- ДАТЧИКИ И ЭЛЕКТРОННЫЕ ПРИБОРЫ

BS3

Модуль испытаний давления

The Pressure Test Module, "BS3", has been designed to teach the use and applications of this kind of sensors measurement systems. It shows the different pressure measurement techniques. On the left upper side of the module there is a pressure...

Available

6.1.2.1.- ДАТЧИКИ И ЭЛЕКТРОННЫЕ ПРИБОРЫ

BS4

Модуль испытаний расхода

The objective of Flow Test Module, "BS4", is to show techniques to measure changeable fluids.The module is made up of two tanks assembled on a structure. In one of them there is a pumping system that allows to pump the water from the reserve tank,...

Available

6.1.2.1.- ДАТЧИКИ И ЭЛЕКТРОННЫЕ ПРИБОРЫ

BS5

Модуль испытаний печей

With the Ovens Test Module, "BS5", is possible to study temperature measurement techniques using several kinds of sensors placed inside the sealed place that is used as oven.This module is basically made up of an oven that contains a changeable...

Available

6.1.2.1.- ДАТЧИКИ И ЭЛЕКТРОННЫЕ ПРИБОРЫ

BS6

Модуль испытаний уровня жидкости

The Liquid level Test Module, "BS6", has been designed to teach the use and applications of level sensors and their measurement systems. This module teaches techniques to measure and control the liquid level in a tank.On this there is a two tanks...

Available

6.1.2.1.- ДАТЧИКИ И ЭЛЕКТРОННЫЕ ПРИБОРЫ

BS7

Модуль испытаний тахометра

The Tachometer Test Module, "BS7", has been designed to teach linear and angular speed measurement techniques. In this module placed on the upper part we have a miniature motor used to move the axle. The motor speed can be changed adjusting the...

Available

6.1.2.1.- ДАТЧИКИ И ЭЛЕКТРОННЫЕ ПРИБОРЫ

BS8

Модуль испытаний близости

The Proximity Test Module, "BS8", has been designed to teach techniques to detect the proximity of objects, focusing on the distance at which each sensor is able to detect the object and the type of material it can detect. In the upper part there...

Available

6.1.2.1.- ДАТЧИКИ И ЭЛЕКТРОННЫЕ ПРИБОРЫ

BS9

Модуль испытаний пневматики

The Pneumatics Test Module, "BS9", has been designed to teach techniques of control and handling of a pneumatic piston.All connections of the different BS9 mechanisms will have output through a group of 2 mm. terminals. They are placed in the...

BS10

Available

6.1.2.1.- ДАТЧИКИ И ЭЛЕКТРОННЫЕ ПРИБОРЫ

BS10

Модуль испытаний освещения

The objective of the Light Test Module, "BS10", is to show some of the techniques used to measure light or illumination intensity.The module is equipped with a lamp whose light intensity can be controlled by the variation of the voltage...

ДОПОЛНИТЕЛЬНОЕ ОБОРУДОВАНИЕ

TRANSDUCERS AND INSTRUMENTATION UNIT - SAIT

SAIT

Available

6.1.2.1.- ДАТЧИКИ И ЭЛЕКТРОННЫЕ ПРИБОРЫ

SAIT

Устройство для измерения трансдюсеров и инструментации

The Transducers and Instrumentation Unit, "SAIT", has been designed by EDIBON to show most of the devices used in the industry that allow the electronic systems to communicate with the real world, to measure physical variables and to control...

COMPUTER CONTROLLED TEACHING UNIT FOR THE STUDY OF DIGITAL SIGNAL PROCESSING - TDS

Available

14.2.1.3.- ЦИФРОВАЯ ЭЛЕКТРОНИКА

TDS

Обучающее устройство для изучения цифровой обработки сигнала, управляемое ПК

The Teaching Unit for the Study of Digital Signal Processing "TDS" allows to study the principles and more important concepts about digital signal processing, including study and practical exercises, among others, of:Continuous waveforms...

COMPUTER CONTROLLED A/D AND D/A CONVERTERS UNIT - CADDA

CADDA

Available

14.2.1.3.- ЦИФРОВАЯ ЭЛЕКТРОНИКА

CADDA

Устройство преобразователей АЦП и ЦАП, управляемое с компьютера (ПК)

The Computer Controlled A/D and D/A Converters Unit, "CADDA", unit has been designed to help the students to learn how to perform the most common procedures and study the different circuits used to convert analog signals in a digital signals and...
