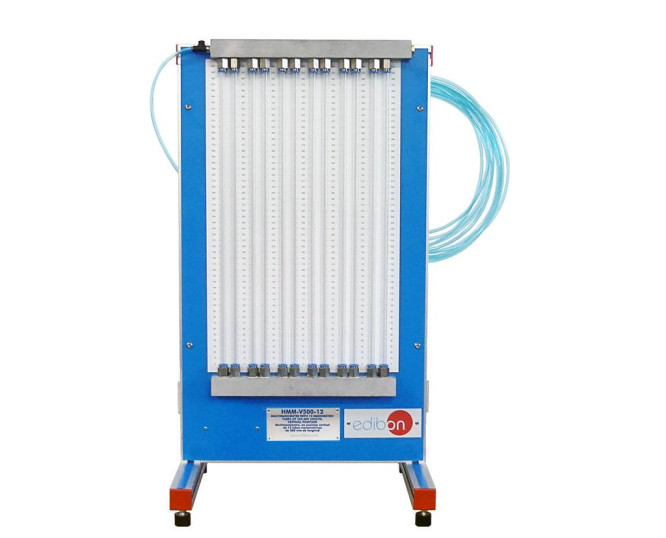

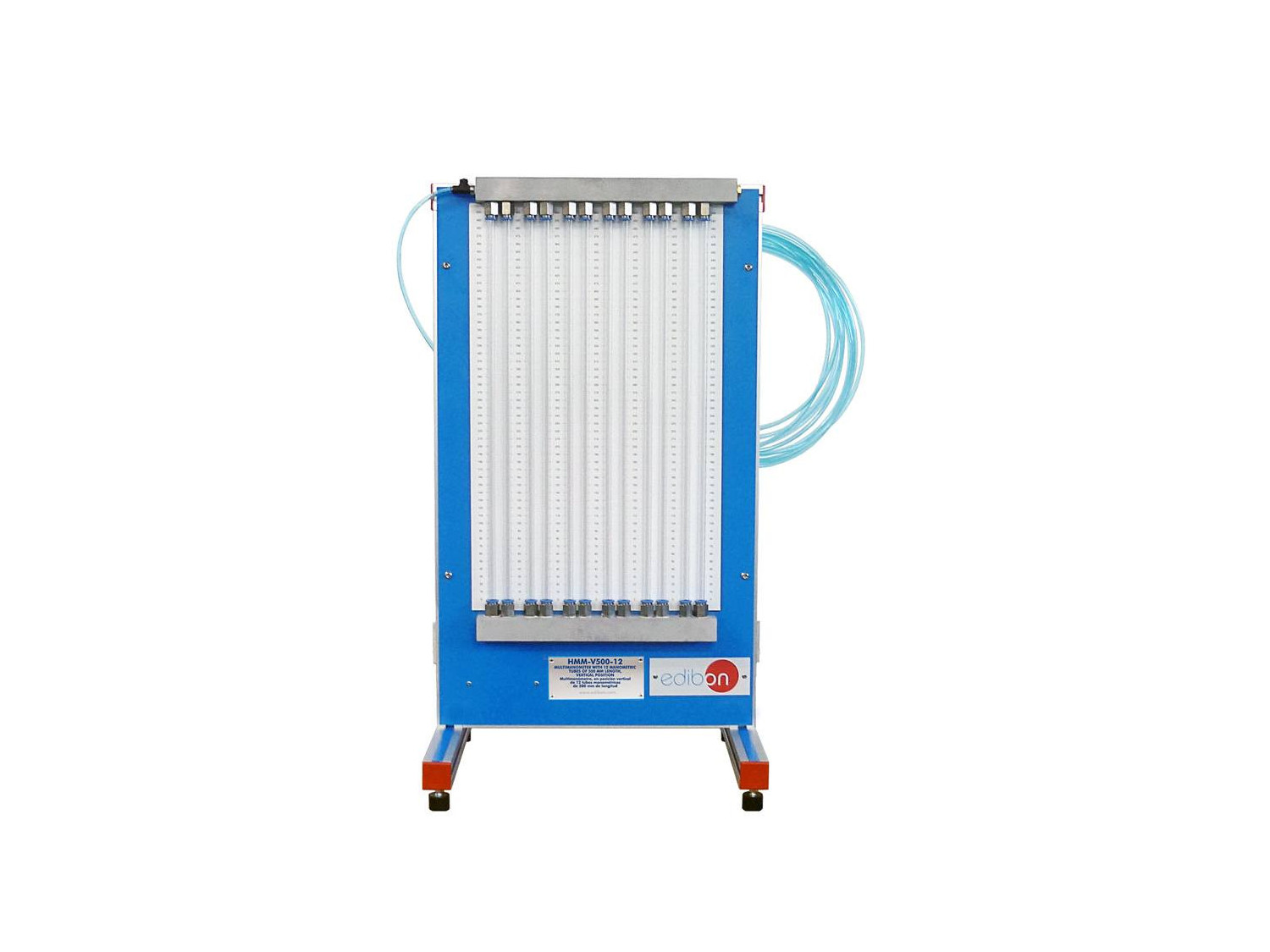

HMM-V500-12 Мультиманометр с 12-ю манометрическими трубками длиной 500 мм вертикального положения

8.2.- ИЗМЕРЕНИЕ

MULTIMANOMETER WITH 12 MANOMETRIC TUBES OF 500 MM LENGHT, VERTICAL POSITION - HMM-V500-12

ИННОВАЦИОННЫЕ СИСТЕМЫ

One type of gauge is a U-shaped gauge, which balances the unknown pressure with a known pressure. The pressure is determined by measuring the difference in liquid level of the two branches. Most of these gauges can be used as open gauges or as differential gauges, when they indicate the difference between two different pressures from the atmospheric one.

Посмотреть общее описание

Каталог

Спецификации конкурса

НОВОСТИ ПО ТЕМЕ

ОБЩЕЕ ОПИСАНИЕ

Twelve Manometric tubes, length: 500 mm.
Tubes inner diameter: 8mm, to avoid bubbles.
Air pump for pressurization.
Twelve points for differential pressure measurement, with key.
Common collector.
Non-return valve.
Drain valve.
