FME16 Ковшовая гидротурбина

8.1.7.- ГИДРАВЛИЧЕСКИЕ МАШИНЫ: ТУРБИНЫ
PELTON TURBINE - FME16

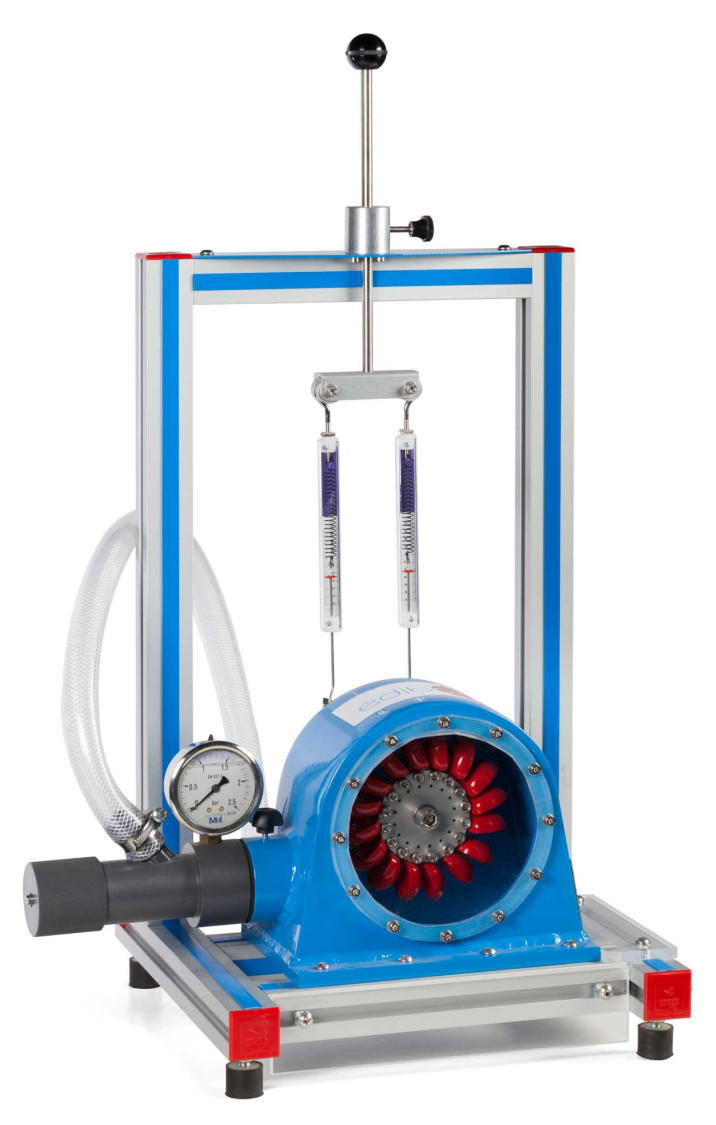

Complete FME16 Unit

PELTON TURBINE - FME16

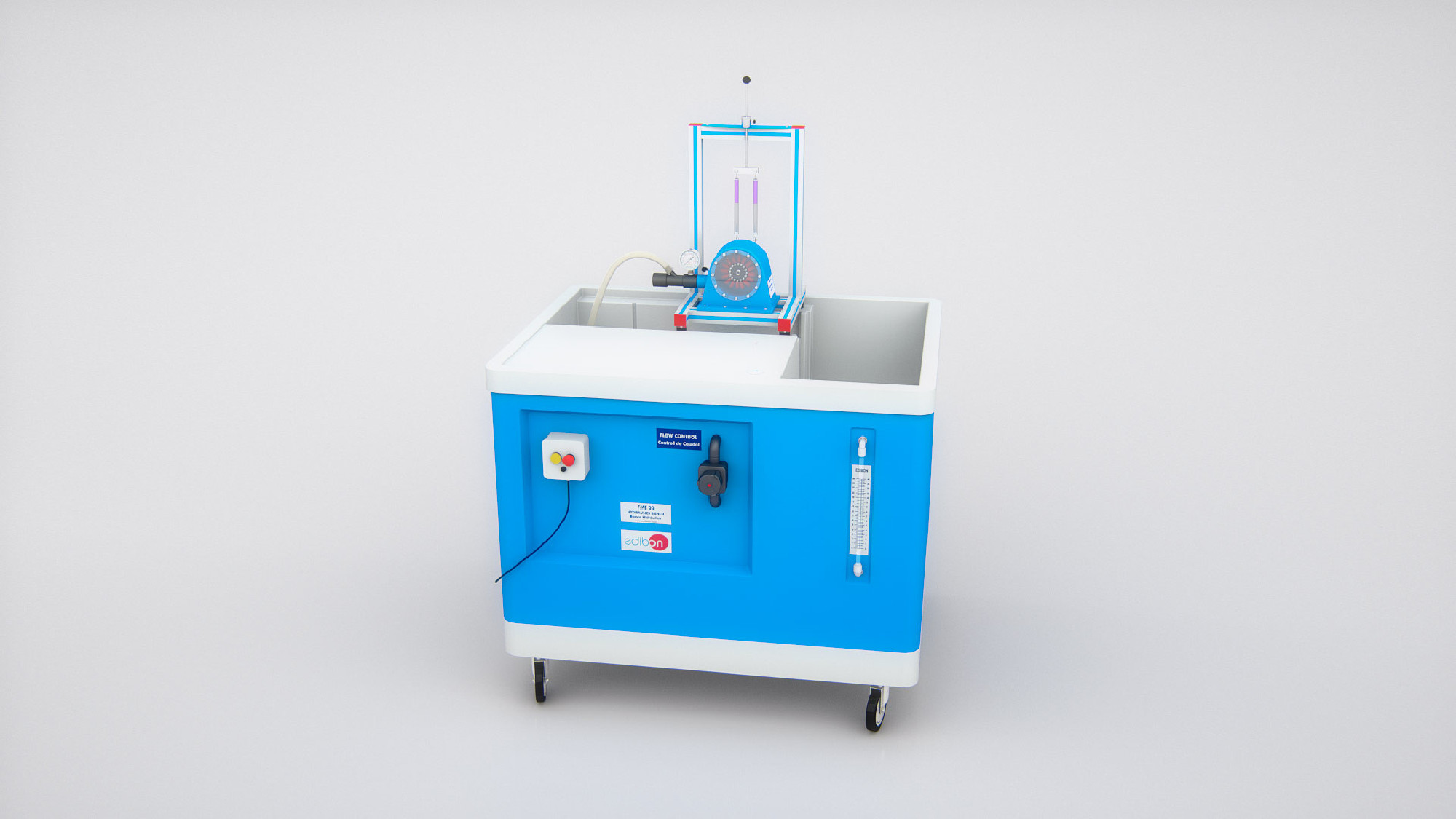

FME16 Unit with service unit FME00

PELTON TURBINE - FME16
PELTON TURBINE - FME16

ИННОВАЦИОННЫЕ СИСТЕМЫ

The Pelton Turbine unit, "FME16", designed by EDIBON, allows the study of the characteristics of the tangential wheels or pressure turbines commonly used to produce electricity in hydroelectric plants to exploit large hydraulic jumps of low flow.

Посмотреть общее описание

Расширения

ICAI

Программное Обеспечение для Интерактивного Компьютерного Обучения
MSAC

Модульная Система Сбора и Управления

ЛАБОРАТОРИИ

8TV
 Лаборатория механики жидкости для технического и профессионального образования
8HE
 Лаборатория механики жидкости для высшего образования
11PTC
 Лаборатория нефтяного учебного центра

НОВОСТИ ПО ТЕМЕ

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Читать дальше
Setting up at Faculté des Sciences at the Université d’Etat d’Haiti
Setting up at Faculté des Sciences at the Université d’Etat d’Haiti
We want to present our new installation in the Faculté des Sciences at the Université d’Etat d’Haiti, specifically in the Fluid Mechanics Department. There, we have installed many of our equipment, among which are: AFT, CF80/5 (with CFAS, CFFS, CFPLR, CFPR, CFRM, CFSDL, CFTP, CFTS, CFVD, CFVEN,...
Читать дальше
NEW Fluid Mechanics Course
NEW Fluid Mechanics Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.
Читать дальше

ОБЩЕЕ ОПИСАНИЕ

The Pelton Turbine unit, "FME16", designed by EDIBON, allows the study of the characteristics of the tangential wheels or pressure turbines commonly used to produce electricity in hydroelectric plants to exploit large hydraulic jumps of low flow.

This unit comprises a miniature Pelton’s Turbine with a retractable needle valve that allows to adjust the flow.

The Pelton’s Turbine runner is clearly visible through the transparent cover of the turbine.

A manometer placed at the inlet of the turbine enables to measure the inlet pressure at that point (water discharge pressure).

A band brake, connected to two dynamometers allows varying the load supplied to the turbine by means of a connection device.

The turbine axis velocity is determined by an optic tachometer.

УПРАЖНЕНИЯ И ПРИМЕРЫ С ИНСТРУКЦИЯМИ

РУКОВОДСТВО ПО ПРАКТИЧЕСКИМ УПРАЖНЕНИЯМ ВКЛЮЧЕНО В РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ

  1. Determination of the operative characteristics of the Pelton Turbine.
  2. Determination of the operation mechanical curves.
  3. Determination of the operation hydraulic curves.
  4. Adimensionalization.

НЕОБХОДИМЫЕ ЭЛЕМЕНТЫ

АНАЛОГИ ОБОРУДОВАНИЯ В НАЛИЧИИ

КАЧЕСТВО

ПОСЛЕПРОДАЖНОЕ ОБСЛУЖИВАНИЕ

Запросить информацию
