AEL-AD15B Применение управления позицией

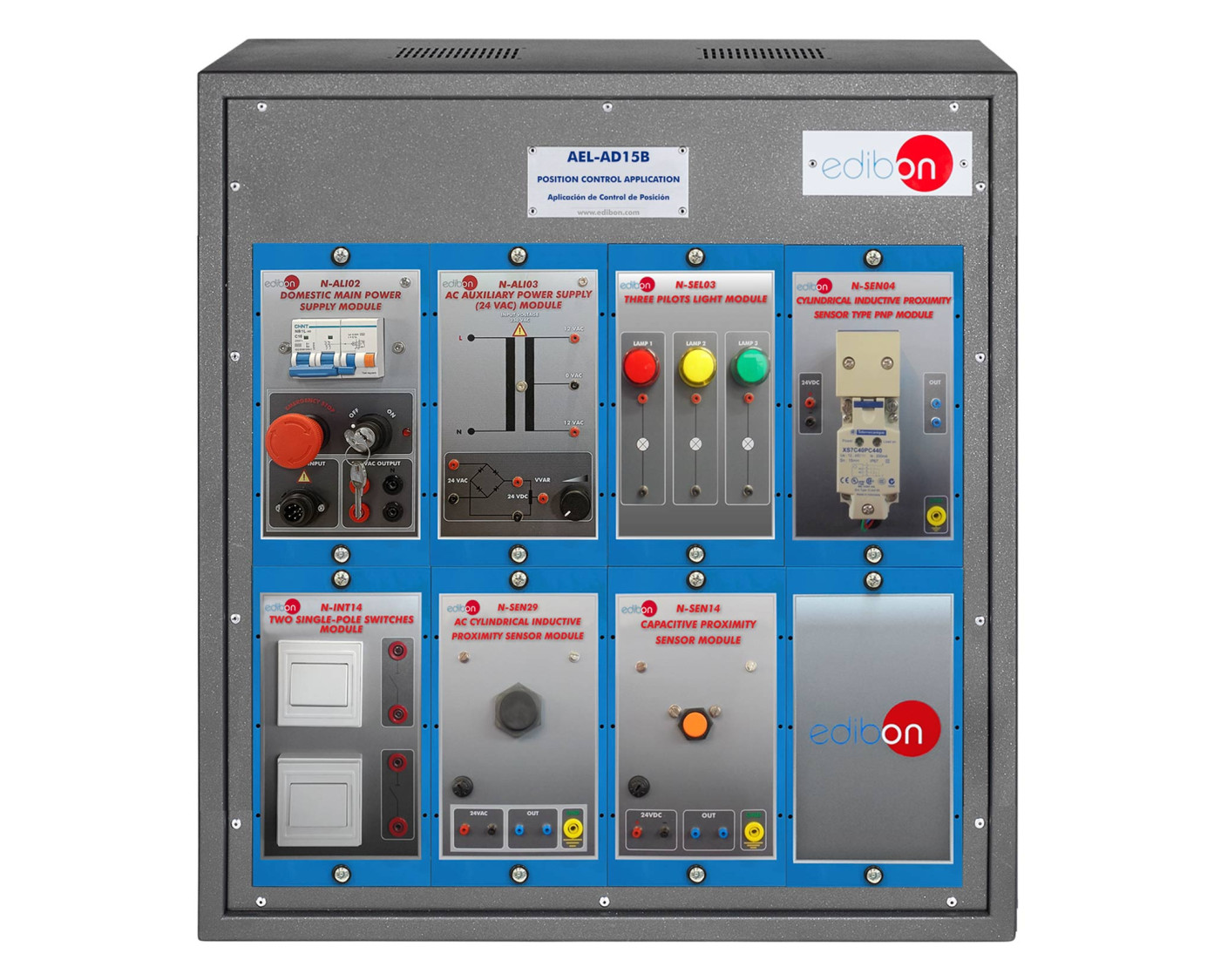

The Position Control Application, "AEL-AD15B", has been designed by EDIBON to study different types of position sensors and their possible applications. For that propose, this application includes the following sensors:

• A PNP type inductive sensor which works with DC and detects metals in a specific distance range.
• A capacity proximity sensor to detect both metals and no metals.
• A inductive sensor which works with AC and detects any metal.

The application also includes three pilot-lights to check the working of these sensors, which can be used in several industrial processes, such as water level detection in a tank, or to control objects in an assembly line, etc. With this application, the student will acquire some practical ideas about the operation of these devices.
