AEL-PMEI Применение средств защиты в электрических установках
ИННОВАЦИОННЫЕ СИСТЕМЫ

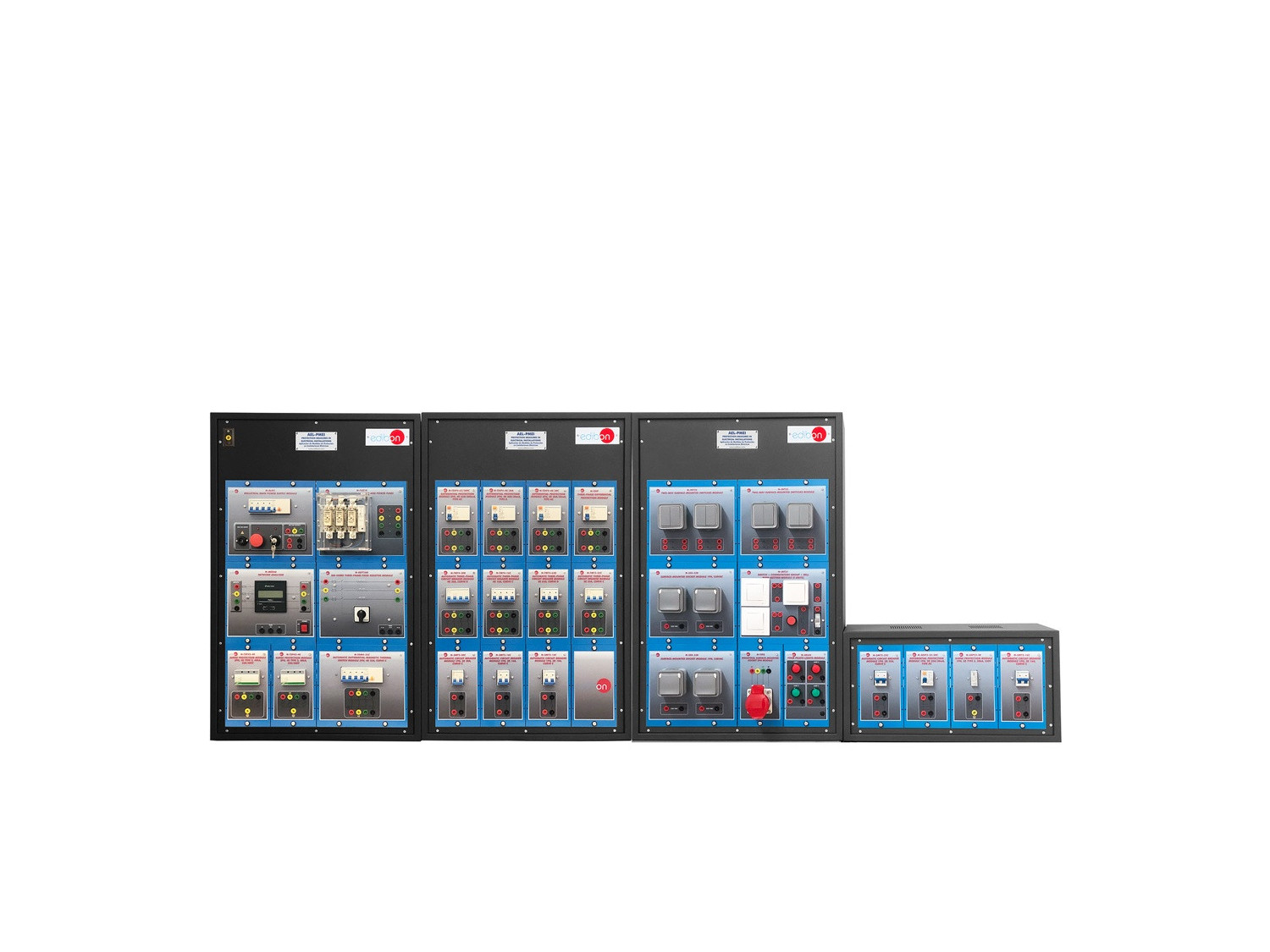

The Protection Measures in Electrical Installations, "AEL-PMEI", has been designed by EDIBON for training practical and professional level in the field of installation and testing of the main electrical protections for the housing and industry and devices involved in the basic circuits.
НОВОСТИ ПО ТЕМЕ
ОБЩЕЕ ОПИСАНИЕ
The Protection Measures in Electrical Installations, "AEL-PMEI", has been designed by EDIBON for training practical and professional level in the field of installation and testing of the main electrical protections for the housing and industry and devices involved in the basic circuits.
This application will provide future professionals with the essential knowledge and skills on the installation and verificacion of the different electrical protections used in homes, industries and buildings, such as circuit breakers, differentials, surge protections and fuses, and also about points of light and power outlets.
The learning goals of this application can be summarized as follows: understanding of electrical installations, measure protections for different installations, selection and test of measurement instrumentations for the verification of the installation and possible problems, starting the low voltage installation, correct utilization of the personal protection unit and problems solution in electrical systems.
Finally, the application allows the recreation of various electrical faults to simulate different problems that the professional may encounter in real life.
In order to acquire complete knowledge, the application includes a specific manual which explains at a theoretical and practical level the aspects related to the installation and test procedures for these installations.
УПРАЖНЕНИЯ И ПРИМЕРЫ С ИНСТРУКЦИЯМИ
РУКОВОДСТВО ПО ПРАКТИЧЕСКИМ УПРАЖНЕНИЯМ ВКЛЮЧЕНО В РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ
- Wiring, installation and tests of protection fuses for LGA.
- Wiring, installation and tests of surge protection devices.
- Wiring, installation and tests of the three-phase counter.
- Wiring, installation and tests of the general control and protection panel.
- Wiring and test of power control switch.
- Wiring and test of the general circuit breakers.
- Wiring and test of Residual Current Device (RCD).
- Wiring and test of residual circuit breakers selective, both industrial and domestic.
- Wiring and test of light points corresponding to the C1 circuit.
- Wiring and test of power outlets corresponding to the C2 circuit.
- Wiring and test of industrial power outlet on its corresponding circuit.
- Study of the different problems in a domestic and industrial electrical installation.
- Measurement of the resistance of the ground.
- Study and verification of the different protection measures.
- Study of lighting and surge protection.
- Verification of continuity of protective conductors connections.
БОЛЬШЕ ПРАКТИЧЕСКИХ УПРАЖНЕНИЙ ДЛЯ РАБОТЫ С УСТРОЙСТВОМ
- Several other exercises can be done and designed by the user.
