M3/KIT Набор по полупроводникам I

2.2.- НАБОР КОМПОНЕНТОВ ДЛЯ СХЕМ ЦЕПЕЙ

ИННОВАЦИОННЫЕ СИСТЕМЫ

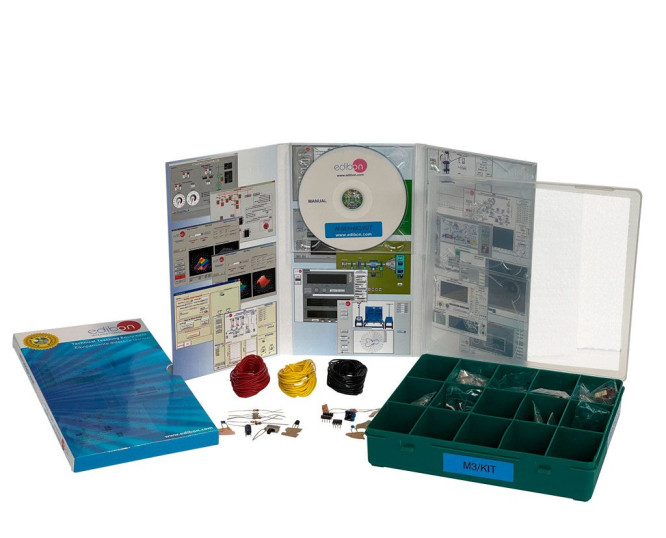

With Semiconductors I Kit, "M3/KIT", designed by EDIBON, the basic concepts of diodes can be studied, at the same time as the student will be asked to carry out a series of assemblies on the practice board to consolidate his knowledge of PN-type junctions, uses of the diode as a rectifier, Zéner diodes, etc.

Посмотреть общее описание

Каталог

Спецификации конкурса

ЛАБОРАТОРИИ

2TV

Лаборатория электроники для технического и профессионального образования

НОВОСТИ ПО ТЕМЕ

ОБЩЕЕ ОПИСАНИЕ

УПРАЖНЕНИЯ И ПРИМЕРЫ С ИНСТРУКЦИЯМИ

РУКОВОДСТВО ПО ПРАКТИЧЕСКИМ УПРАЖНЕНИЯМ ВКЛЮЧЕНО В РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ

Characteristics of the PN junction:

Study of the diode.
Faults study in diodes.
Theoretical/practical exercises.

The diode as a rectifier element:

Half wave rectifier.
Faults study in Rectifier circuit.
Bridge rectifier.
Faults study in bridge rectifier.
Theoretical/practical exercises.

The Zener diode:

Voltage regulator with a Zener diode.
Faults study in Zener circuit.
Theoretical/practical exercises.

Study and characteristics of the transistor:

Study of the transistor.
Faults study in the transistor.
Theoretical/practical exercises.

Transistor characteristics operating as a switch:

Study of the transistor as a switch.
Theoretical/practical exercises.

Common emitter amplifier:

Study of the common emitter NPN amplifier.
Faults study in amplifier circuit.
Study of the common emitter PNP amplifier.
Theoretical/practical exercises.

Узнать больше

БОЛЬШЕ ПРАКТИЧЕСКИХ УПРАЖНЕНИЙ ДЛЯ РАБОТЫ С УСТРОЙСТВОМ

Voltage doubler.
Power supply filtering.
Several other exercises can be done and designed by the user.
