MMF Оборудование для изучения изгибающего момента и поперечной силы

7.1.6.- СТРОИТЕЛЬНАЯ МЕХАНИКА 7.3.2.1.- МЕХАНИЧЕСКИЙ ТЕСТ 14.1.6.- СТРУКТУРНАЯ МЕХАНИКА

ИННОВАЦИОННЫЕ СИСТЕМЫ

The Shear Force and Bending Momentum Unit, "MMF", unit is formed by an aluminum and steel structure that allows us to perform a mechanical study of different structures.

Посмотреть общее описание

Каталог

Спецификации конкурса

Расширения

ICAI

Программное Обеспечение для Интерактивного Компьютерного Обучения

MSAC

Модульная Система Сбора и Управления

ЛАБОРАТОРИИ

7TV

Лаборатория механики, автомобилестроения и материалов для технического и профессионального образования

7HE

Лаборатория механики, автомобилестроения и материалов для высшего образования

НОВОСТИ ПО ТЕМЕ

EDIBON and its commitment to European Skills

At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.

NEW Photoelasticity course

Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Photoelasticity and learn about #elasticity, #fracturemechanics and #materialtesting. #DiscoverEdibon #Engineering.

NEW Basic Mechanics course

Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course Basic Mechanics and learn about #forces and vectors. #DiscoverEdibon #Engineering.

NEW Strength of Materials Course

Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of 12 days of material resistance and learn about #energy theorems. #DiscoverEdibon #Engineering Contact us for further information!

ОБЩЕЕ ОПИСАНИЕ

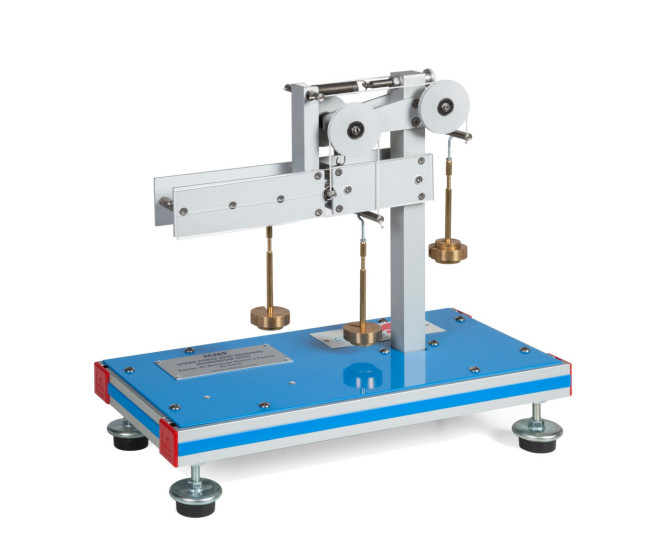

The Shear Force and Bending Momentum Unit, "MMF", unit is formed by an aluminum and steel structure that allows us to perform a mechanical study of different structures.

An articulated structure makes it possible to convert the application of one vertical force into both a bending moment and a shearing force on the beam. Both effects are created by the use of a set of weights that balance the system using a double-pulley system.

The different points in which the force can be applied make it possible to study the different reactions of the beam, allowing us to compare the experimental and theoretical results.

УПРАЖНЕНИЯ И ПРИМЕРЫ С ИНСТРУКЦИЯМИ

РУКОВОДСТВО ПО ПРАКТИЧЕСКИМ УПРАЖНЕНИЯМ ВКЛЮЧЕНО В РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ

Study of cantilever beams subject to loads at different points.
Demonstration of the shear force as the algebraic sum of the transverse components of the forces to one side of the section.
Demonstration of the bending moment as the algebraic sum of the moments of the forces to one side of the section.
Study of the equilibrium and the applied balancing forces when the applied masses are varied.
