AEL-AD33 Применение неисправностей в однофазных установках

4.1.2.2.- РИСКИ ПОРАЖЕНИЯ ЭЛЕКТРОТОКОМ И ЗАЩИТА
SINGLE-PHASE INSTALLATIONS FAULTS APPLICATION - AEL-AD33

ИННОВАЦИОННЫЕ СИСТЕМЫ

The Single-Phase Installations Faults Application, "AEL-AD33", has been designed to study several protections belonging to home installations.

Посмотреть общее описание

Расширения

ICAI

Программное Обеспечение для Интерактивного Компьютерного Обучения

ЛАБОРАТОРИИ

4TV
 Электрическая лаборатория технического и профессионального образования
4HE
 Электрическая лаборатория для высшего образования
11PTC
 Лаборатория нефтяного учебного центра

НОВОСТИ ПО ТЕМЕ

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Читать дальше
The Importance of Hands-On Training in Electricity for Universities and Companies
The Importance of Hands-On Training in Electricity for Universities and Companies
Electricity is a form of energy resulting from the movement of electrons through a conductor. This physical phenomenon is essential for the operation of a wide variety of devices and systems we use daily, from household appliances to complex industrial systems.
Читать дальше
What is Industry 4.0?
What is Industry 4.0?
Today we are at the beginning of a new era, named ‘Industrie 4.0’. Let´s explain a little further the concept "Industrie 4.0"!
Читать дальше

ОБЩЕЕ ОПИСАНИЕ

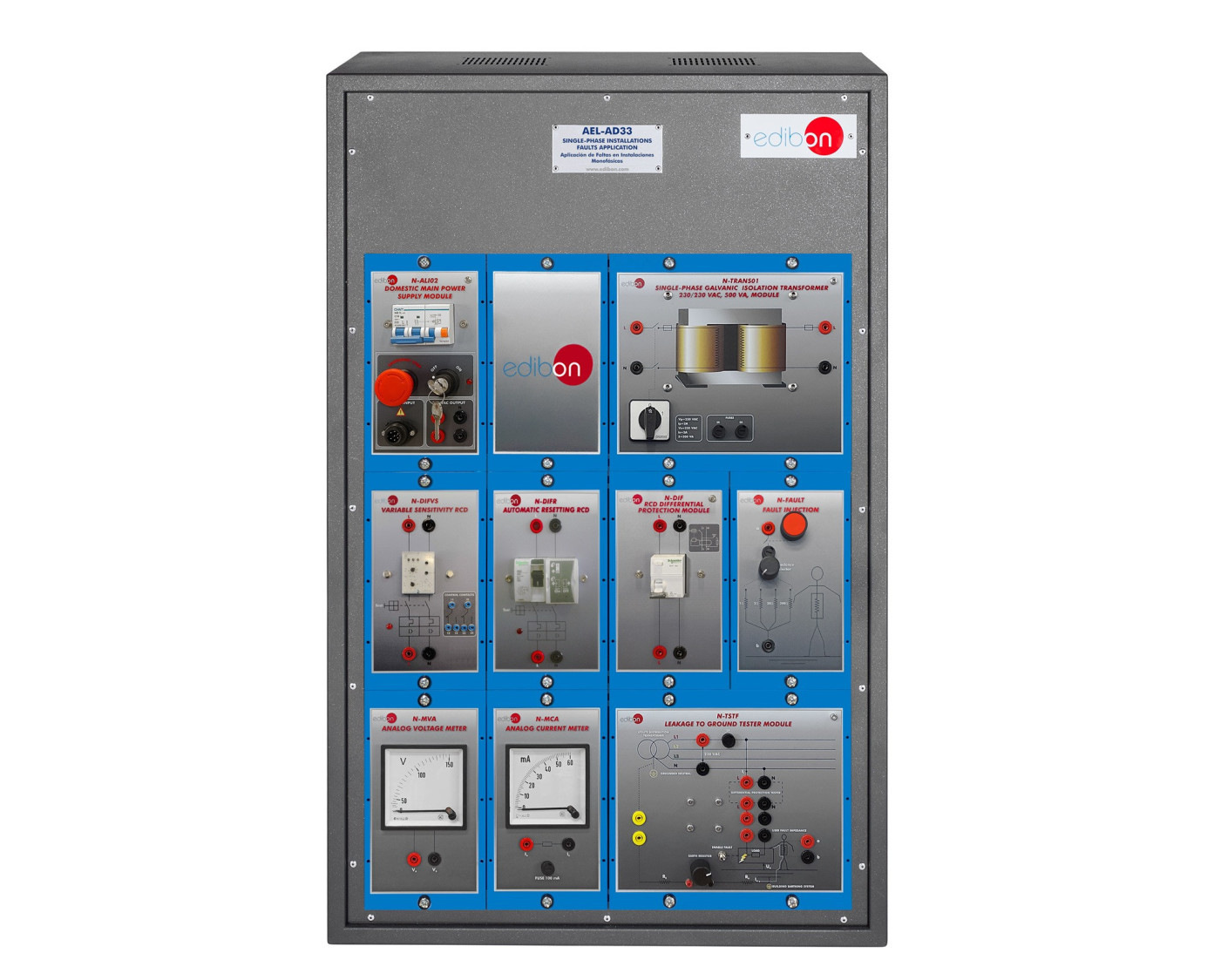

The Single-Phase Installations Faults Application, "AEL-AD33", has been designed to study several protections belonging to home installations. Through the safety elements, the student can simulate different faults and verify the reasons why each type of protection acts. It includes some innovative electric devices for the protection of people and installations against the effects of electric current, which ensure the continuity of power availability, as well as people safety. It includes a single-phase transformer to simulate earth derivations under safety conditions. It includes protections for: differential protection with automatic reset and differential protection with variable sensivity.

To check all protections, a variable resistor is included to control current derivations. It also has meters to know the amount of derivation current and verify the protection´s sensitivity.

УПРАЖНЕНИЯ И ПРИМЕРЫ С ИНСТРУКЦИЯМИ

РУКОВОДСТВО ПО ПРАКТИЧЕСКИМ УПРАЖНЕНИЯМ ВКЛЮЧЕНО В РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ

  1. Study the basic concepts of differential protection.
  2. Study of differential protection with variable sensitivity.
  3. Study of differential protection with automatic restore.
  4. Adjustment of the protection sensibility of the differential protection.
  5. Study of Single-phase ground short-circuit with basic differential protection.
  6. Study of Single-phase ground short-circuit with short-circuit impedance and basic differential protection.
  7. Study of Single-phase ground short-circuit with differential protection with variable sensitivity.
  8. Study of Single-phase ground short-circuit with short-circuit impedance and differential protection with variable sensitivity.
  9. Study of Single-phase ground short-circuit with differential protection with automatic restore.
  10. Study of Single-phase ground short-circuit with short-circuit impedance and differential protection with automatic restore.
  11. Study of isolation coordination.
