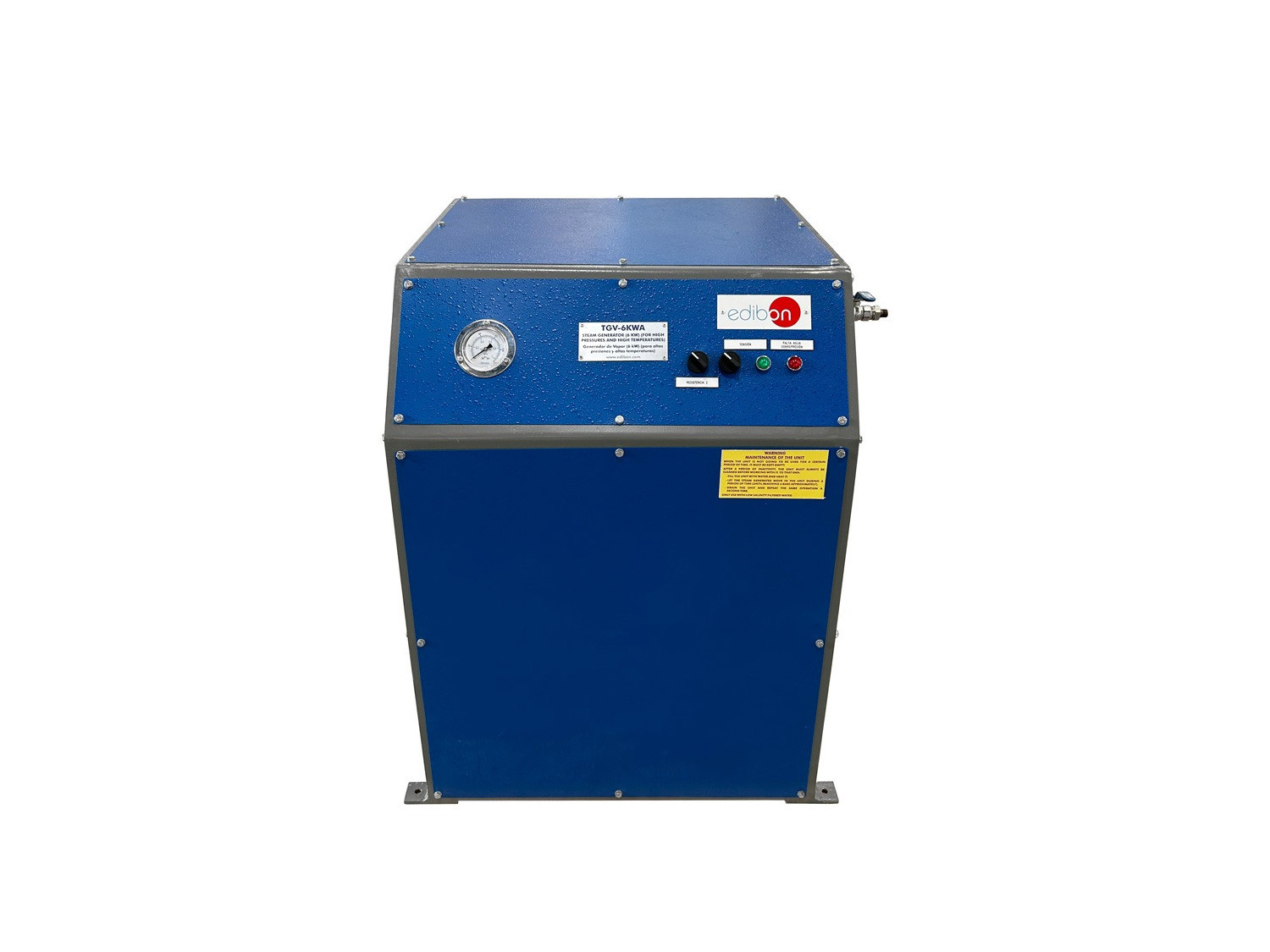

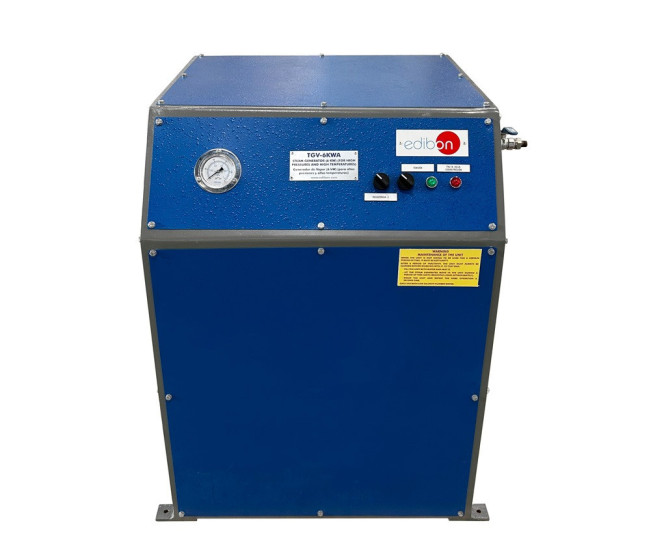

TGV-6KWA Парогенератор (6 кВт) для высокого давления и температуры

It is an electrical heating horizontal steam generator (with two heating elements of 6 kW each). It consists of a horizontal cylindrical body with torispherical ends joined by arc welding.

This type of generator produces 12 Kg.v.h of steam for a service pressure of 5 bar, being 6 bar the maximum pressure.

The maximum service temperature is 165 ºC, corresponding to saturated steam to 6 bar.

It has the accessories required for a safe operation, such as safety valve, level indicator, pressure switch, level safety, etc.

The reset of any safety device due to insufficient level or excess pressure will be manual.
