STRAIN GAUGE TRAINING UNIT - MEGE

ИННОВАЦИОННЫЕ СИСТЕМЫ

The Strain Gauge Training Unit, "MEGE", designed by EDIBON, studies the strain gauges and their application in the measurement of strain.

Посмотреть общее описание

Расширения

ICAI

Программное Обеспечение для Интерактивного Компьютерного Обучения
MSAC

Модульная Система Сбора и Управления

НОВОСТИ ПО ТЕМЕ

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Читать дальше
NEW Photoelasticity course
NEW Photoelasticity course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Photoelasticity and learn about #elasticity, #fracturemechanics and #materialtesting. #DiscoverEdibon #Engineering.
Читать дальше
NEW Strength of Materials Course
NEW Strength of Materials Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of 12 days of material resistance and learn about #energy theorems. #DiscoverEdibon #Engineering Contact us for further information!
Читать дальше

ОБЩЕЕ ОПИСАНИЕ

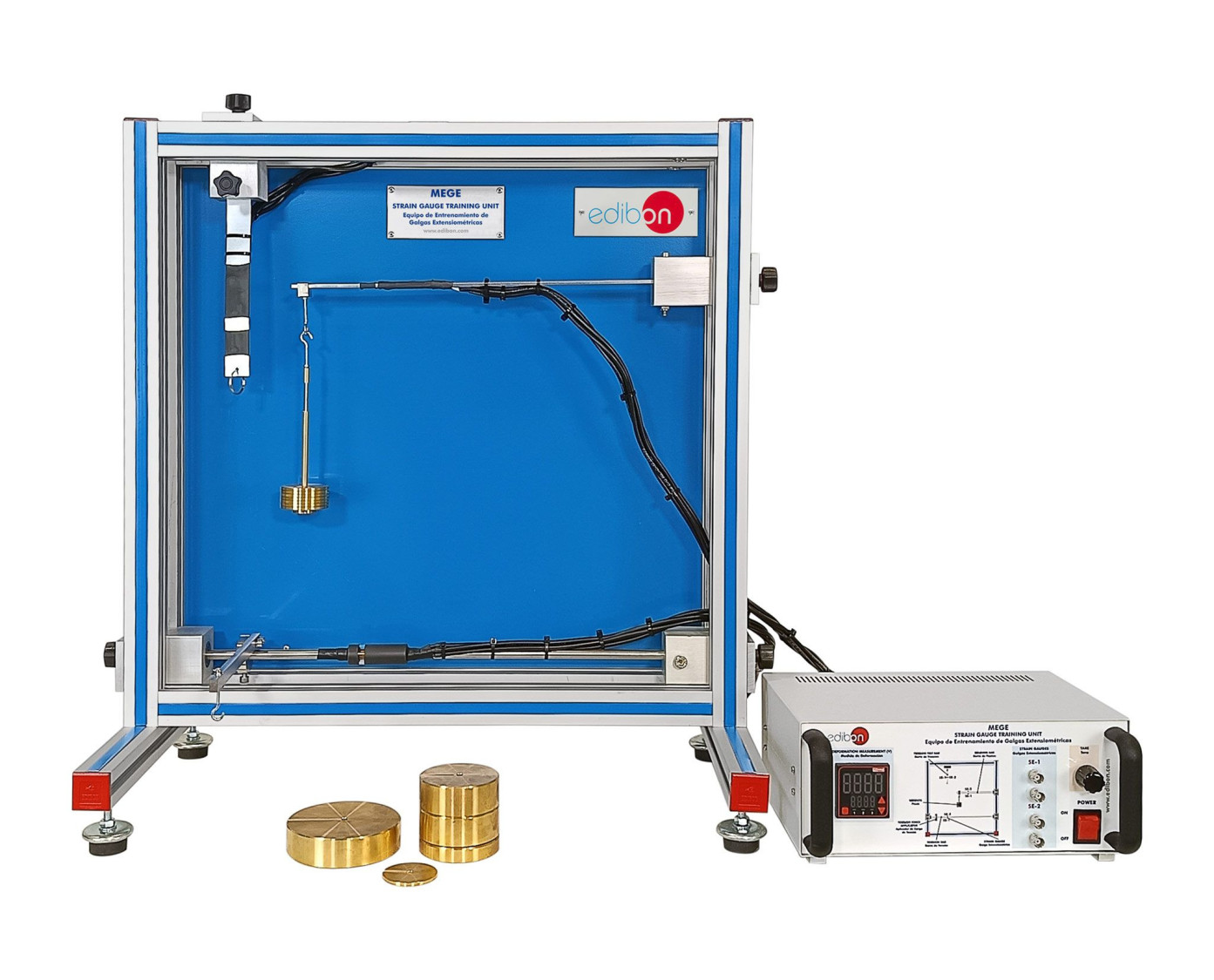

The Strain Gauge Training Unit, "MEGE", provides an introduction to the fundamentals of measurement with strain gauges, to compare how resistance strain gauges work and how they measure strains in different structures (torsion, tension and bending systems).
