The Unit to Study Rotational Inertia, "SRI", has been designed to perform tests for the analysis of the moments of inertia of rotating bodies.
Расширения
НОВОСТИ ПО ТЕМЕ
ОБЩЕЕ ОПИСАНИЕ

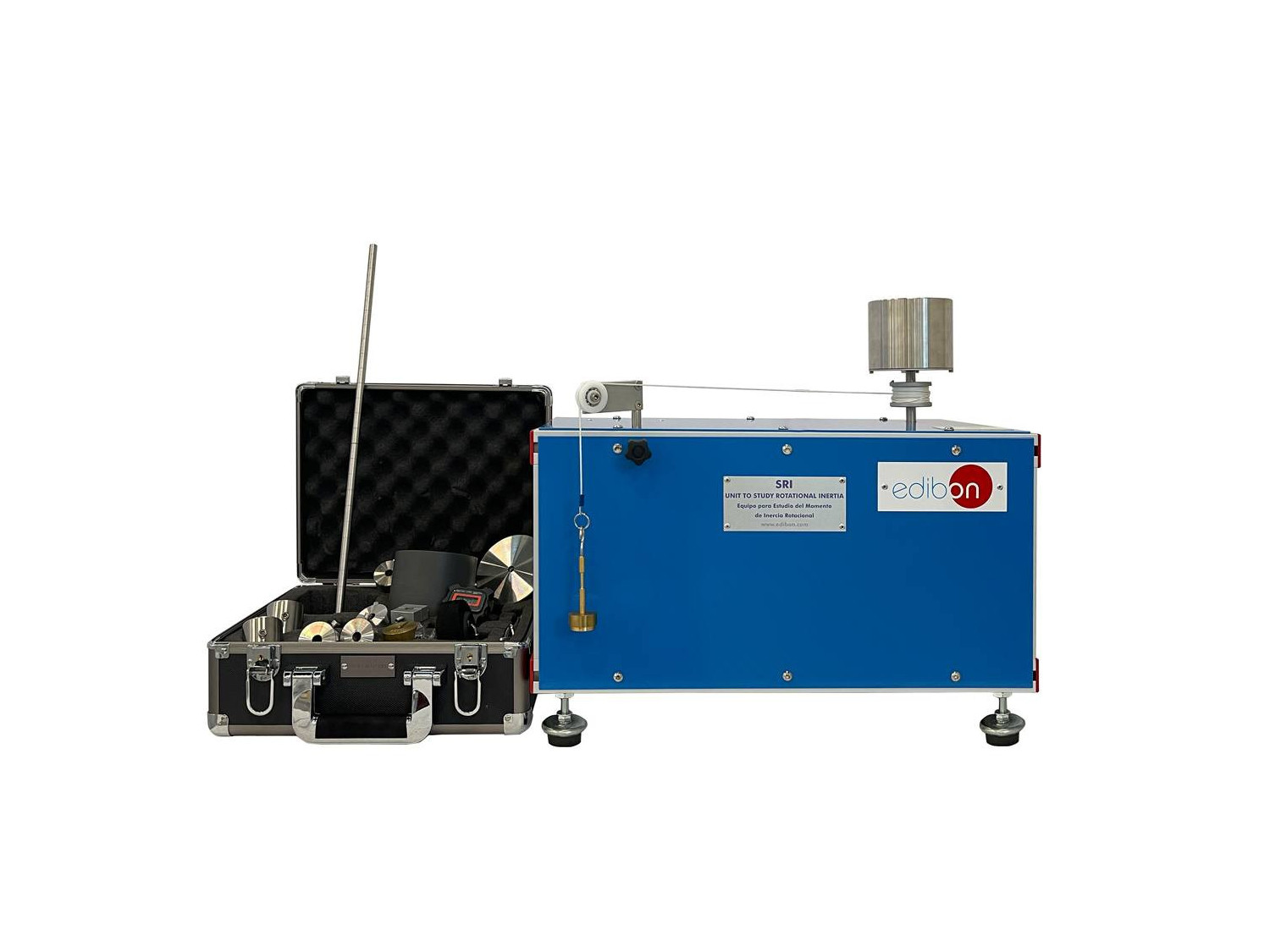

The Unit to Study Rotational Inertia, "SRI", has been designed to carry out tests to analyze the moments of inertia of a solid and a hollow cylinder, both with same mass and diameter. The moment of inertia of another hollow cylinder with different mass but same diameter can also be compared.
Besides, systems with different weight and distribution of weights can be studied with a rotating rod to which different weights can be attached in various positions (at different distances from the center).

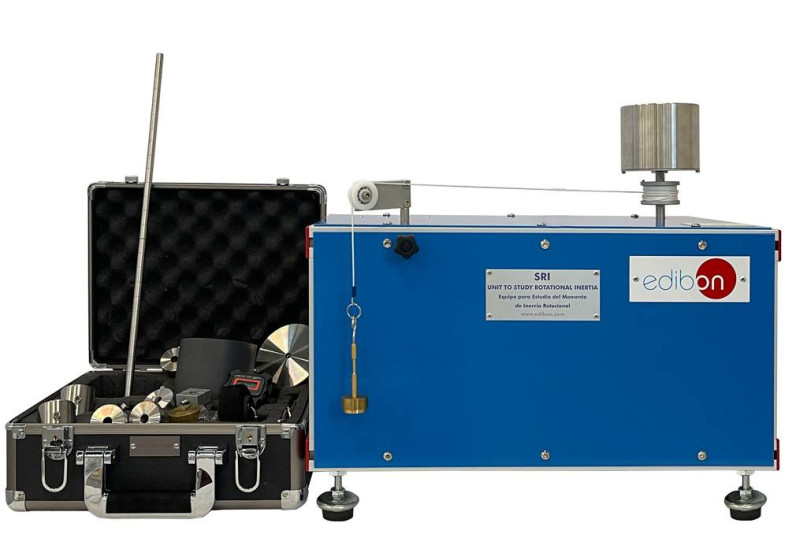

The unit consists of two support rods. One rod is the rotation axis with the body under study and from the other rod a uniformly accelerated rotational motion in the rotation axis is generated. The rotation axis is accelerated by a fixed pulley and a cable wound on it, where a weight is hung.
The moment of inertia is determined with the measurements of the time (with a chronometer), the mass under study and the acceleration distance.
УПРАЖНЕНИЯ И ПРИМЕРЫ С ИНСТРУКЦИЯМИ
РУКОВОДСТВО ПО ПРАКТИЧЕСКИМ УПРАЖНЕНИЯМ ВКЛЮЧЕНО В РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ
- Generation of a uniform acceleration rotation movement.
- Study and analysis of the moment of inertia of bodies in rotation movement.
- Comparison of the moment of inertia of a hollow cylinder and a solid cylinder in rotation.
- Comparison of the moment of inertia of two hollow cylinders of same shape but different mass in rotation.
- Study of the influence of the rotating mass in the moment of inertia.
- Study and analysis of the moment of inertia as a function of the radius.
- Comparison of experimental results and theoretical values.
ДОПОЛНИТЕЛЬНОЕ ОБОРУДОВАНИЕ
7.1.3.- СТАТИКА И ДИНАМИКА
MEMB2
The Unit for studying Equilibrium of Moments on a Two Arm Lever,"MEMB2", allows to study the fundamentals of the equilibrium of moments and the application of the law of levers on a two-arm lever.A pivoted beam in the extreme of a vertical support...
7.1.3.- СТАТИКА И ДИНАМИКА
MBMRC
Оборудование для балансировки взаимодействующих масс, управляемое с компьютером (ПК)
The Computer Controlled Balance of Reciprocating Masses Unit, "MBMRC", is a bench-mounting unit that allows to investigate and examine the free masses and moments of a reciprocating engine with a single cylinder, with two cylinders or with four...
7.1.3.- СТАТИКА И ДИНАМИКА
MEAL
Устройство для анализа работы камеры
The Cam Analysis Unit "MEAL" allows to observe the effect of the profile of a cam, the study of the displacement, velocity and acceleration profiles of the cam and the identification of the factors that can modify the dynamics of the cam. This...
7.1.3.- СТАТИКА И ДИНАМИКА
MDFC
Устройство демонстрации силы Кориолиса
The Coriolis Force Demonstration Unit, "MDFC", is used to observe the deflection of a jet of water generated by a pump attached to a rotating arm that rotates to different speeds in a horizontal plane. An electronically controlled motor rotates...
7.1.3.- СТАТИКА И ДИНАМИКА
MFCE
Устройство демонстрации центробежной силы
The Centrifugal Force Unit, "MFCE", is used to demonstrate the relationship between centrifugal force, rotational speed, mass of a rotating body and distance from the axis. The unit consists of a vertical axis of rotation and a rotating arm....
7.1.3.- СТАТИКА И ДИНАМИКА
MGI
Гироскоп
The Gyroscope, "MGI", allows the experimental demonstration of the different rotation modes of a gyroscope and the moments generated by the gyroscopic effect. The rotor of the electric motor (rotating motor) shares a horizontally supported shaft...
7.1.3.- СТАТИКА И ДИНАМИКА
CGU
Центробежный регулятор
The Centrifugal Governor Unit, "CGU", has been designed to study the operating mode of different centrifugal governors, including three interchangeable governors: Porter governor, Hartnell governor and Proell governor.Interchangeable governors...
7.1.3.- СТАТИКА И ДИНАМИКА
MED
Установка для балансировки статики и динамики
The Static and Dynamic Balancing Unit, "MED", developed by EDIBON is a unit to study and analyze the oscillations and vibrations and how to eliminate or diminish them.Basically, the unit is formed by a shaft mounted on bearings. The shaft is...
7.1.3.- СТАТИКА И ДИНАМИКА
MES
Установка простой балансировки
The Simple Balancing Unit, "MES", developed by EDIBON is a unit to study and analyze the oscillations and vibrations and how to eliminate or diminish them.Basically, the unit is formed by a shaft mounted on bearings. The shaft is coupled by pulley...
7.1.3.- СТАТИКА И ДИНАМИКА
MIF
Устройство инерционного маховика

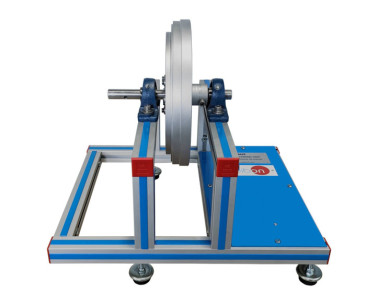

The Inertia Flywheel Unit, "MIF", consists of an inertia disc with a rotation shaft at the center of the disc.The shaft is supported at two points by bearings.A cord is attached by one of the ends to the shaft and wound around it. At the other end...
