FME22 Устройства Вентури, Бернулли и кавитационные устройства

8.1.4.- ГИДРОДИНАМИКА

VENTURI, BERNOULLI AND CAVITATION UNIT - FME22

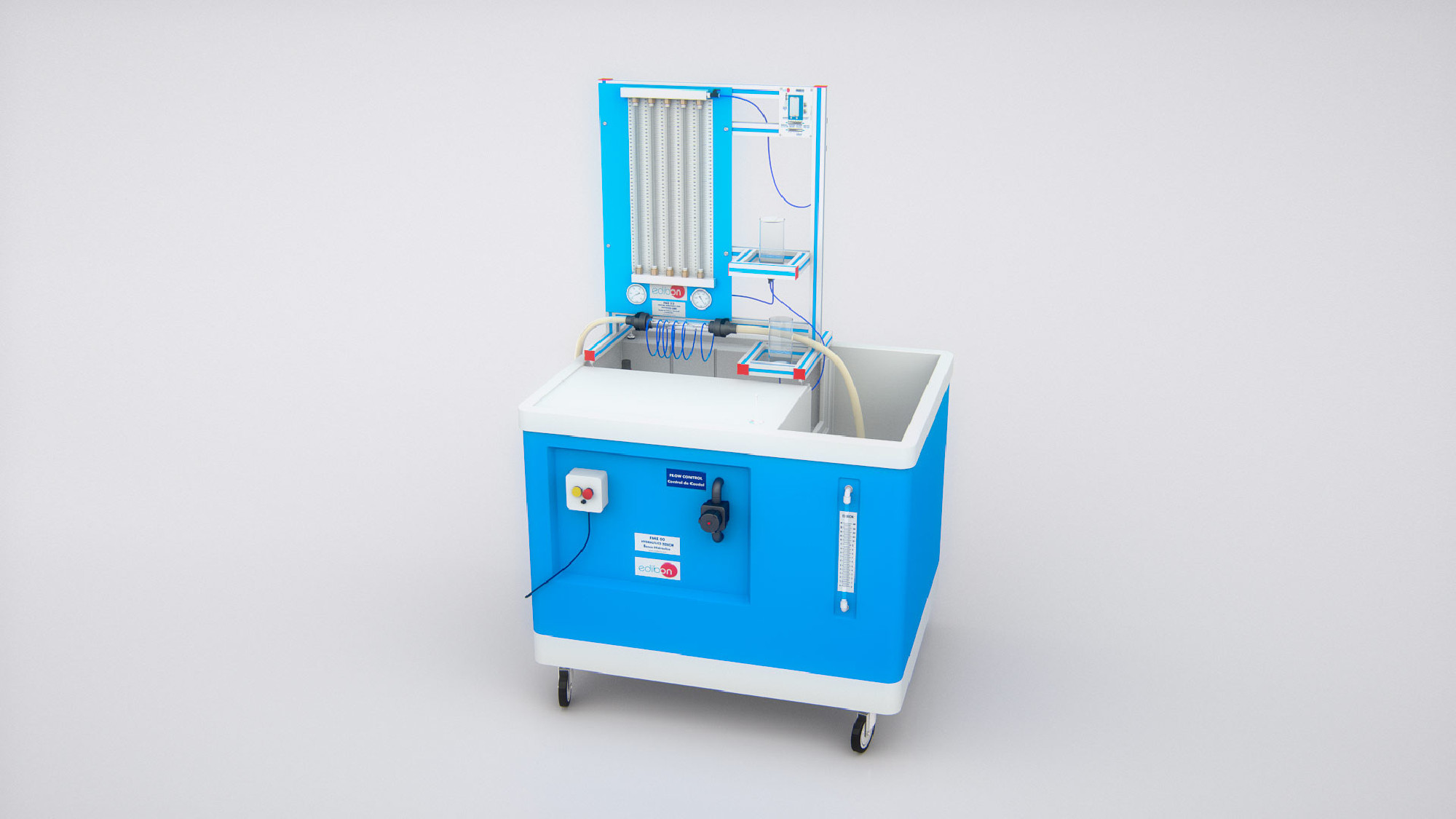

Complete FME22 Unit

FME22 Unit with service unit FME00

ИННОВАЦИОННЫЕ СИСТЕМЫ

This module is designed for demonstrating some practical possibilities with the Venturi’s tube.

Посмотреть общее описание

Каталог

Спецификации конкурса

Расширения

ICAI

Программное Обеспечение для Интерактивного Компьютерного Обучения

MSAC

Модульная Система Сбора и Управления

ЛАБОРАТОРИИ

8TV

Лаборатория механики жидкости для технического и профессионального образования

8HE

Лаборатория механики жидкости для высшего образования

НОВОСТИ ПО ТЕМЕ

EDIBON and its commitment to European Skills

At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.

Laboratory practices at Universidad Europea Miguel de Cervantes - UEMC featuring EDIBON equipment.

At EDIBON, we are immensely proud to have supplied the equipment used by Industrial Organization Engineering students (hybrid mode) during their laboratory practices at Universidad Europea Miguel de Cervantes - UEMC in Valladolid.

NEW Fluid Mechanics Course

Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.

ОБЩЕЕ ОПИСАНИЕ

The Venturi, Bernoulli and Cavitation unit, "FME22", has been designed by EDIBON to demonstrate some of the practical possibilities that can be achieved with a Venturi tube.

This unit is designed for demonstrating some practical possibilities with the Venturi’s tube. This Venturi is made of transparent methacrylate for a better visualization.

It consist of a circular transverse section Venturi tube with six taps (Divergent/Convergent). Being transparent, it gives a better visualization of the cavitation phenomenon.

It includes a manometer and a vacuum gauge, as well as five manometric tubes.

УПРАЖНЕНИЯ И ПРИМЕРЫ С ИНСТРУКЦИЯМИ

РУКОВОДСТВО ПО ПРАКТИЧЕСКИМ УПРАЖНЕНИЯМ ВКЛЮЧЕНО В РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ

How to fill the manometric tubes.
Flow calculation.
Determination of the exact section in Venturi’s tube. Bernoulli’s theorem study.
Cavitation study.
Pressure reduction in a tank.
Aspiration pump.
Aspiration pump for mixing two liquids.
Using for air and water mixing.
