MRYE1 Оборудование для изучения колеса и оси (токарный станок)

7.1.3.- СТАТИКА И ДИНАМИКА 14.1.3.- СТАТИКА И ДИНАМИКА

ИННОВАЦИОННЫЕ СИСТЕМЫ

The Wheel and Axle Unit, "MRYE1", is a unit which allows to investigate the mechanics of a simple wheel and axle machine and to demonstrate the laws of the formation of equilibrium of moments in static systems.

Посмотреть общее описание

Каталог

Спецификации конкурса

Расширения

ICAI

Программное Обеспечение для Интерактивного Компьютерного Обучения

MSAC

Модульная Система Сбора и Управления

ЛАБОРАТОРИИ

7TV

Лаборатория механики, автомобилестроения и материалов для технического и профессионального образования

7HE

Лаборатория механики, автомобилестроения и материалов для высшего образования

НОВОСТИ ПО ТЕМЕ

ОБЩЕЕ ОПИСАНИЕ

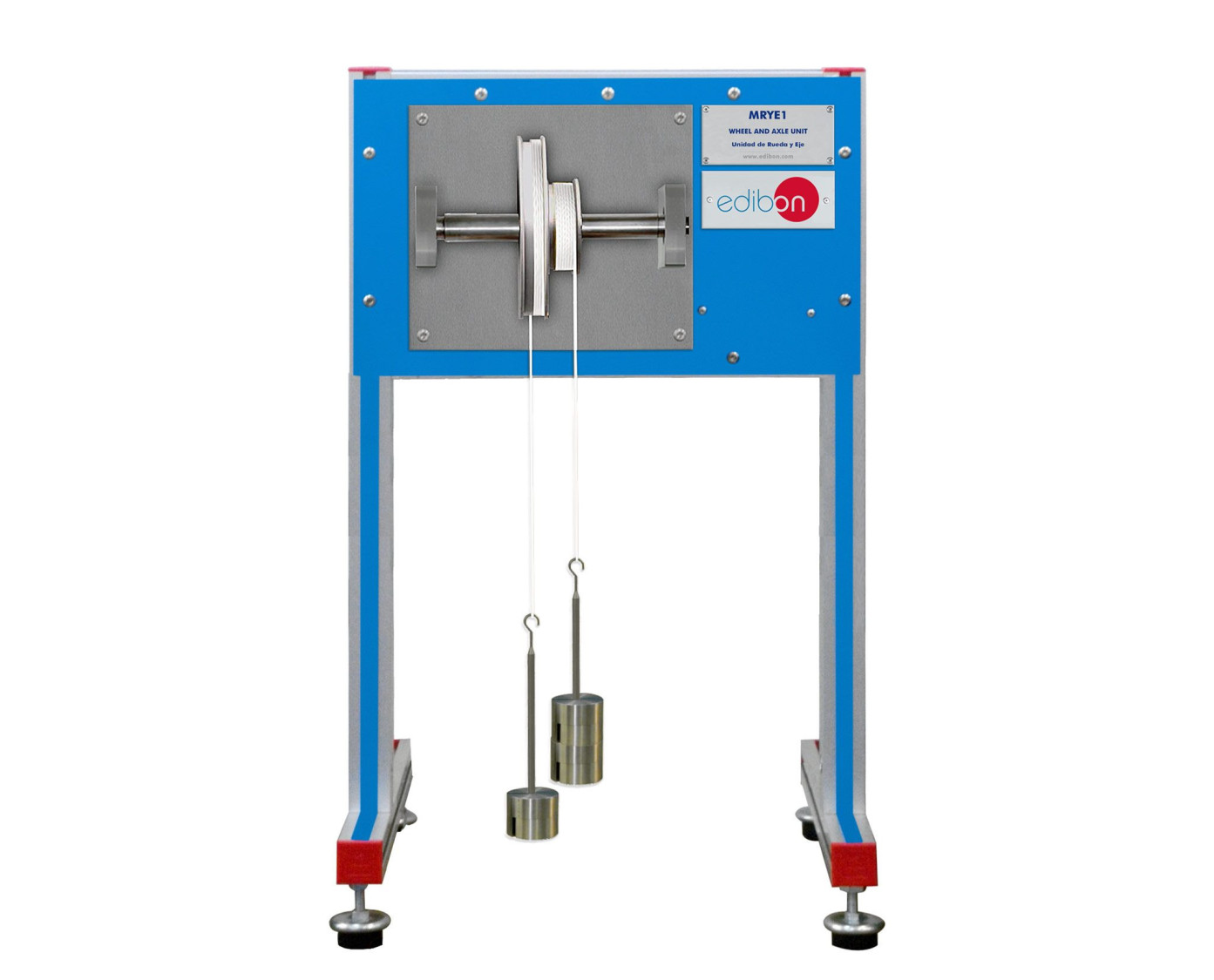

Two pulleys with different diameter have an axle supported on pivots with ball bearings in a base plate. Each pulley (wheel) has a cord wrapped around its periphery. The cords can be wrapped in either direction around each pulley.

A weights holder is added to each cord, allowing the loading of the pulleys using the set of weights provided. These weights can be easily changed, thus allowing to quickly vary the peripheral force on the pulleys.

Using the holders and weights the velocity ratio can be experimentally determined and compared with the calculated values. Students can also determine the variation of effort with load and the variation of efficiency with load.

УПРАЖНЕНИЯ И ПРИМЕРЫ С ИНСТРУКЦИЯМИ

РУКОВОДСТВО ПО ПРАКТИЧЕСКИМ УПРАЖНЕНИЯМ ВКЛЮЧЕНО В РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ

Study of equilibrium of moments.
Determination of velocity ratio and comparison with calculated value.
Determination of variation of effort with load.
Determination of variation of efficiency with load.

АНАЛОГИ ОБОРУДОВАНИЯ В НАЛИЧИИ

WHEEL AND DIFFERENTIAL AXLE UNIT - MRYE2

MRYE2

Available

7.1.3.- СТАТИКА И ДИНАМИКА

MRYE2

Оборудование для изучения колеса и дифференциальной оси (дифференциальный токарный станок)

The Wheel and Differential Axle Unit, "MRYE2", is a unit that allows for investigating the mechanics of a wheel and differential axle mechanism and demonstrating the force reduction on a differential pulley block.A wheel, consisting of a pulley...
