AIR CONDITIONING LABORATORY UNIT - TAAB

創新系統

The Air Conditioning Laboratory Unit, "TAAB", main objective is to introduce the student in the complex world of the air conditioning installations, as well as to study and determine the optimal parameters for the unit operation in function of the environmental requirements (humidity, heat, temperature and refrigeration, etc.).

查看一般說明

扩展

ICAI

交互式计算机辅助教学软件

一般說明

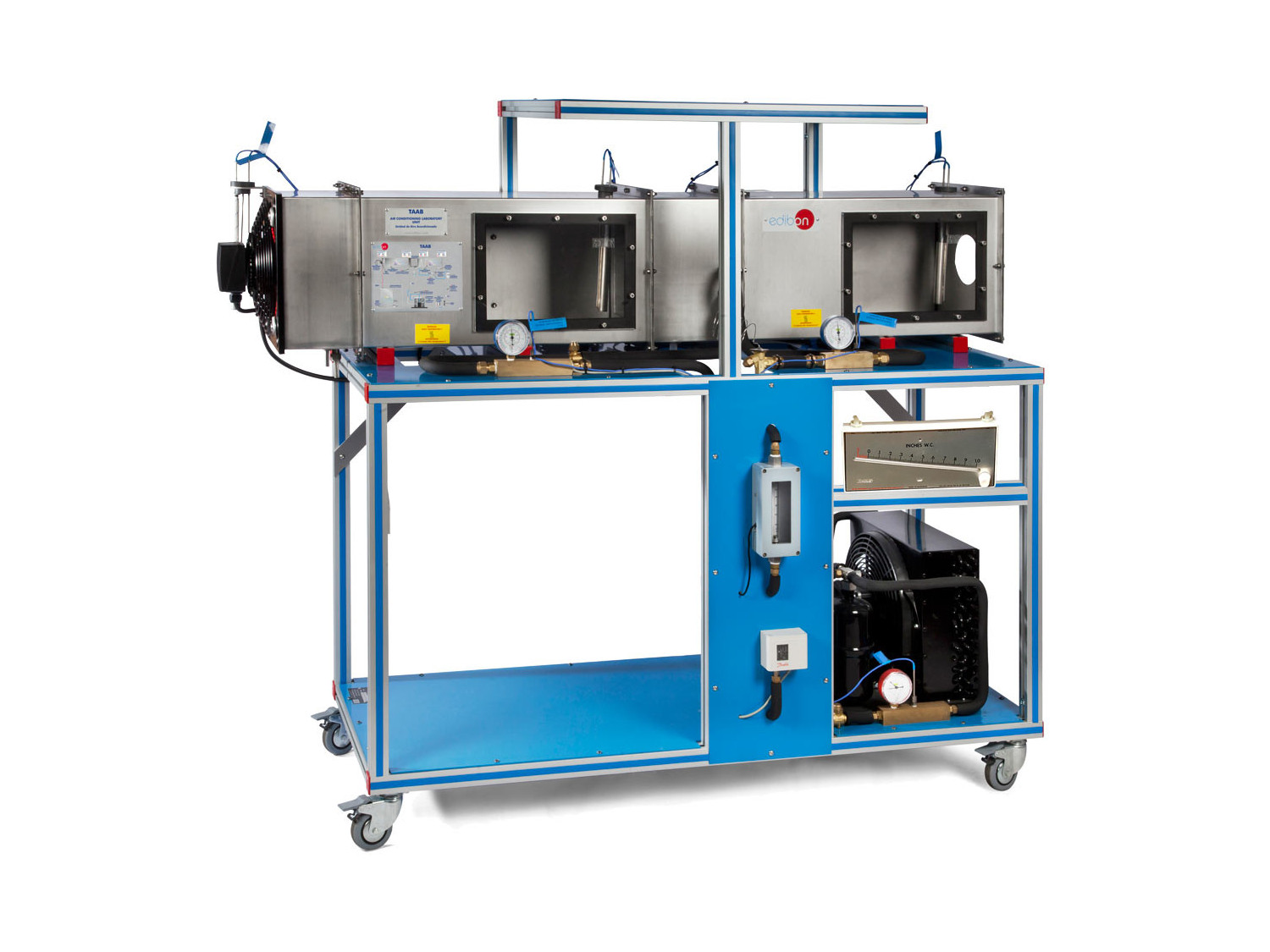

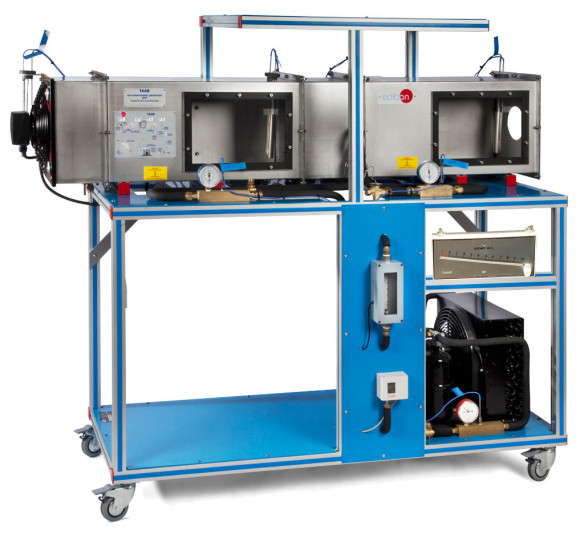

The Air Conditioning Laboratory Unit, "TAAB", has been designed to study the change of the air conditions and the refrigeration circuit. The unit consists of a testing tunnel made in stainless steel, in which there have installed two windows. Inside of the tunnel there is an axial fan and two heating elements, one situated at the evaporator inlet and other situated at the evaporator outlet.

The unit has an inclined manometer to measure the air flow and four hygrometers situated along the tunnel. These hygrometers are formed by two temperature sensors (wet and dry bulb).

Two steam lines inject steam from a steam generator (not included) to the tunnel to modify the air characteristics.

The tunnel includes an evaporator in the middle. It consists of a finned radiator through which a coolant flow circulates. This radiator is placed perpendicular to the air flow generated by the fan.

Coolant flows through a closed circuit. It enters to the compressor and circulates through a filter (to retain particles of condensate), a flow meter, an expansion valve, the tunnel evaporator (the coolant absorbs the air heat flowing through the evaporator) and a condenser.

Several temperature sensors, manometers and a flow meter have been strategically located, allowing to study the refrigeration cycle and quantify the evaporation and condensation capacity. In addition, the unit includes a high pressure control to avoid an excess of pressure in the unit.

練習和指導練習

手册中包含的指导实践练习

  1. Demonstration of the process and components used in heating, cooling, humidification, dehumidification.
  2. Obtaining the steam generator efficiency curve.
  3. Energy balance in the steam generator.
  4. Efficiency determination of preheating element.
  5. Preheating effect in an air conditioning installation.
  6. Dehumidification process study.
  7. Mass balance in the evaporator.
  8. Energy balance in the evaporator.
  9. Re-heat effect.
  10. Experimental determination of the air specific heating capacity.

与该单位进行更多实际操作

  1. Psychrometric chart.
  2. Usage of psychrometric chart.
  3. Example of the air properties determination.
  4. Properties of the refrigerant R-513a.
  5. Enthalpy-Pressure diagram for the refrigerant R-513a.

所需物品

推荐的其他项目

可用的类似设备
