ARC SUPPRESSION COIL APPLICATION - AEL-TI-03

創新系統

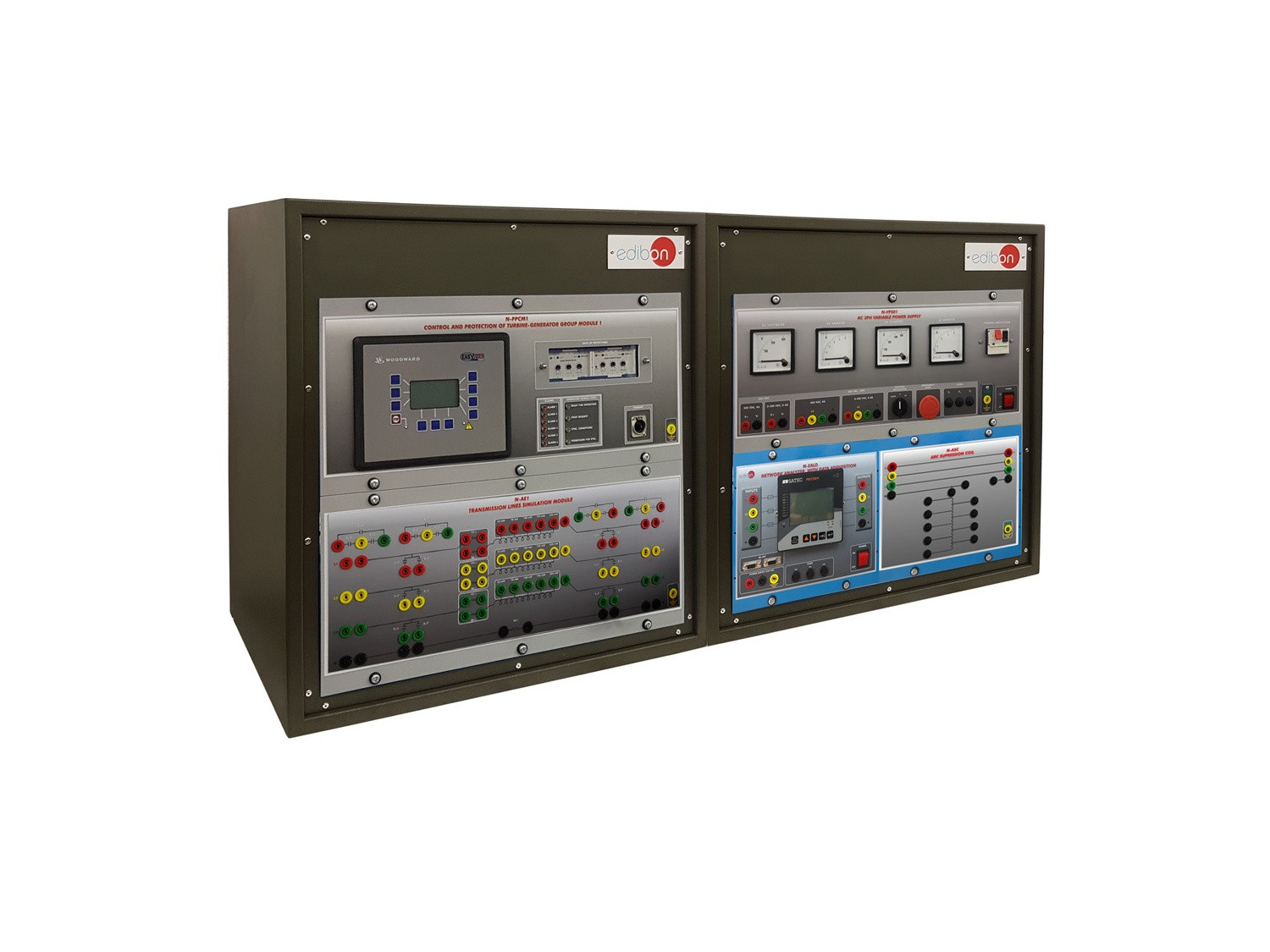

The Arc Suppression Coil Application, "AEL-TI- 03", has been designed by EDIBON to show the students how it is possible to neutralize an earth fault current with a Petersen Coil.
