The Axial Fan Teaching Unit, "HVAB", allows the observation, the study and the working process analysis of an axial-flow fan.

查看一般說明

扩展

ICAI

交互式计算机辅助教学软件

相關新聞

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
阅读更多
NEW Fluid Mechanics Course
NEW Fluid Mechanics Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.
阅读更多

一般說明

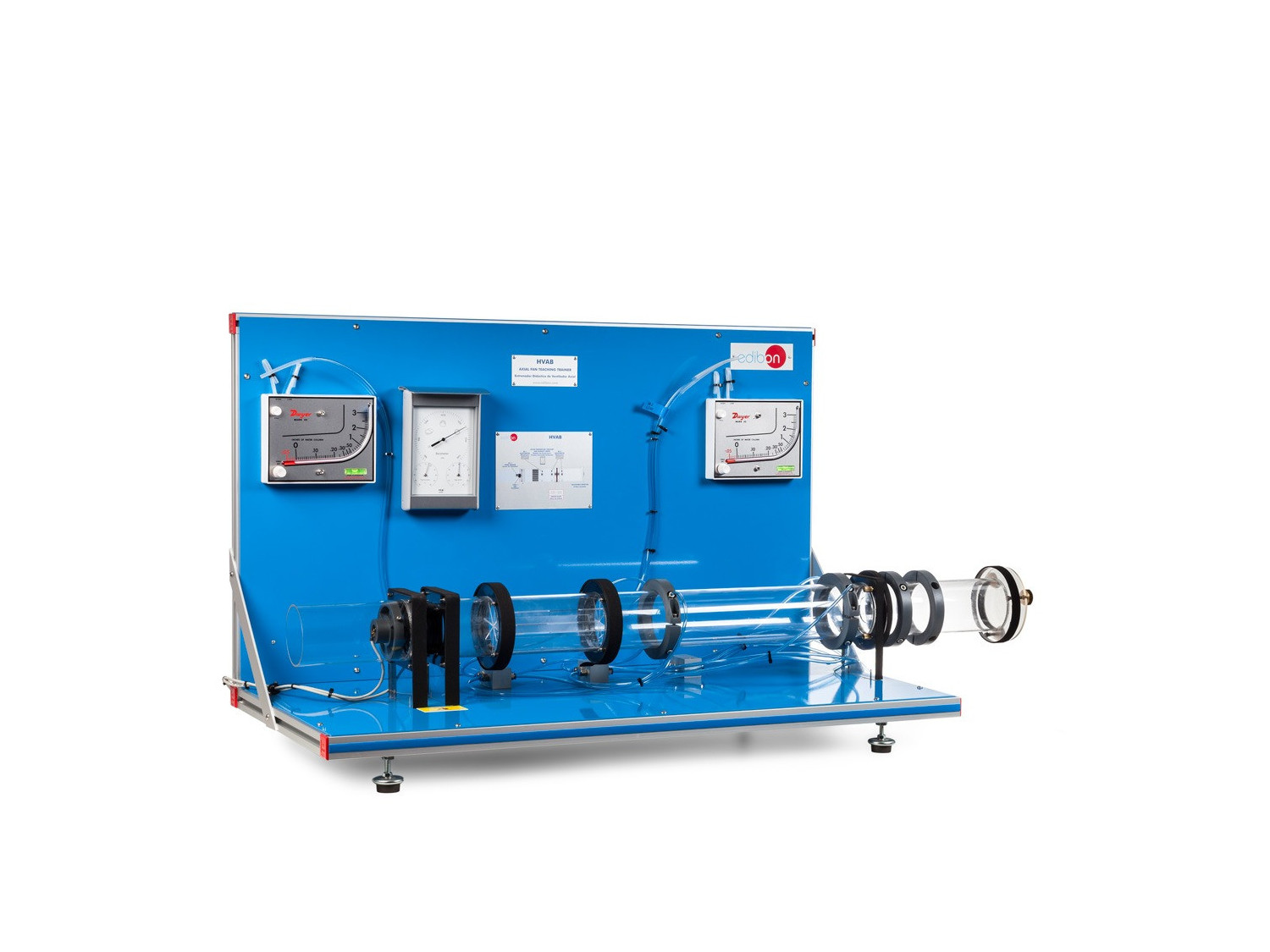

The Axial Fan Teaching Unit, "HVAB", allows the observation, the study and the working process analysis of an axial-flow fan.

The main element of this unit is a variable speed centrifugal fan, which is measured through a speed sensor, and a wattmeter determines the power consumed by the fan. The main tube of the unit is transparent. The air flow can be regulated through an adjustable oriffice at the inlet of the duct. It also has an oriffice plate for the calculation of the air flow with a slanted tube manometer.

There are also humidity, pressure and temperature measurements to know the inlet air conditions.

The unit is supplied with an electronic console with a speed variator to modify the speed of the axial fan, a speed sensor connector, a digital display for the speed sensor, and a digital display for the fan power measurement.

練習和指導練習

手册中包含的指导实践练习

  1. Calculation of the flow by means of the orifice plate.
  2. Calculation of the flow through a measurement of the static, dynamic and total pressure with an adjustable orifice.
  3. Measurement of machine performance in terms static and total pressure, and motor input power, as an inlet flow function.
  4. Introduction to the scaling similitude law.

与该单位进行更多实际操作

  1. Calculation of the characteristic curve of the axial fan at a constant speed according to the flow used by the adjustable aperture.
  2. Study of the axial fan regulation varying its turning speed.
  3. Study and comparison of the practical results and the results calculated by the students.

可用的类似设备

COMPUTER CONTROLLED AXIAL FAN TEACHING UNIT - HVAC
  • HVAC
Available
8.7.2.- 风扇
HVAC
Computer Controlled Axial Fan Teaching Unit
The Computer Controlled Axial Fan Teaching Unit, "HVAC", allows the observation, the study and the working process analysis of an axial-flow fan.The main element of this unit is a computer controlled speed centrifugal fan, which is measured...
