BATCH DISTILLATION UNIT - UDDB

創新系統

EDIBON's distillation unit, in its different versions, is one of the most powerful laboratory tools for the study of the variables that affect the distillation process.

查看一般說明

扩展

ICAI

交互式计算机辅助教学软件

相關新聞

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
阅读更多
Second-generation biofuels: the sustainable future at EDIBON
Second-generation biofuels: the sustainable future at EDIBON
In a world where energy demand continues to rise and non-renewable resources are rapidly depleting, the need for sustainable, environmentally friendly solutions has never been more urgent. The circular economy and the use of organic biomass to produce biofuels are emerging as key answers to...
阅读更多

一般說明

Distillation is used to separate liquid mixtures made up of individual liquids that are soluble in one another.

EDIBON's distillation unit, in its different versions, is one of the most powerful laboratory tools for the study of the variables that affect the distillation process.

The student can investigate the principles that rule the mass and energy transference, as well as determine the optima operation point to carry out a big quantity of separations.

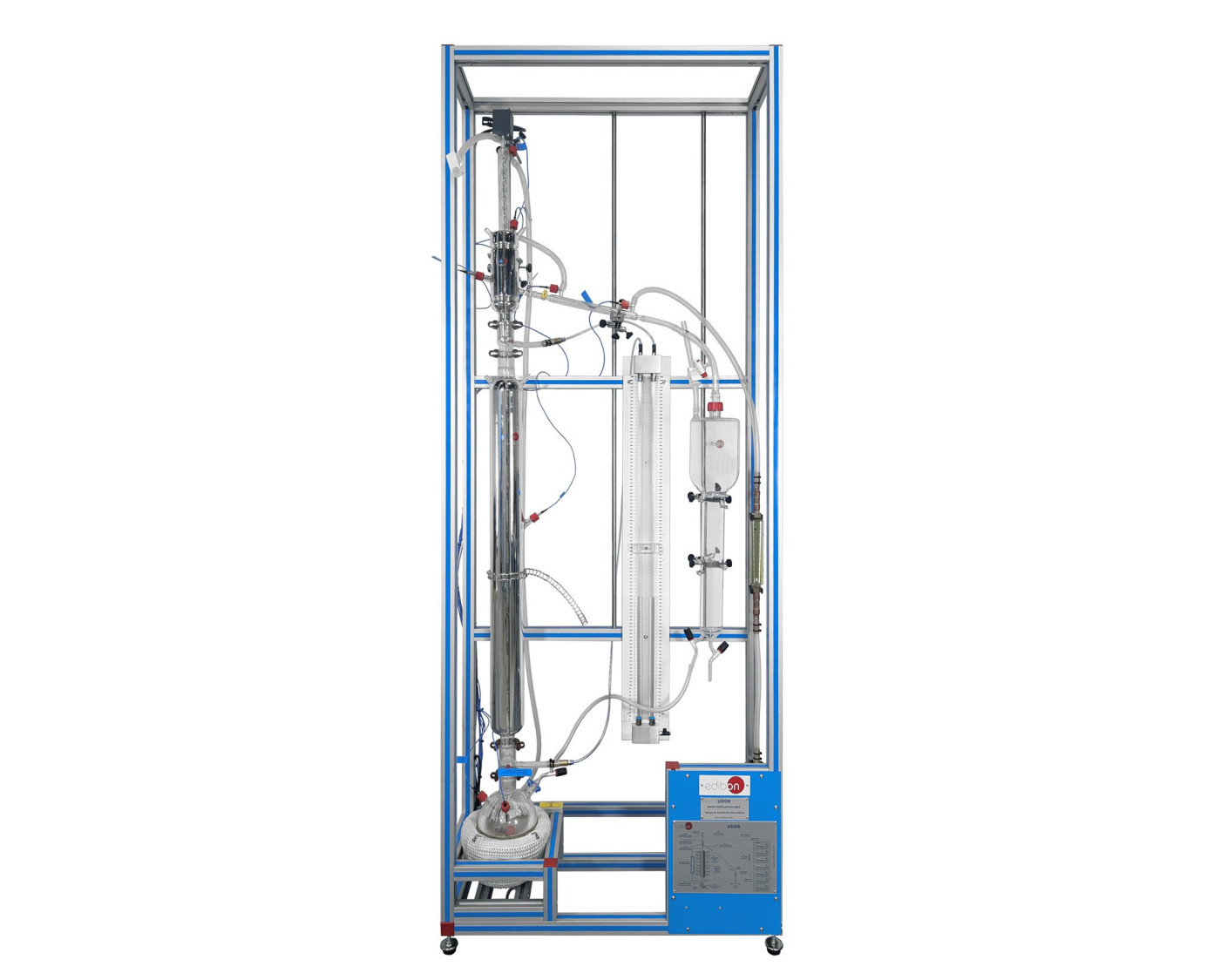

It is basically composed by a boiler on which two types of interchangeable columns can be adapted (plate columns and Raschig Rings column), a reflux system and a tank for the distillation.

The steam that goes to the head of the column is sent to a total condenser. The cooling water flow that crosses the condenser is regulated and indicated in a flow meter.

The pressure loss in the column can be measured with a manometer.

The temperatures of the system are measured by temperature sensors placed in strategic positions.

練習和指導練習

手册中包含的指导实践练习

  1. Preparation of solutions.
  2. Analytic valuation techniques.
  3. Filling of the column.
  4. Batch operation.
  5. Obtaining the McCabe-Thiele diagram. Without reflux.
  6. Obtaining the number of plates. Without reflux.
  7. Efficiency calculations. Without reflux.
  8. Variation of the composition of the distilled product: constant reflux ratio.
  9. Constant composition of the distilled product: variation of reflux ratio.
  10. Constant composition of the distilled product: constant reflux ratio.
  11. Mass and energy balances across the system.
  12. Plates fluid dynamics studies, including load loss and column flooding.
  13. Calculation of the theoretical number of floors in the plates columns, and the equivalent height of the theoretical floor (HEPT) in the Raschig rings columns.
  14. Pursuit of the temperatures in all plates in the column (Plates columns).
  15. Study of the rectification efficiency.
  16. Demonstration of azeotropic distillation.
  17. Studies of heating interchange in glass refrigerators
