MDU-SSVF MDU风机振动套装

7.4.3.- 安装和维护惯例

創新系統

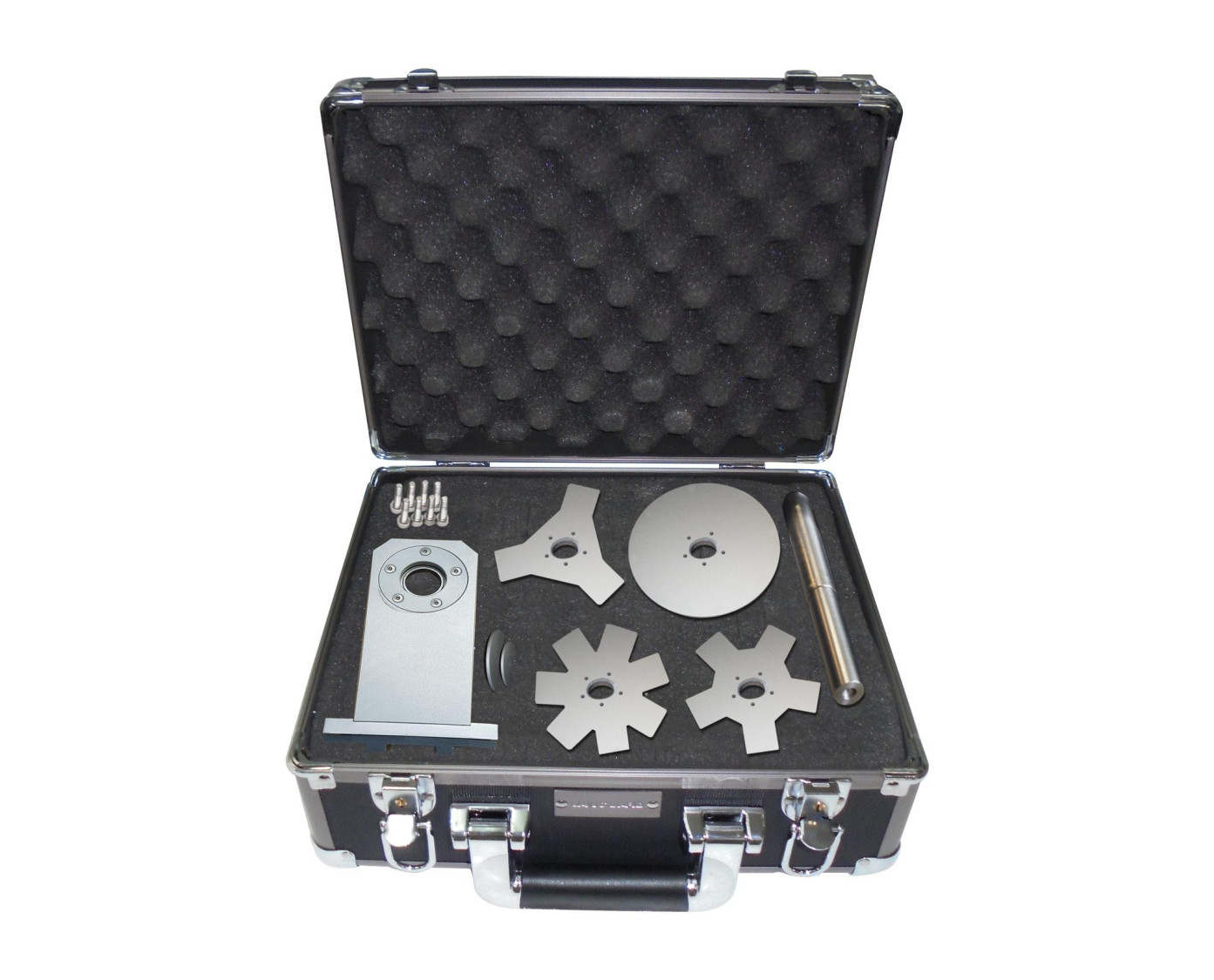

In the Blower Vibration Set for MDU, "MDU-SSVF", the vibrations are magnetically induced. It is possible to study three impellers with a different number of movable vanes. It is also possible to study the gyroscopic effect by mounting the flywheel plate at an oblique angle.

查看一般說明

比赛规格

一般說明

A regular fault in the rotation of the roller is induced by the action of a magnet.

The blower can be driven directly through an elastic coupling or the Set of Belt Drive, "MDU-SBD".

所需物品

MDUC
