MDU-BLU 制动和负载设备

7.4.3.- 安装和维护惯例

創新系統

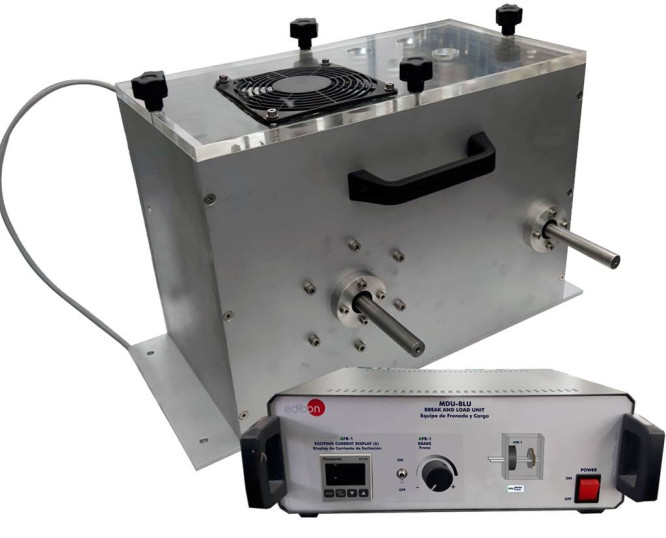

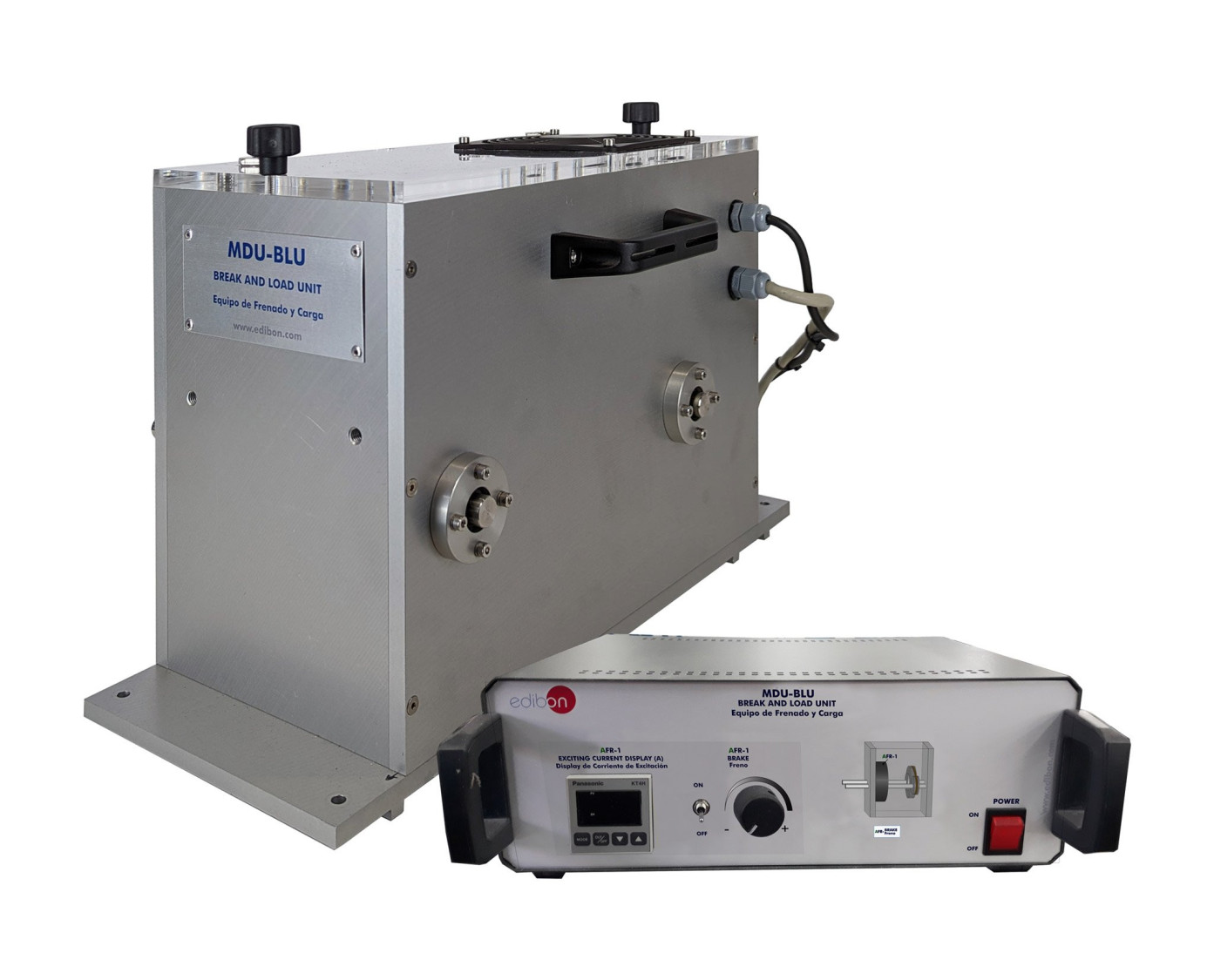

The Break and Load Unit, "MDU-BLU", of EDIBON is a magnetic particle brake, a display unit and an electrical control. It is possible to precisely adjust the braking moment. The excitation current is used as a measurement of the braking moment and it can be displayed through a console.

查看一般說明

比赛规格

一般說明

The braking unit consists of an integrated drive belt and a second projecting shaft, thus it has two speed ranges and two moment ranges.

The power generated is converted into heat by the brake and evacuated to the outside through a fan.
