COMPUTER CONTROLLED ADVANCED POWER ELECTRONICS APPLICATION - AE-PEC

創新系統

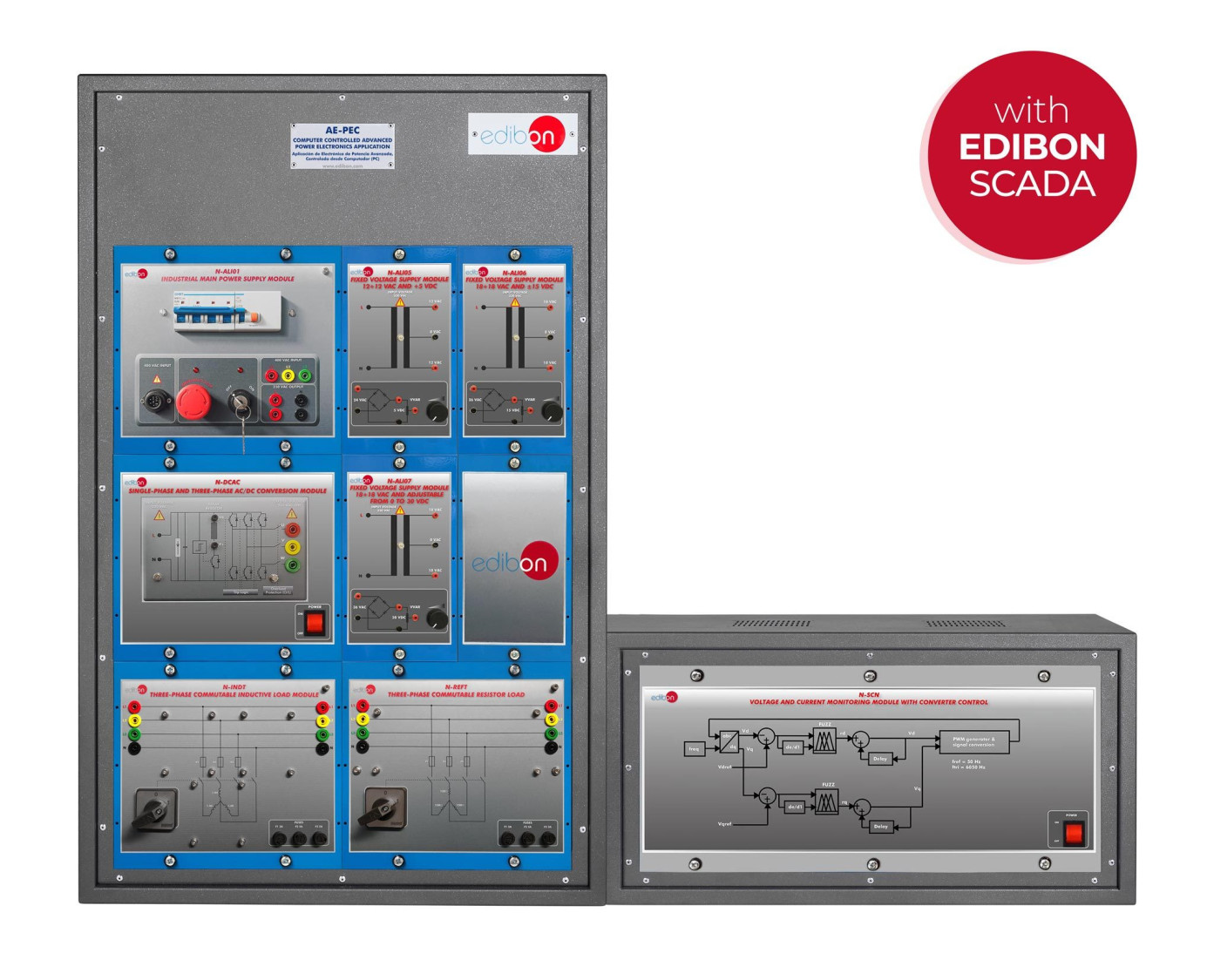

The Computer Controlled Advanced Power Electronics Application, "AE-PEC", includes various modules that allow exploration of different aspects of power electronics.
