COMPUTER CONTROLLED CRACKING COLUMN - QCCC

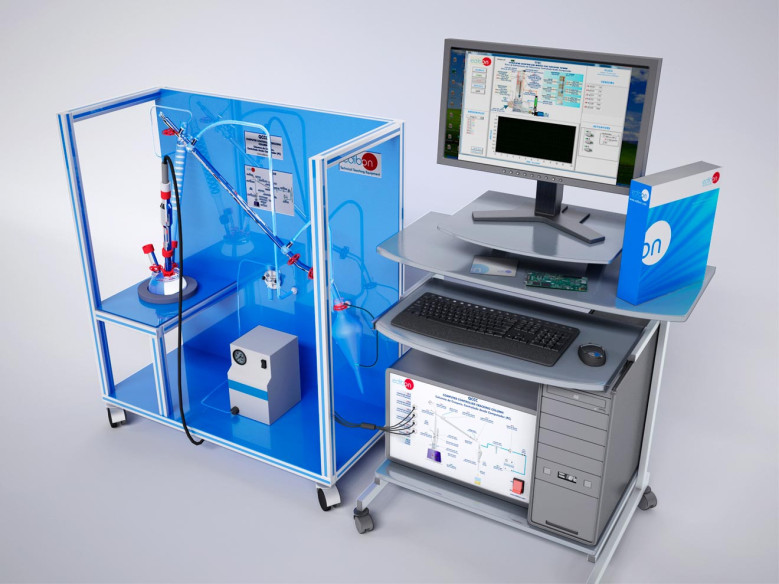

QCCC Unit. Computer Controlled Cracking Column

COMPUTER CONTROLLED CRACKING COLUMN - QCCC

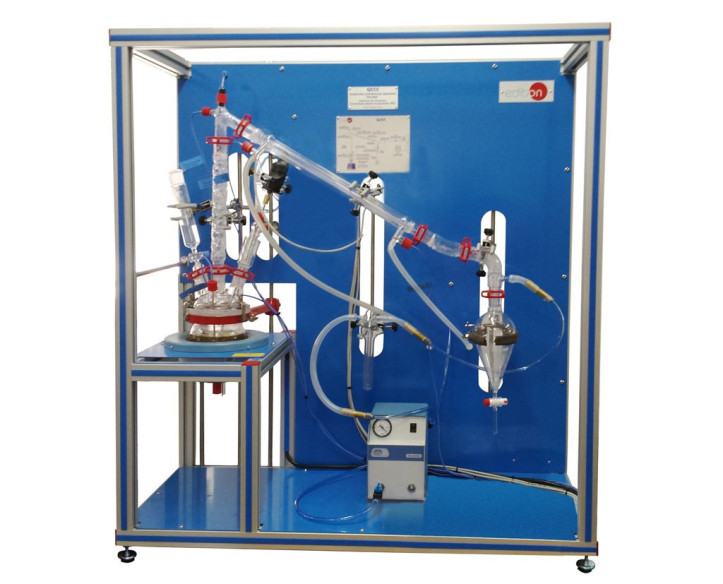

Complete QCCC Unit

COMPUTER CONTROLLED CRACKING COLUMN - QCCC

Unit details

COMPUTER CONTROLLED CRACKING COLUMN - QCCC

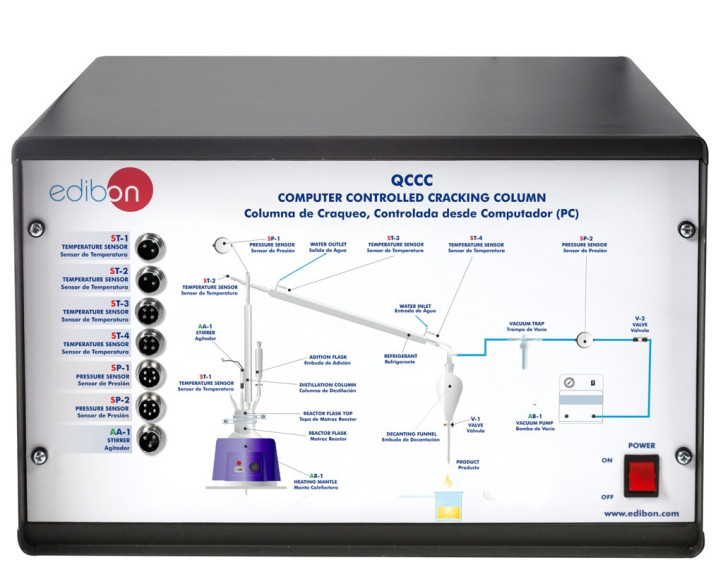

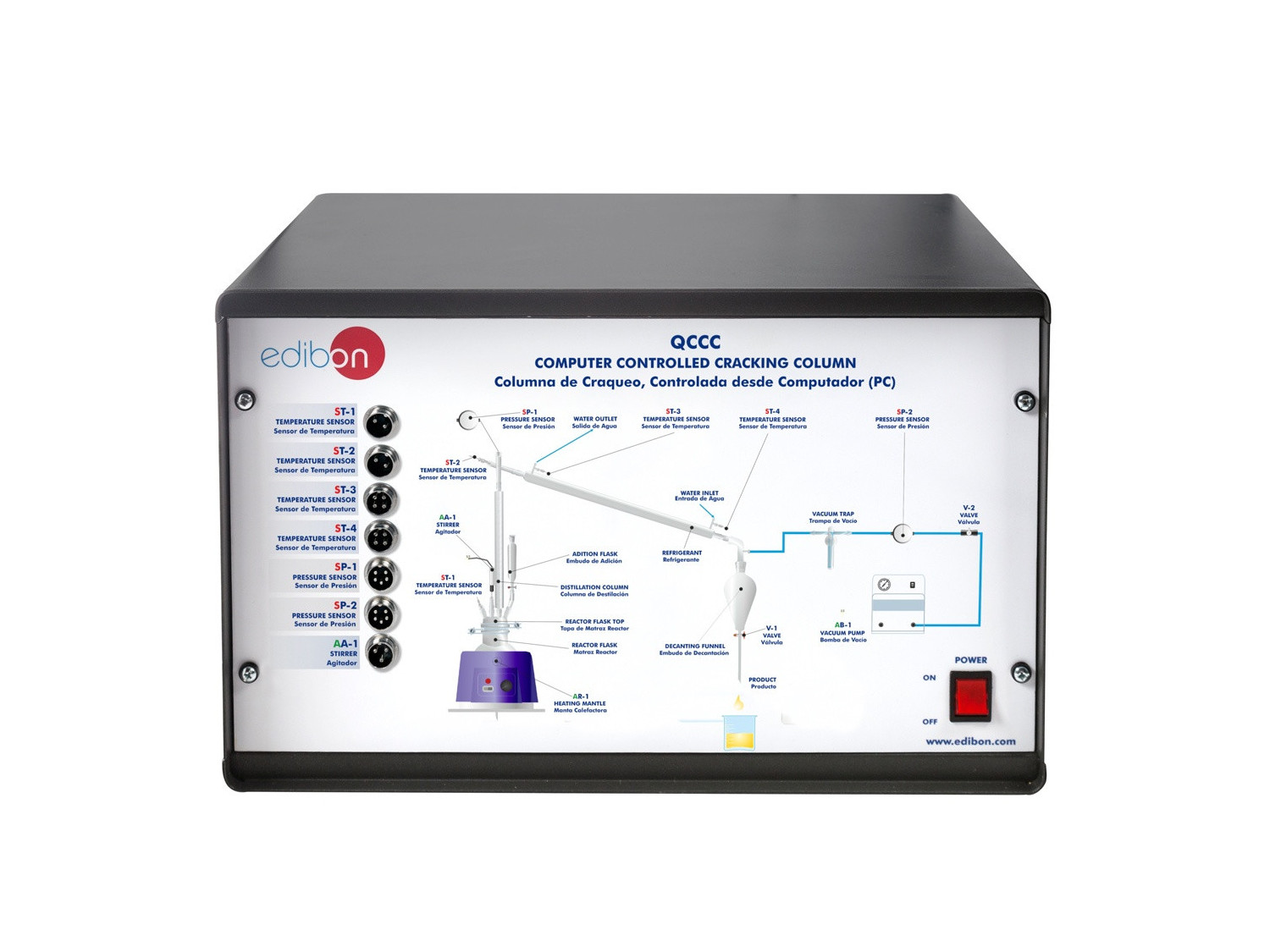

QCCC/CIB. Control Interface Box: The Control Interface Box is part of the SCADA system

COMPUTER CONTROLLED CRACKING COLUMN - QCCC

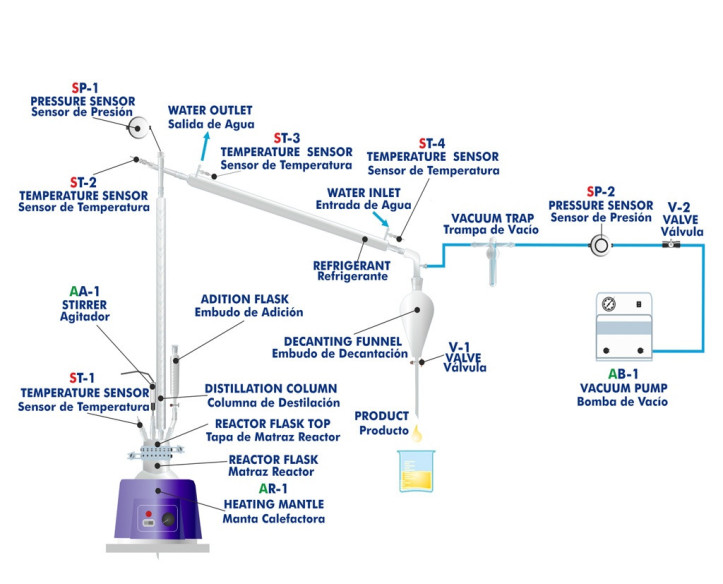

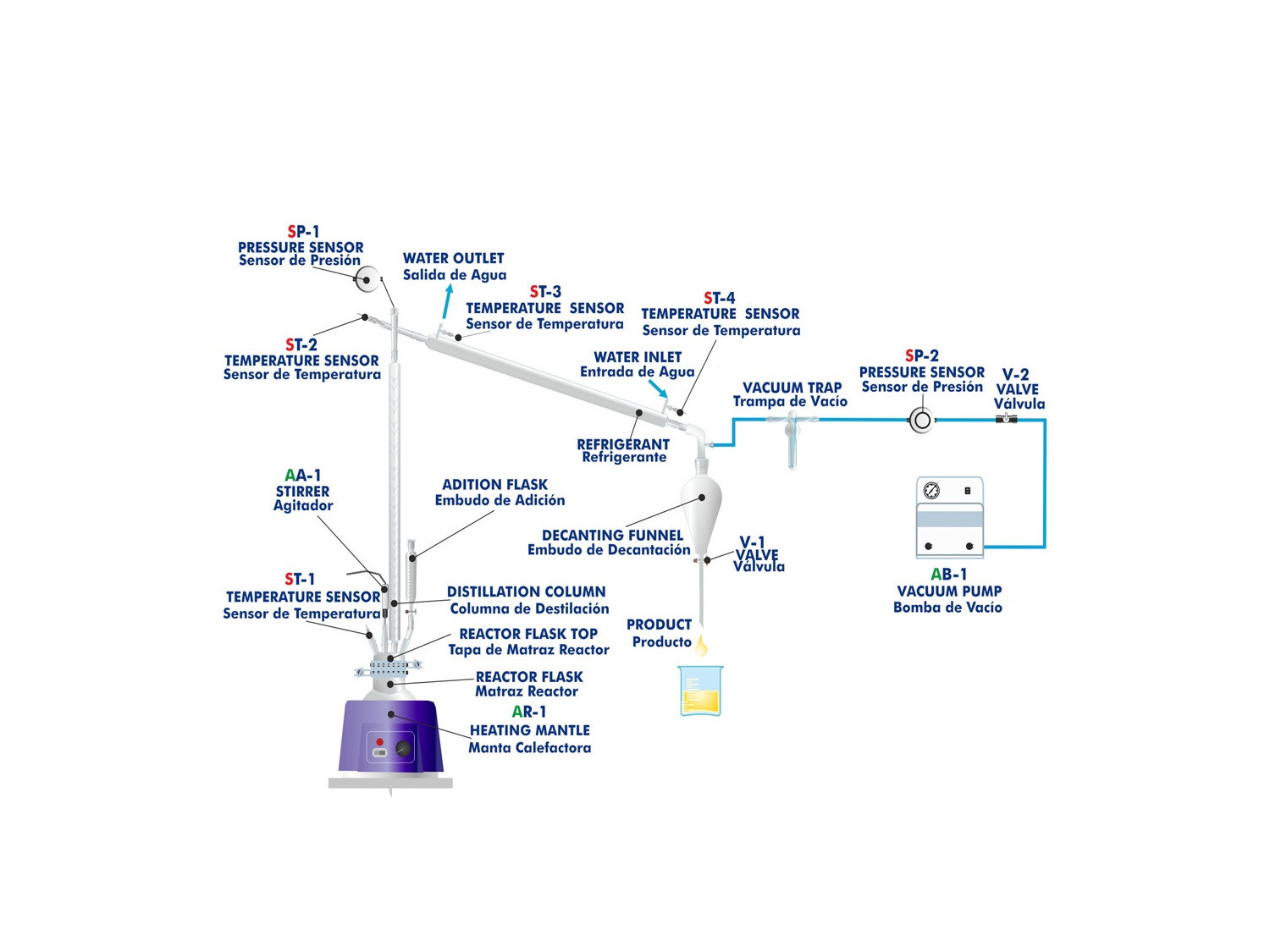

Process diagram and unit elements allocation

COMPUTER CONTROLLED CRACKING COLUMN - QCCC

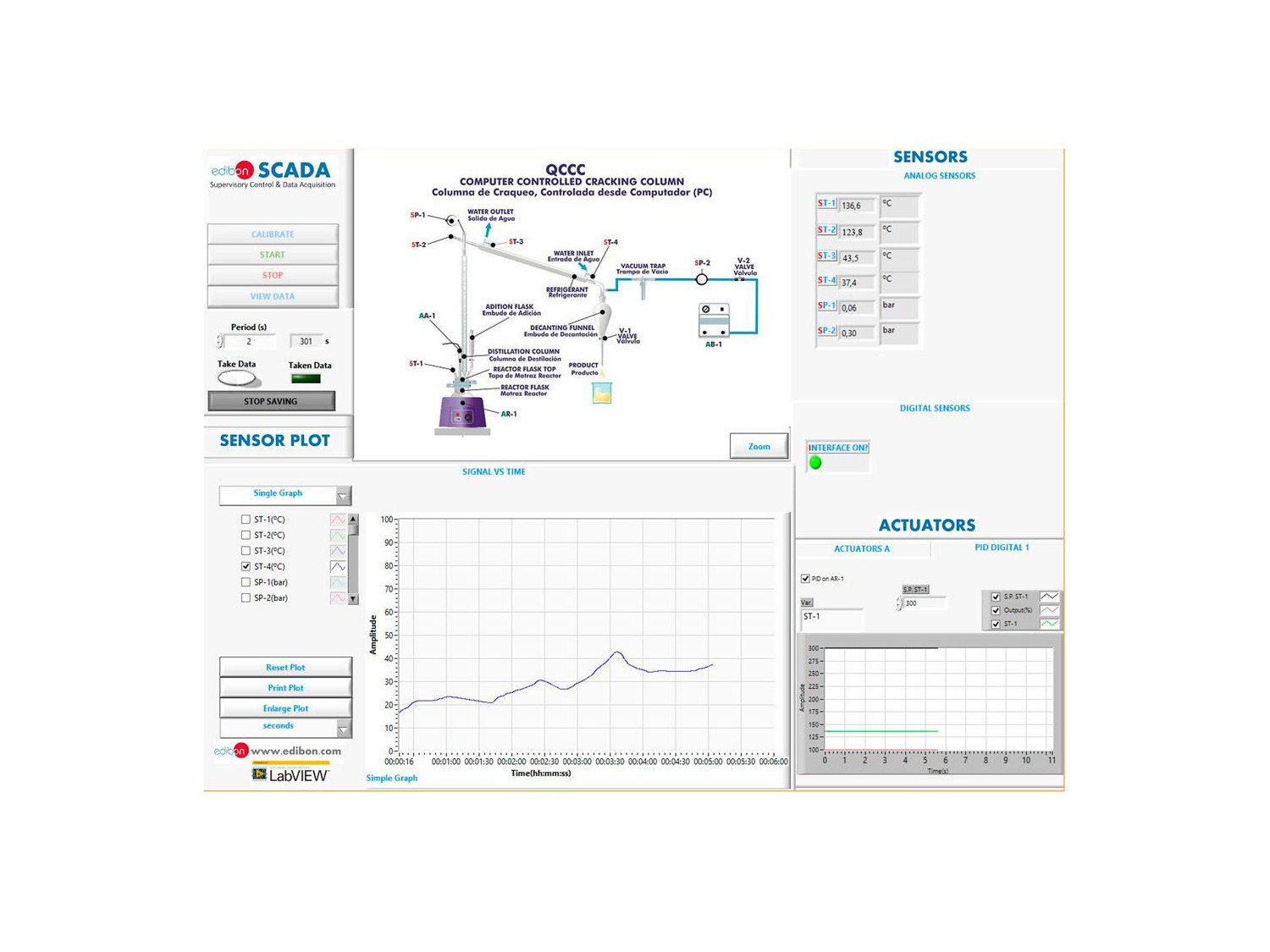

QCCC/SOF. QCCC Software. Main Screen

COMPUTER CONTROLLED CRACKING COLUMN - QCCC
COMPUTER CONTROLLED CRACKING COLUMN - QCCC
COMPUTER CONTROLLED CRACKING COLUMN - QCCC
COMPUTER CONTROLLED CRACKING COLUMN - QCCC
COMPUTER CONTROLLED CRACKING COLUMN - QCCC
COMPUTER CONTROLLED CRACKING COLUMN - QCCC

創新系統

The Computer Controlled Cracking Column, "QCCC", for cracking and distilling oil is a complete lab tool that allows to the students to carry out a cracking reaction, and the study and the control of different variables that condition it.
