The Computer Controlled Drum Cell Filter, "PFTC", is a unit designed to observe the operation of a filtering drum that acts on a liquid with suspended solids. This drum cell filter allows investigate the filtration of multiple solutions with suspended solids and sludges of wide variety and composition.

查看一般說明

扩展

ICAI

交互式计算机辅助教学软件
FSS

故障模拟系统
PLC

PLC控制工业过程
ELK

EDIBON软件开发工具包，由NI LabVIEW™提供支持
ECR

EDIBON的模块化工业系统与NI CompactRIO
ESN

EDIBON Scada-Net系统
ECL

EDIBON 远程教育

相關新聞

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
阅读更多
Second-generation biofuels: the sustainable future at EDIBON
Second-generation biofuels: the sustainable future at EDIBON
In a world where energy demand continues to rise and non-renewable resources are rapidly depleting, the need for sustainable, environmentally friendly solutions has never been more urgent. The circular economy and the use of organic biomass to produce biofuels are emerging as key answers to...
阅读更多
直接空气捕捉：应对气候变化的关键技术
直接空气捕捉：应对气候变化的关键技术
直接空气捕获 (DAC) 是一种创新技术，通过与液体溶剂或固体吸附剂的化学反应直接从空气中去除CO₂。尽管面临高成本和高能耗等挑战，DAC提供了一种减少大气中CO₂浓度并减缓气候变化的潜在解决方案。DAC的持续研究和开发对于提高其可行性和有效性至关重要。
阅读更多
了解和改进饮用水处理系统
了解和改进饮用水处理系统
废水处理设施 饮用水处理厂专注于提供安全的饮用水，而废水处理设施则负责在废水再次排放到环境中之前对其进行处理。 这些设施在保护水资源和公共健康方面起着至关重要的作用。 先进的处理技术有助于去除污染物，确保处理后的水符合环境标准。
阅读更多

一般說明

The Computer Controlled Drum Cell Filter, "PFTC", is a unit designed to observe the operation of a filtering drum that acts on a liquid with suspended solids. This drum cell filter allows investigate the filtration of multiple solutions with suspended solids and sludges of wide variety and composition.

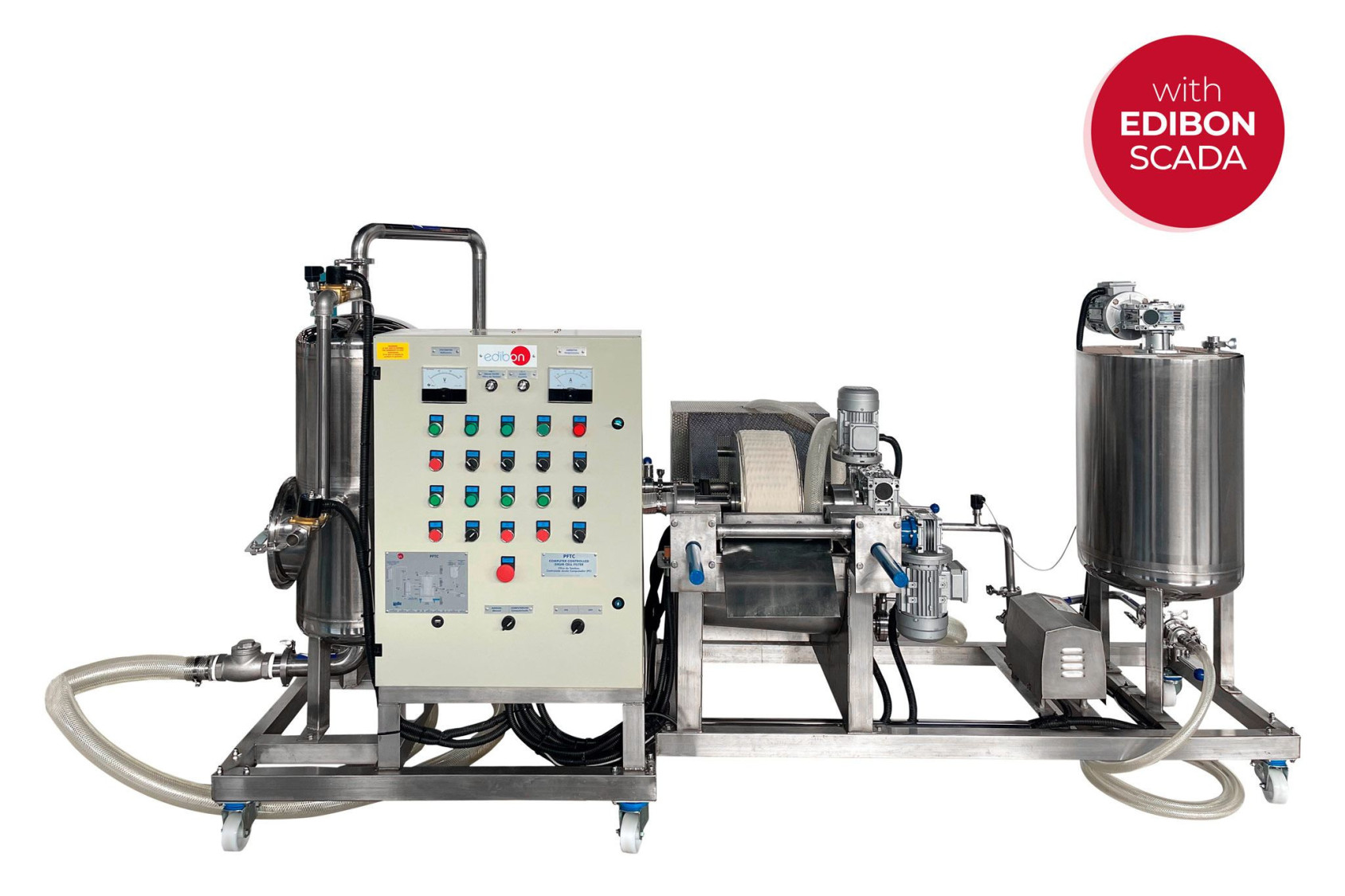

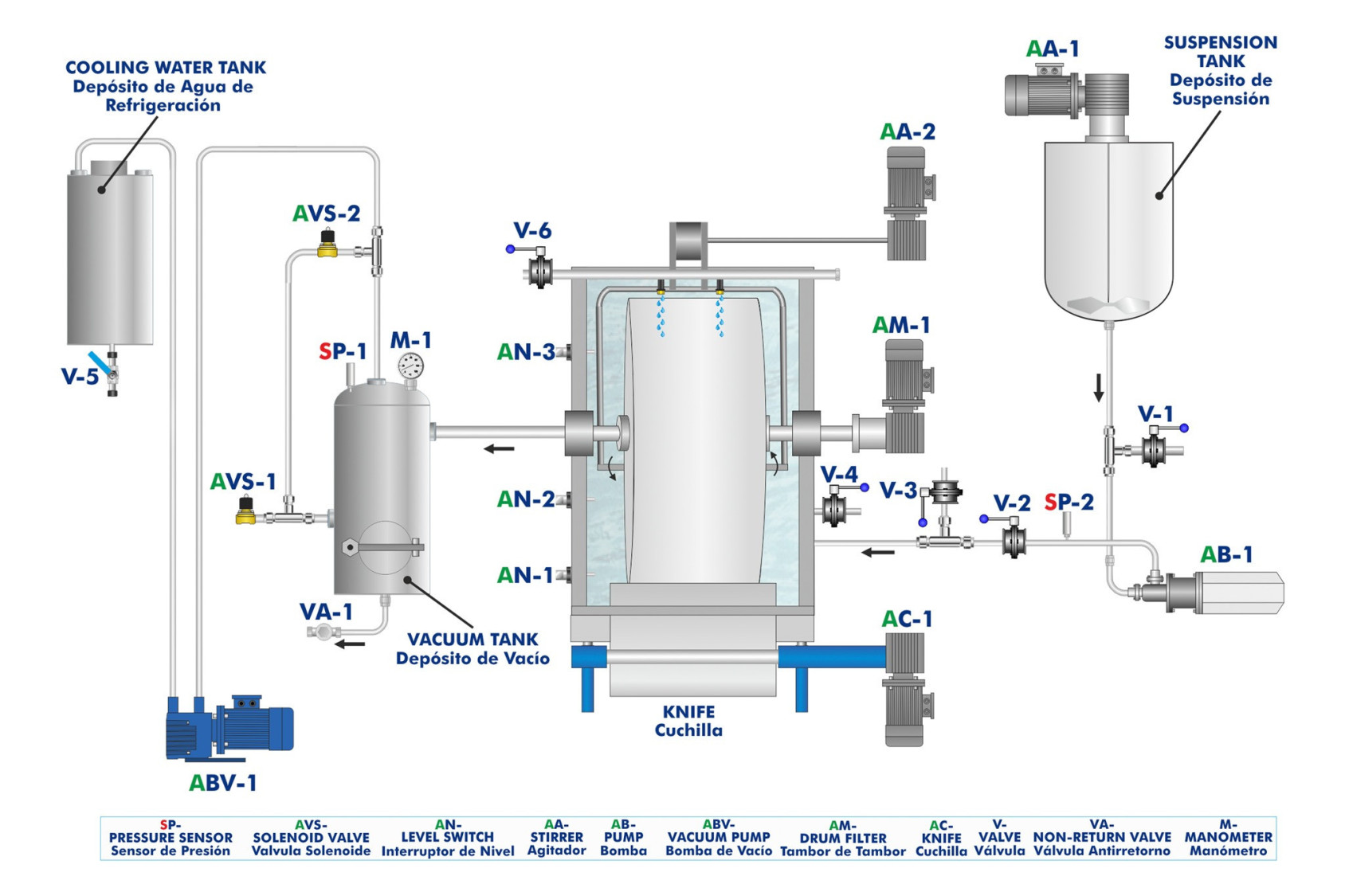

Water with suspended solids is introduced in the system. A computer controlled pump impels the fluid towards the drum tank. A sensor measures the pressure of the fluid before being introduced into the tank.

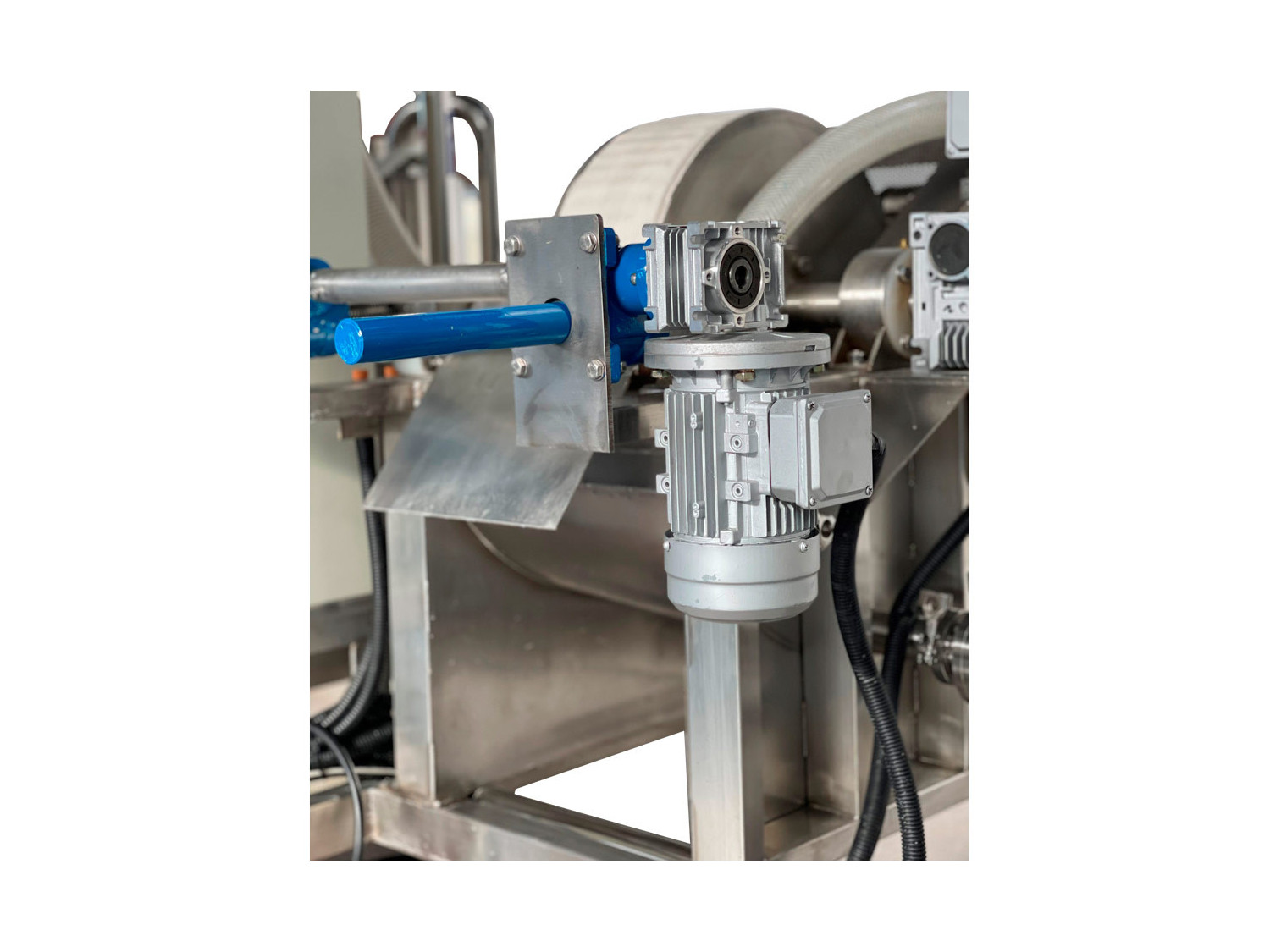

There is a stirrer in this tank to keep water mixed with the suspended particles. The rotary drum is covered by a filtering cloth, so the part immersed in the tank filters the water. Thus, clean water passes through the cloth and the suspended particles remain in the drum surface. Therefore, when the drum rotates the layer of suspended particles becomes a cake and it is cut before entering the tank again. This tank has some level switches to keeps the water volume constant.

The cake is formed by applying vacuum on the inside of the drum by means of a computer controlled vacuum pump and a vacuum reservoir controlled by two solenoid valves.

When the cake is cut, it falls into a collecting tank and the filtered water passes into the vacuum tank.

The vacuum tank, feed tank and drum tank have valves for emptying when necessary.

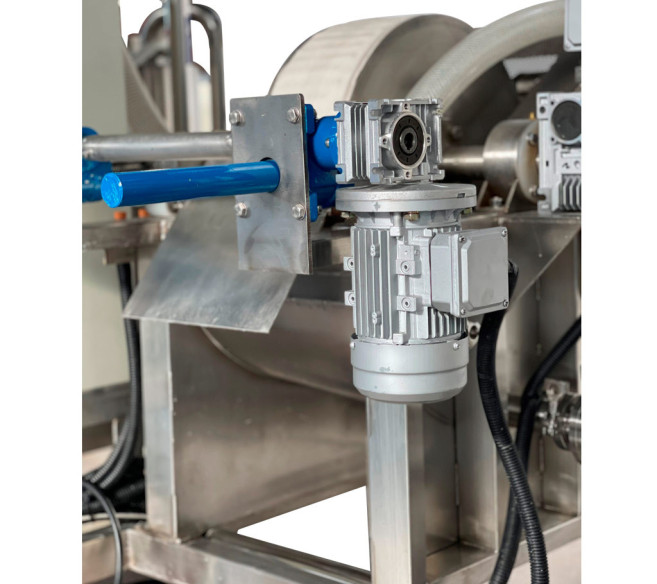

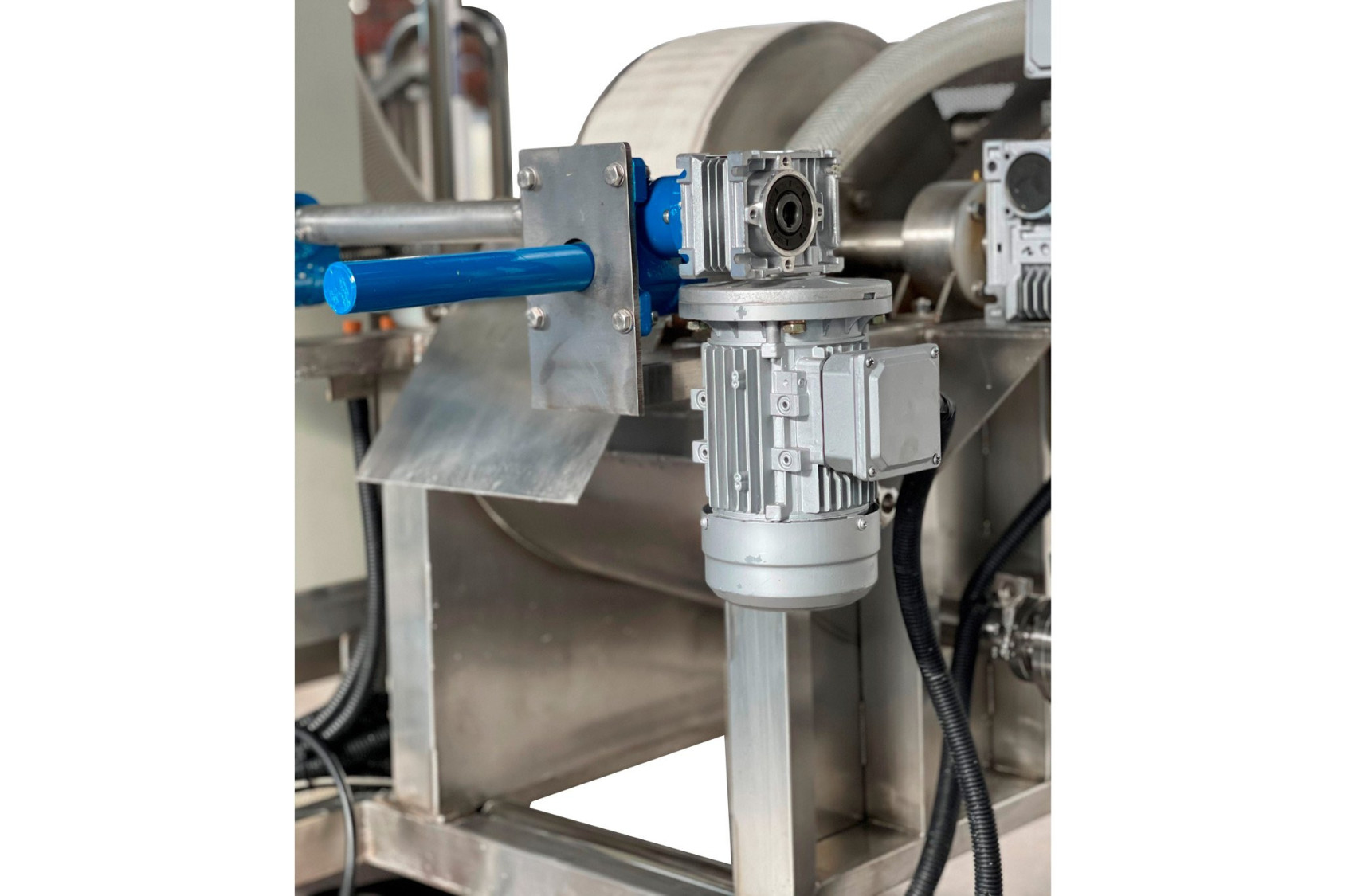

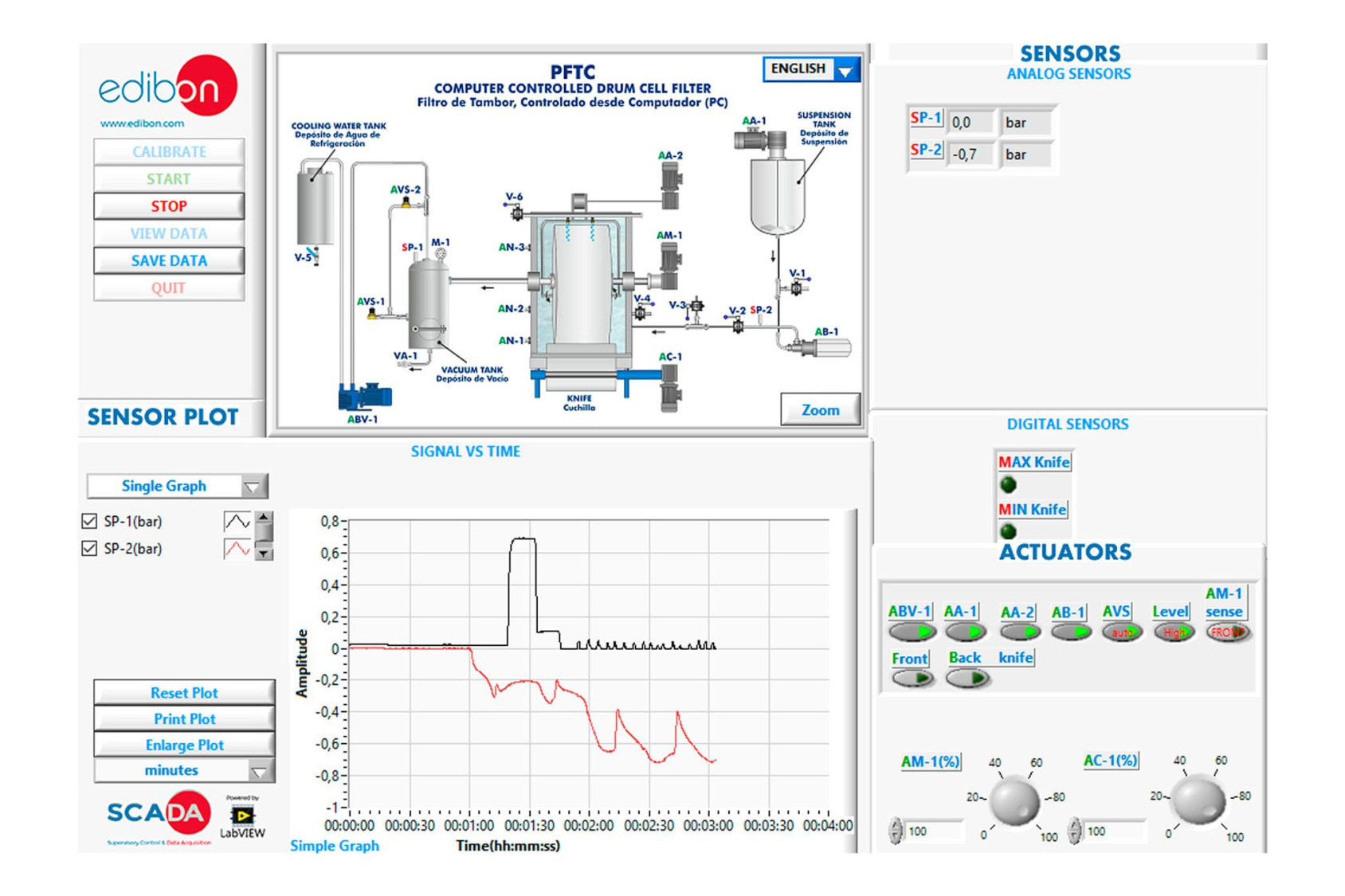

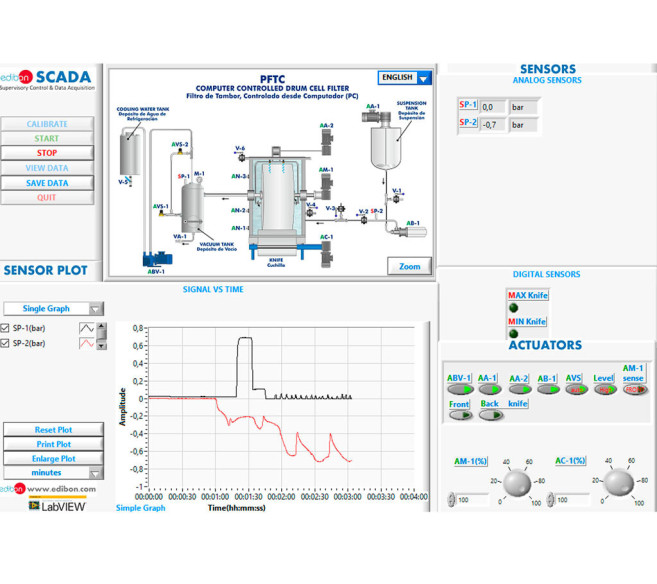

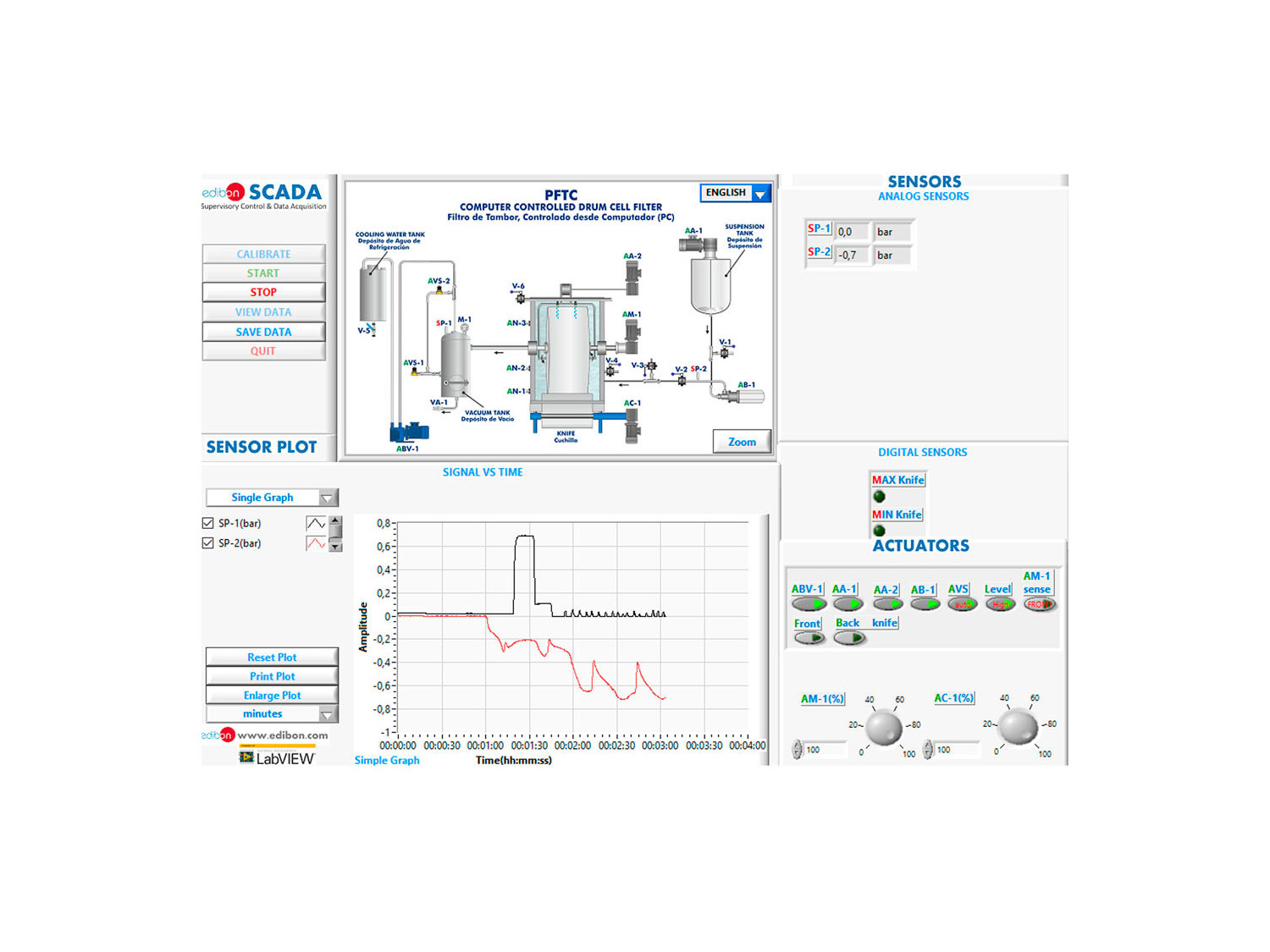

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.
