PEFC 计算机控制的絮凝试验装置

12.3.- 饮用水处理 13.3.- 废水处理
COMPUTER CONTROLLED FLOCCULATION TEST UNIT - PEFC

Unit: PEFC. Computer Controlled Flocculation Test Unit

COMPUTER CONTROLLED FLOCCULATION TEST UNIT - PEFC

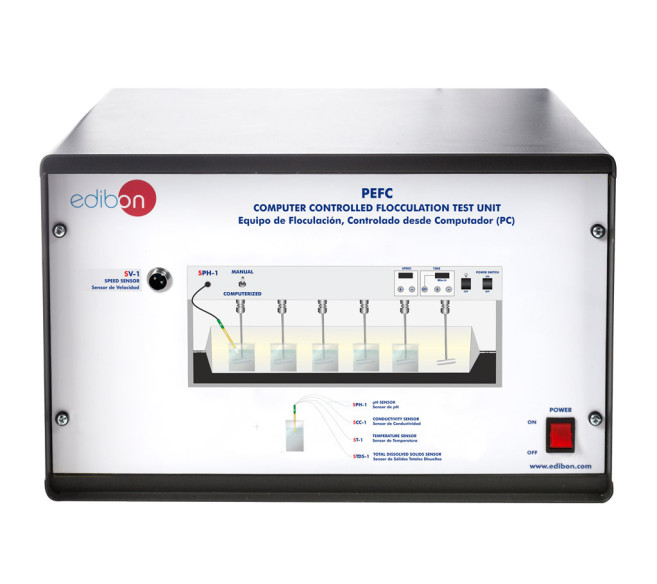

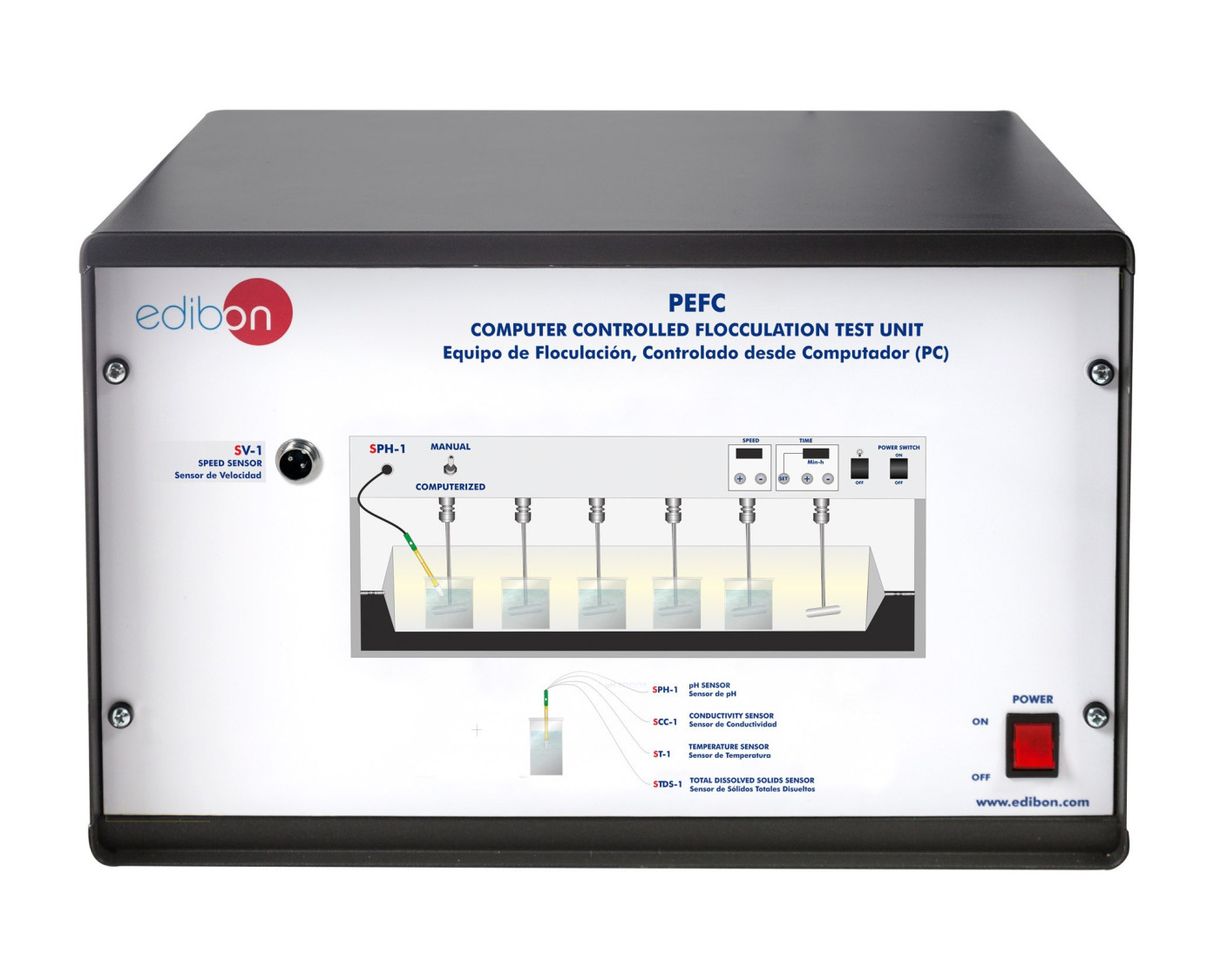

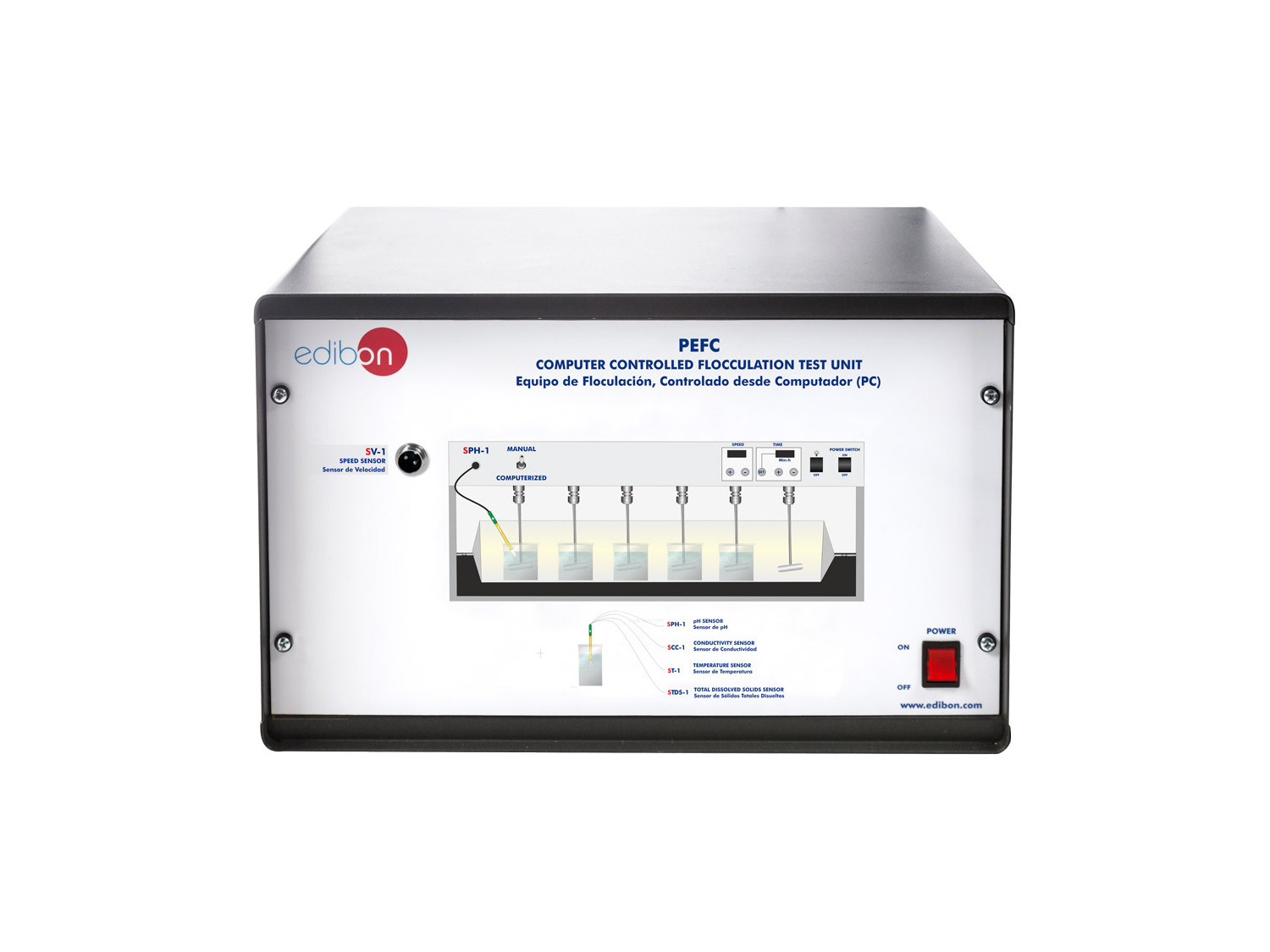

PEFC/CIB. Control Interface Box: The Control Interface Box is part of the SCADA system

COMPUTER CONTROLLED FLOCCULATION TEST UNIT - PEFC

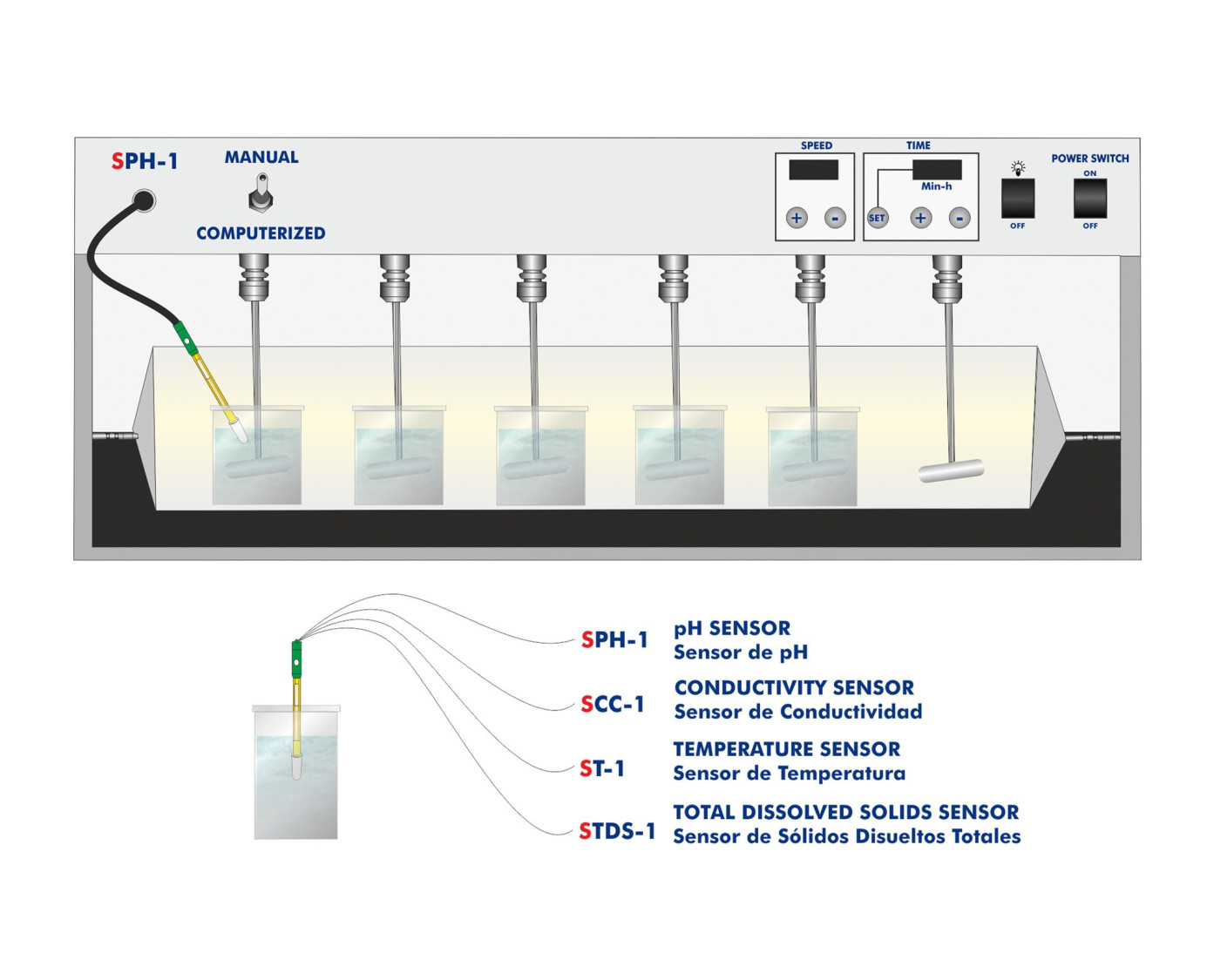

Process diagram and unit elements allocation

COMPUTER CONTROLLED FLOCCULATION TEST UNIT - PEFC

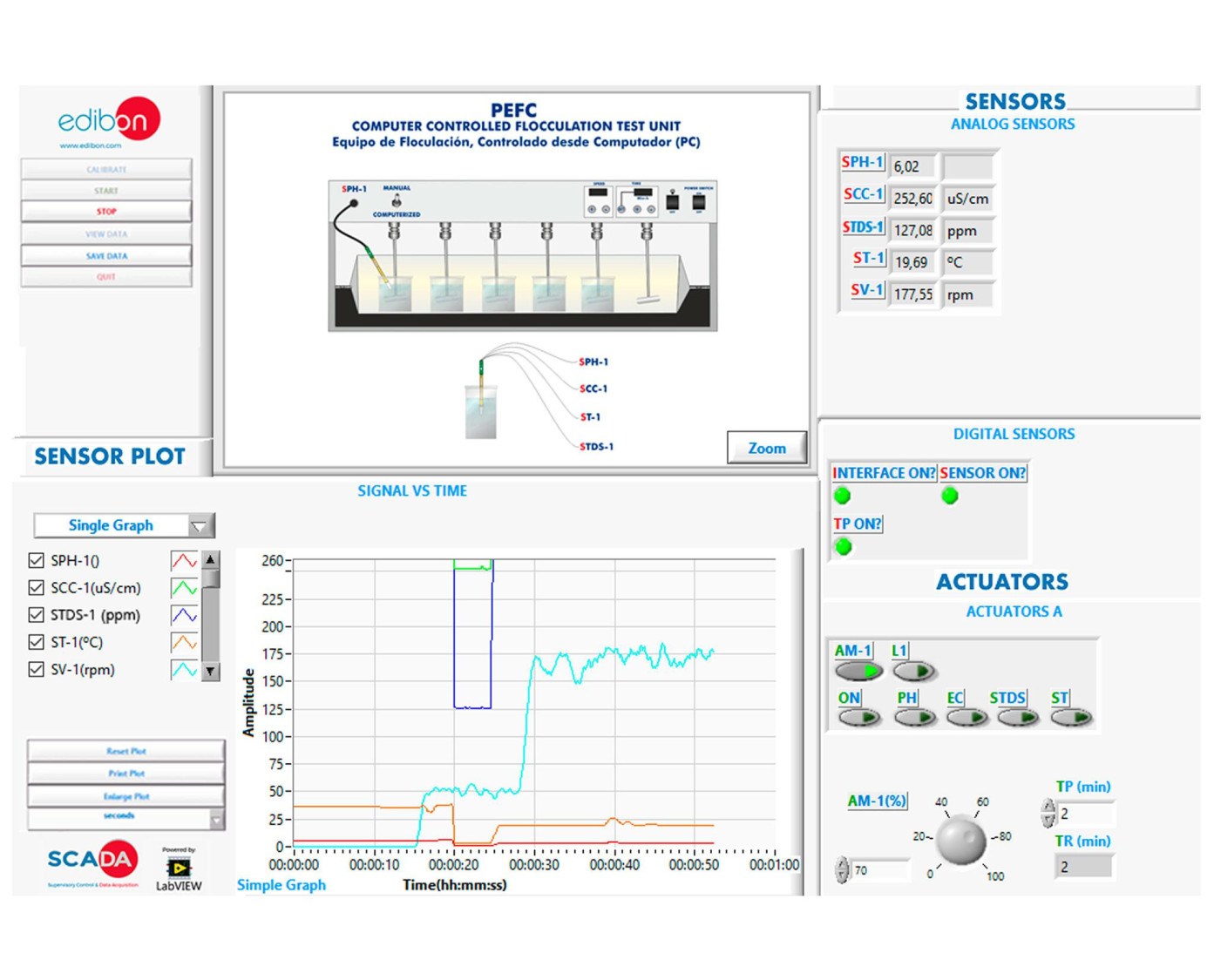

PEFC/SOF. Real time representation of any measured variable

COMPUTER CONTROLLED FLOCCULATION TEST UNIT - PEFC
COMPUTER CONTROLLED FLOCCULATION TEST UNIT - PEFC
COMPUTER CONTROLLED FLOCCULATION TEST UNIT - PEFC
COMPUTER CONTROLLED FLOCCULATION TEST UNIT - PEFC

創新系統

The Computer Controlled Flocculation Test Unit, "PEFC", allows to study the coagulation and flocculation operations and to analyze the main parameters that determine the colloids removal operation.

查看一般說明

扩展

ICAI

交互式计算机辅助教学软件
FSS

故障模拟系统
PLC

PLC控制工业过程
PLCHMI

带有HMI的本地/远程IIoT控制和监控
ELK

EDIBON软件开发工具包，由NI LabVIEW™提供支持
ECR

EDIBON的模块化工业系统与NI CompactRIO
ESN

EDIBON Scada-Net系统
ECL

EDIBON 远程教育

化验室

13TV
 技术和职业教育环境实验室
13HE
 高等教育环境实验室

相關新聞

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
阅读更多
直接空气捕捉：应对气候变化的关键技术
直接空气捕捉：应对气候变化的关键技术
直接空气捕获 (DAC) 是一种创新技术，通过与液体溶剂或固体吸附剂的化学反应直接从空气中去除CO₂。尽管面临高成本和高能耗等挑战，DAC提供了一种减少大气中CO₂浓度并减缓气候变化的潜在解决方案。DAC的持续研究和开发对于提高其可行性和有效性至关重要。
阅读更多
了解和改进饮用水处理系统
了解和改进饮用水处理系统
废水处理设施 饮用水处理厂专注于提供安全的饮用水，而废水处理设施则负责在废水再次排放到环境中之前对其进行处理。 这些设施在保护水资源和公共健康方面起着至关重要的作用。 先进的处理技术有助于去除污染物，确保处理后的水符合环境标准。
阅读更多
NEW Food & Water technologies leaflets
NEW Food & Water technologies leaflets
Food Technology is a branch of Food Science based on multidisciplinary knowledge of nutrition, chemical analysis, physics, biochemistry and engineering. Water treatment technologies obtain drinking water, so necessary for our life. Both disciplines have become in recent years an indispensable...
阅读更多

一般說明

The Computer Controlled Flocculation Test Unit, "PEFC", shows the removal of dissolved substances by coagulation and flocculation.

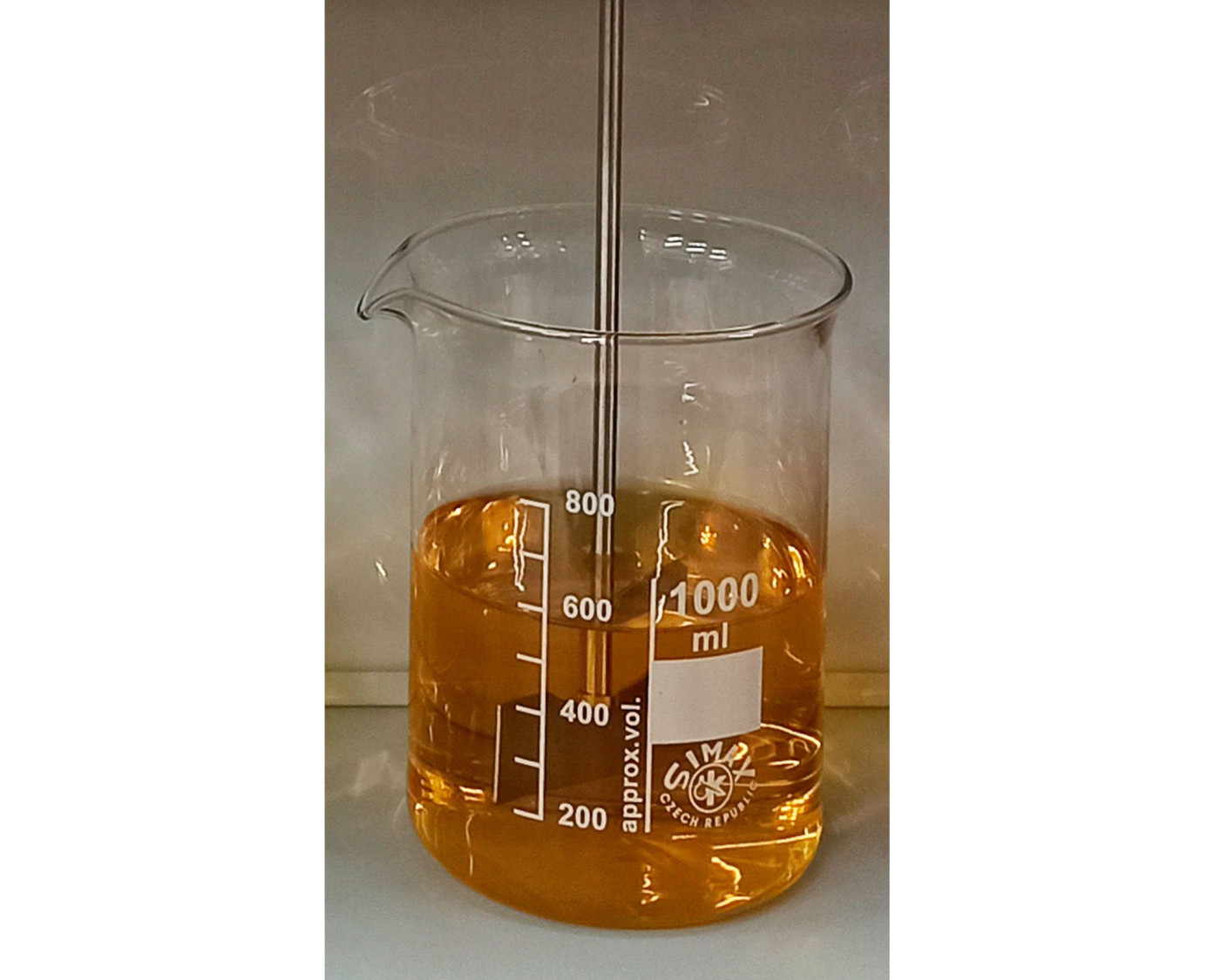

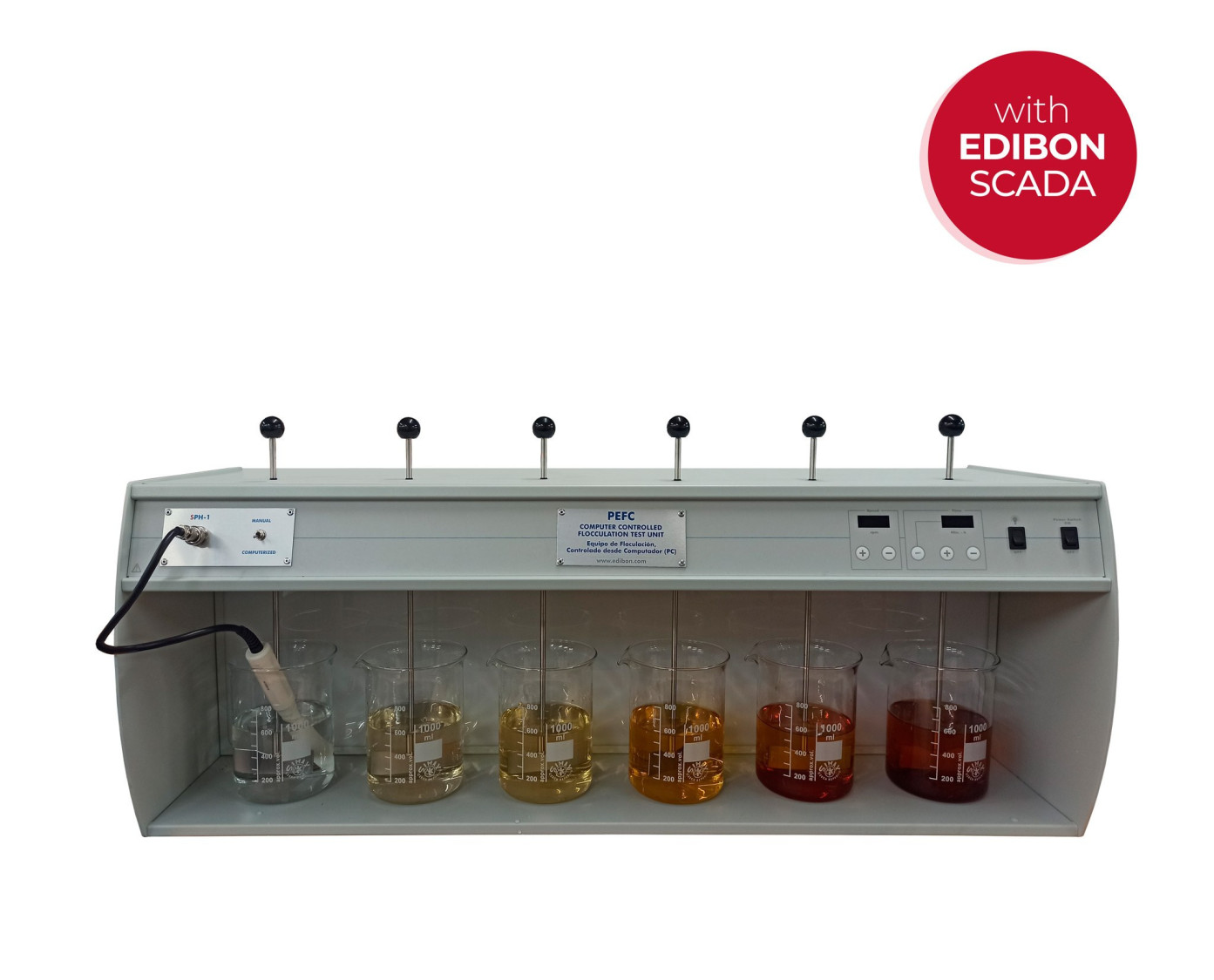

It has six beakers where water to be tested is poured. Each one has one adjustable speed paddle stirrer.

The unit is illuminated from the base or from the rear side to allow a clear visualization of the supernatant particles.

The instrumentation of the unit allows to determine temperature, pH, conductivity and total dissolved solids to set, thus, the optimum conditions for flocculation.

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.

練習和指導練習

手册中包含的指导实践练习

  1. Determination of optimum coagulant dosage.
  2. Study of coagula formation regarding to the mixing time and the agitation speed.
  3. Determination of optimum Ph.
  4. Coagulation test in conjunction with activated carbon.
  5. Sensors calibration.

与该单位进行更多实际操作

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivate parameters, etc, in real time.
  3. The Computer Control System with SCADA allows a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical and electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Control of the PEFC unit process through the control interface box without the computer.
  8. Visualization of all the sensors values used in the PEFC unit process.
  9. By using PLC-PI additional 19 more exercises can be done.
  10. Several other exercises can be done and designed by the user.
