創新系統

The Computer Controlled Focusing Solar Energy Collector, "ECESC", has been designed by EDIBON to study the conversion of solar energy into thermal energy using a parabolic trough.

查看一般說明

扩展

ICAI

交互式计算机辅助教学软件
FSS

故障模拟系统
PLCHMI

带有HMI的本地/远程IIoT控制和监控
ELK

EDIBON软件开发工具包，由NI LabVIEW™提供支持
ESN

EDIBON Scada-Net系统
ECL

EDIBON 远程教育

相關新聞

Laboratory supported by Official College of Technical Industrial Engineers (Spain)
Laboratory supported by Official College of Technical Industrial Engineers (Spain)
At EDIBON, we reaffirm our commitment to the advancement of clean and renewable energy, with a special focus on green hydrogen as a key driver for a more sustainable future. We are proud to have been selected to equip the first Green Hydrogen Laboratory in the Region of Murcia, a pioneering space...
阅读更多
Recycling and energy storage systems
Recycling and energy storage systems
The shift towards electric vehicles (EVs) has gained considerable momentum worldwide, promising a reduction in greenhouse gas emissions and a path to a more sustainable future. However, as the demand for EVs accelerates, so too does the need for large quantities of essential minerals, such as...
阅读更多
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
阅读更多

一般說明

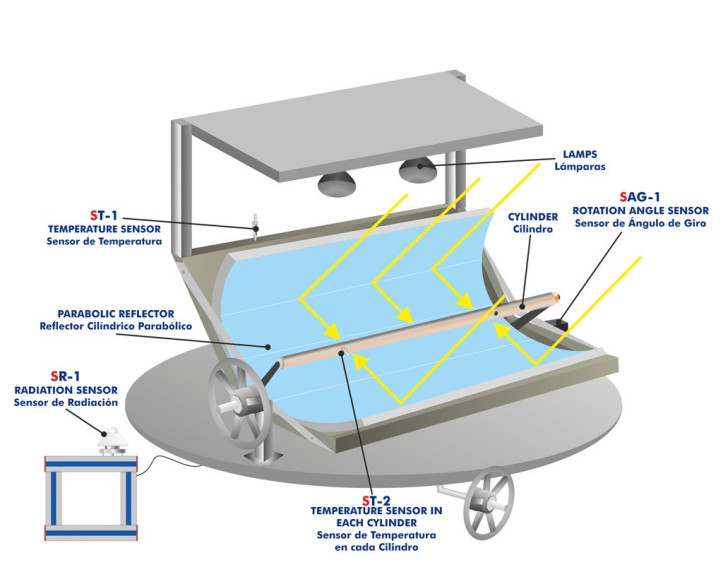

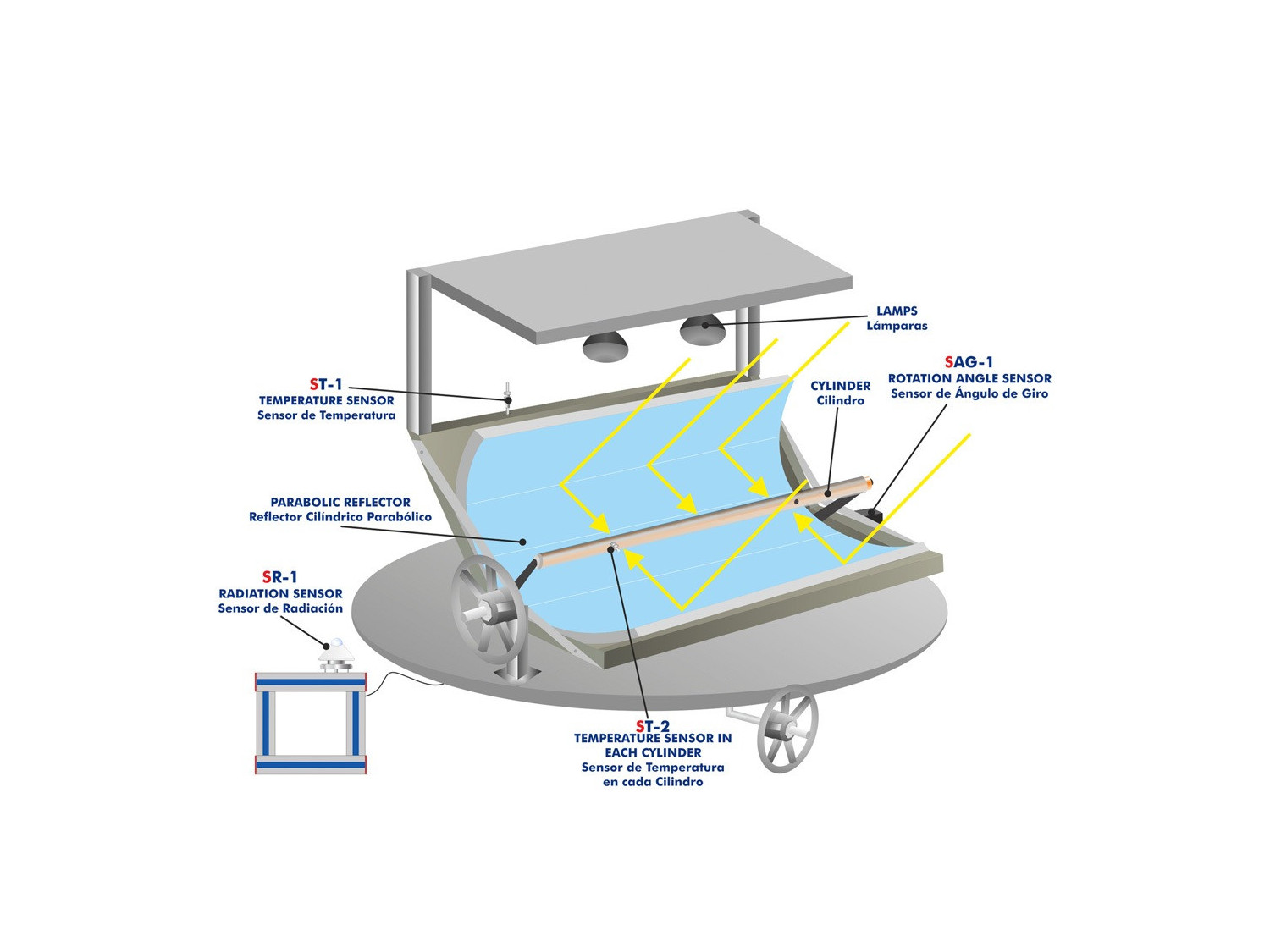

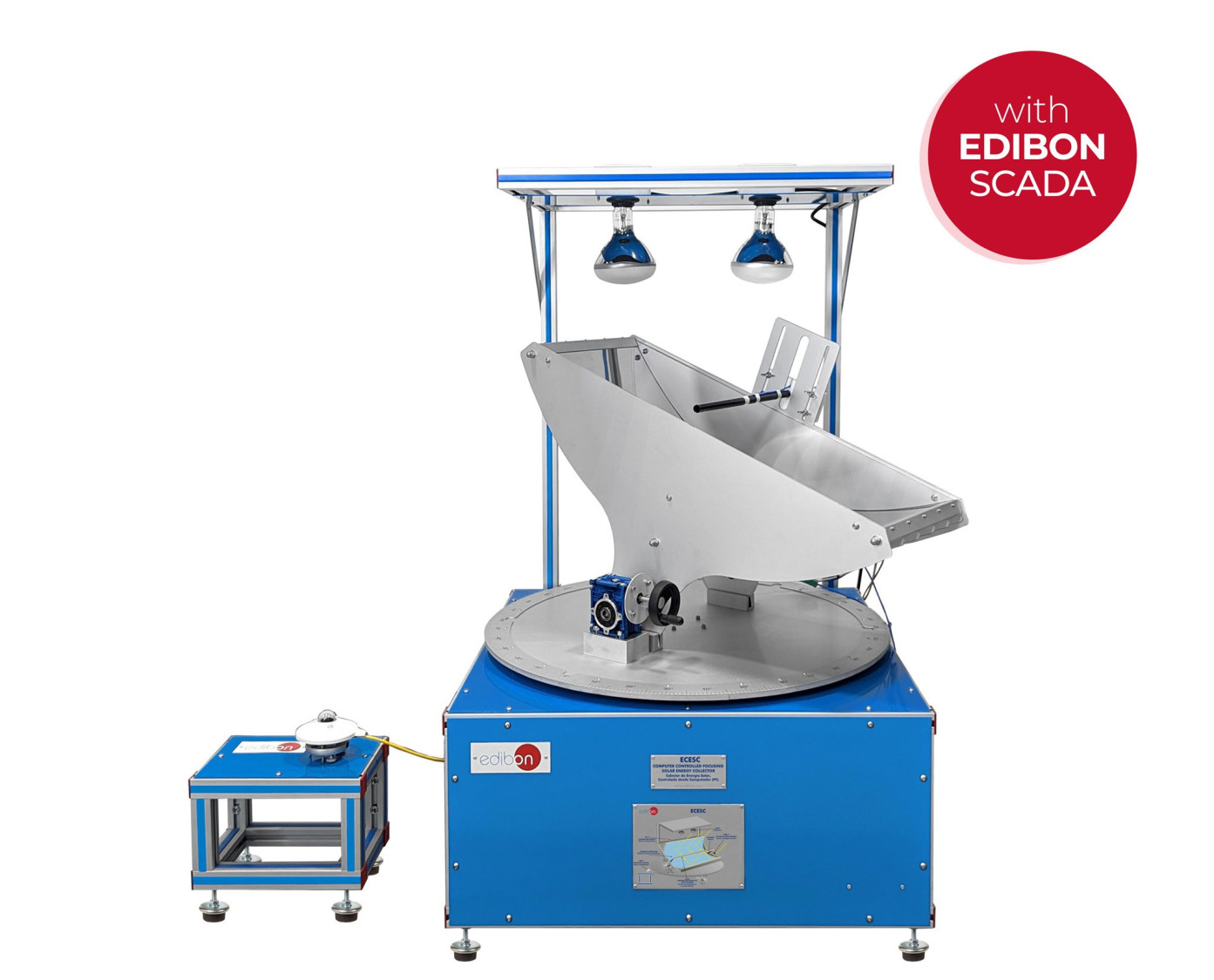

The Computer Controlled Focusing Solar Energy Collector, "ECESC", shows the principles of a parabolic trough to collect solar energy.

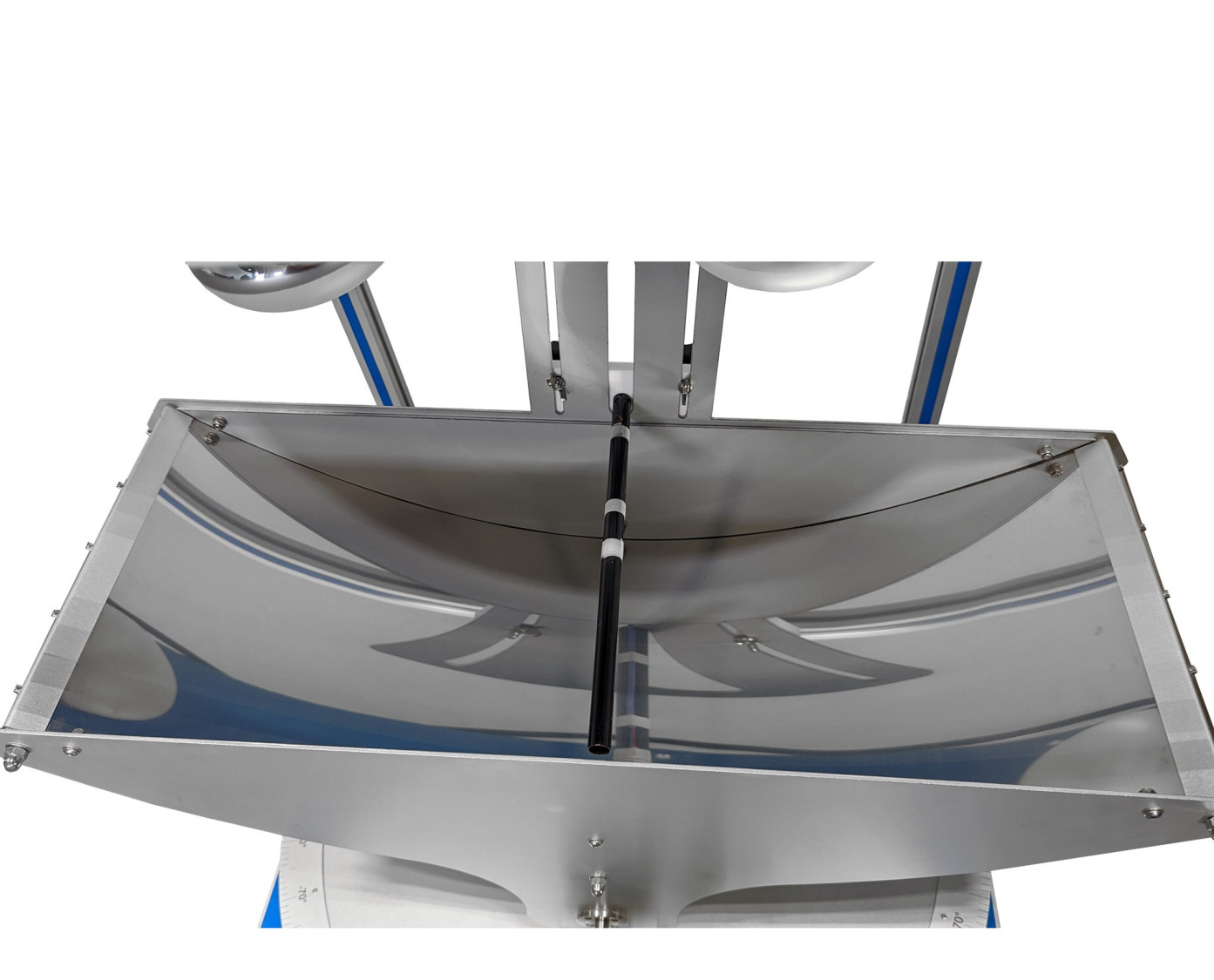

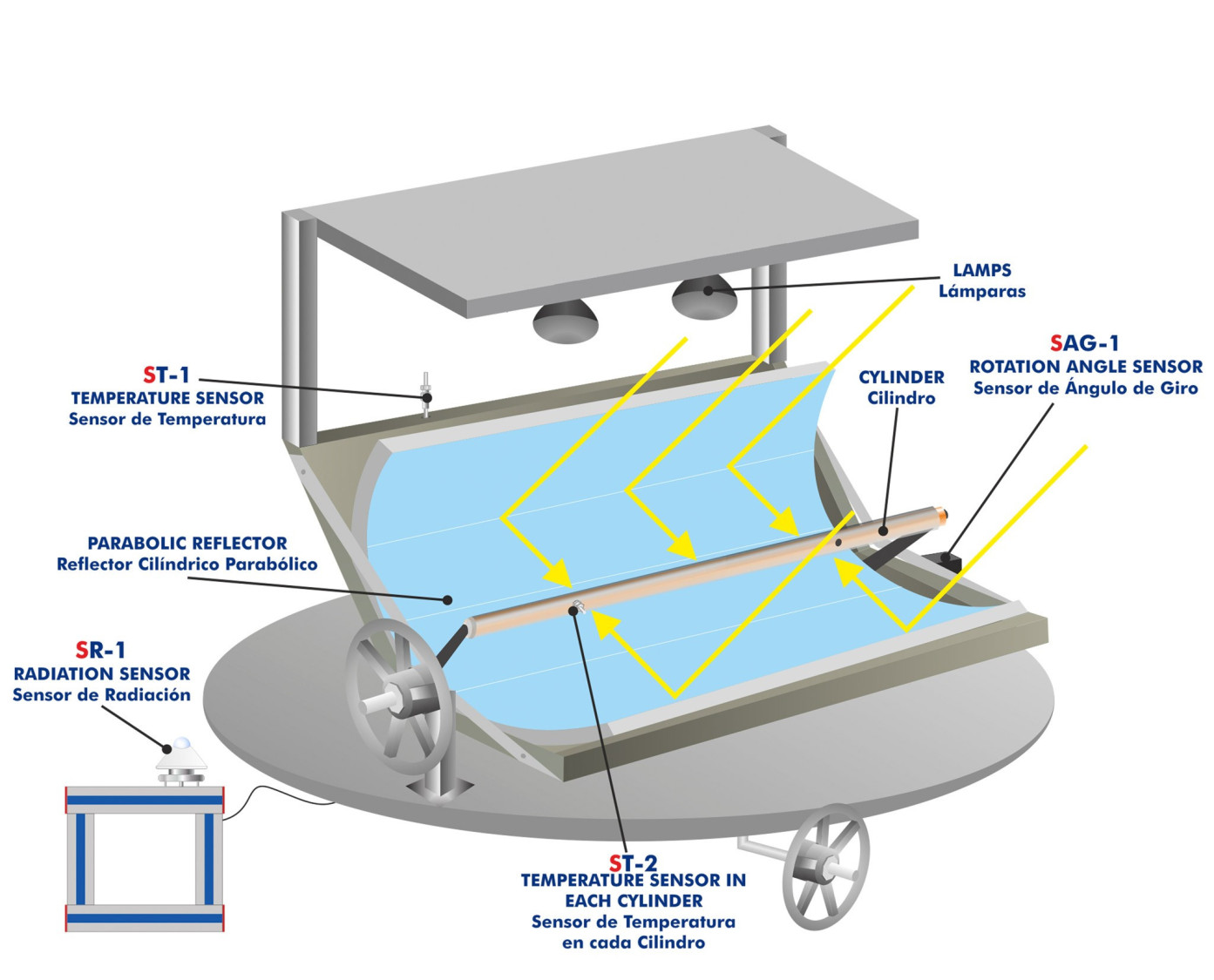

The unit includes a highly polished stainless steel parabolic reflector on a mobile base. It can be horizontally and vertically adjusted so that solar energy is focused on an energy collector from different positions. The reflector includes a pyranometer to measure the incident solar radiation.

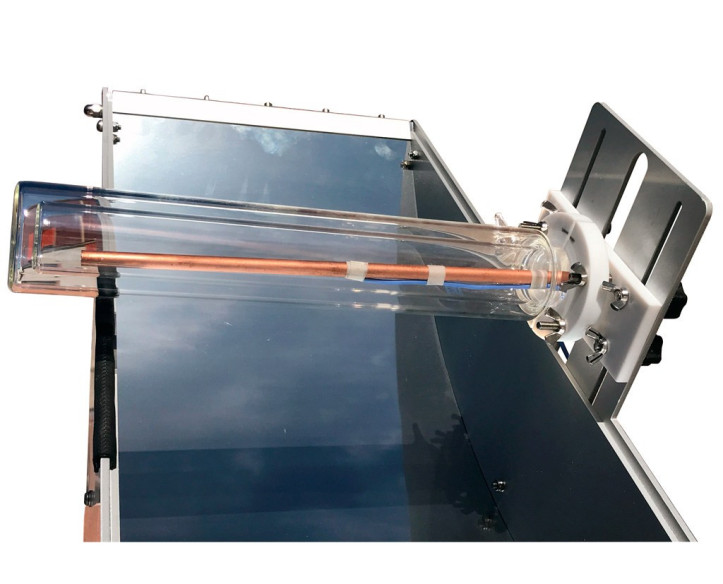

Five interchangeable energy collectors of different sizes are included to study different concentration ratios. One of them has a special black coating to study its effect. Each one has a "J" type temperature sensor to measure the temperature of the collector. Additionally, another insulating glass collector with vacuum coating is included to study the effect of a shielded collector.

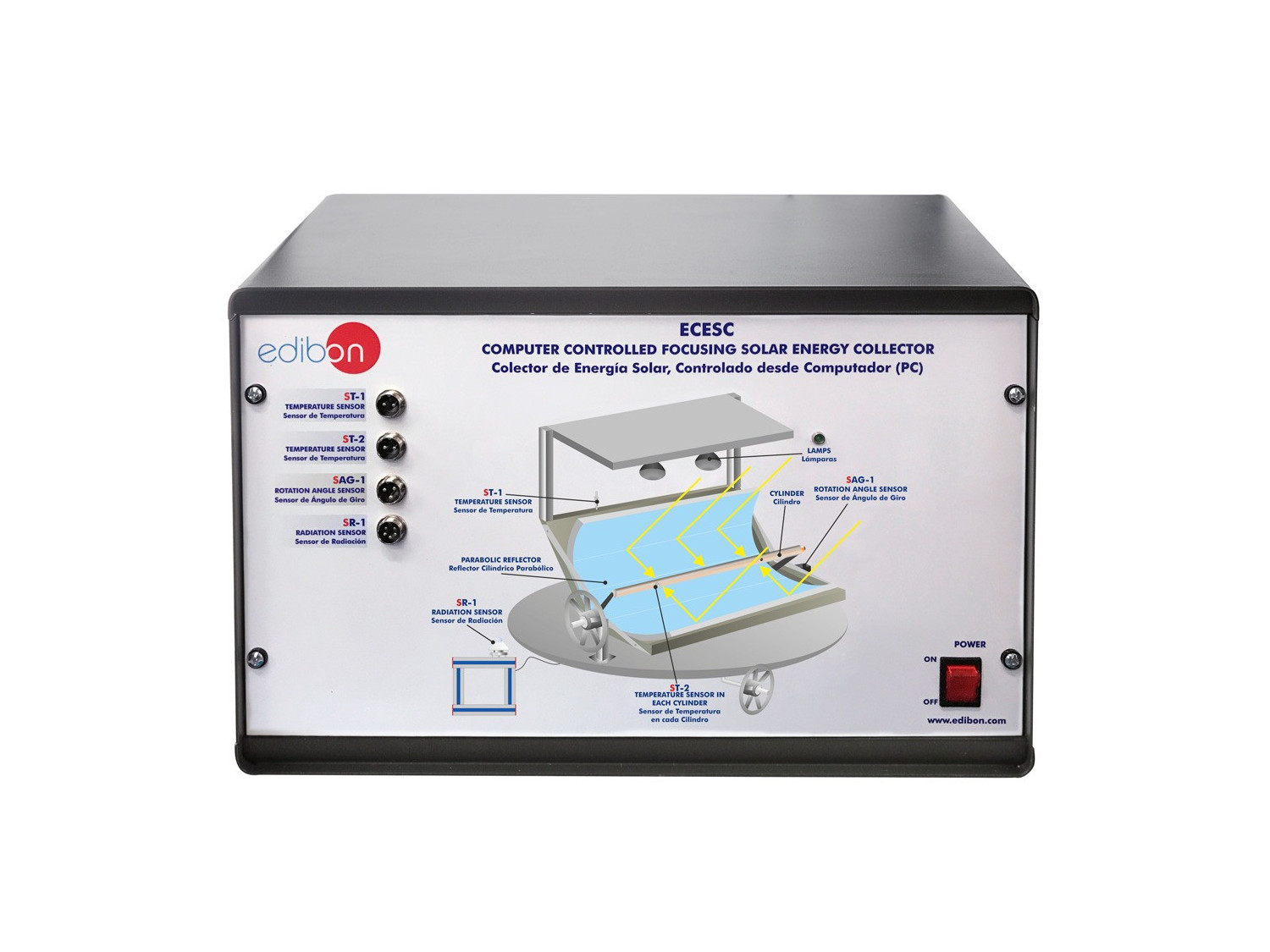

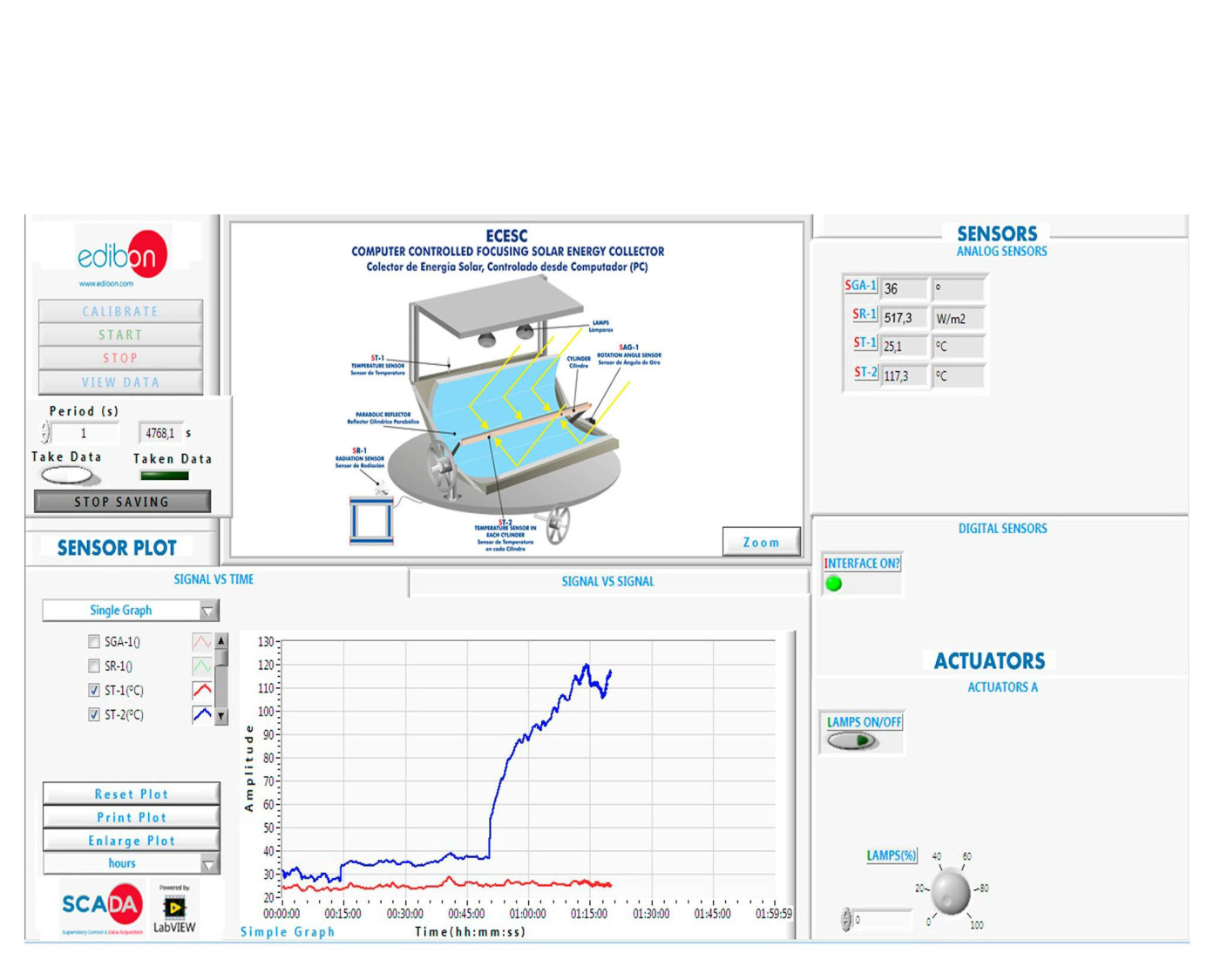

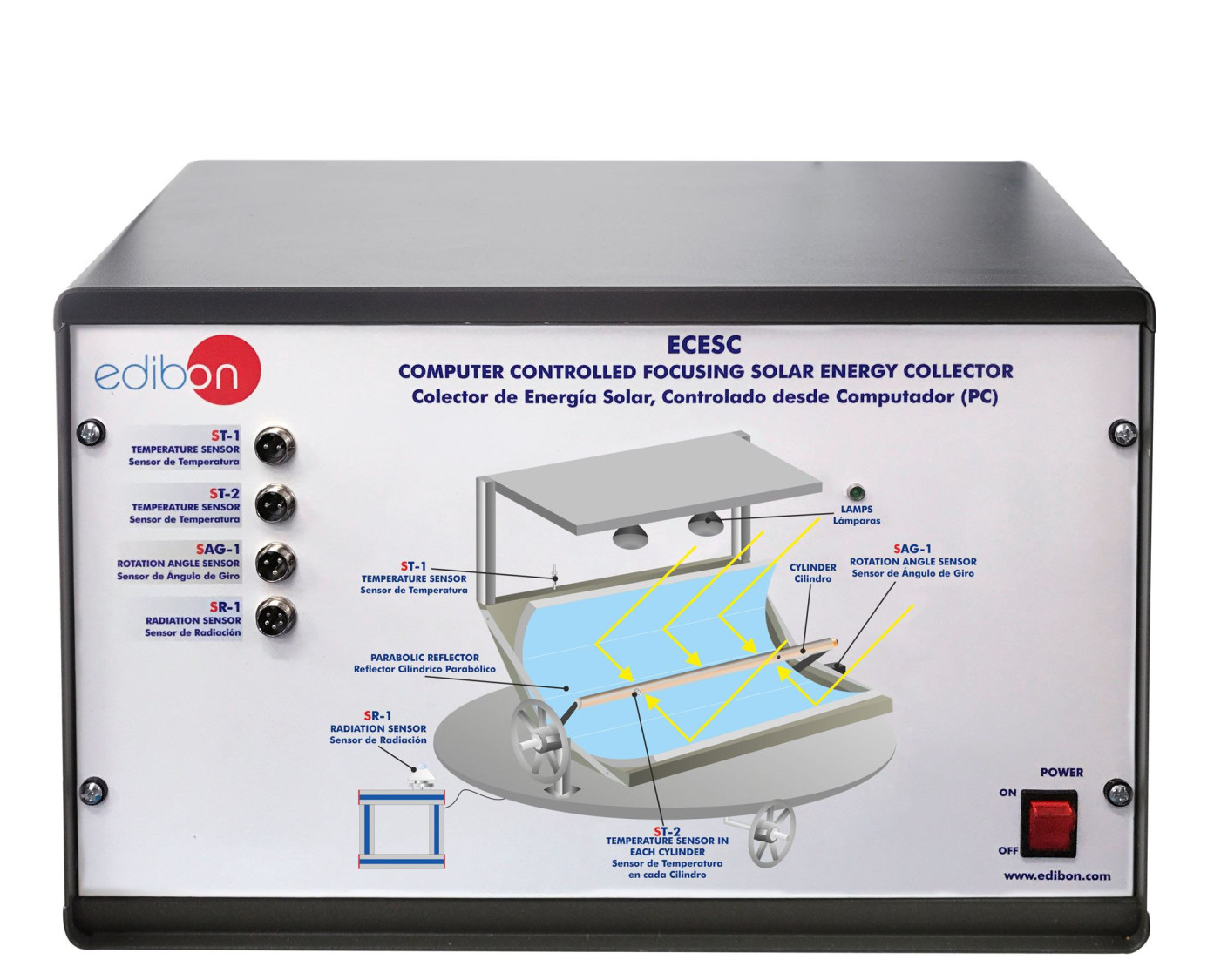

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.

練習和指導練習

手册中包含的指导实践练习

  1. Operation of a cylindrical solar collector.
  2. Study of different energy concentration levels depending on the size of the collector.
  3. Comparison of the energy concentration levels of an unshielded cylinder and a shielded cylinder.
  4. Measurement of maximum temperatures reached by the energy collectors.
  5. Optimization and adjustment of a parabolic trough to obtain high concentration levels.
  6. Sensors calibration.

与该单位进行更多实际操作

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc, in real time.
  3. The Computer Control System with SCADA allows a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical/electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Control of the ECESC unit process through the control interface box without the computer.
  8. Visualization of all the sensors values used in the ECESC unit process.
  9. Several other exercises can be done and designed by the user.
