AMTC Computer Controlled Pipe Network Unit, with Hydraulics Bench (FME00)

8.8.- 流体管道系统
COMPUTER CONTROLLED PIPE NETWORK UNIT, WITH HYDRAULICS BENCH (FME00) - AMTC

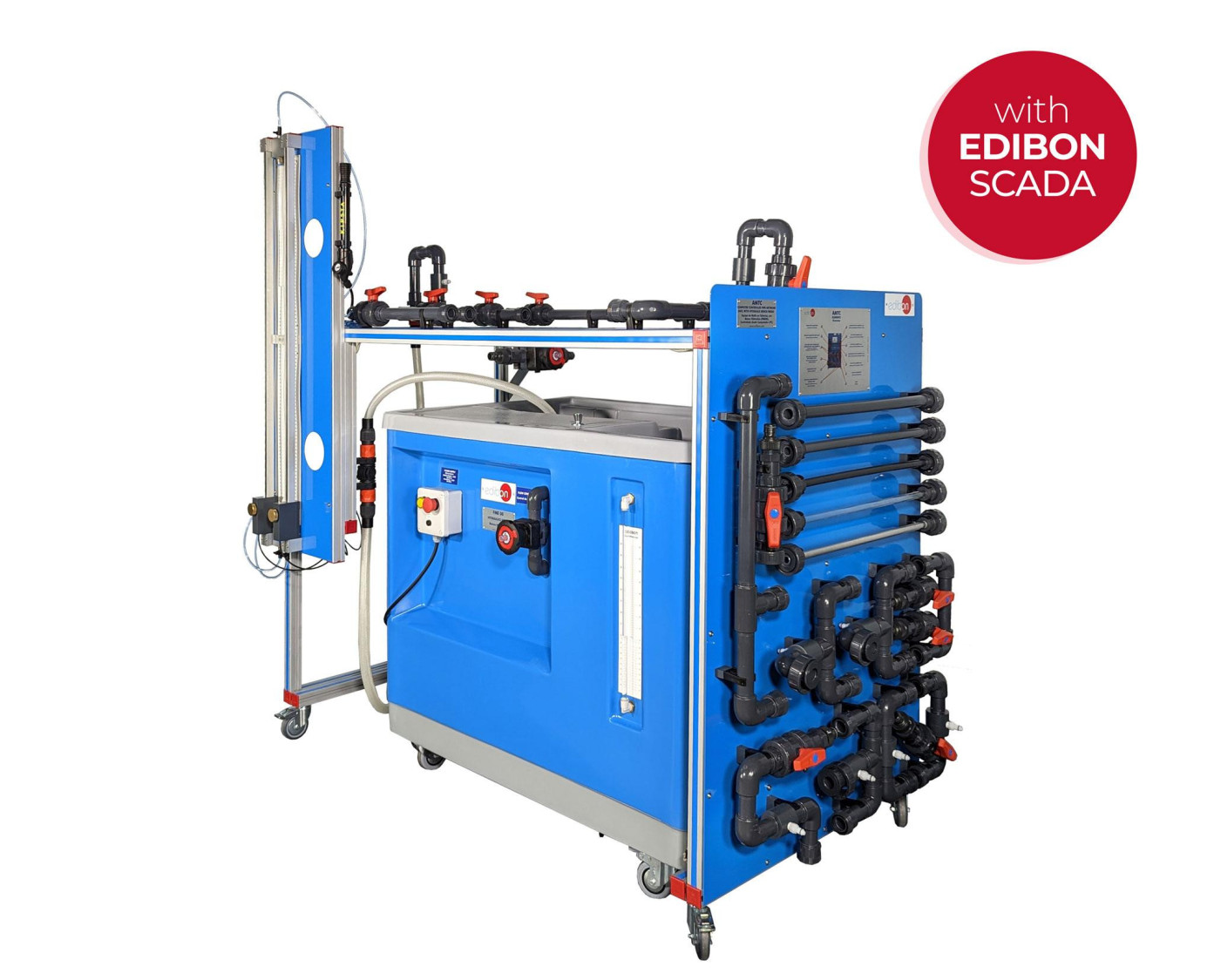

Unit: AMTC. Computer Controlled Pipe Network Unit, with Hydraulics Bench (FME00)

COMPUTER CONTROLLED PIPE NETWORK UNIT, WITH HYDRAULICS BENCH (FME00) - AMTC

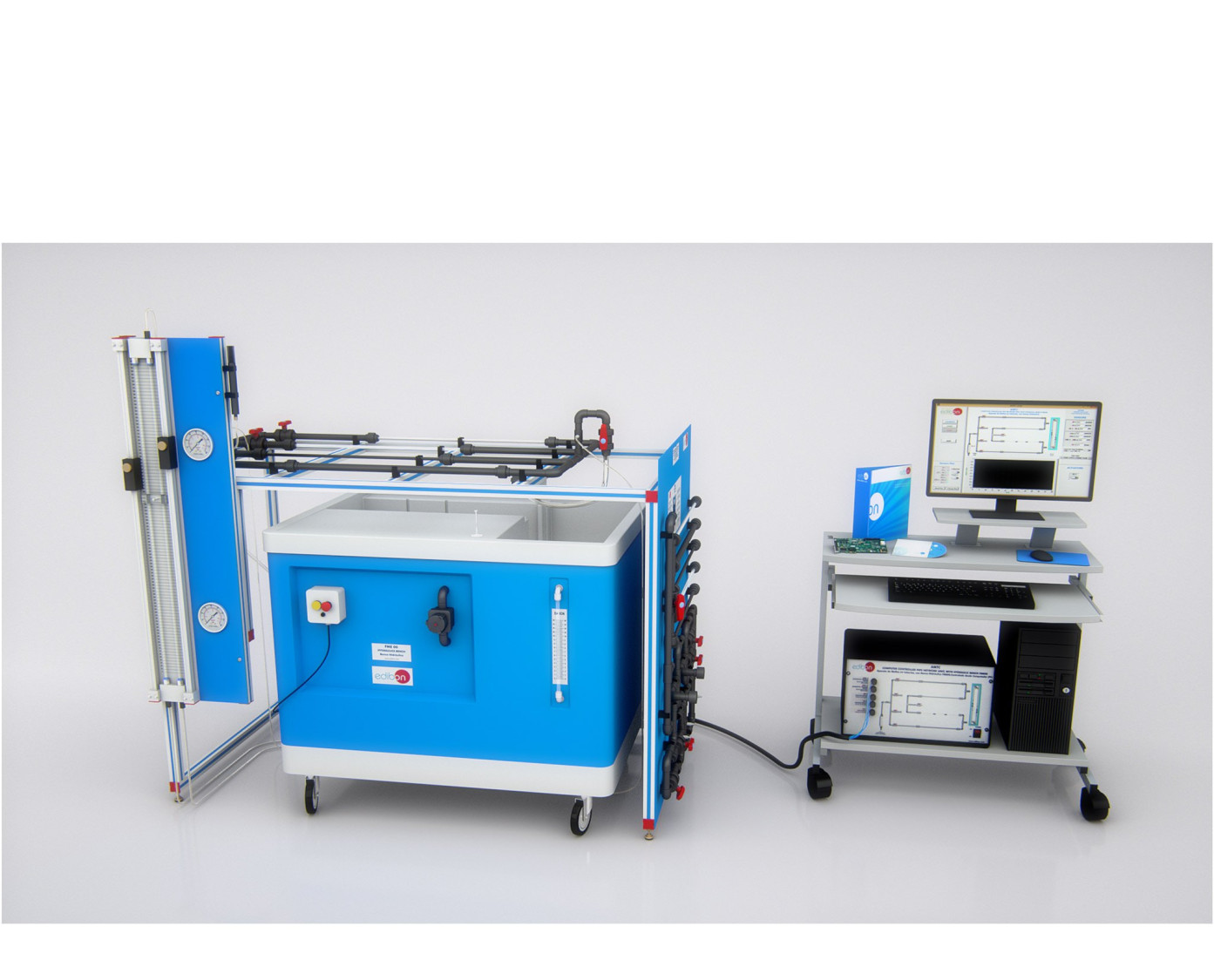

Complete AMTC Unit

COMPUTER CONTROLLED PIPE NETWORK UNIT, WITH HYDRAULICS BENCH (FME00) - AMTC

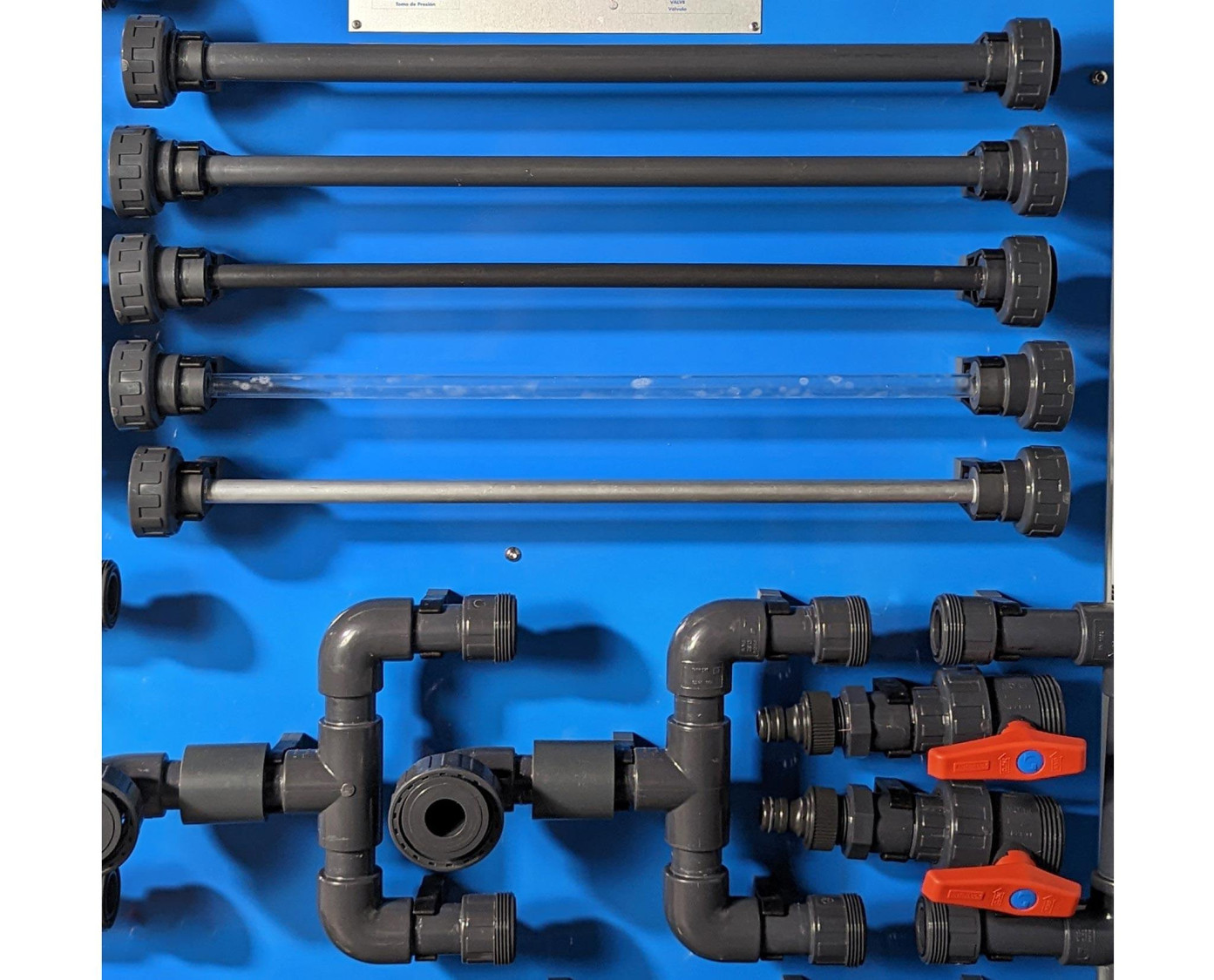

Unit details

COMPUTER CONTROLLED PIPE NETWORK UNIT, WITH HYDRAULICS BENCH (FME00) - AMTC

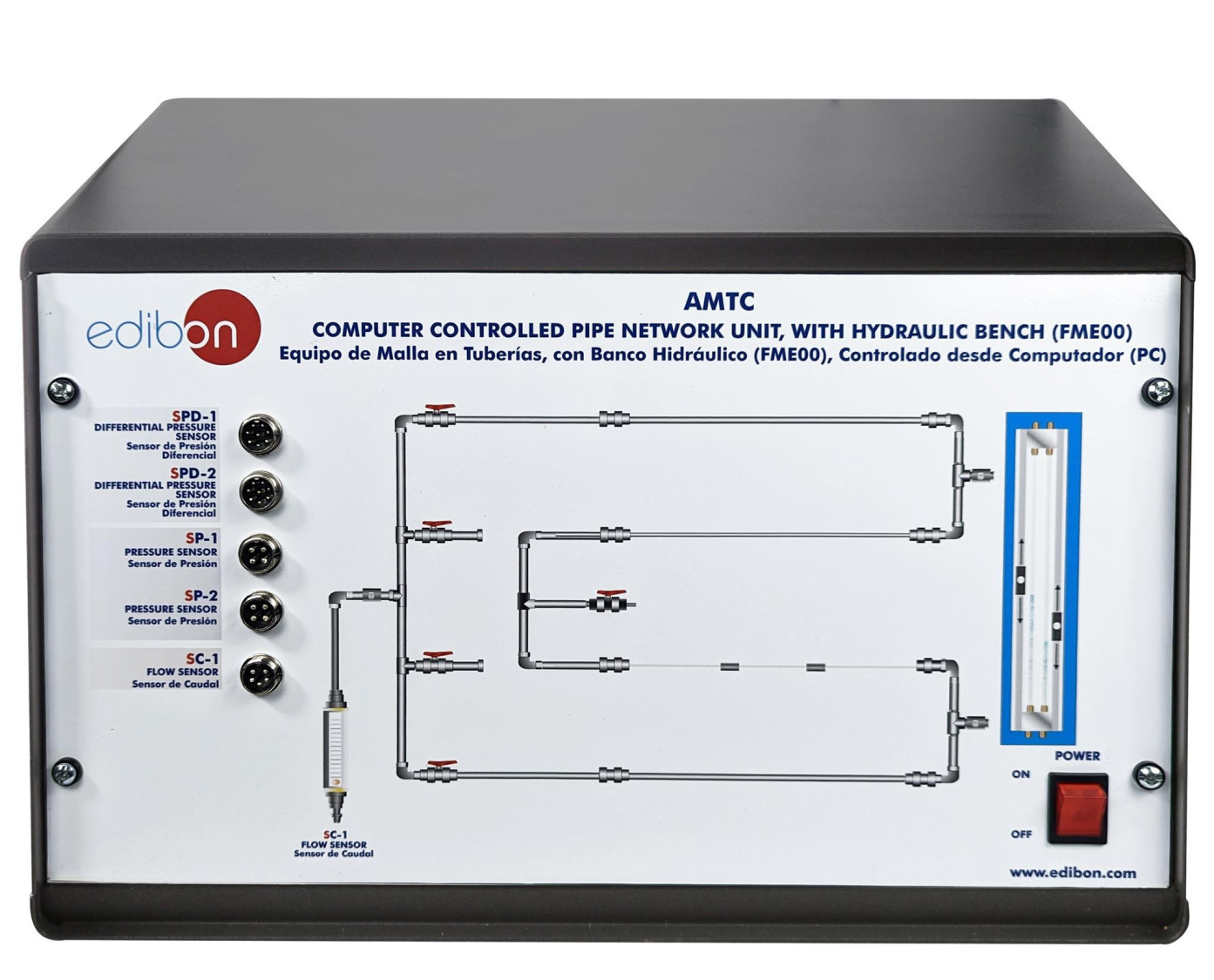

AMTC/CIB. Control Interface Box: The Control Interface Box is part of the SCADA system

COMPUTER CONTROLLED PIPE NETWORK UNIT, WITH HYDRAULICS BENCH (FME00) - AMTC

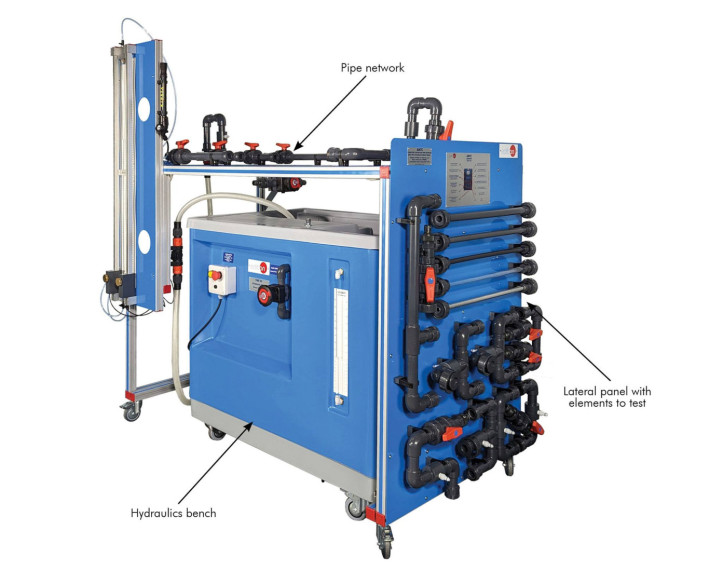

Process diagram and unit elements allocation

COMPUTER CONTROLLED PIPE NETWORK UNIT, WITH HYDRAULICS BENCH (FME00) - AMTC

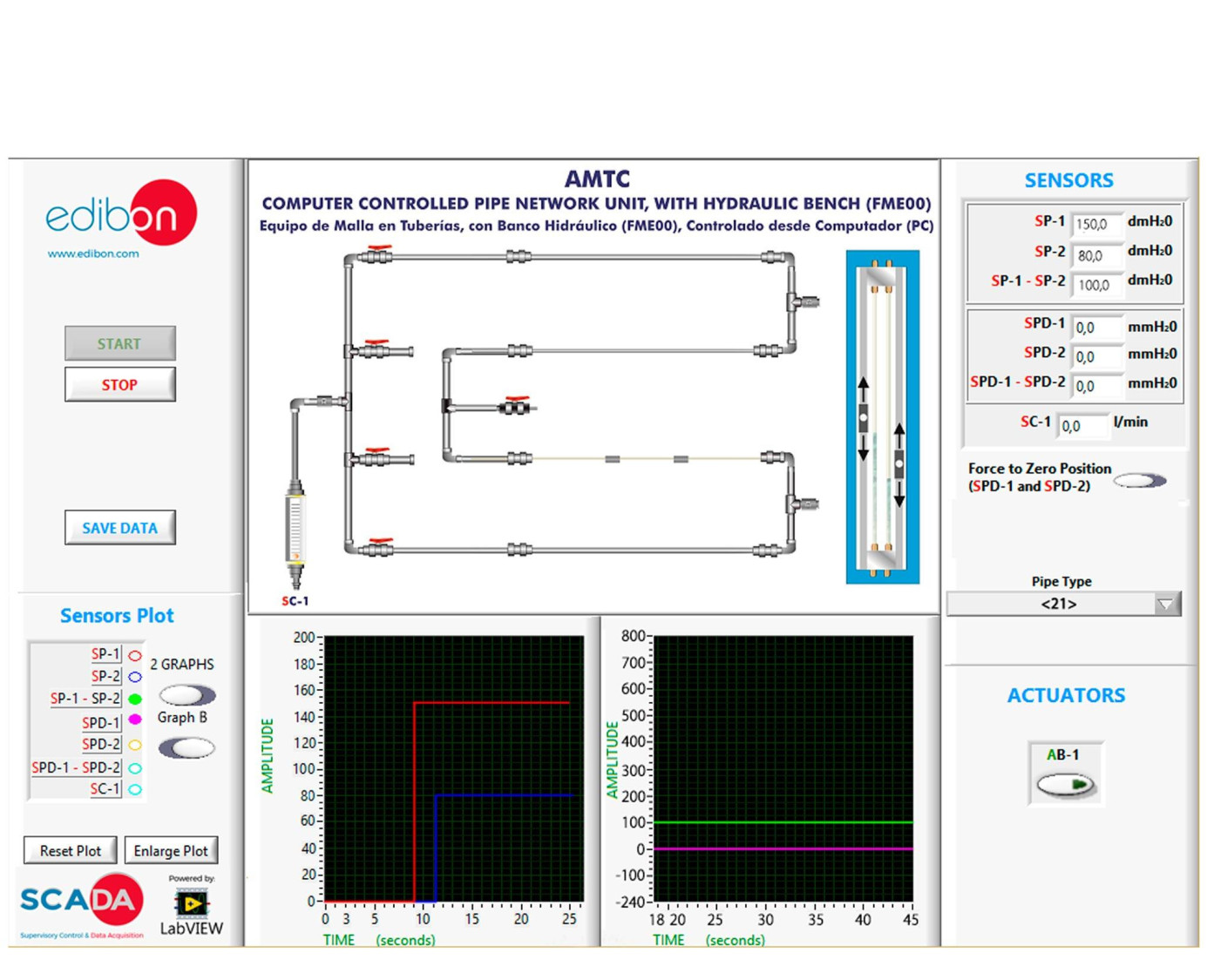

AMTC/SOF. AMTC Software. Main Screen

COMPUTER CONTROLLED PIPE NETWORK UNIT, WITH HYDRAULICS BENCH (FME00) - AMTC
COMPUTER CONTROLLED PIPE NETWORK UNIT, WITH HYDRAULICS BENCH (FME00) - AMTC
COMPUTER CONTROLLED PIPE NETWORK UNIT, WITH HYDRAULICS BENCH (FME00) - AMTC
COMPUTER CONTROLLED PIPE NETWORK UNIT, WITH HYDRAULICS BENCH (FME00) - AMTC
COMPUTER CONTROLLED PIPE NETWORK UNIT, WITH HYDRAULICS BENCH (FME00) - AMTC
COMPUTER CONTROLLED PIPE NETWORK UNIT, WITH HYDRAULICS BENCH (FME00) - AMTC

創新系統

The Computer Controlled Pipe Network Unit, with Hydraulics Bench (FME00), "AMTC", has been designed by EDIBON to enable different pipe network installations, measuring flow and pressure, and always using water as test fluid.

查看一般說明

扩展

ICAI

交互式计算机辅助教学软件
FSS

故障模拟系统
PLCHMI

带有HMI的本地/远程IIoT控制和监控
ELK

EDIBON软件开发工具包，由NI LabVIEW™提供支持
ESN

EDIBON Scada-Net系统
ECL

EDIBON 远程教育

化验室

13TV
 技术和职业教育环境实验室
13HE
 高等教育环境实验室
11PTC
 石油培训中心实验室
8TV
 技术和职业教育流体力学实验室。
8HE
 高等教育流体力学实验室

相關新聞

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
阅读更多
NEW Fluid Mechanics Course
NEW Fluid Mechanics Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.
阅读更多

一般說明

The Computer Controlled Pipe Network Unit, with Hydraulics Bench (FME00), "AMTC", consists of a pipe network, a lateral panel where all the elements to test are located and a hydraulics bench, which has all the elements and accessories required for the unit to work autonomously.

The valves that some of the elements have in order to form the different circuits are On-Off valves, necessary to distribute the flow along the net.

The unit has a system of anti-blockage pressure takings, located upstream and downstream of each element that is going to be tested. All of them have a quick and easy connection to the pressure measurement devices of the unit.

The unit includes an Hydraulics Bench (FME00), that has a volumetric measuring system, consisting of a two-level tank. The small one is used to measure low flows and the big one, to measure higher flows. A gauge, which consists of a scale and a transparent tube is connected to a bypass on the base of tank and gives an instantaneous measurement of the water level.

A centrifugal pump located inside the hydraulics bench is used to add energy to the fluid. The flow can be regulated by a control valve located on the hydraulics bench.

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.

練習和指導練習

手册中包含的指导实践练习

  1. Head losses in a PVC pipe.
  2. Head losses in an aluminum pipe.
  3. Head losses in a methacrylate pipe.
  4. Study of head losses in pipes of the same material.
  5. Study of head losses in function of the material.
  6. Friction coefficient in a PVC pipe.
  7. Friction coefficient in an aluminum pipe.
  8. Friction coefficient in a methacrylate pipe.
  9. Study of the friction coefficient in function of the material.
  10. Study of the friction coefficient in function of the diameter.
  11. Parallel network configuration for pipes of same material and different diameter.
  12. Parallel network configuration for pipes of different material and same diameter.
  13. Series network configuration for pipes of same material and different diameter.
  14. Series network configuration for pipes of different material and same diameter.
  15. Sensors calibration.

与该单位进行更多实际操作

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc, in real time.
  3. The Computer Control System with SCADA and PID Control allow a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical and electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Control of the AMTC unit process through the control interface box without the computer.
  8. Visualization of all the sensors values used in the AMTC unit process.
  9. By using PLC-PI additional 19 more exercises can be done.
  10. Several other exercises can be done and designed by the user.
