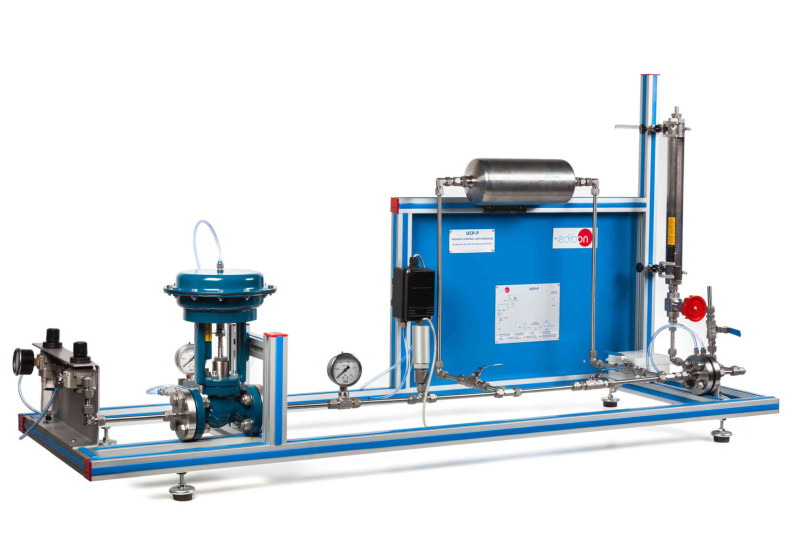

Unit: UCP-P. Computer Controlled Process Control Unit for the Study of Pressure (Air)

COMPUTER CONTROLLED PROCESS CONTROL UNIT FOR THE STUDY OF PRESSURE (AIR) - UCP-P

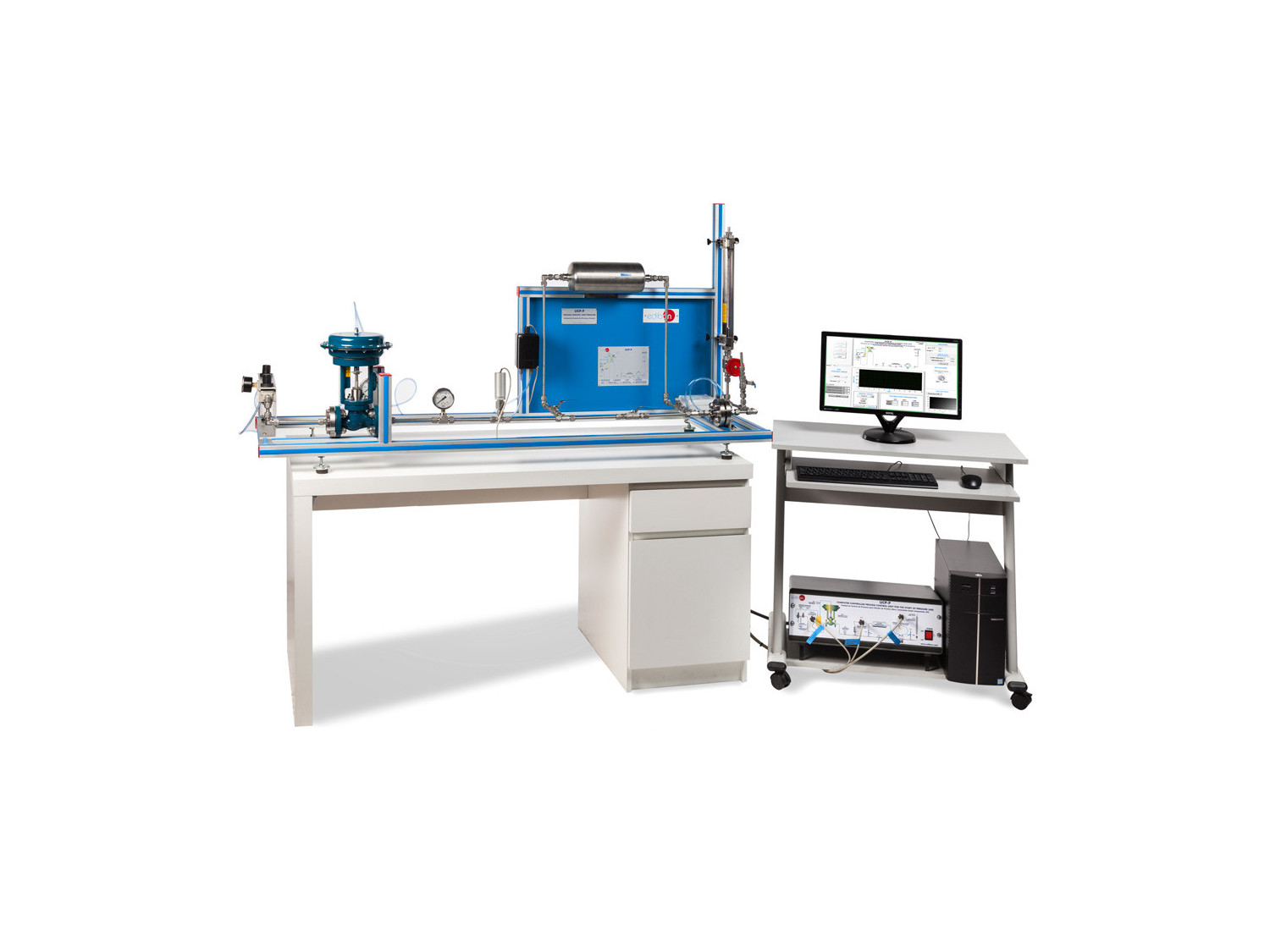

Complete UCP-P unit

COMPUTER CONTROLLED PROCESS CONTROL UNIT FOR THE STUDY OF PRESSURE (AIR) - UCP-P

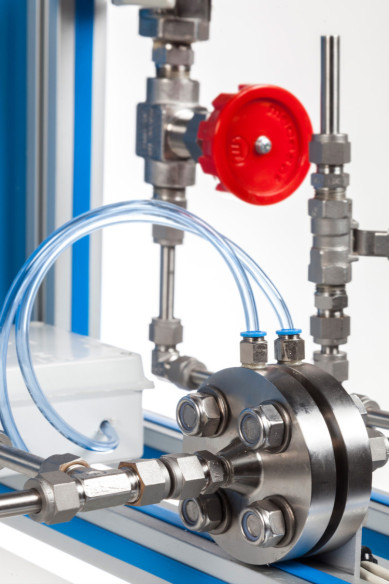

Unit details

COMPUTER CONTROLLED PROCESS CONTROL UNIT FOR THE STUDY OF PRESSURE (AIR) - UCP-P

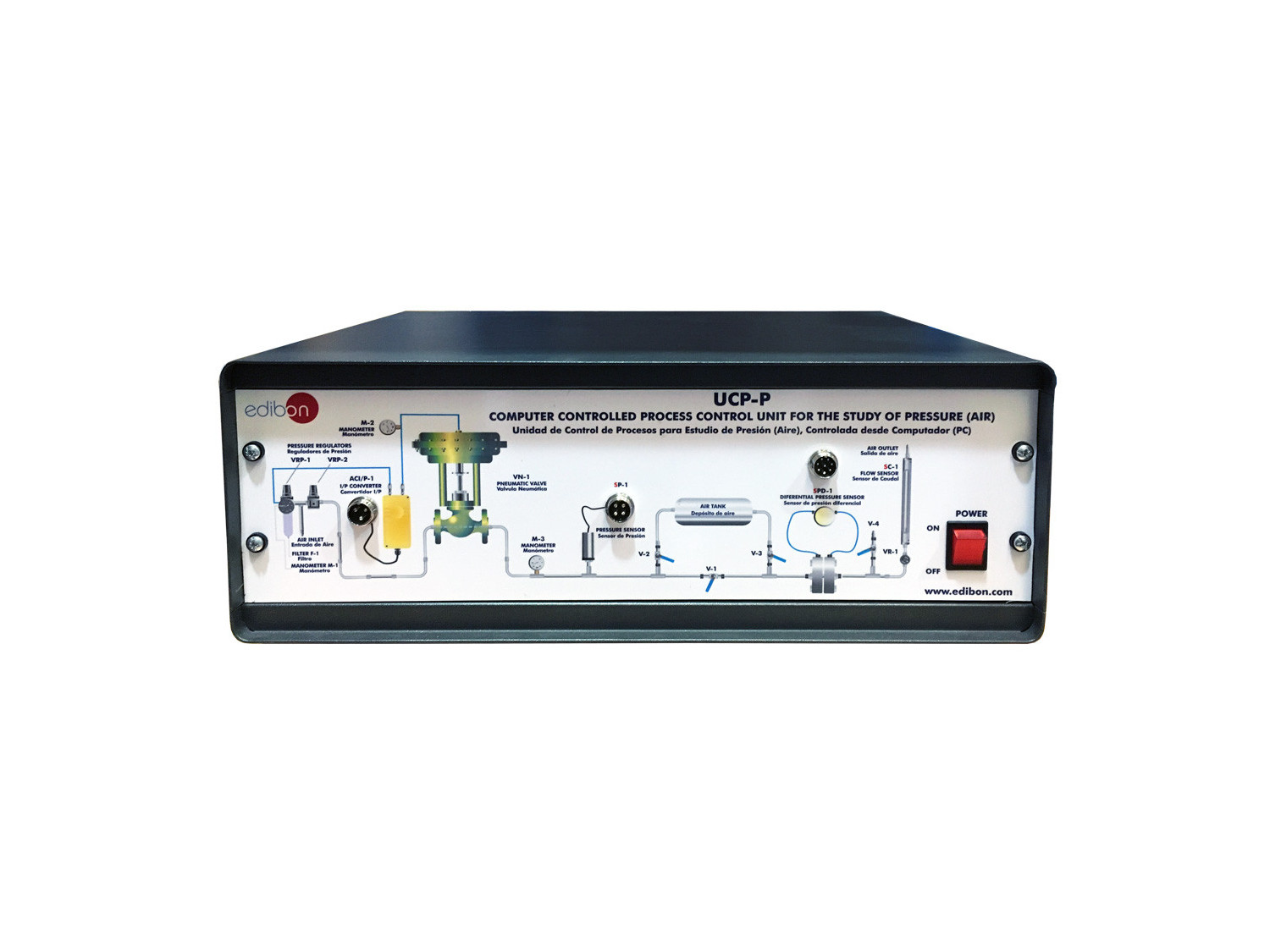

UCP-P/CIB. Control Interface Box: The Control Interface Box is part of the SCADA system

COMPUTER CONTROLLED PROCESS CONTROL UNIT FOR THE STUDY OF PRESSURE (AIR) - UCP-P

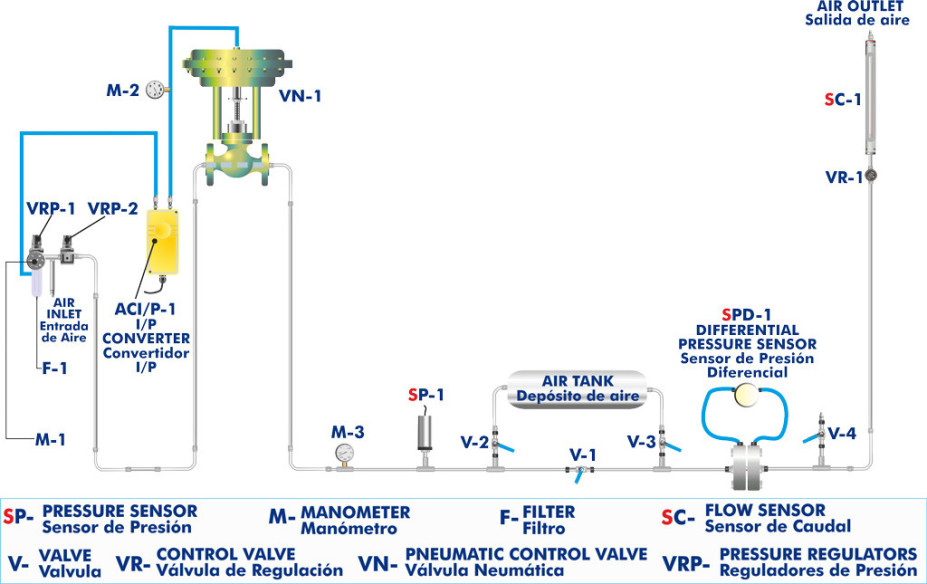

Process diagram and unit elements allocation

COMPUTER CONTROLLED PROCESS CONTROL UNIT FOR THE STUDY OF PRESSURE (AIR) - UCP-P

UCP-P/SOF. UCP-P Software. Main Screen

COMPUTER CONTROLLED PROCESS CONTROL UNIT FOR THE STUDY OF PRESSURE (AIR) - UCP-P
COMPUTER CONTROLLED PROCESS CONTROL UNIT FOR THE STUDY OF PRESSURE (AIR) - UCP-P
COMPUTER CONTROLLED PROCESS CONTROL UNIT FOR THE STUDY OF PRESSURE (AIR) - UCP-P
COMPUTER CONTROLLED PROCESS CONTROL UNIT FOR THE STUDY OF PRESSURE (AIR) - UCP-P
COMPUTER CONTROLLED PROCESS CONTROL UNIT FOR THE STUDY OF PRESSURE (AIR) - UCP-P
COMPUTER CONTROLLED PROCESS CONTROL UNIT FOR THE STUDY OF PRESSURE (AIR) - UCP-P

創新系統

The Computer Controlled Process Control Unit for the Study of Pressure (Air), "UCP-P", consists of a compressed air duct whose flow is controlled by a pneumatic valve (the compressed air or gas source is not included).

查看一般說明

扩展

ICAI

交互式计算机辅助教学软件
FSS

故障模拟系统
PLC

PLC控制工业过程
PLCHMI

带有HMI的本地/远程IIoT控制和监控
ELK

EDIBON软件开发工具包，由NI LabVIEW™提供支持
EMAK

EDIBON适用于Matlab的开发套件
ECR

EDIBON的模块化工业系统与NI CompactRIO
ESN

EDIBON Scada-Net系统
ECL

EDIBON 远程教育

化验室

6TV
 技术和职业教育机电一体化和自动化实验室
6HE
 高等学校机电一体化与自动化实验室
10TV
 技术和职业教育过程控制实验室
10HE
 高等教育过程控制实验室
2TV
 技术和职业教育电子实验室
2HE
 高等教育电子实验室
11PTC
 石油培训中心实验室

相關新聞

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
阅读更多
Completion of the Course of Instrumentation, Regulation and Control in Laboratories
Completion of the Course of Instrumentation, Regulation and Control in Laboratories
On October 19th, the Course on Instrumentation, Regulation and Control in Laboratories, taught by our engineers in these facilities, using EDIBON units, was completed and aimed at learning the control of the conditions of a laboratory process. The attendants, (12 laboratory technicians and...
阅读更多

一般說明

The Computer Controlled Process Control Unit for the Study of Pressure (Air), "UCP-P", consists of a compressed air duct whose flow is controlled by a pneumatic valve (the compressed air or gas source is not included).

The air is supplied through the air inlet and it can be diverted with two pressure regulators toward the circuit which controls the valve or the circuit where the pressure and flow will be controlled.

The valve control circuit is composed by an I/P converter, which transforms the electrical signal send by the computer in a pneumatic signal, and a manometer placed between the I/P converter and the valve.

The main circuit, whereby the flow and pressure will be controlled, is composed by an absolute pressure sensor and a manometer to control the pressure, an orifice plate with a differential pressure sensor and a flowmeter to control the flow and four manual valves to introduce disturbances in the system and to change its configuration adding an air tank to the duct for the study of the volume effect in the control system.

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.

練習和指導練習

手册中包含的指导实践练习

  1. Analysis of non-linear behaviors in control systems: hysteresis, death zone, saturation, etc.
  2. Study of the effect caused by the volume in flow and pressure control systems.
  3. Characterization of the pressure and flow behavior of an air duct.
  4. Study of the structure and operation of a PID controller.
  5. Flow and pressure control using different configurations of a PID controller (P, PI, PID).
  6. Sensors calibration.

与该单位进行更多实际操作

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc, in real time.
  3. The Computer Control System with SCADA and PID Control allow a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical and electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Control of the UCP-P unit process through the control interface box without the computer.
  8. Visualization of all the sensors values used in the UCP-P unit process.
  9. By using PLC-PI additional 19 more exercises can be done.
  10. Several other exercises can be done and designed by the user.
