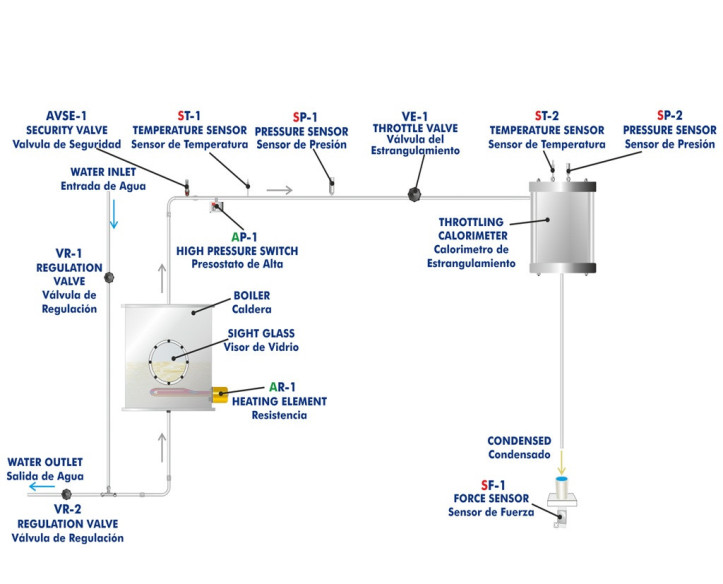

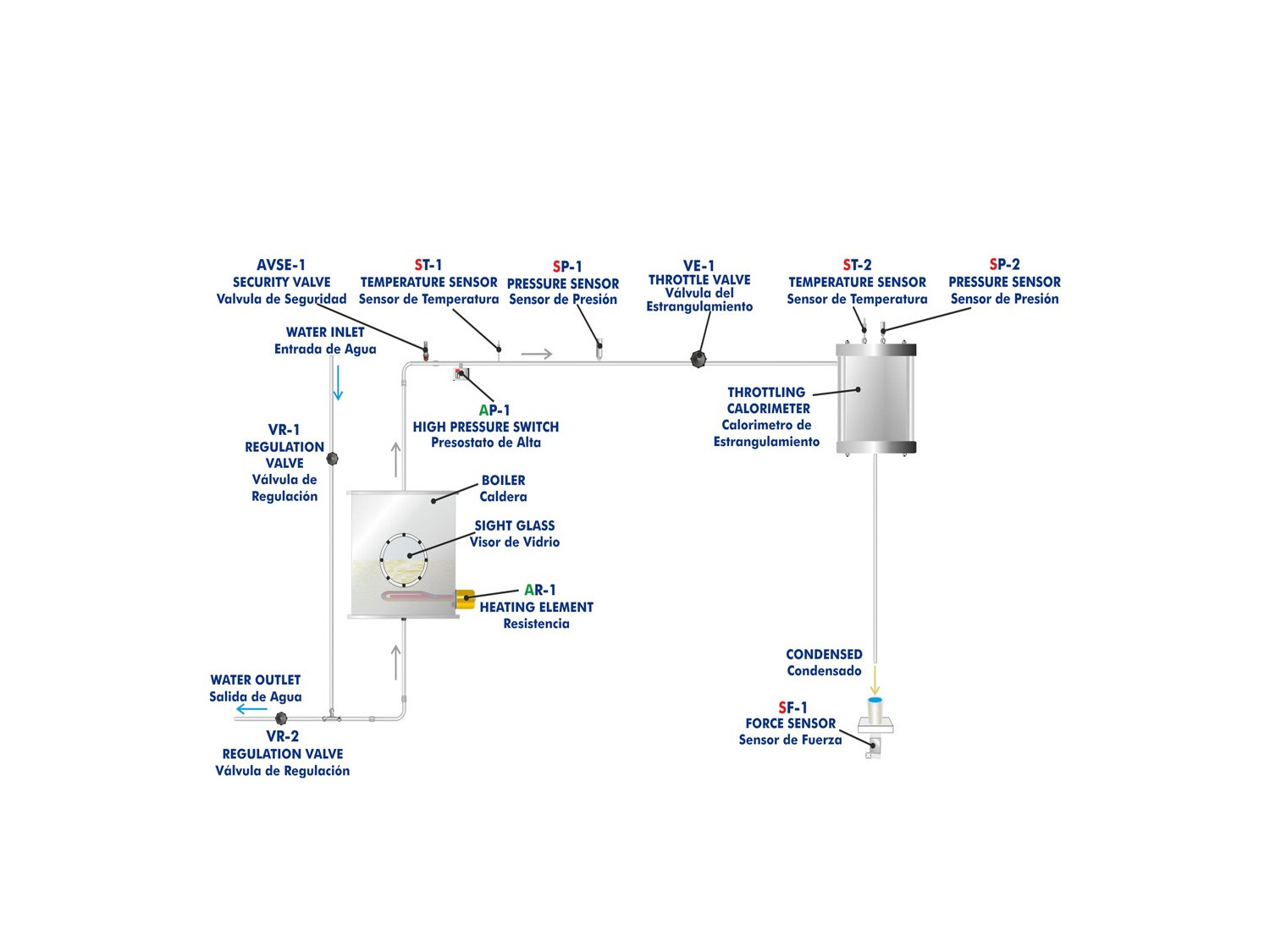

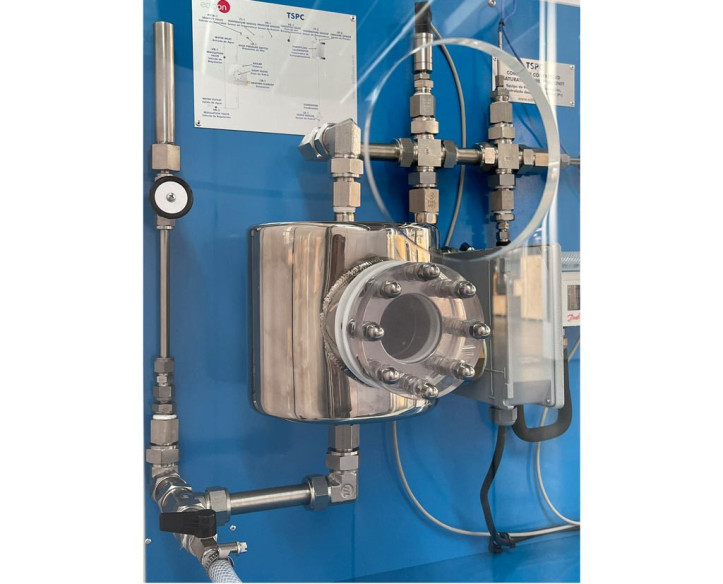

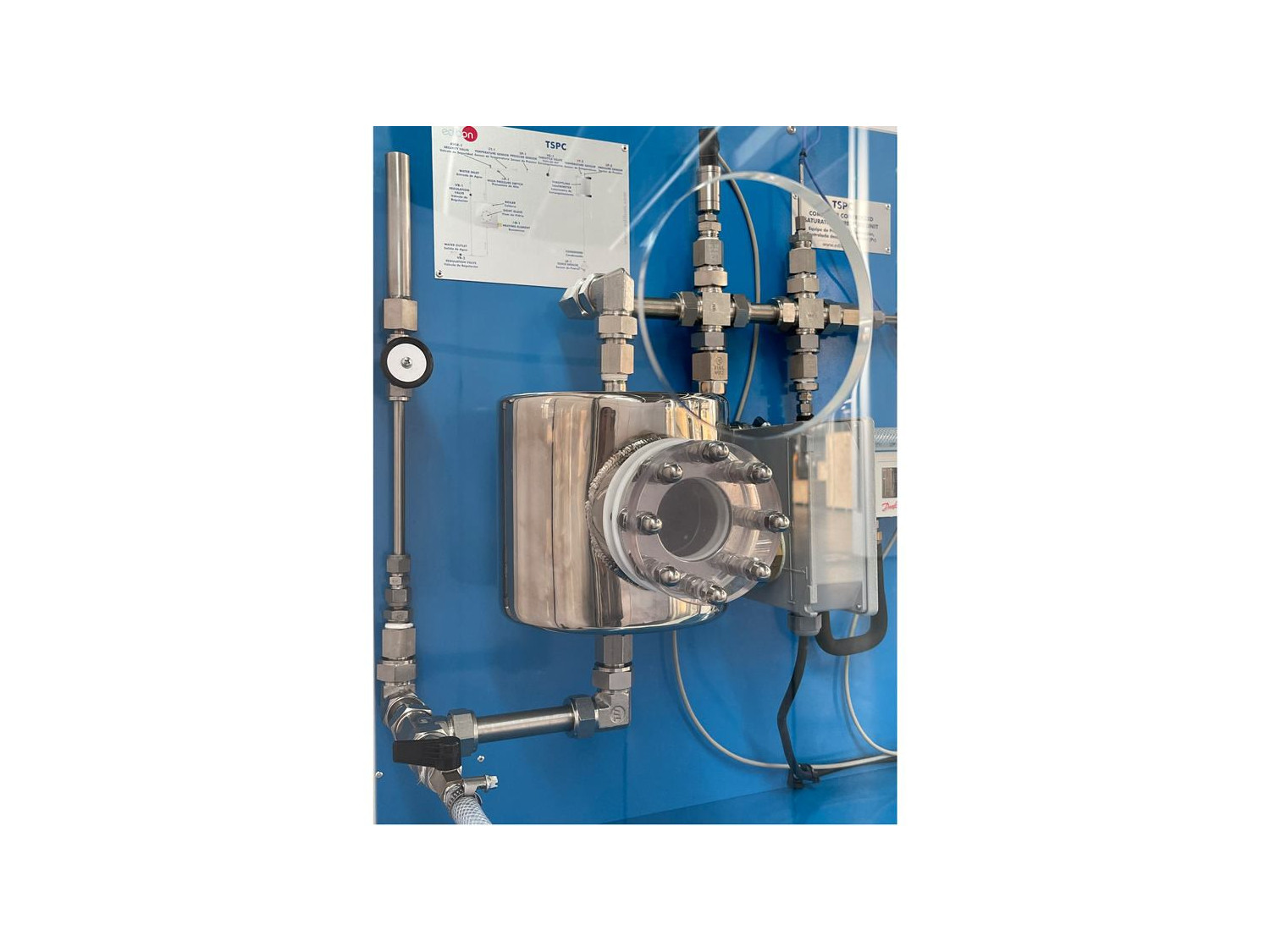

The Computer Controlled Saturation Pressure Unit, "TSPC", consists of a water boiler, including a computer controlled immersion heating element, and a sight glass to observe the boiling patterns in the water surface and control the water level in the boiler.

查看一般說明

扩展

ICAI

交互式计算机辅助教学软件
PLCHMI

带有HMI的本地/远程IIoT控制和监控
ELK

EDIBON软件开发工具包，由NI LabVIEW™提供支持
ECR

EDIBON的模块化工业系统与NI CompactRIO
ESN

EDIBON Scada-Net系统
ECL

EDIBON 远程教育

化验室

9TV
 技术和职业教育的热力学和热力学实验室
9HE
 高等教育热力学和热力学实验室

相關新聞

Thermodynamics and Thermotechnology: Key concepts and EDIBON's contribution
Thermodynamics and Thermotechnology: Key concepts and EDIBON's contribution
Thermodynamics and thermotechnology are fundamental fields of engineering that play a critical role across various industries, from energy generation to climate control. Understanding these foundational concepts is essential not only for engineers but also for fostering technological innovations...
阅读更多
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
阅读更多
We are excited to celebrate the publication of the article by Prof. Dr. Nina Penkova titled "Performance of Diffusion Absorption Refrigerators with Variable Input Power" The study explores how absorption refrigerators, which utilize waste or solar energy for heating and cooling, can operate...
阅读更多

一般說明

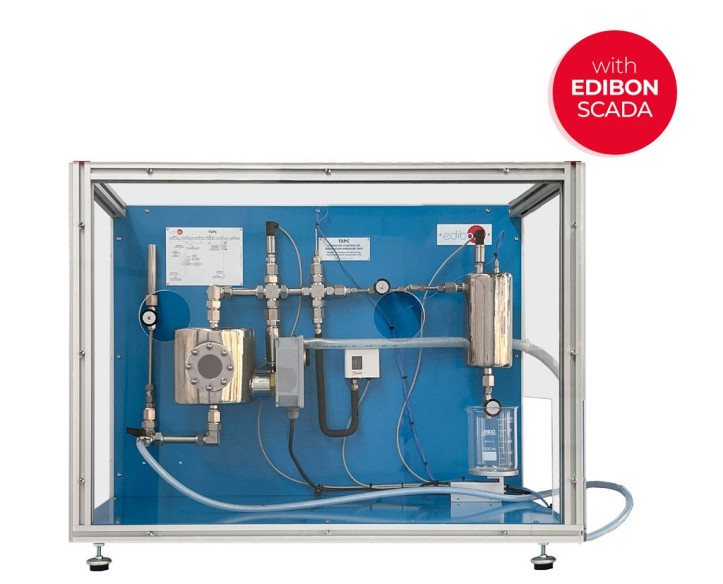

The Computer Controlled Saturation Pressure Unit, "TSPC", consists of a water boiler, including a computer controlled immersion heating element, and a sight glass to observe the boiling patterns in the water surface and control the water level in the boiler.

The saturated steam formed in the boiler passes through a throttle valve and is expanded to atmospheric pressure in a throttling calorimeter with the purpose of determining the dryness fraction of the saturated steam.

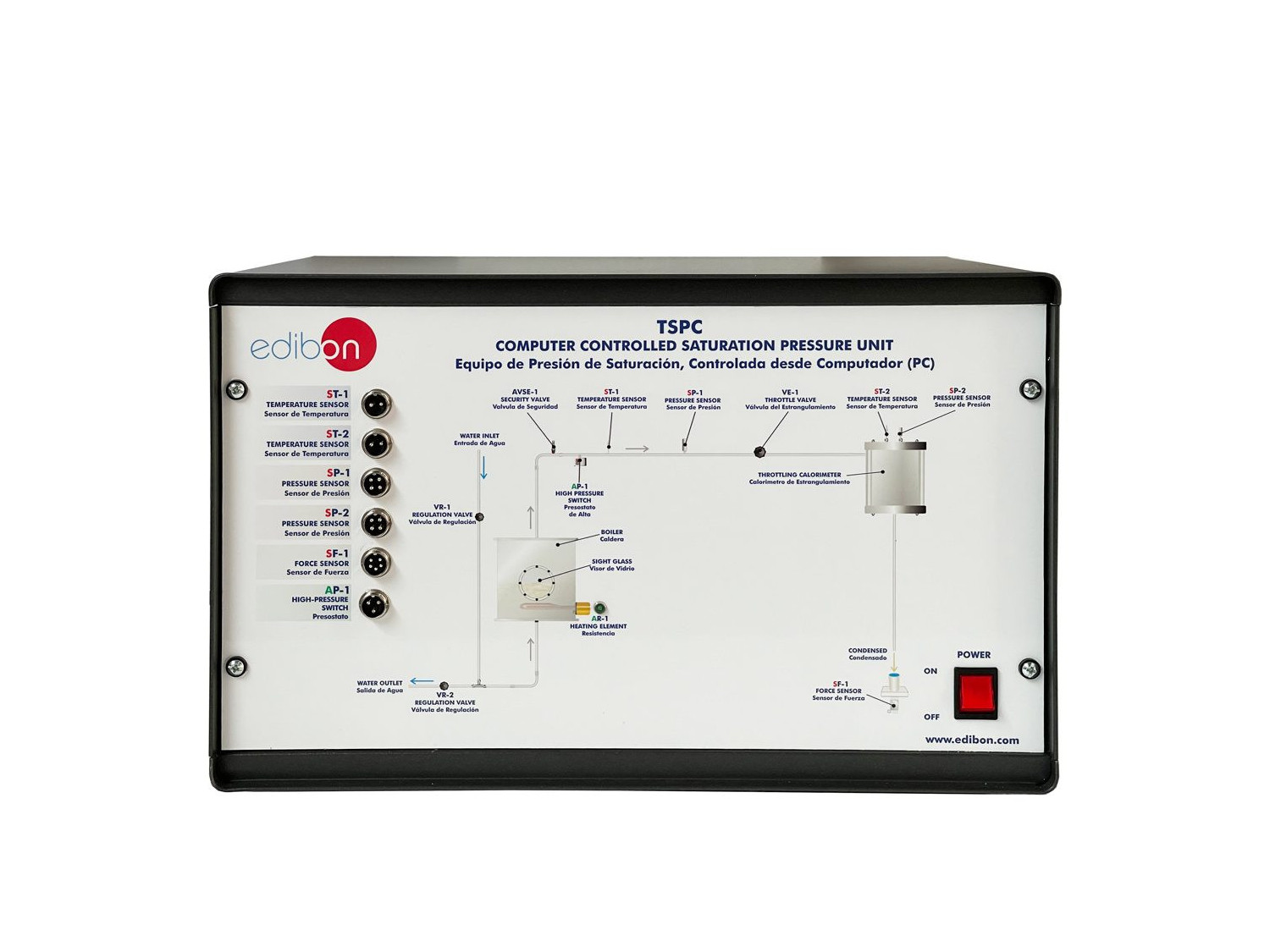

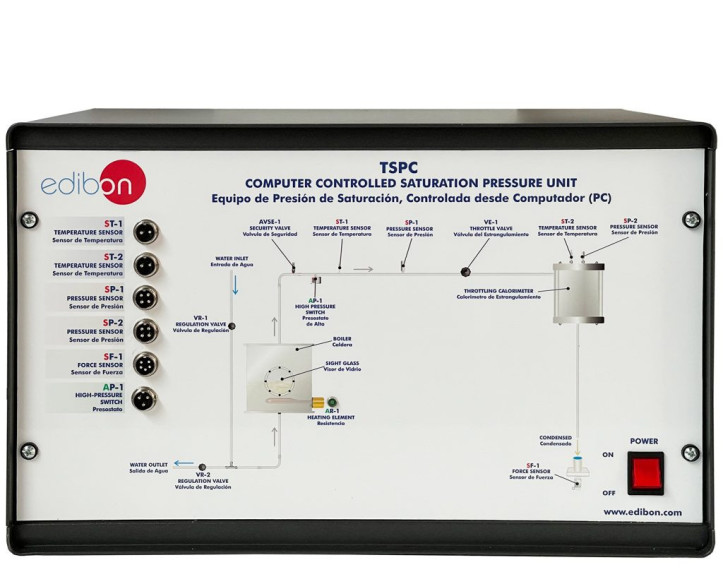

The temperature and pressure are measured after the boiler to determine the properties of the saturated steam, and after the expansion in the throttling calorimeter. In addition, a force sensor measures the weight of the condensed water.

The unit includes all the safety measures required for a safe operation, such as relief valve and pressure switch to limit the working pressure, and transparent protection panels.

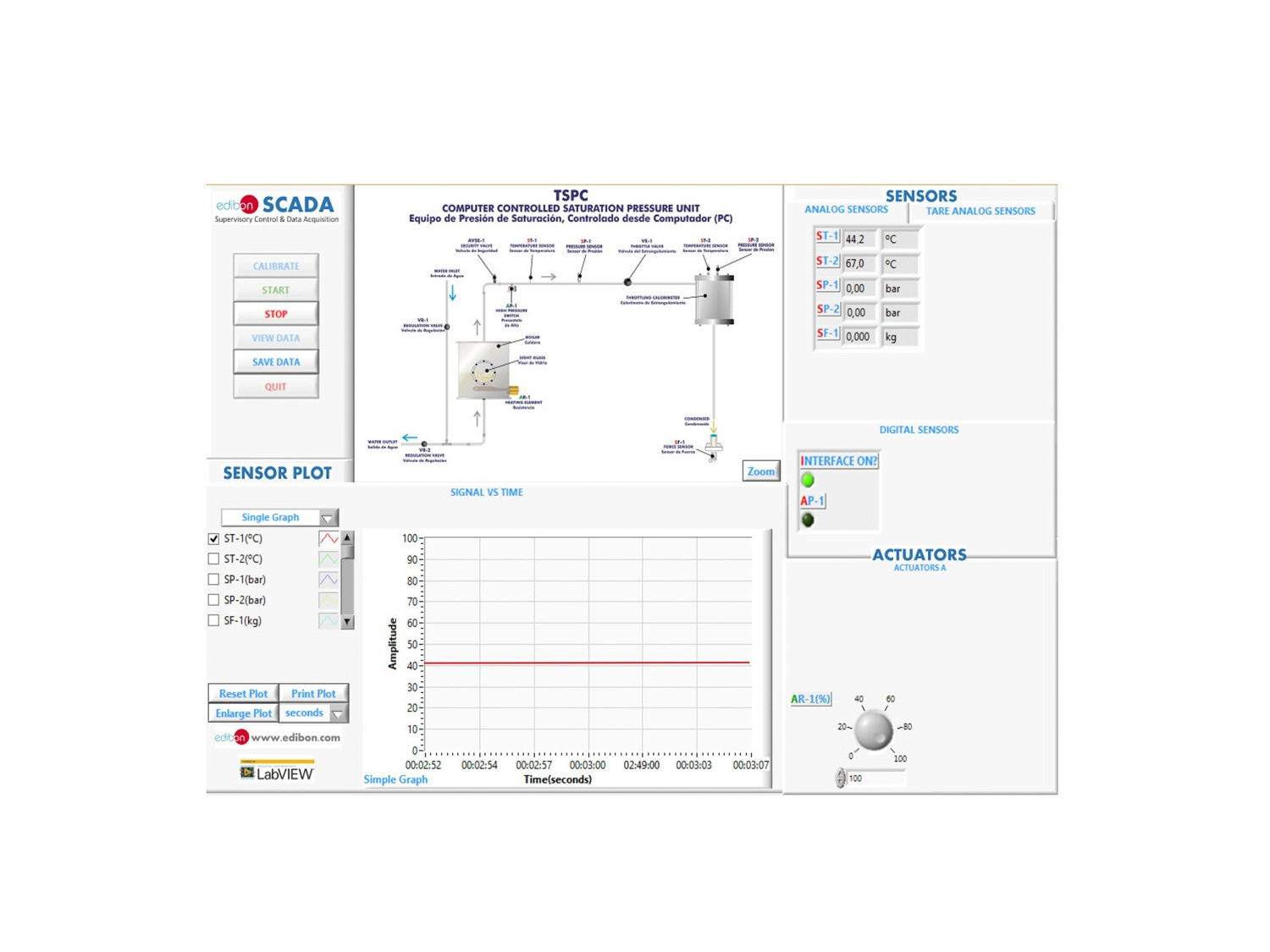

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.
