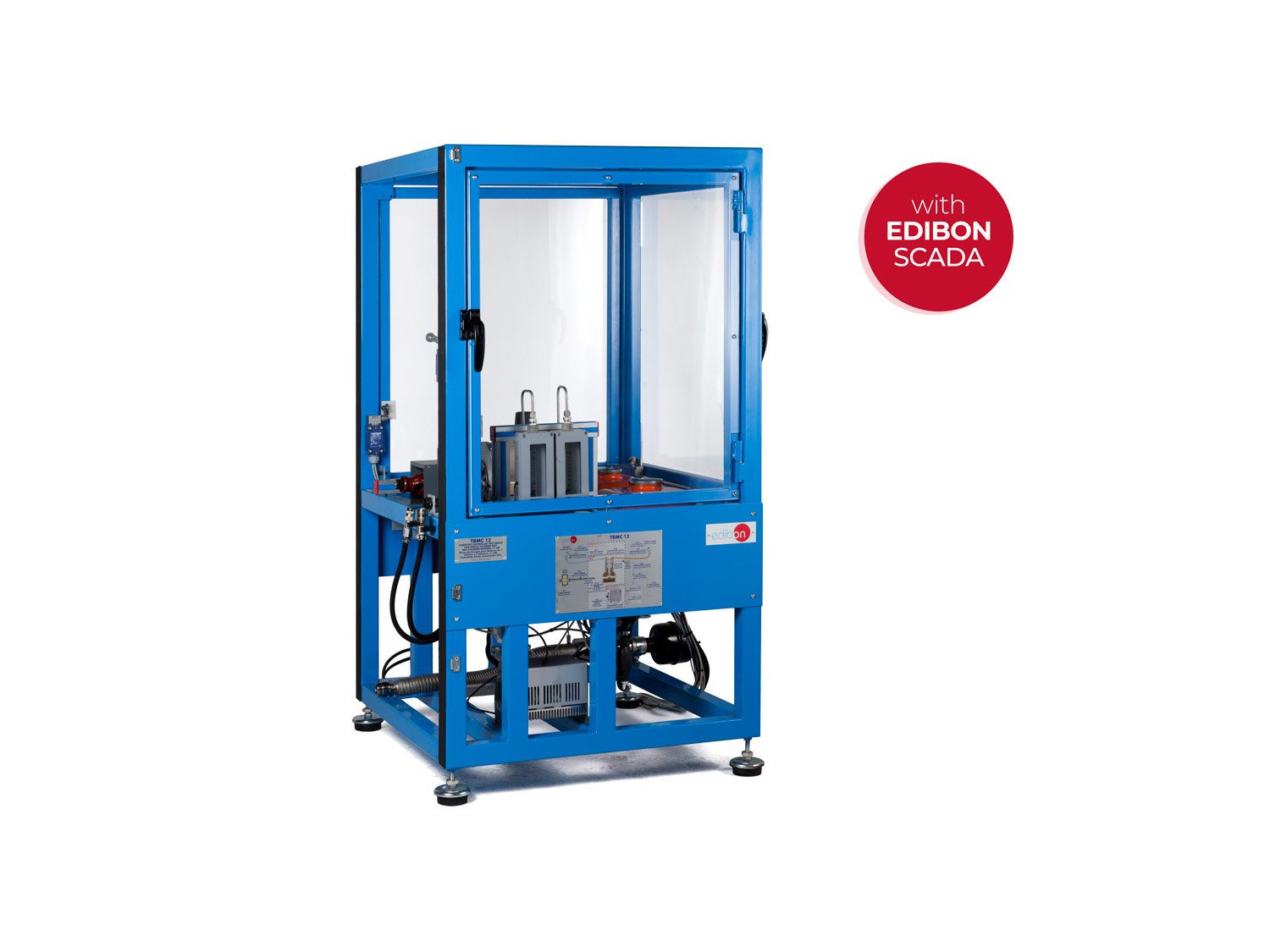

The Computer Controlled Test Bench for Single-Cylinder and Two-Cylinders Engines, 11 kW, "TBMC12", designed by EDIBON, is a teaching unit to test internal combustion engines of up to 11 kW.

查看一般說明

扩展

ICAI

交互式计算机辅助教学软件
FSS

故障模拟系统
ELK

EDIBON软件开发工具包，由NI LabVIEW™提供支持
ECR

EDIBON的模块化工业系统与NI CompactRIO
ESN

EDIBON Scada-Net系统
ECL

EDIBON 远程教育

化验室

9TV
 技术和职业教育的热力学和热力学实验室
9HE
 高等教育热力学和热力学实验室

相關新聞

Thermodynamics and Thermotechnology: Key concepts and EDIBON's contribution
Thermodynamics and Thermotechnology: Key concepts and EDIBON's contribution
Thermodynamics and thermotechnology are fundamental fields of engineering that play a critical role across various industries, from energy generation to climate control. Understanding these foundational concepts is essential not only for engineers but also for fostering technological innovations...
阅读更多
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
阅读更多
We are excited to celebrate the publication of the article by Prof. Dr. Nina Penkova titled "Performance of Diffusion Absorption Refrigerators with Variable Input Power" The study explores how absorption refrigerators, which utilize waste or solar energy for heating and cooling, can operate...
阅读更多
Setting up at Polytechnic School (University Carlos III of Madrid)
Setting up at Polytechnic School (University Carlos III of Madrid)
This is the last installation we have done at the Polytechnic School (University Carlos III of Madrid). There we have installed several units in the Thermal and Fluids Engineering Department.
阅读更多
Mechanical Engineering: The foundation of innovation
Mechanical Engineering: The foundation of innovation
Mechanical engineering is the cornerstone upon which many of today's technological wonders are built. From industrial machinery to medical devices, mechanical engineering is responsible for the design, manufacturing, and operation of a wide range of products and systems.
阅读更多

一般說明

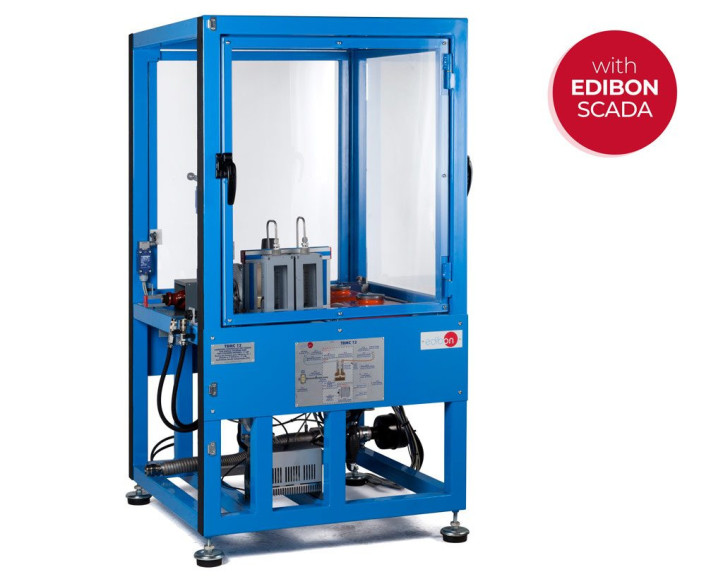

The Computer Controlled Test Bench for Single-Cylinder and Two-Cylinders Engines, 11 kW, "TBMC12", designed by EDIBON, is a teaching unit to test internal combustion engines of up to 11 kW.

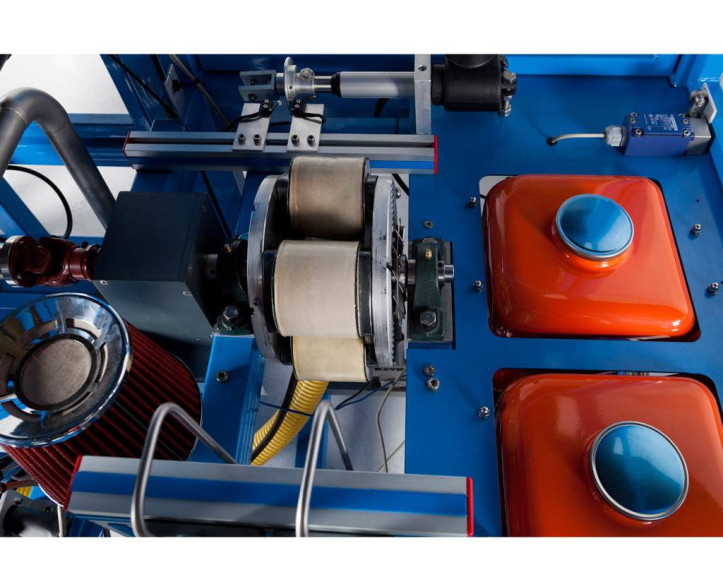

The element of the unit that offers load torque is an eddy current electromagnetic brake. It is supplied by a variator that allows to control the supply voltage and to vary its torque characteristics. The brake is jointly coupled to the shaft of the combustion engine by a double Cardan joint that transfers torque and power.

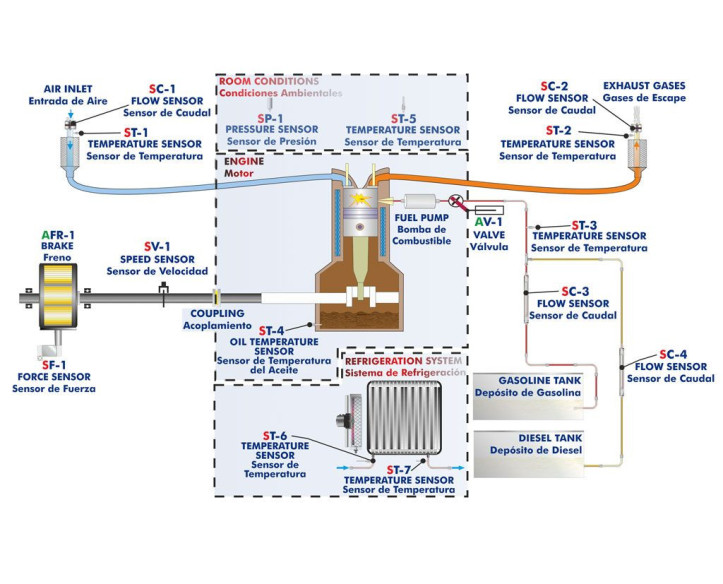

The unit also includes:

  • Instrumentation: there are several sensors that provide us measurements of the variables under study.
  • Start system: the engine includes its own electric starter motor that facilitates its operation.
  • Fuel supply system: it carries the required fuel to the internal combustion engine.
  • Cooling system: it carries out the cooling required for the correct operation of the engine. A forced water current removes the heat generated in the engine and transfers it to the atmosphere with a radiator.
  • Air intake system: it allows the intake of fresh air in the engine. It contains the oxygen required to generate the combustion.
  • System to remove the exhaust gases: it removes from the engine the substances generated during the combustion and reduces the noise inherent to the gases flow.

The engine test bench "TBMC12" allows to study combustion engines, obtaining their characteristic curves by setting the accelerator of the engine to a specific position and varying the braking torque. Thus, different points of the torque or power versus velocity characteristic curve are obtained. Such curve will be at full load if the accelerator is at its maximum position.

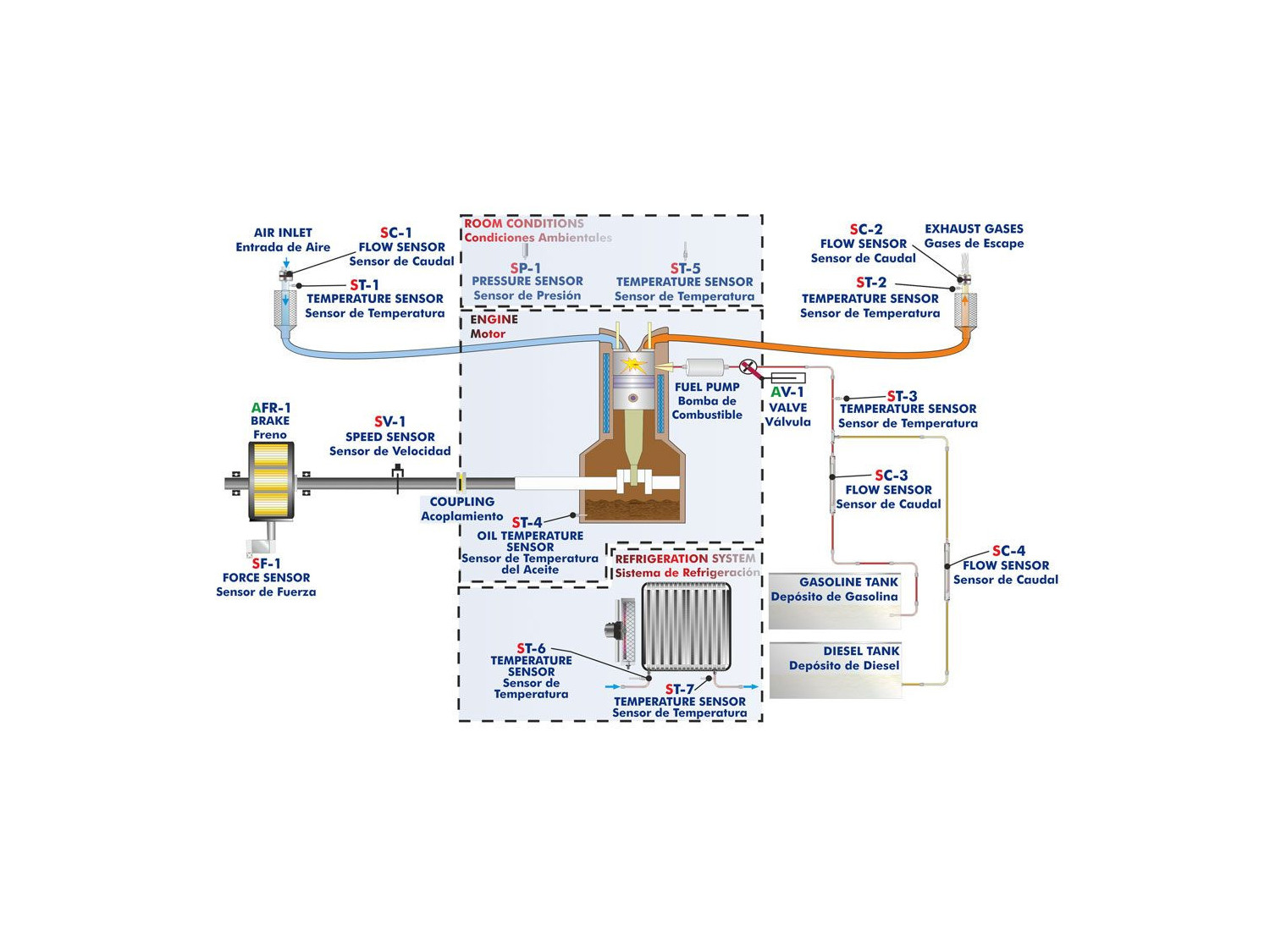

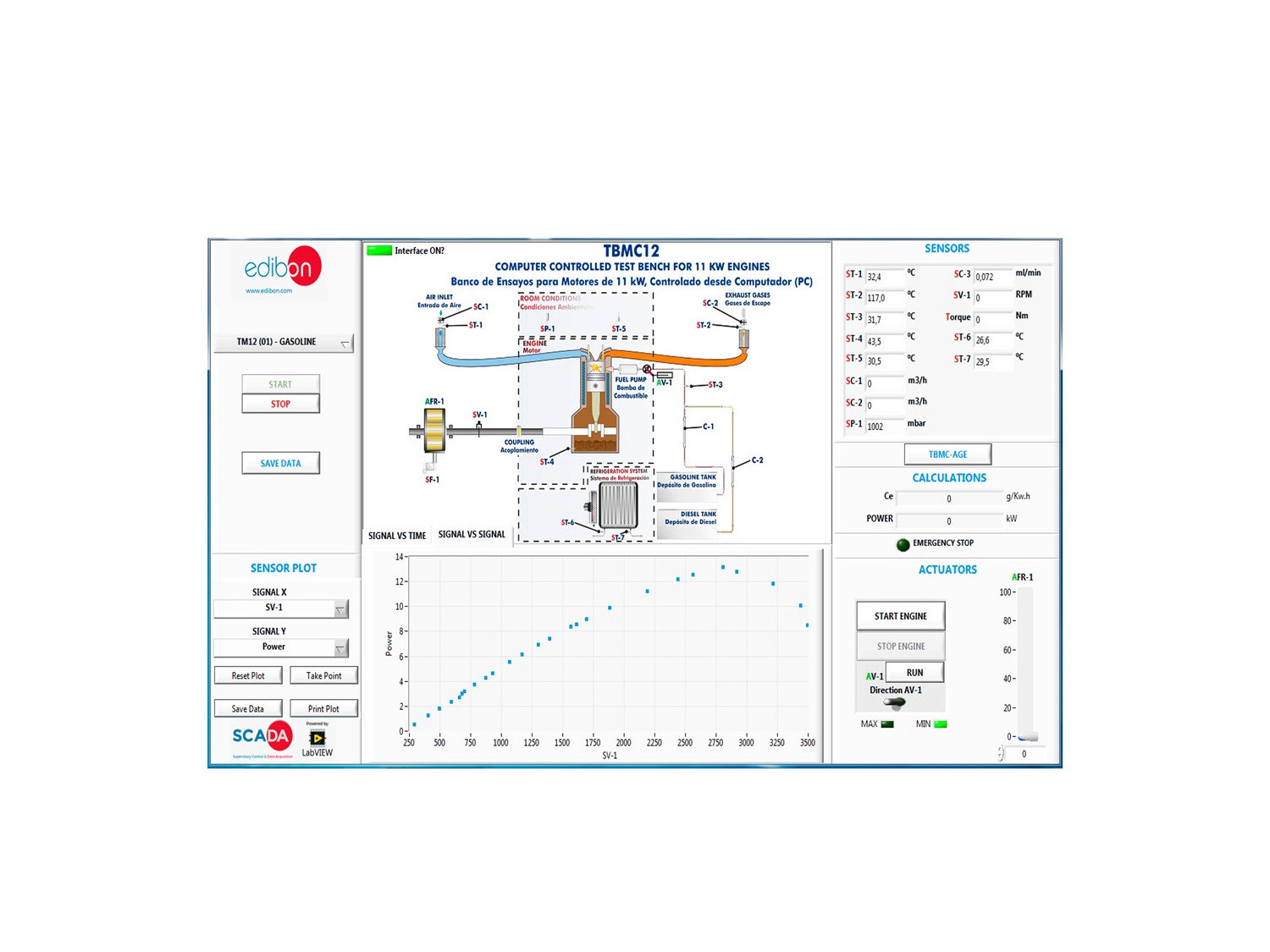

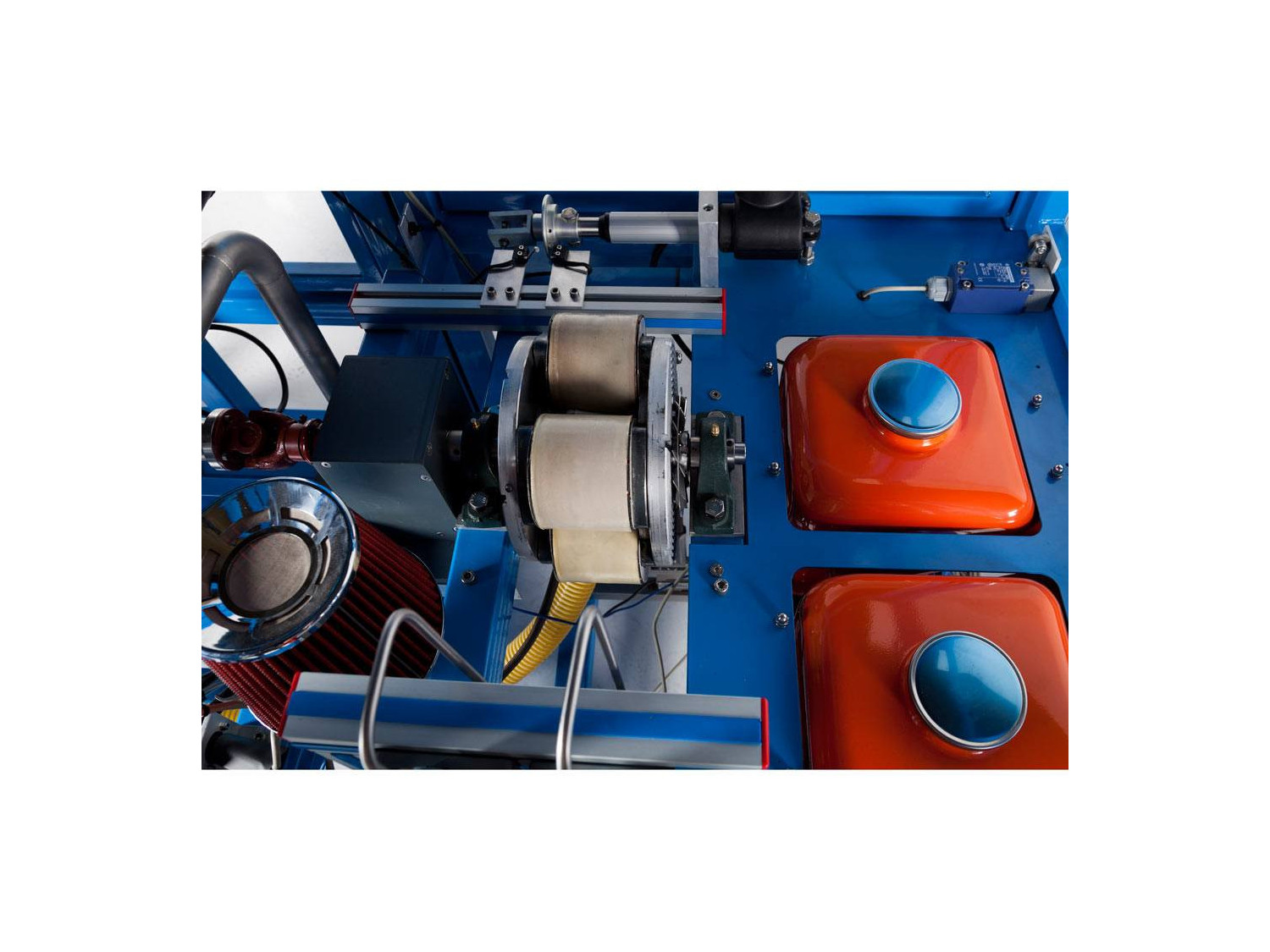

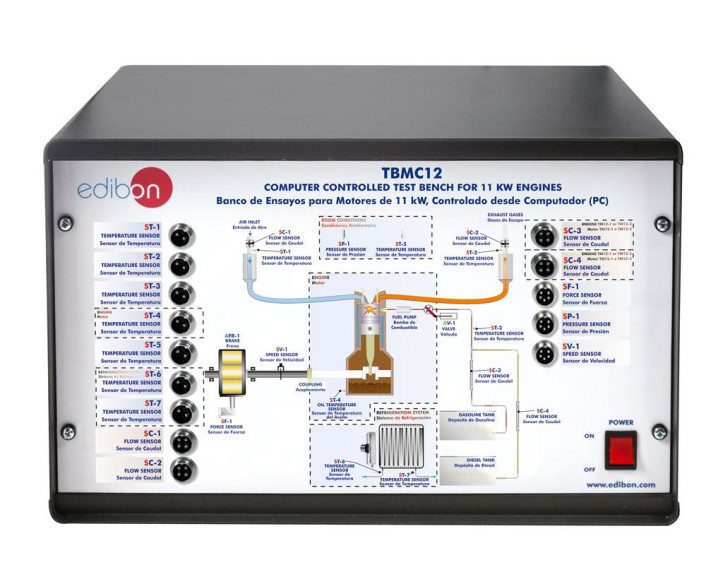

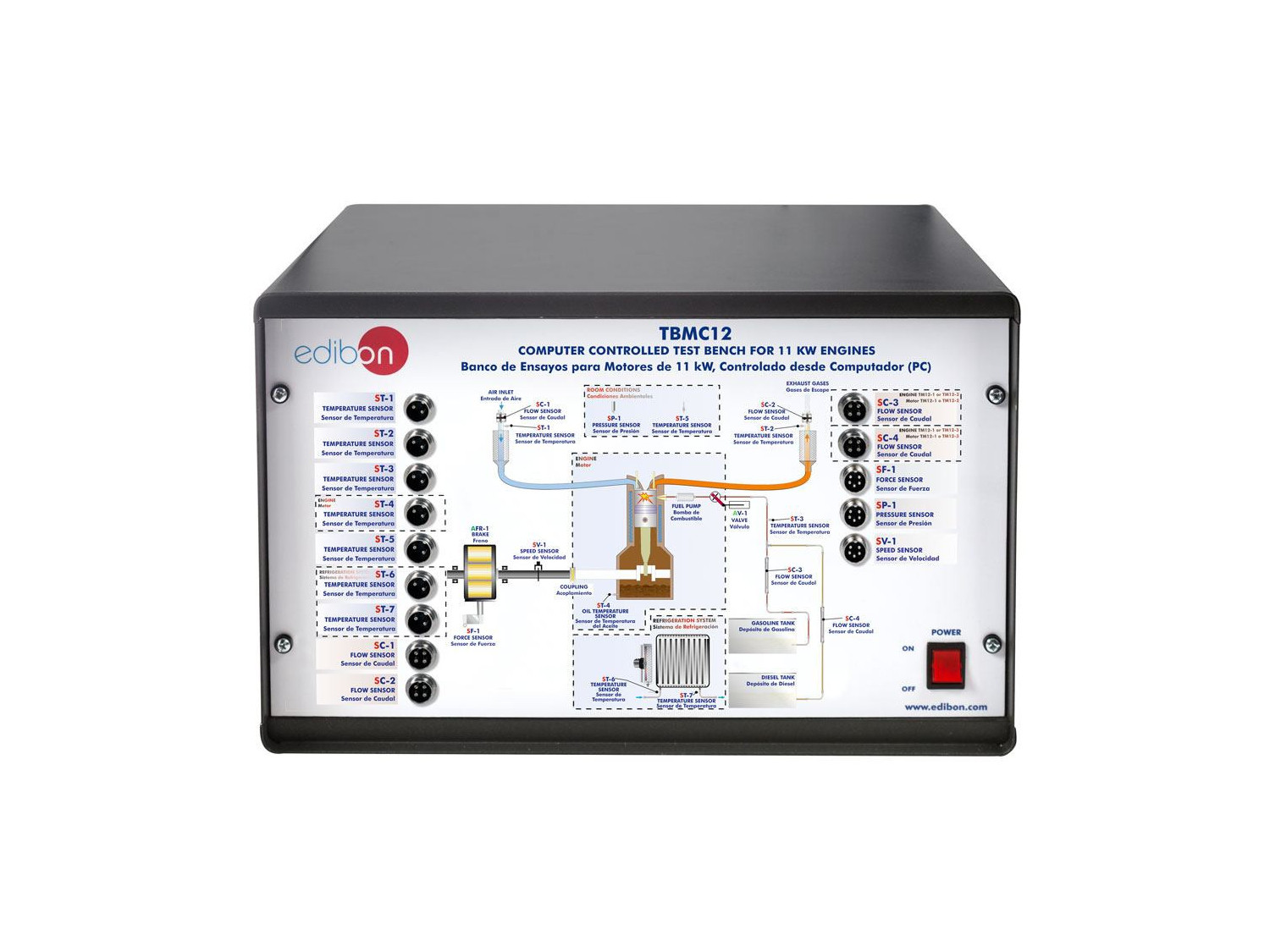

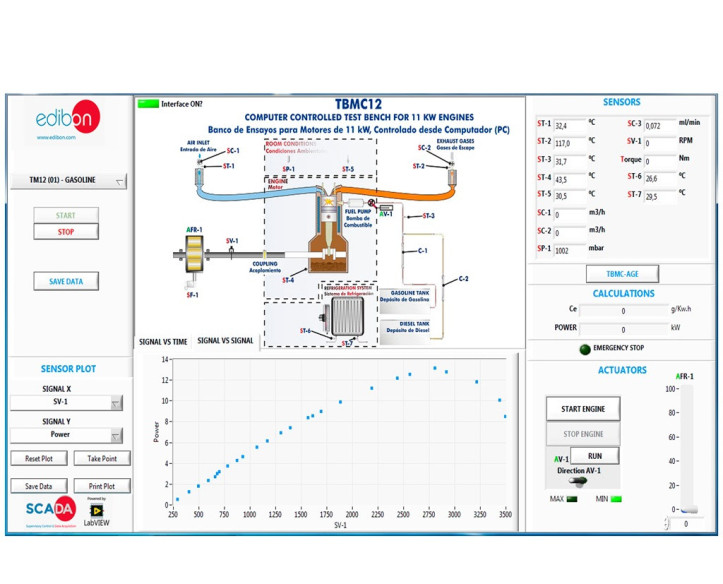

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.
