MBI 连杆机构

7.1.2.1.- 机制 14.1.2.1.- 机制

創新系統

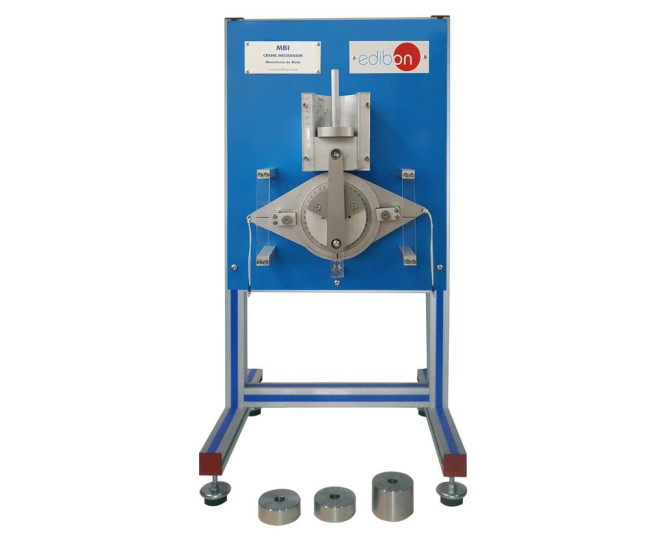

The Crank Mechanism "MBI", is a unit designed to observe, study and record the motion of a crank and the forces involved in a simple engine mechanism.

查看一般說明

比赛规格

扩展

ICAI

交互式计算机辅助教学软件

MSAC

模块化采集与控制系统

化验室

7TV

技术和职业教育的机械、汽车和材料实验室

7HE

高等教育机械、汽车和材料实验室

一般說明

The Crank Mechanism "MBI", is a unit designed to observe, study and record the motion of a crank and the forces involved in a simple engine mechanism.

The piston is linearly displaced through a cylinder with the aid of a guide.

Bearings are coupled to the connecting rod so that friction is kept to a minimum.

There is a protractor attached to the crank, which can be rotated on the beam balance arm and locked in any predetermined angular position.

The piston displacement can be measured with a linear scale attached to the piston guide. The piston can be fitted with removable weights to change the piston mass.

The crank effort can be determined by attaching weights to the beam balance arm.

練習和指導練習

手册中包含的指导实践练习

Determination of the crank effort.
Balancing of the crankshaft.
Measurement of the piston displacement.
Experimental relationship between piston displacement and crank angle.
Theoretical relationship between piston displacement and crank angle.
Comparison of the piston displacement value theoretically and experimentally.
Experimental relationship between turning moment and crankshaft angle.
Theoretical relationship between turning moment and crankshaft angle.
