FME10 静重校准

8.1.2.- 测量

創新系統

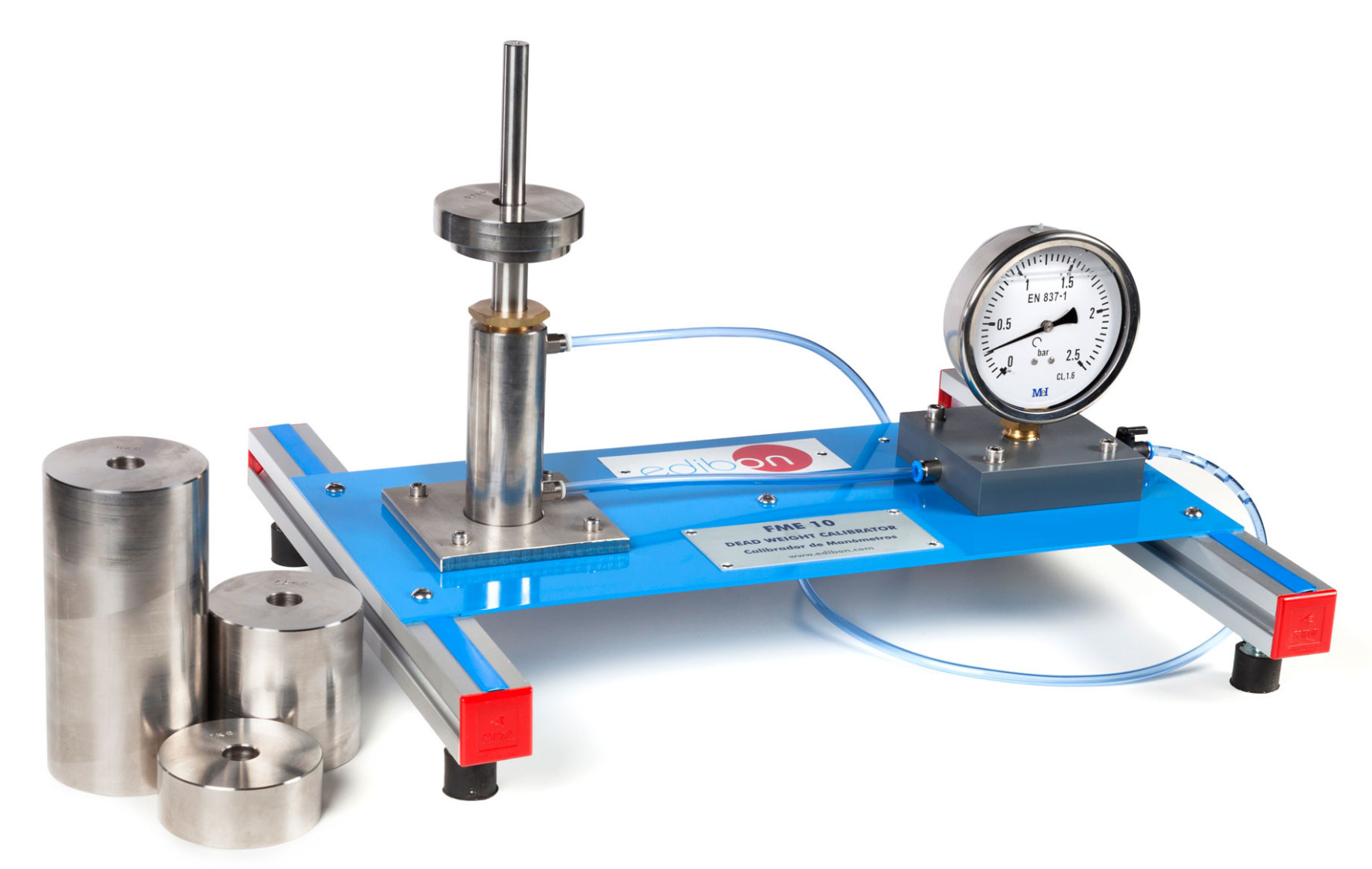

The Pressure Gauge Calibrator, "FME10", designed by EDIBON, allows the study of the operation of a Bourdon type pressure gauge using a standard set of calibrated weights and the determination and the study of the pressure gauge hysteresis curve.

查看一般說明

比赛规格

扩展

ICAI

交互式计算机辅助教学软件

MSAC

模块化采集与控制系统

化验室

8TV

技术和职业教育流体力学实验室。

8HE

高等教育流体力学实验室

一般說明

The unit consists of a hollow cylinder in whose interior a precision piston moves. Using a system of calibrated weights, we produce predetermined pressures inside the cylinder.

The Bourdon manometer that must be contrasted is connected to the cylinder by means of a flexible pipe.

Unit levelling through adjustable feet.

練習和指導練習

手册中包含的指导实践练习

Bourdon type manometer calibration.
Hysteresis curve determination.
