The Deflection of Curved Bars Unit, "MDB", is designed to enable the student to determine experimentally the horizontal and vertical displacements at the free end of various curved bars when subject to single concentrated load.
化验室
相關新聞
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Photoelasticity and learn about #elasticity, #fracturemechanics and #materialtesting. #DiscoverEdibon #Engineering.
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course Basic Mechanics and learn about #forces and vectors. #DiscoverEdibon #Engineering.
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of 12 days of material resistance and learn about #energy theorems. #DiscoverEdibon #Engineering
Contact us for further information!
一般說明

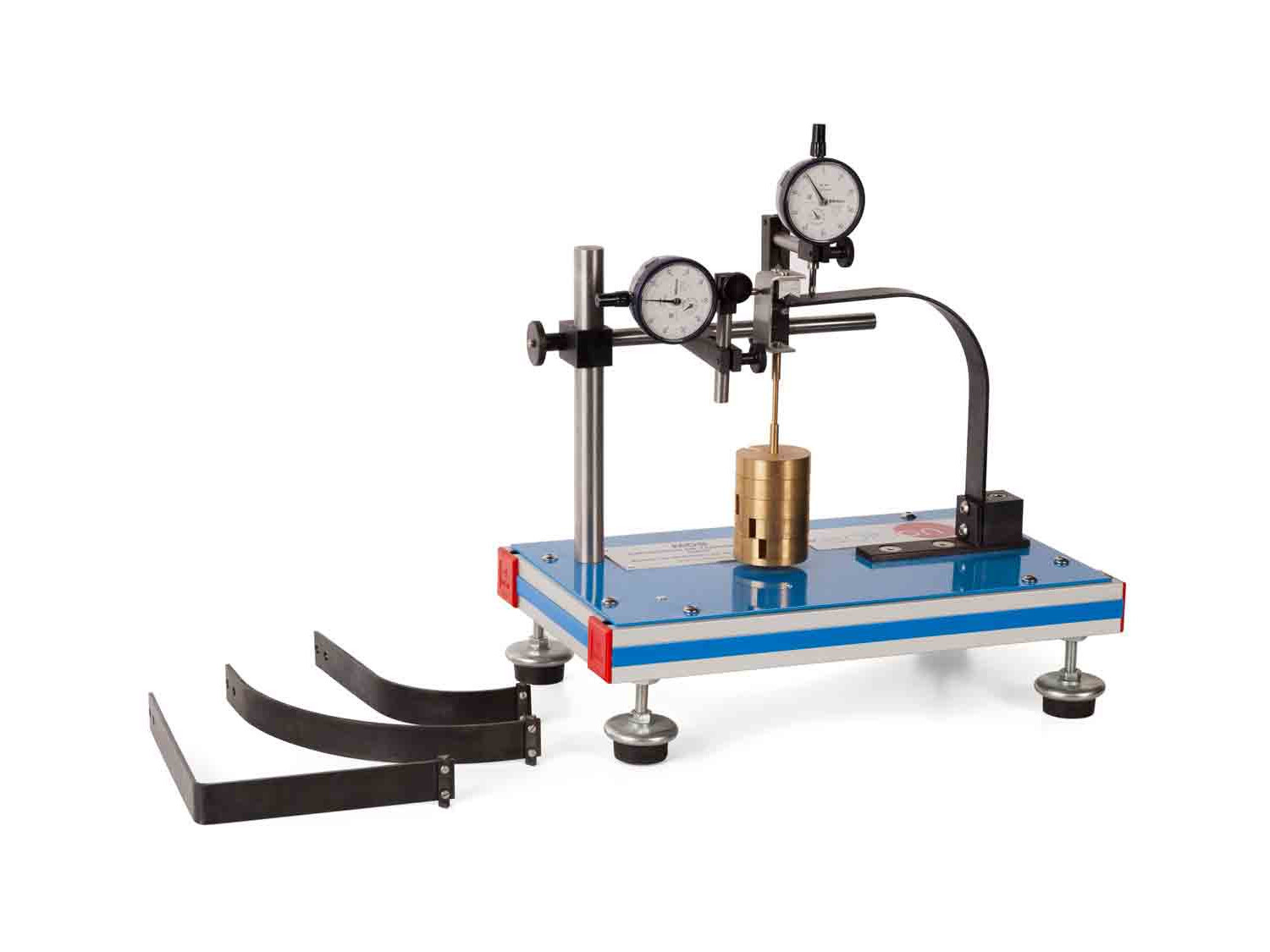

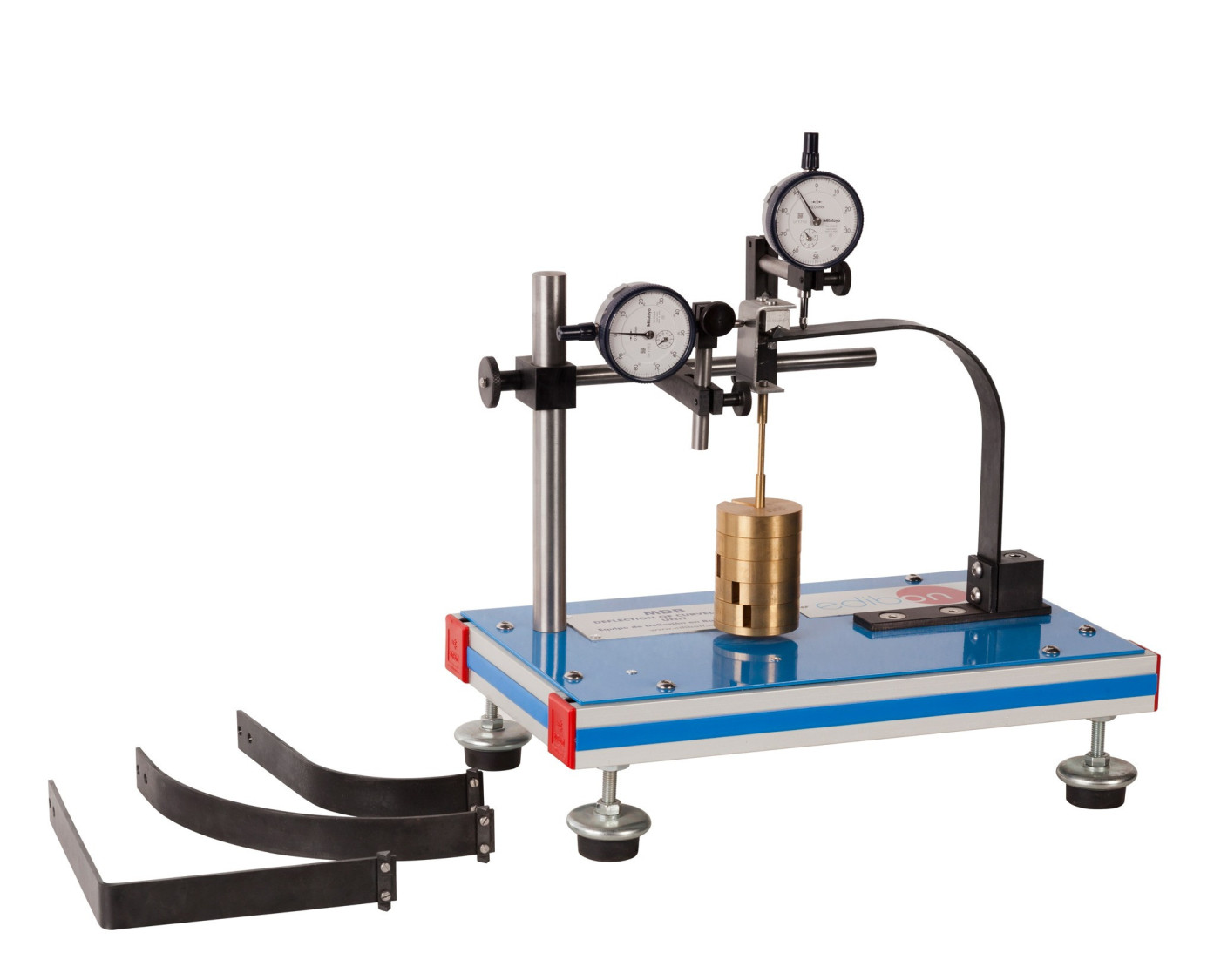

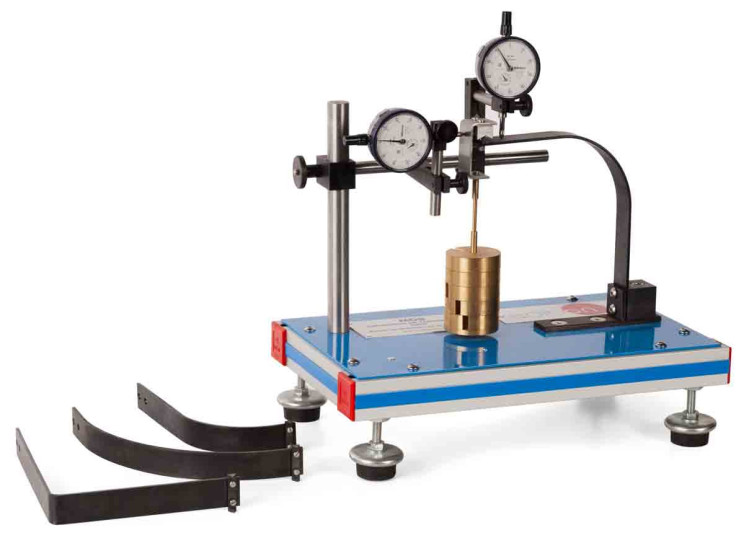

The Deflection of Curved Bars Unit "MDB" consists of a structure of aluminum and steel that allows the incorporation of different curved bars to be studied. It allows tests with curved bars of different shape.
The use of two dial gauges placed perpendicularly to each other makes it possible to determine the displacements produced in both directions, up to a maximum range of 10 mm.
The load is applied when hanging a set of weights in the application point. A set of weights in supplied with the unit.
練習和指導練習
手册中包含的指导实践练习
- Study of deflection of curved bars.
- Determination of the horizontal and vertical displacements at the free end of various curved bars when subject to single concentrated loads.
- Study of the different types of bars geometry and for different positions.
- Measurement of the horizontal and vertical displacements produced at the free end of the curved bar.
- Effect of the load value in the bar response.
- Effect of the bar morphological characteristics in its response to the load.
