MEMT-5 Elastohydrodynamic Lubrication

7.1.5.- 摩擦学 (摩擦, 磨损, 润滑) 14.1.5.- 摩擦学 (摩擦, 磨损, 润滑)
ELASTOHYDRODYNAMIC LUBRICATION - MEMT-5

創新系統

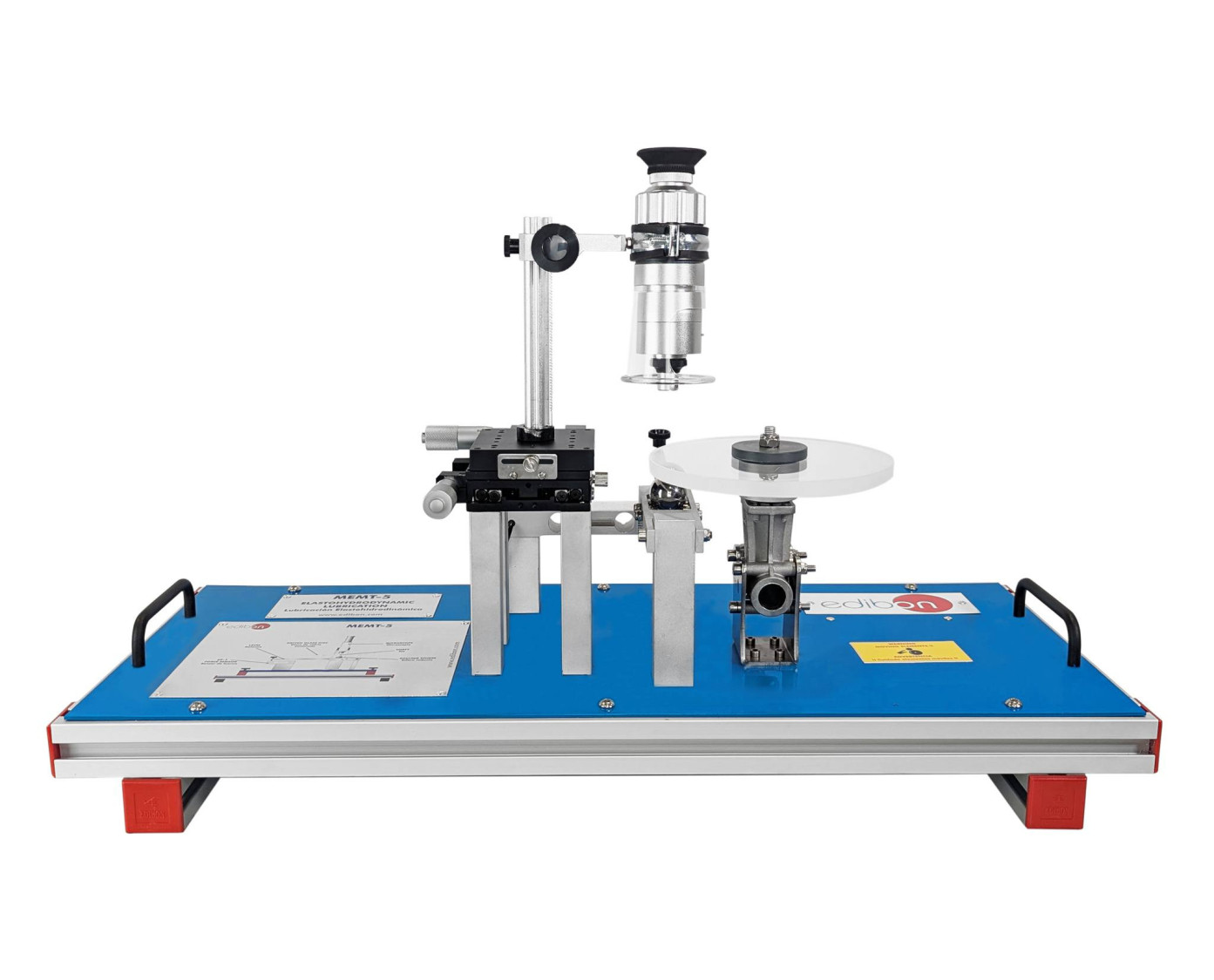

The unit consists in a steel sphere and a driven glass disc.

查看一般說明

扩展

ICAI

交互式计算机辅助教学软件

相關新聞

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
阅读更多
NEW Basic Mechanics course
NEW Basic Mechanics course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course Basic Mechanics and learn about #forces and vectors. #DiscoverEdibon #Engineering.
阅读更多

一般說明

This unit allows to investigate the thickness and characteristics of a lubricant film on a rolling sphere.

The unit consists in a steel sphere and a driven glass disc.

The sphere is pressed against the underside of the glass disc. The light from a reflected light microscope passes through the glass disc and the lubricant film at the point of contact, then, it is reflected from the surface of the sphere. The lubricant film thickness is determined visually from the colors of the interference rings produced. The microscope can be adjusted using a movable support, adjustable in x-y and has a focus adjustment. A defined pressure can be applied to the sphere. This pressure can be adjusted with a lever.

練習和指導練習

手册中包含的指导实践练习

  1. Study of the elastohydrodynamic behavior of a lubricant film between a rolling sphere and a disc.
  2. Determination of the lubricant film thickness at the point of contact between a sphere and a disc.
  3. Comparison of the experimental lubricant film thickness with theoretical values.
  4. Study of the influence of load on the lubricant film thickness.
  5. Study of the influence of speed on the lubricant film thickness.
