AE-PLC-FMS6 供料和分类的柔性制造系统

6.2.6.- 带PLC的柔性制造系统
FLEXIBLE MANUFACTURING SYSTEM FOR FEEDING AND CLASSIFICATION - AE-PLC-FMS6

創新系統

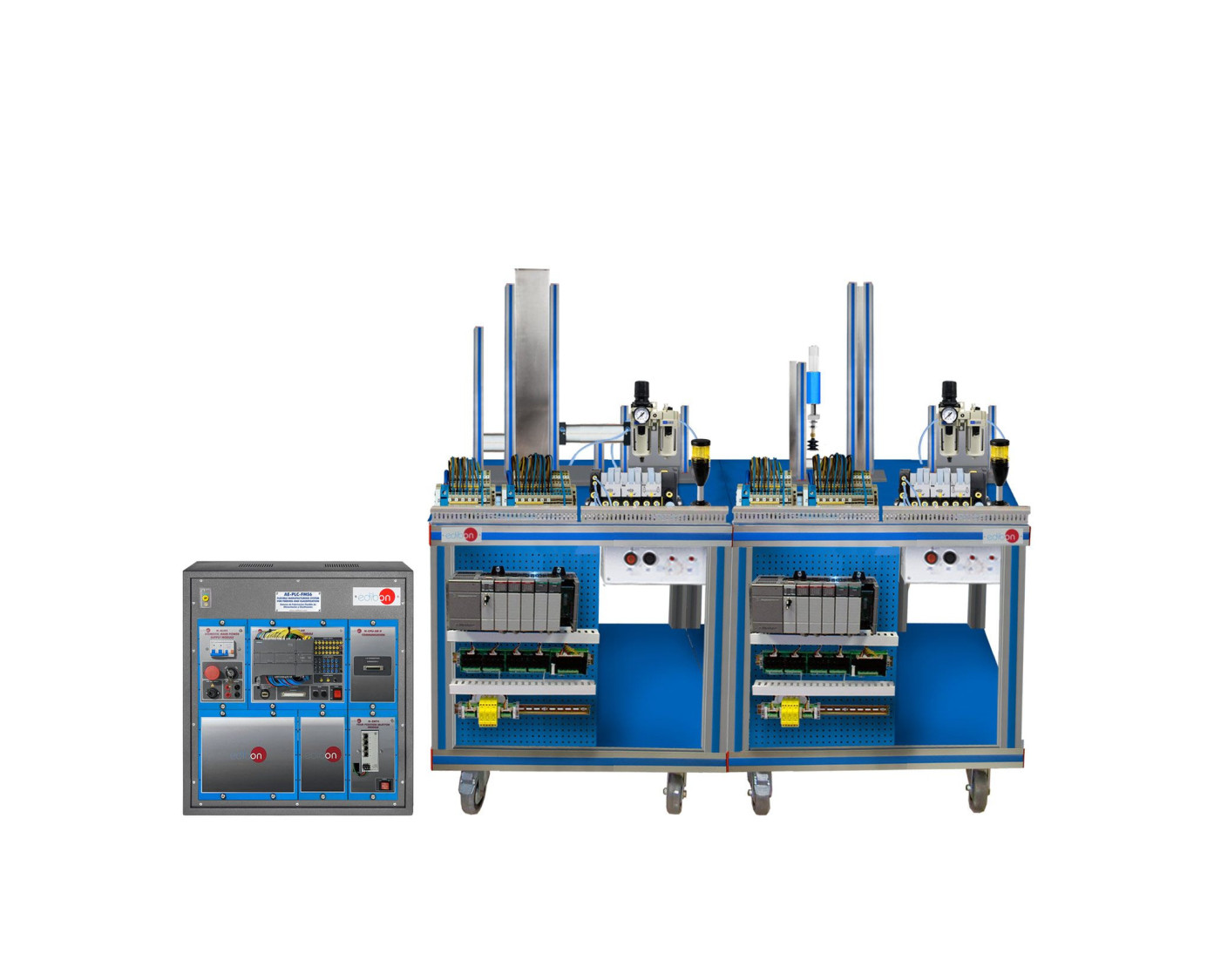

The Flexible Manufacturing System 6, "AE-PLC-FMS6" is a modular system composed of two workstations: the "AE-PLC-A" feeding workstation for pieces and the "AE-PLC-CF" sorting workstation.

查看一般說明

扩展

ICAI

交互式计算机辅助教学软件

相關新聞

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
阅读更多

一般說明

The Flexible Manufacturing System 6, "AE-PLC-FMS6" is a modular system composed of two workstations: the "AE-PLC-A" feeding workstation for pieces and the "AE-PLC-CF" sorting workstation.

The objective of the "AE-PLC-FMS6" system is to provide pieces of different colors and materials and sorting them depending on the specifications of the system.

Each workstation is locally commanded by a PLC device and, in turn, a central PLC coordinates all workstations. The communication network between workstations and PC is based on the Ethernet protocol.

The "AE-PLC-FMS6" system design by EDIBON allows the users to learn the basic concepts of automation as the operation of an Ethernet network or how to program a PLC and about other areas as pneumatic, electro-pneumatic, etc.

The optional "AE-AS" software is design to teach the students how works real automation software. This software allows making 2D and 3D processes simulations, supervising and controlling SCADA systems, programming and communicating PLCs, simulating hydraulic, pneumatic and electronic devices’ operation, etc.

練習和指導練習

手册中包含的指导实践练习

Practical possibilities to be done with the Flexible Manufacturing System 6 (AE-PLC-FMS6):

  1. Introduction to flexible manufacturing system (FMS).
  2. Introduction to pneumatics and electro-pneumatics.
  3. Introduction to vacuum technology.
  4. Study of the sensor detection.
  5. Testing the digital inputs and outputs of the automatic system through a PLC.
  6. Modify manufacturing parameters through the PLC.
  7. Configuration of a pneumatic application.
  8. Introduction to the Human-machine interface systems (HMI).
  9. Study of an automatic control of an industrial system.
  10. Control of the flexible manufacturing system through a central PLC in an Ethernet network with local PLC in each workstation.
  11. Manage the flexible manufacturing system through the HMI device.

Practical possibilities to be done with the optional software Automation Systems Simulation Software (AE-AS):

  1. Introduction to the SCADA control system.
  2. OPC server system with Ethernet.
  3. SCADA control of an automatic industrial system through PC.

Practical possibilities to be done with the Workstation alone:

- Filtration Workstation (AE-PLC-A).

  1. Manual control of a Feeding system.
  2. Automatic control of a Feeding system.
  3. Change the parameters of the Feeding process.
  4. Optimize the process time.
  5. Study and analysis of the faults inserted in the process with the fault generation module.

- Mixing Workstation (AE-PLC-CF).

  1. Manual control of a sorting system.
  2. Automatic control of a sorting system.
  3. Change the parameters of the sorting process.
  4. Optimize the process time.
  5. Study and analysis of the faults inserted in the process with the fault generation module.
查看更多

与该单位进行更多实际操作

  1. Several other exercises can be done and designed by the user.
