一般說明

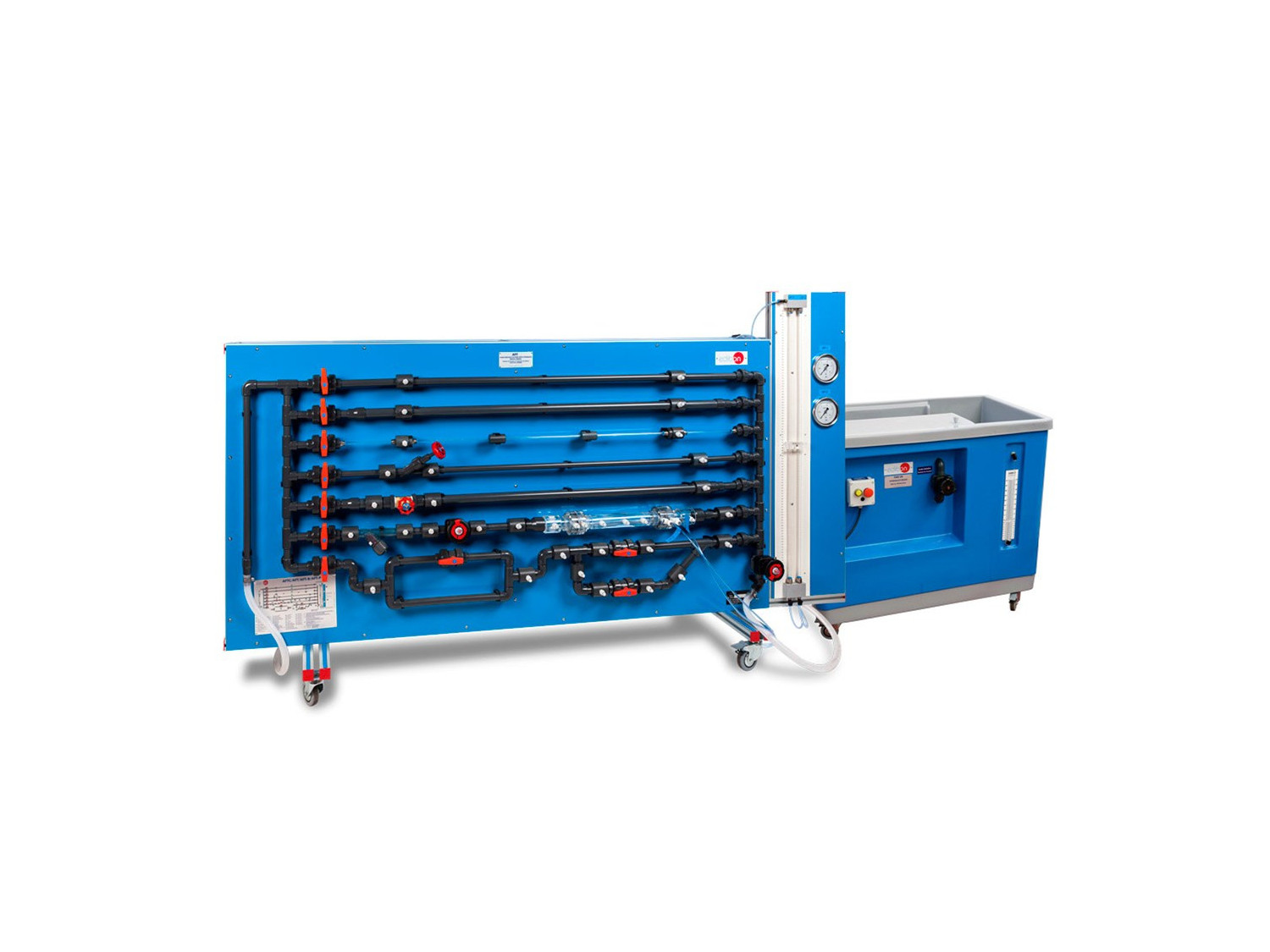

The Fluid Friction in Pipes Unit, with Hydraulics Bench (FME00), "AFT", is designed to determine the friction coefficient in pipes of several diameters and roughness, to study the pressure losses in different types of valves and different fittings and to compare different methods to measure the flow.

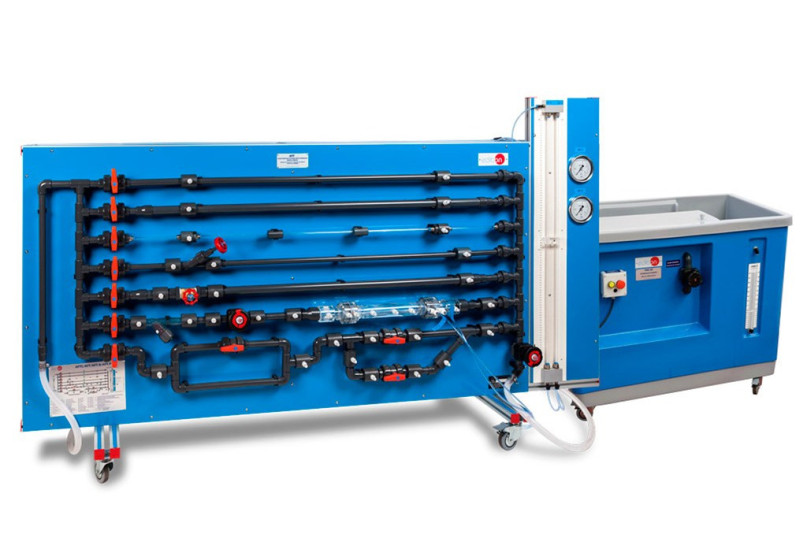

The unit contains five straight pipe sections made of different materials and with different diameters and roughness. Additionally, a wide range of accessories are included for the study of losses in straight pipes, several types of valves (gate, ball, angle seat, etc.), pipe fittings (in-line strainer, elbows, sudden widening, contraction, etc.).

The different pipe sections, valves and pipe fittings include several pressure measurement points with quick action connections to fit thetubing that is connected to the corresponding pressure measuring device.

With this unit friction pressure losses can be investigated over a wide range of Reynolds numbers, thereby covering the laminar, transitional and turbulent flow regimes. Two water manometric tubes allow to study the pressure losses in the laminar regimen. Two Bourdon manometers allow to obtain the pressure losses in the turbulent regimen. Additionally, it includes a flowmeter to measure and to compare measurements of flow with the Venturi tube and the Pitot tube.

The unit includes the Hydraulics Bench, "FME00", which incorporates a sump tank and a centrifugal pump to make water flow in a close circuit and to supply it to the AFT unit.

練習和指導練習

手册中包含的指导实践练习

  1. Determination of pressure loss due to friction in a rough pipe with an internal diameter of 17 mm.
  2. Determination of pressure loss due to friction in a rough pipe with an internal diameter of 23 mm.
  3. Determination of pressure loss due to friction in a smooth pipe with an internal diameter of 6.5 mm.
  4. Determination of pressure loss due to friction in a smooth pipe with an internal diameter of 16.5 mm.
  5. Determination of pressure loss due to friction in a smooth pipe with an internal diameter of 26.5 mm.
  6. Study of the influence of the diameter in the pressure loss due to friction in rough pipes.
  7. Study of the influence of the diameter in the pressure loss due to friction in smooth pipes.
  8. Study of the influence of the roughness in the pressure loss.
  9. Determination of the friction coefficient in a rough pipe with an internal diameter of 17 mm.
  10. Determination of the friction coefficient in a rough pipe with an internal diameter of 23 mm.
  11. Determination of the friction coefficient in a smooth pipe with an internal diameter of 6.5 mm.
  12. Determination of the friction coefficient in a smooth pipe with an internal diameter of 16.5 mm.
  13. Determination of the friction coefficient in a smooth pipe with an internal diameter of 26.5 mm.
  14. Study of the influence of the diameter in the friction coefficient in rough pipes.
  15. Study of the influence of the diameter in the friction coefficient in smooth pipes.
  16. Comparison of the friction coefficient in smooth and rough pipes.
  17. Determination of pressure loss in an angle-seat valve.
  18. Determination of pressure loss in a gate valve.
  19. Determination of pressure loss in a diaphragm valve.
  20. Determination of pressure loss in a ball valve.
  21. Comparison of pressure loss in different types of valves.
  22. Determination of pressure loss in an in-line strainer.
  23. Determination of pressure loss in a 90° elbow.
  24. Determination of pressure loss in a double 90° elbow.
  25. Determination of pressure loss in a 45° elbow.
  26. Determination of pressure loss in a 45° "T".
  27. Determination of pressure loss in a symmetrical "Y" branch.
  28. Determination of pressure loss in a narrowing.
  29. Determination of pressure loss in a gradual widening.
  30. Determination of pressure loss in a diaphragm.
  31. Comparison of pressure loss in the different fittings.
  32. Measurement of the flow with the Venturi tube.
  33. Determination of the discharge coefficient, Cd, in the Venturi tube.
  34. Measurement of the flow with the Pitot tube.
  35. Determination of the discharge coefficient, Cd, in the Pitot tube.
  36. Comparison.

与该单位进行更多实际操作

  1. Study of the relationship between pressure losses due to fluid friction and the water flow rate.
  2. Determining the relationship between the pipe friction coefficients and Reynolds number for flow through a pipe with roughened bore.
  3. Determining of the resistance coefficients for bends, enlargements and contractions.
  4. Determining of characteristic curves of valves and fittings.
