MGTA 齿轮传动装置安装设备

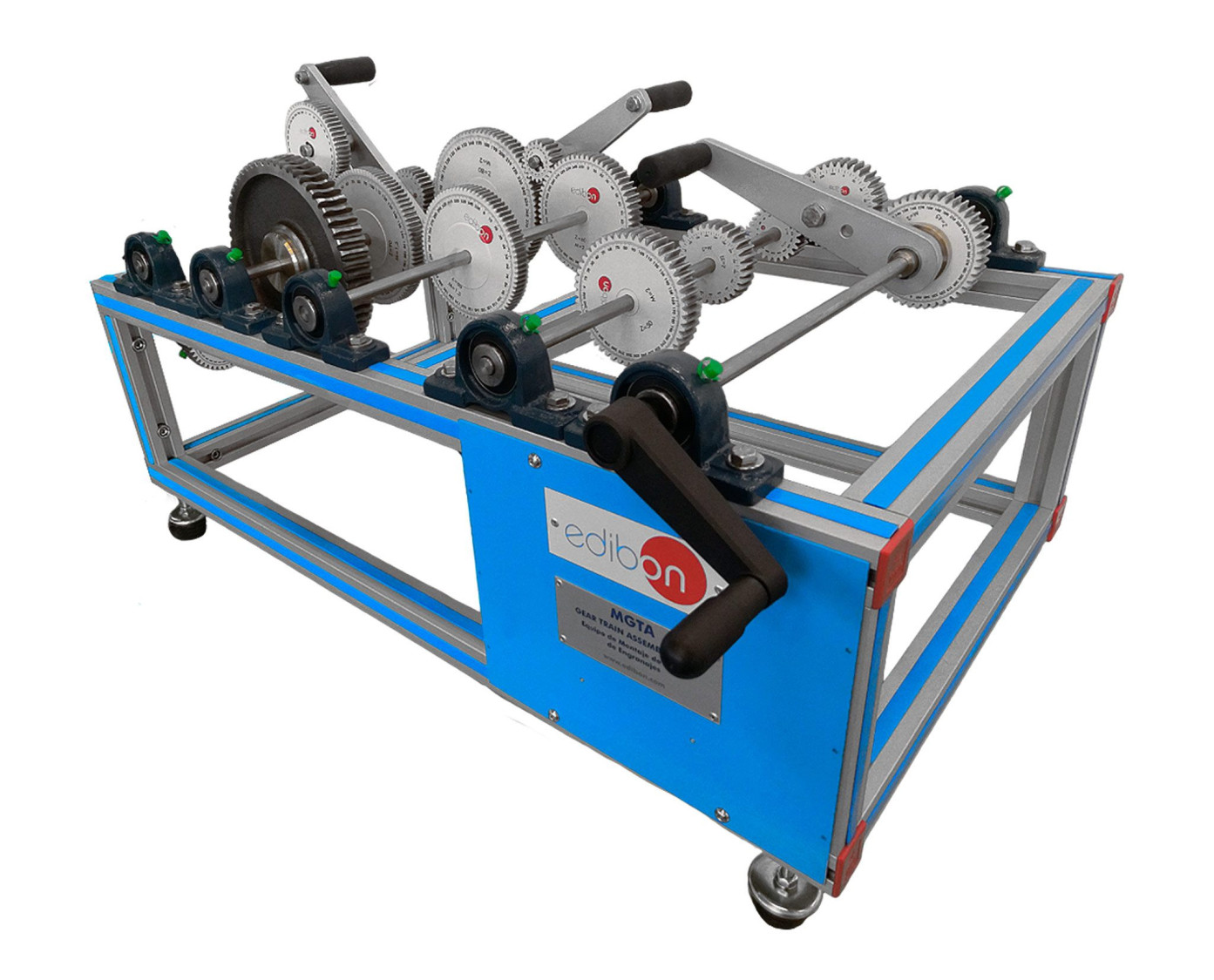

The Study Gear Train Assembly Unit, "MGTA", designed by EDIBON, allows to perform diverse assemblies of gearboxes. The student will essentially learn the practice of assembling gear components in transmissions and will be introduced to the technique of mechanical transmissions.

The unit allows to carry out exercises ensuring the learning of six simple forms of transmission in different combinations. With these six simple forms of transmission, different configurations can be performed putting into practice one's ideas.

For some of the possible configurations, the following will be used: endless screw, straight gears, a Norton gearbox and a reverse mechanism.

The steps to follow for an adequate learning are:

• Proposal of tasks and understanding of the drawings.
• Assembly and adjustment of the parts, gear calibration and check.
• Performance of relevant calculations.

The unit will be driven by means of a steering wheel. A great accuracy will be achieved when adjusting the gears, thanks to the anodized aluminum frame couplings.

A case is provided to facilitate transportation and to ensure the protection of components needed for the assembly and learning.

By means of the gear shift levers, it is possible to vary the speed ratio between the shafts. In this way, there are several gears available to appreciate how the transmission ratios vary. All unit movement is actuated by cranks.
