The objective of the Light Test Module, "BS10", is to show some of the techniques used to measure light or illumination intensity.

查看一般說明

比赛规格

扩展

ICAI

交互式计算机辅助教学软件

EMSK

EDIBON电路仿真开发套件，由NI LabVIEW™提供支持

化验室

2TV

技术和职业教育电子实验室

2HE

高等教育电子实验室

11PTC

石油培训中心实验室

一般說明

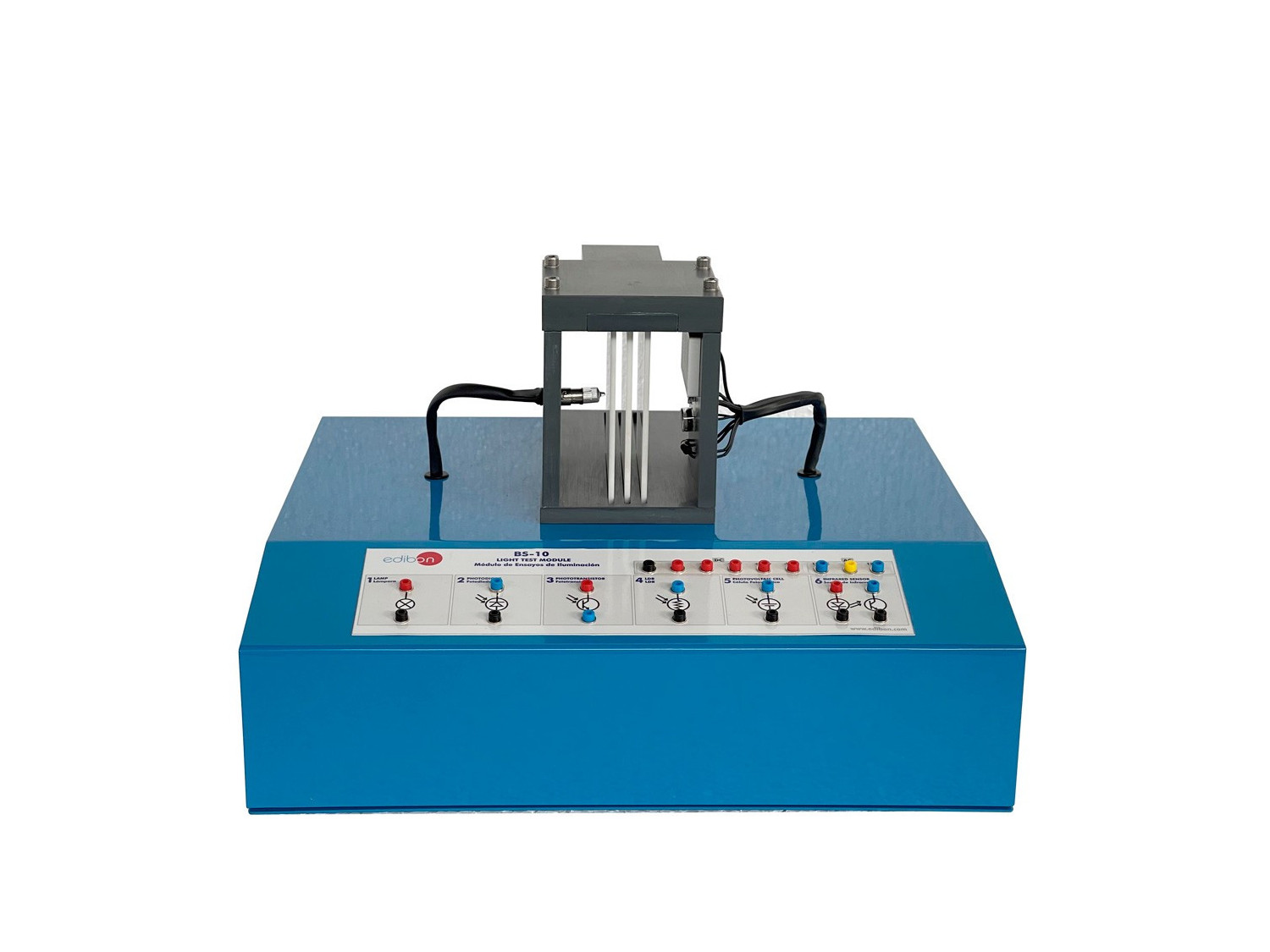

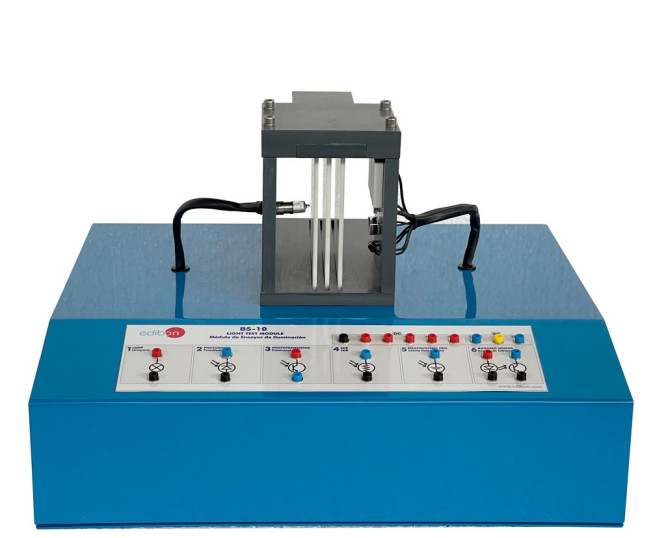

The objective of the Light Test Module, "BS10", is to show some of the techniques used to measure light or illumination intensity.

The module is equipped with a lamp whose light intensity can be controlled by the variation of the voltage supplied.

Included elements:

Lamp.
Photodiode.
Phototransistor.
Light Dependent Resistance (LDR).
Photovoltaic Cell.
Infrared emitter-receiver.

All the connections from the different transducers and the lamp are made using a group of 2 mm. terminals placed on the front panel of the test module with drawings describing their functions.

練習和指導練習

手册中包含的指导实践练习

Study of the equivalent electrical circuit of a photodiode. Studythe V-I characteristic of a photodiode.
Study of the normal operation mode of a photodiode. Study the"ON/OFF" operation (light switch) of a phototransistor.
Measurement of light intensity using a solar cell.
Study of the properties of light dependent resistors (LDR).
Study of the operation of IR sensors.
Study of a real application for controlling the light intensity usingPID control elements.
