LIGHT TEST MODULE FOR PLC - BS10-PLC

創新系統

The "BS10-PLC" has been designed to study different light measurement techniques and control light intensity through a PLC.

查看一般說明

相關新聞

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
阅读更多

一般說明

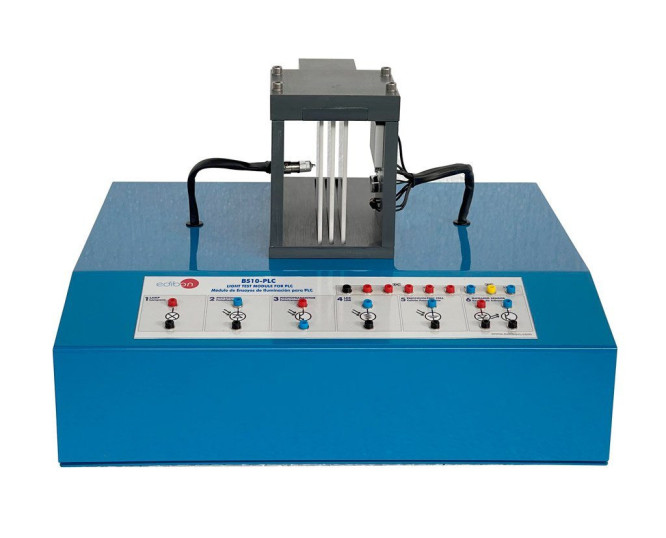

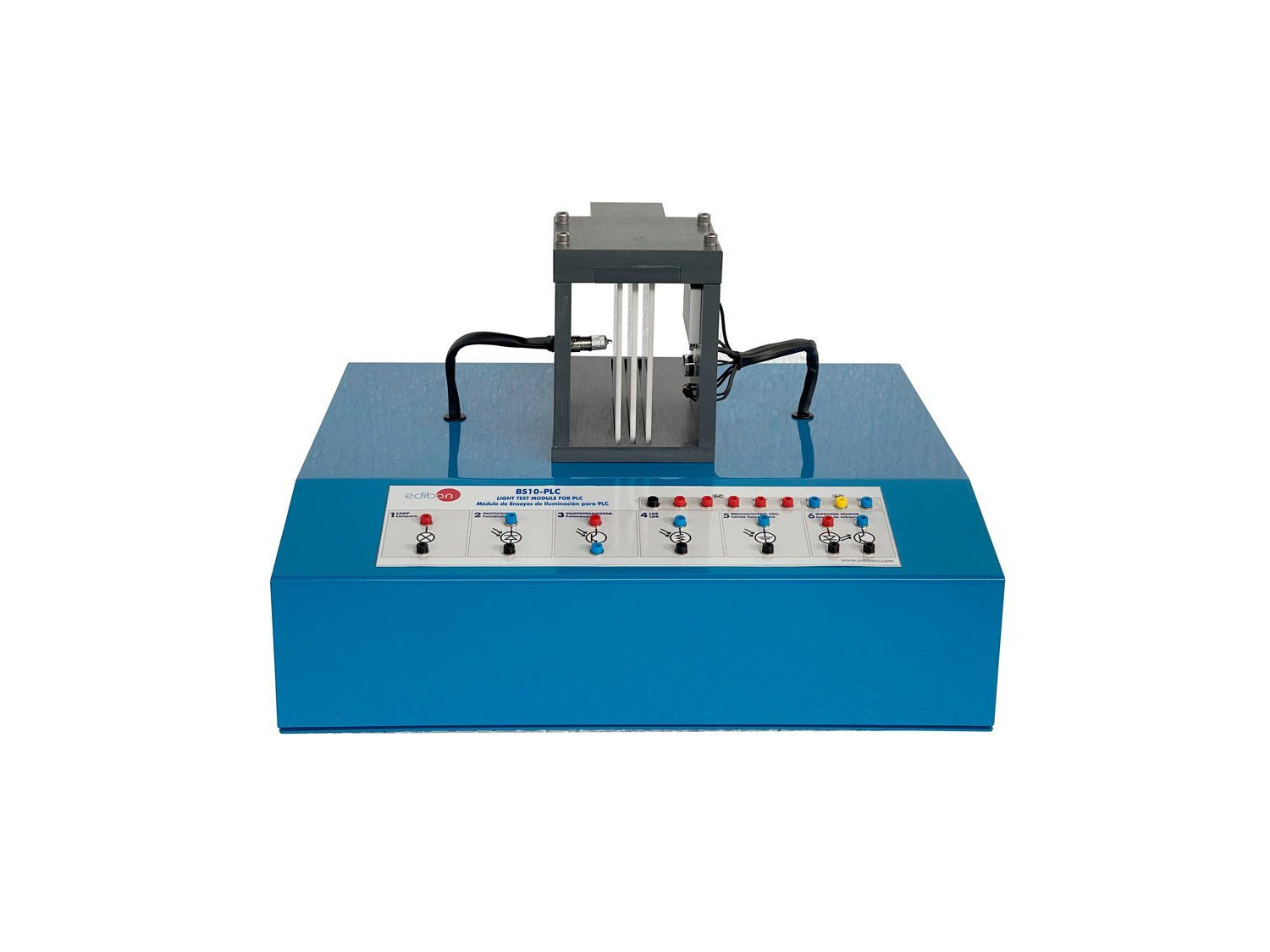

The "BS10-PLC" has been designed to study different light measurement techniques and control light intensity through a PLC. This unit is composed of a lamp whose intensity can be controlled according to the voltage applied and a series of transducers for the measurement of light intensity. One of the light sensor output signal is conditioned to be connected to the PLC. The light intensity can be controlled by a PLC managing the lamp light intensity, depending on the values obtained by a light sensor.

* Available PLC models of different manufacturers: PANASONIC, SIEMENS, OMRON, MITSUBISHI, ALLEN BRADLEY, etc.

練習和指導練習

手册中包含的指导实践练习

  1. Study of the equivalent electrical circuit of a photodiode. Study the V-I characteristic of a photodiode.
  2. Study of the normal operation mode of a photodiode. Study the "ON/OFF" operation (light switch) of a phototransistor.
  3. Measurement of light intensity using a solar cell.
  4. Study of the properties of light dependent resistors (LDR).
  5. Study of the operation of IR sensors.
  6. Using the analog inputs and outputs of the PLC to read and write analog signals.
  7. Read the light sensor signal with the PLC.
  8. Manual control of the actuator through the PLC.
  9. PID control of the light intensity value through the PLC.
  10. Observe the effects of the light intensity control to changes in the PID parameters.
