UNSTEADY STATE HEAT TRANSFER MODULE FOR TSTCC - TXC/EI

創新系統

TXC/EI. Unsteady State Heat Transfer Module for TSTCC: study of heat transfer in the non-stationary state Study of transient conduction with convection.

查看一般說明

比赛规格

扩展

交互式计算机辅助教学软件

故障模拟系统

PLC控制工业过程

带有HMI的本地/远程IIoT控制和监控

EDIBON软件开发工具包，由NI LabVIEW™提供支持

ECR

EDIBON的模块化工业系统与NI CompactRIO

ESN

EDIBON SCADA-Net

ECL

EDIBON 远程教育

化验室

11PTC

石油培训中心实验室

9TV

技术和职业教育的热力学和热力学实验室

9HE

高等教育热力学和热力学实验室

一般說明

TXC/EI. Unsteady State Heat Transfer Module for TSTCC: study of heat transfer in the non-stationary state Study of transient conduction with convection.

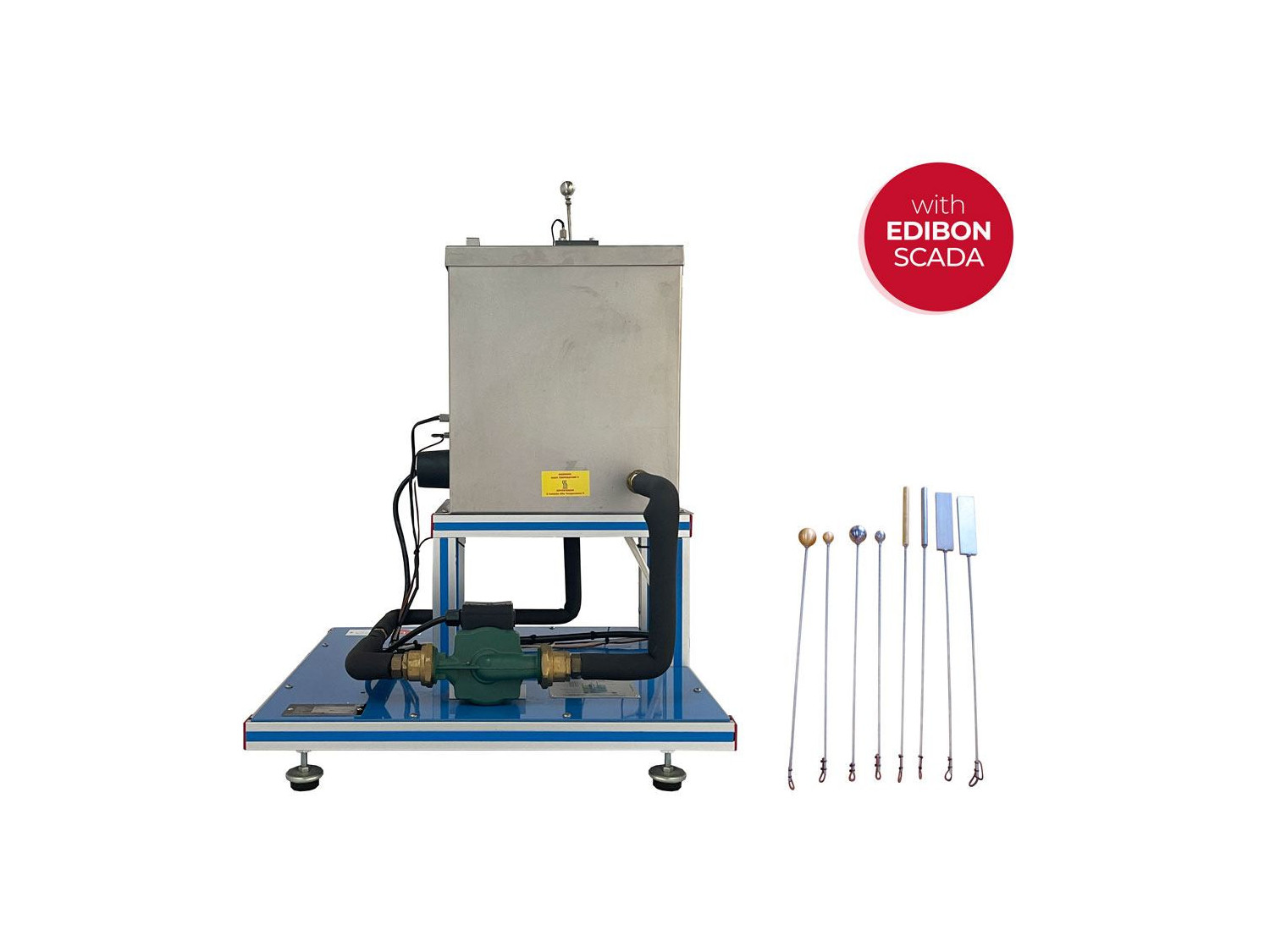

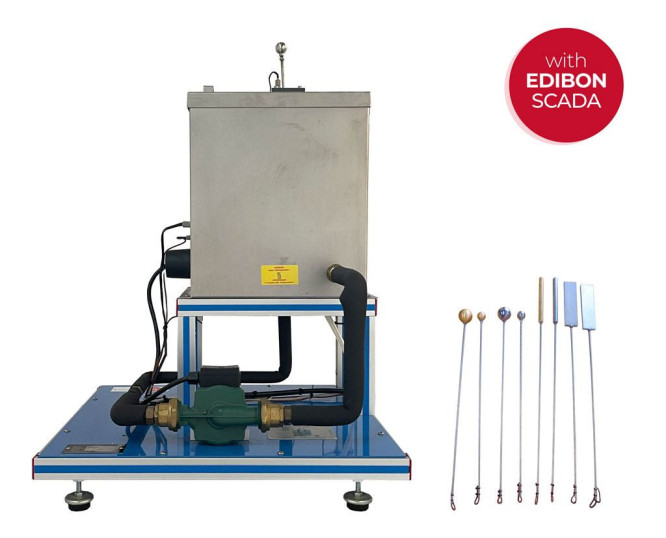

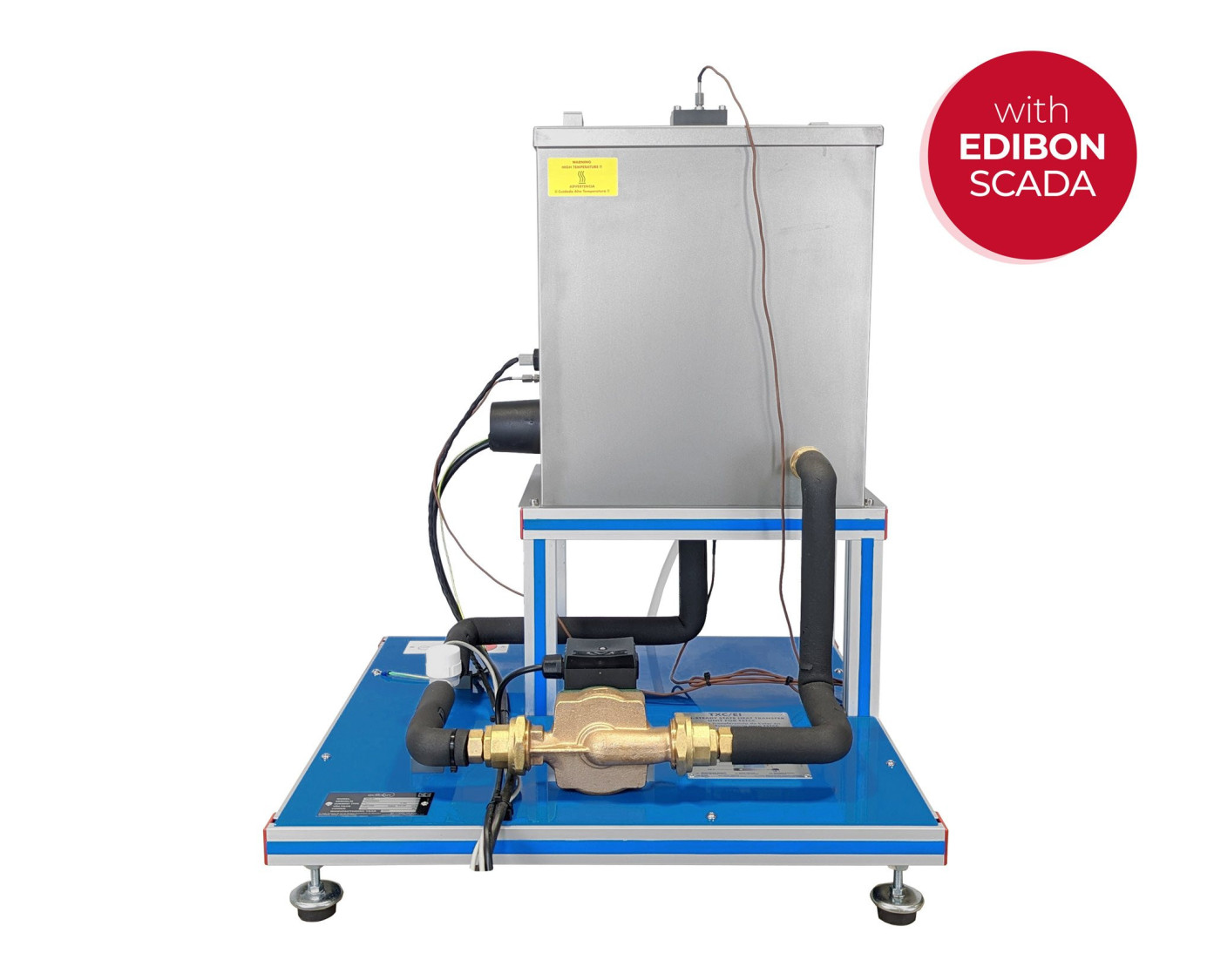

Bench-top unit designed to allow practices and exercises to be performed in unsteady state heat transfer.

It studies the transient conduction with convection. Using different shapes (rectangular slabs, spheres and cylinders) of different materials, the temperature of other shapes and materials can be predicted.

練習和指導練習

手册中包含的指导实践练习

Predicting temperature at the center of a cylinder using transient conduction with convection.
Predicting the conductivity of a similar shape constructed from a different material.
Conductivity and temperature dependence on volume.
Conductivity and temperature dependence on surrounding temperature T∞.
Sensors calibration.

所需物品

TSTCC/CIB
