AEL-PHVG 并网光伏电力系统应用

5.3.1.- 光伏太阳能
PHOTOVOLTAIC APPLICATION WITH CONNECTION TO GRID - AEL-PHVG

創新系統

The Photovoltaic Application with Connection to Grid, "AEL-PHVG", has been designed by EDIBON to study the energy production by photovoltaic panels and how this energy is injected to the grid.

查看一般說明

扩展

ICAI

交互式计算机辅助教学软件

相關新聞

Laboratory supported by Official College of Technical Industrial Engineers (Spain)
Laboratory supported by Official College of Technical Industrial Engineers (Spain)
At EDIBON, we reaffirm our commitment to the advancement of clean and renewable energy, with a special focus on green hydrogen as a key driver for a more sustainable future. We are proud to have been selected to equip the first Green Hydrogen Laboratory in the Region of Murcia, a pioneering space...
阅读更多
Recycling and energy storage systems
Recycling and energy storage systems
The shift towards electric vehicles (EVs) has gained considerable momentum worldwide, promising a reduction in greenhouse gas emissions and a path to a more sustainable future. However, as the demand for EVs accelerates, so too does the need for large quantities of essential minerals, such as...
阅读更多
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
阅读更多
What is the Green Hydrogen?
What is the Green Hydrogen?
Green hydrogen, also called renewable hydrogen, is hydrogen obtained by using renewable energies in its production. Hydrogen is not a primary energy source but an energy carrier, it requires a chemical process for its production. Green hydrogen is...
阅读更多

一般說明

The Photovoltaic Application with Connection to Grid, "AEL-PHVG", has been designed by EDIBON to study the energy production by photovoltaic panels and how this energy is injected to the grid.

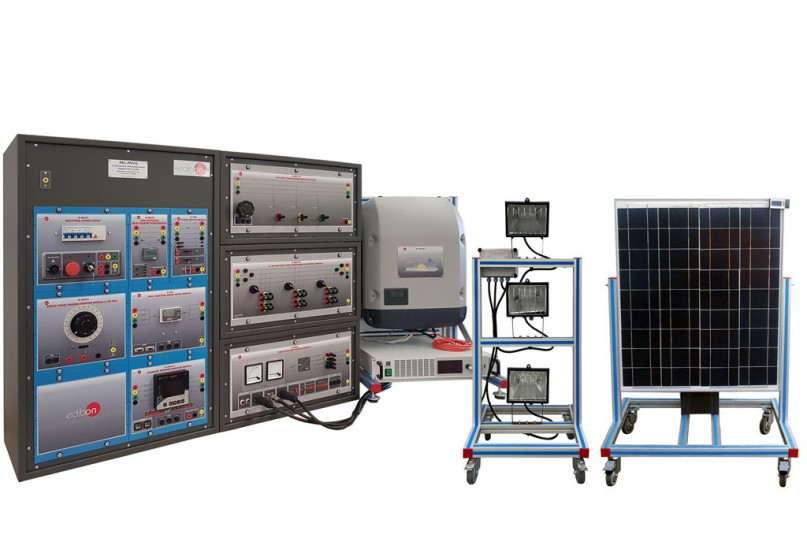

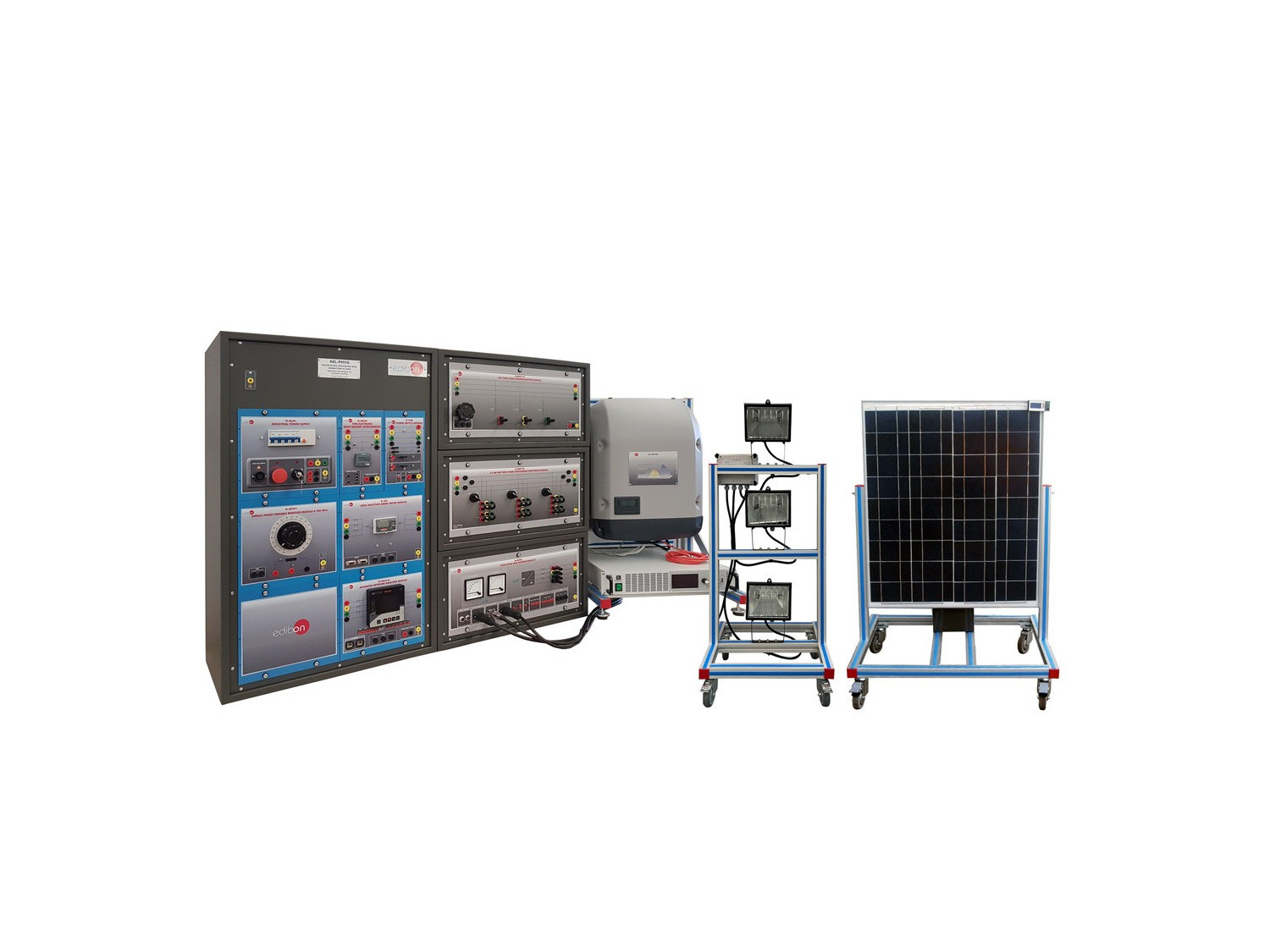

In order to learn about solar energy production, the AEL-PHVG includes a programmable power supply which emulates an array of photovoltaic panels connected to the three-phase grid inverter. The grid inverter can be programmed by the user to create different conditions in the management of the energy of the photovoltaic panels. Besides, this inverter allows realice a dynamic power control with energy injected into the grid and, for this reason, this application is compatible with any EDIBON´s Smart Grid application. On the other hand, it is recommended to acquire the real photovoltaic panel and movile halogen lamps panel in order to study the photovoltaic panel characteristics. The movile lamps panel includes a current regulator to simulate solar radiance variations. It is recommended to acquire the variable resistor module and the multimeters to realice load test in the photovoltaic panel.

This application can work together other power generation sources to study the energy mix, their advantages and problems developed when alternate sources are interconnected into a power system.

This application can be combined with other applications of generation, transmission/distribution and load systems areas.

練習和指導練習

手册中包含的指导实践练习

  1. Measurement and calculation of the active power consumed by a three-phase variable resistive load.
  2. Measurement and calculation of the total power consumed by a three-phase R-L load.
  3. Configuration of the programmable power supply as PV Array.
  4. Maximum production of photovoltaic power with grid injection through the grid inverter.
  5. Maximum production of photovoltaic power with grid injection and local energy consumption.
  6. Dynamic control of active power with the photovoltaic inverter. Zero injection control.
  7. Dynamic control of active power with the photovoltaic inverter. Grid injection control.

Some practical exercises with the recommended additional elements:

  1. Experimental calculation of I-V curve of a photovoltaic panel.
  2. Variation of solar radiation with the halogen lamps panel.
  3. Measurement of I-V characteristics.

与该单位进行更多实际操作

  1. Several other exercises can be done and designed by the user.
