SCSP 压力传感器校准系统

2.4.1.- 仪表与控制仪表与控制 8.2.- 度量衡 14.2.2.- 仪表与控制

創新系統

The Pressure Sensors Calibration System, "SCSP", is a unit with a very simple operation that allows to carry out different experiments which require measuring the pressure accurately, being it negative or positive..

查看一般說明

比赛规格

扩展

ICAI

交互式计算机辅助教学软件

化验室

2TV

技术和职业教育电子实验室

2HE

高等教育电子实验室

11PTC

石油培训中心实验室

一般說明

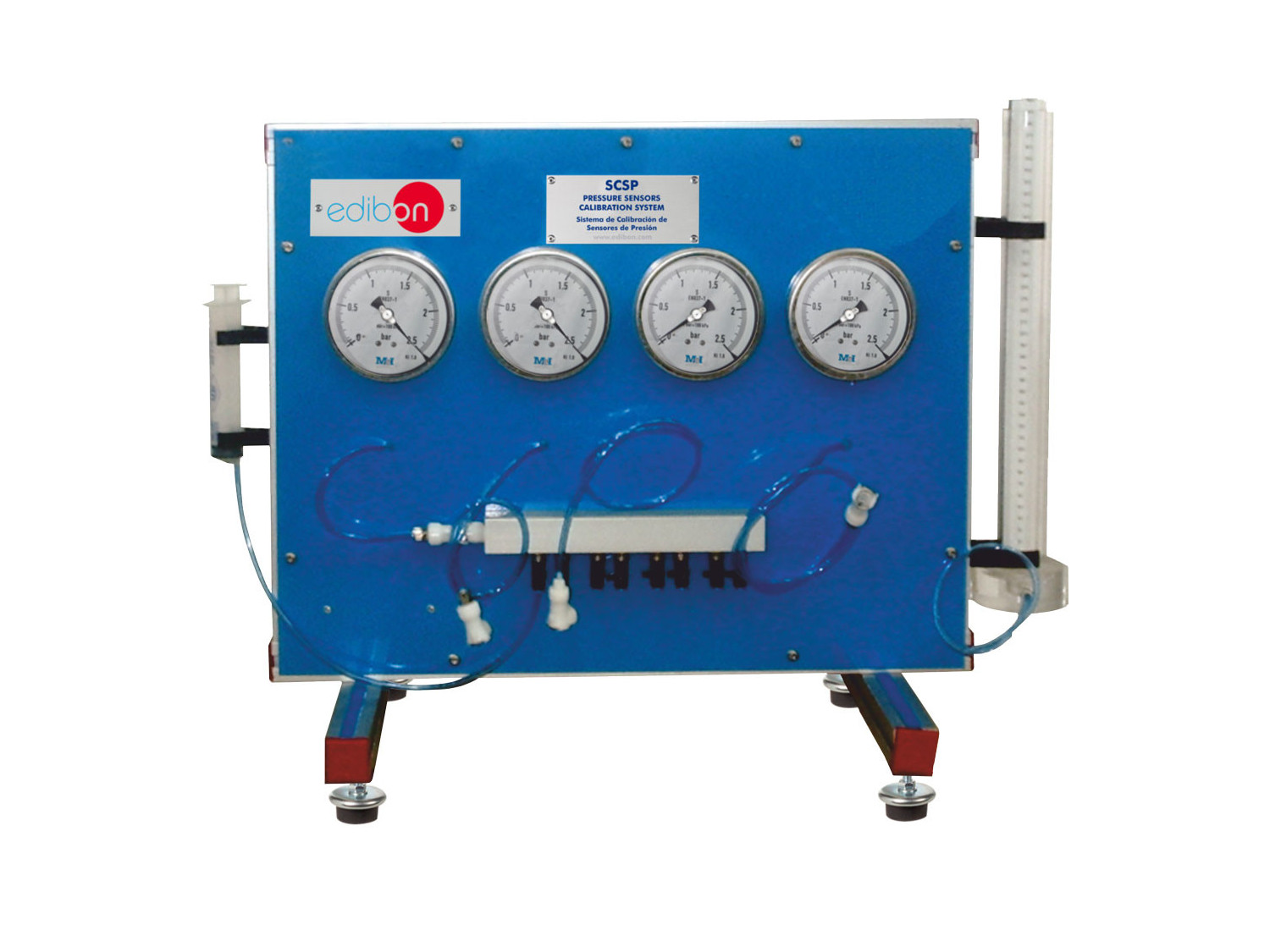

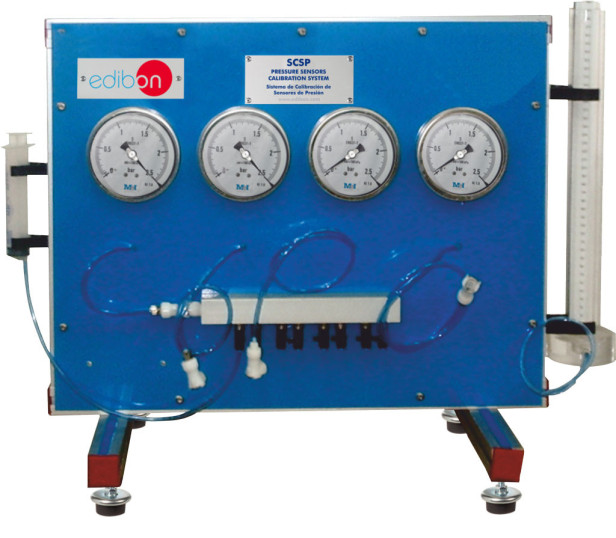

The Pressure Sensors Calibration System, "SCSP", is mainly composed of two pressure manometers on one hand, one measuring up to 1000 millimeters of water or 100 millibars and the other one measuring up to 2.5 bars and on the other hand, two vacuum gages or negative pressure manometers measuring up to 100 and 1000 millibars.

Furthermore, it includes a graduated cylinder which is used to measure water pressure in millimeters, and at the same time it allows to check the correct calibration of the unit’s manometers.

Finally, there is a syringe on the other side to both inject pressure and create vacuum.

練習和指導練習

手册中包含的指导实践练习

Pressure measurements with a pressure gauge.
Pressure measurements with a vacuum gauge.
Pressure measurements in water column.
Calibration of pressure gauges.
