FME21 径向式水轮机

8.1.7.- 液压机: 涡轮机

Complete FME21 Unit

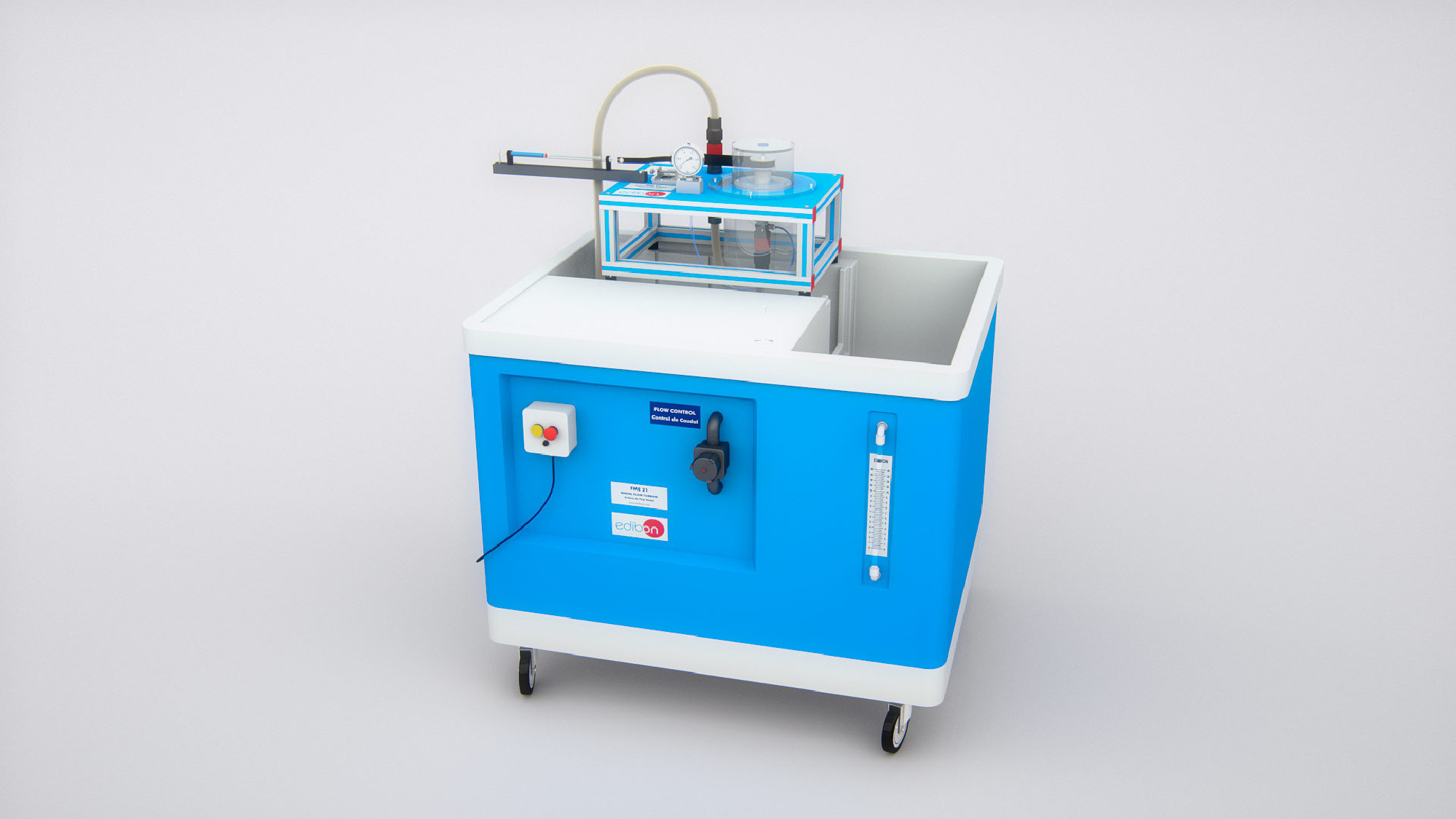

FME21 Unit with service unit FME00

創新系統

The Radial Flow Turbine unit, "FME21", designed by EDIBON, allows the study of a turbomachine, specifically radial turbines capable of handling slower flow levels than other turbine models.

查看一般說明

比赛规格

扩展

ICAI

交互式计算机辅助教学软件

MSAC

模块化采集与控制系统

化验室

8TV

技术和职业教育流体力学实验室。

8HE

高等教育流体力学实验室

11PTC

石油培训中心实验室

一般說明

The Radial Flow Turbine unit, "FME21", designed by EDIBON, allows the study of a turbomachine, specifically radial turbines capable of handling slower flow levels than other turbine models.

This unit consist of a miniature Radial Turbine with two nozzles at 180° with respect to the perpendicular direction at the rotating axis. A Bourdon type manometer is placed at the inlet nozzle.

A band brake connected to a dynamometer allows to control the load given to the turbine.

A tachometer determines the velocity measurement.

練習和指導練習

手册中包含的指导实践练习

Flow calculation.
Obtaining of the M (n, Ha), N(n, Ha), h (n, Ha) curves.
Obtaining of the M (n, Q), Nm (n, Q), h (n, Q) curves.
Adimensionalization.

所需物品

可用的类似设备

COMPUTER CONTROLLED RADIAL FLOW TURBINE - TFRC

TFRC

Available

5.3.6.- 液压能源

TFRC

径流涡轮机，电脑控制（PC）

The Computer Controlled Radial Flow Turbine, "TFRC", consists of a small-scale radial flow turbine with two nozzles at 90 degrees to the perpendicular direction of the axis of rotation.In order to raise the fluid, it has a computer controlled pump...
