FME12 串/并联泵

8.1.6.- 液压机: 泵
SERIES/PARALLEL PUMPS - FME12

創新系統

The Series/Parallel Pumps unit, "FME12", designed by EDIBON, allows the study of the coupling between two series/parallel centrifugal pumps, obtaining the characteristic curves as well as the calculation of the water flow rate.

查看一般說明

扩展

ICAI

交互式计算机辅助教学软件
MSAC

模块化采集与控制系统

化验室

8TV
 技术和职业教育流体力学实验室。
8HE
 高等教育流体力学实验室
11PTC
 石油培训中心实验室

相關新聞

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
阅读更多
Setting up at Faculté des Sciences at the Université d’Etat d’Haiti
Setting up at Faculté des Sciences at the Université d’Etat d’Haiti
We want to present our new installation in the Faculté des Sciences at the Université d’Etat d’Haiti, specifically in the Fluid Mechanics Department. There, we have installed many of our equipment, among which are: AFT, CF80/5 (with CFAS, CFFS, CFPLR, CFPR, CFRM, CFSDL, CFTP, CFTS, CFVD, CFVEN,...
阅读更多
NEW Fluid Mechanics Course
NEW Fluid Mechanics Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.
阅读更多

一般說明

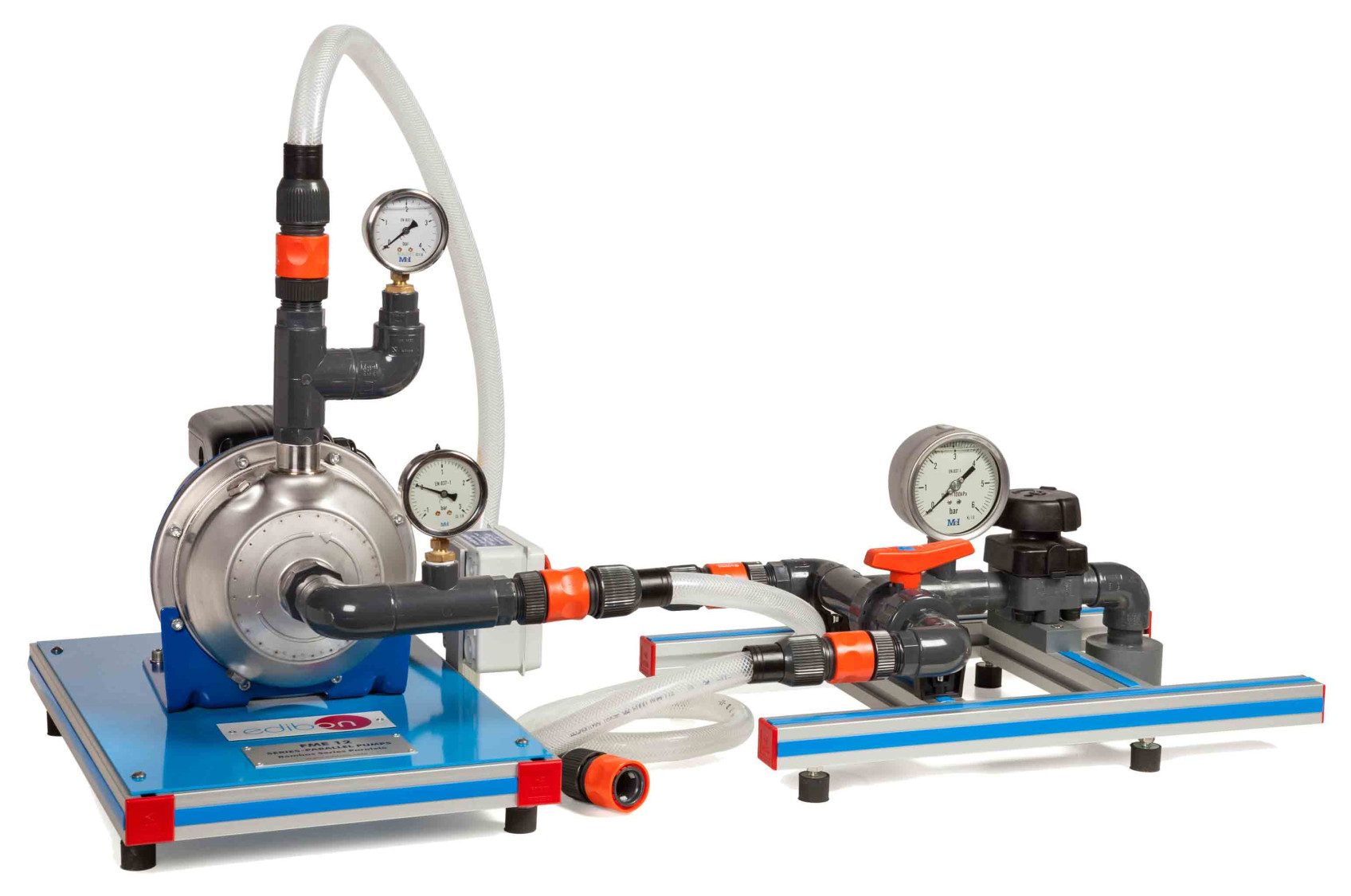

The Series/Parallel Pumps unit, "FME12", designed by EDIBON, allows the study of the coupling between two series/parallel centrifugal pumps, obtaining the characteristic curves as well as the calculation of the water flow rate.

The unit consists of a pump of similar characteristics to the one in the Hydraulics Bench (FME00) or the Basic Hydraulic Feed System (FME00/B).

This unit has three Bourdon-type manometers: two of manometric pressure and one of absolute pressure. The absolute pressure manometer has been placed at the pump input, the other two at the discharge and at the discharge accessory supplied with the unit.

The accessory has a flow-regulating valve. Moreover, for the parallel connection, a Y-shape accessory is supplied with two ball-valves. This accessory is connected to both pumps and to the discharge device.

The unit includes an easy connection system for the installation of pumps in series and in parallel.

練習和指導練習

手册中包含的指导实践练习

  1. Water flow calculation.
  2. H (Q) curve obtaining of a centrifugal pump.
  3. Series coupling of two pumps with the same characteristics.
  4. Parallel coupling of two pumps with the same characteristics.
